Wobble Anchor

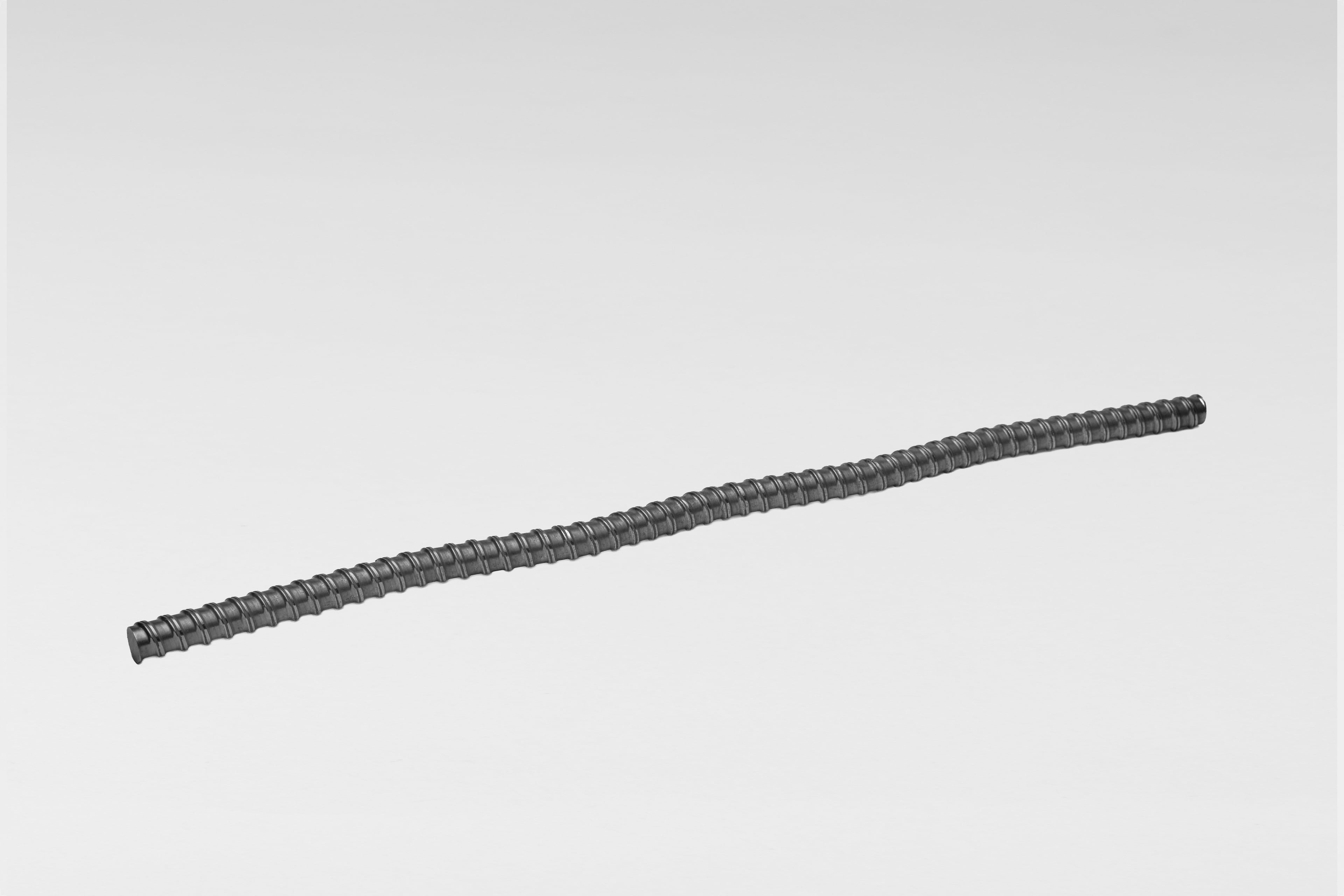

5. - 15 FS 2080

This is a short concrete anchor with a unique wavy (wobble) shape that provides strong bond and bracing in concrete.

The Benefits:

Very short embedment length thanks to the special wavy shape — strong bond with minimal depth
Fast and simple installation as a bracing anchor in concrete
Good bond behavior for reliable fixing in formwork and reinforcement applications

For bracings in concrete. The anchor length is very short thanks to the favorable bond behavior of the threadbar and the special wave form.

Article No.	Bar Ø [mm]	Length [mm]	Weight [kg/no.]
15 FS 2080	15	550	0.90
15 FA 2080	15	550	0.86
20 FS 2080	20	700	1.95
20 FA 2080	20	700	1.88
26 ES 2080	26.5	800	3.88
26 FA 2080	26.5	800	3.79

Safety Instructions

Appropriate use of form ties and accessories is necessary to prevent accidents and failure. All products are intented to be used by qualified and experienced workmen. It is the user's responsibility to continually inspect working hardware for wear and to discard worn parts. Improper use of the DYWIDAG Form Ties can expose workers to extreme danger that may result in severe injury or death.
