Plate Anchor
Plate Anchor

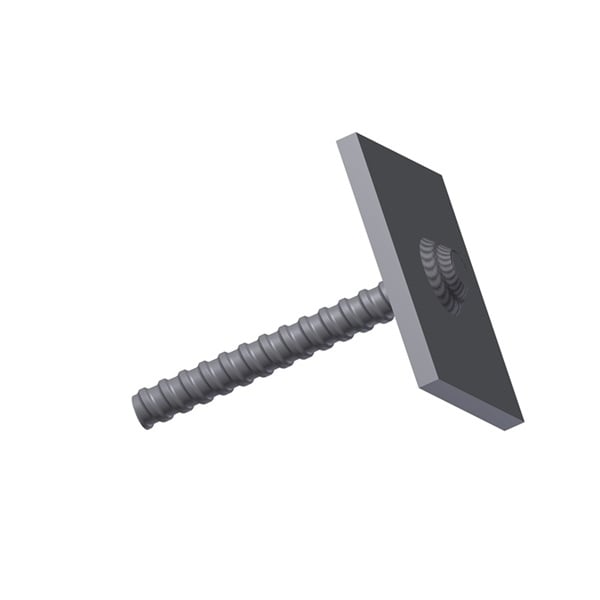

This is a flat plate anchor designed to secure reinforcing elements and evenly distribute loads in concrete structures.
The Benefits:
Wide plate surface for good load distribution
Strong and reliable anchoring in concrete
Easy and quick installation on site
Suitable for formwork and reinforcement applications
Article No. | Bar Ø [mm] | Plate Size [mm] | Gl/Vl [mm] | Weight [kg/no.] |
|---|---|---|---|---|
15 FA 3058 | 15 | 120 x 100 x 10 | 160/140 | 1.20 |
15 FA 3058/400 | 15 | 120 x 100 x 10 | 400/380 | 1.64 |
15 FS 3058 | 15 | 120 x 100 x 10 | 160/140 | 1.29 |
20 FS 3058 | 20 | 120 x 100 x 10 | 480/400 | 2.6 |
20 FA 3058 | 20 | 120 x 100 x 10 | 480/400 | 2.56 |
Installation with cones.
Safety Instructions
Appropriate use of form ties and accessories is necessary to prevent accidents and failure. All products are intented to be used by qualified and experienced workmen. It is the user's responsibility to continually inspect working hardware for wear and to discard worn parts. Improper use of the DYWIDAG Form Ties can expose workers to extreme danger that may result in severe injury or death.
