Loop Anchor
Loop Anchor

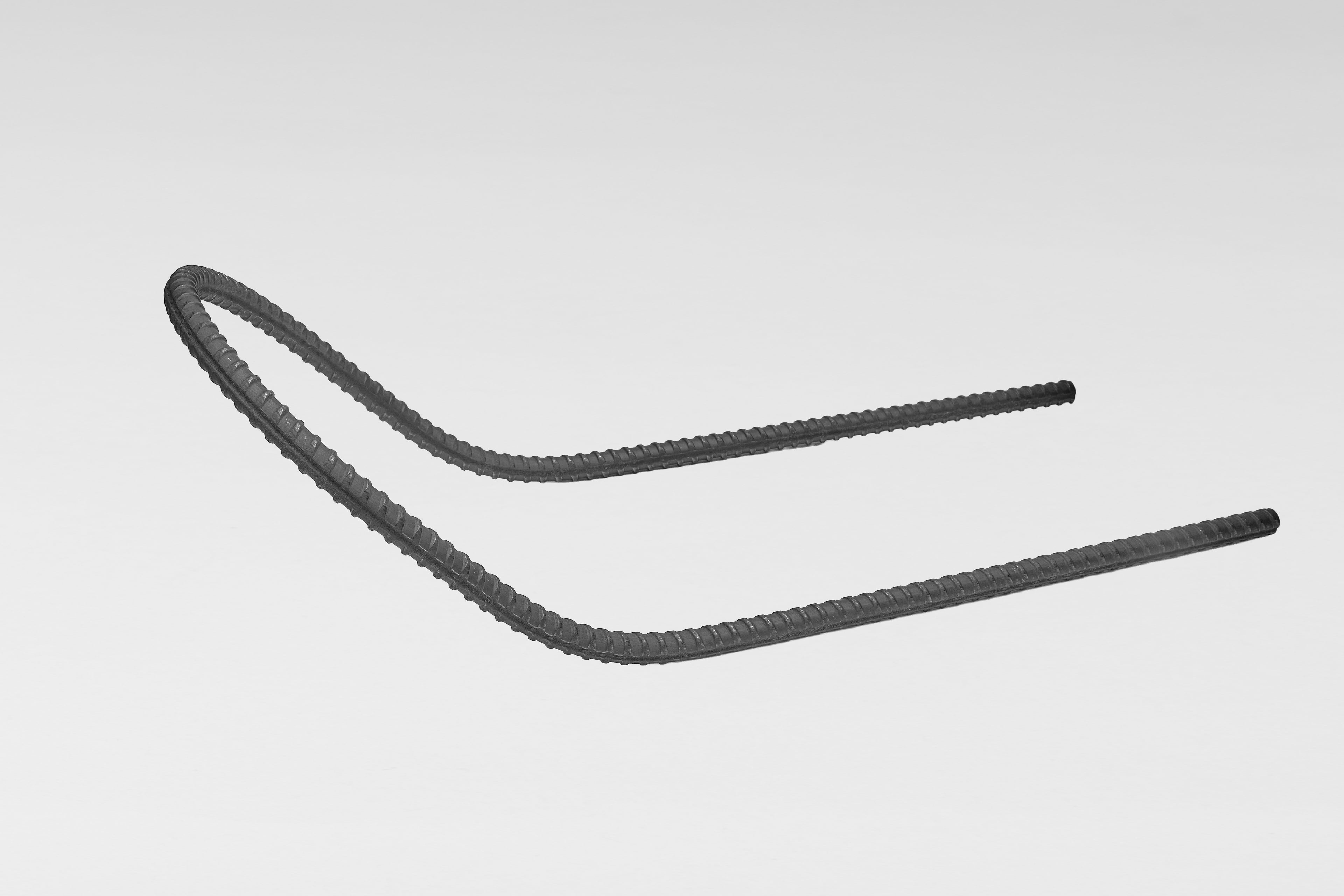

This is a loop‑shaped concrete anchor designed for strong and reliable fixing in reinforced concrete.
The Benefits:
Loop shape provides secure mechanical anchorage in concrete
Easy and quick installation on site
Good load transfer with reliable performance in reinforcement and formwork applications
Loop Anchors are embedded in concrete for anchoring single-sided shuttering, climbing formwork and for other applications.
Article No. | Bar Ø [mm] | Length [mm] | Width [mm] | Weight [kg/no.] |
|---|---|---|---|---|
15 FS 3076 | 15 | 550 | 230 | 2.25 |
15 FA 3076 | 15 | 550 | 230 | 2.16 |
20 FS 3076 | 20 | 600 | 300 | 4.19 |
20 FA 3076 | 20 | 600 | 300 | 4.04 |
26 ES 3076 | 26.5 | 800 | 400 | 9.71 |
For anchoring brace frames at an angle of 45°
Safety Instructions
Appropriate use of form ties and accessories is necessary to prevent accidents and failure. All products are intented to be used by qualified and experienced workmen. It is the user's responsibility to continually inspect working hardware for wear and to discard worn parts. Improper use of the DYWIDAG Form Ties can expose workers to extreme danger that may result in severe injury or death.
