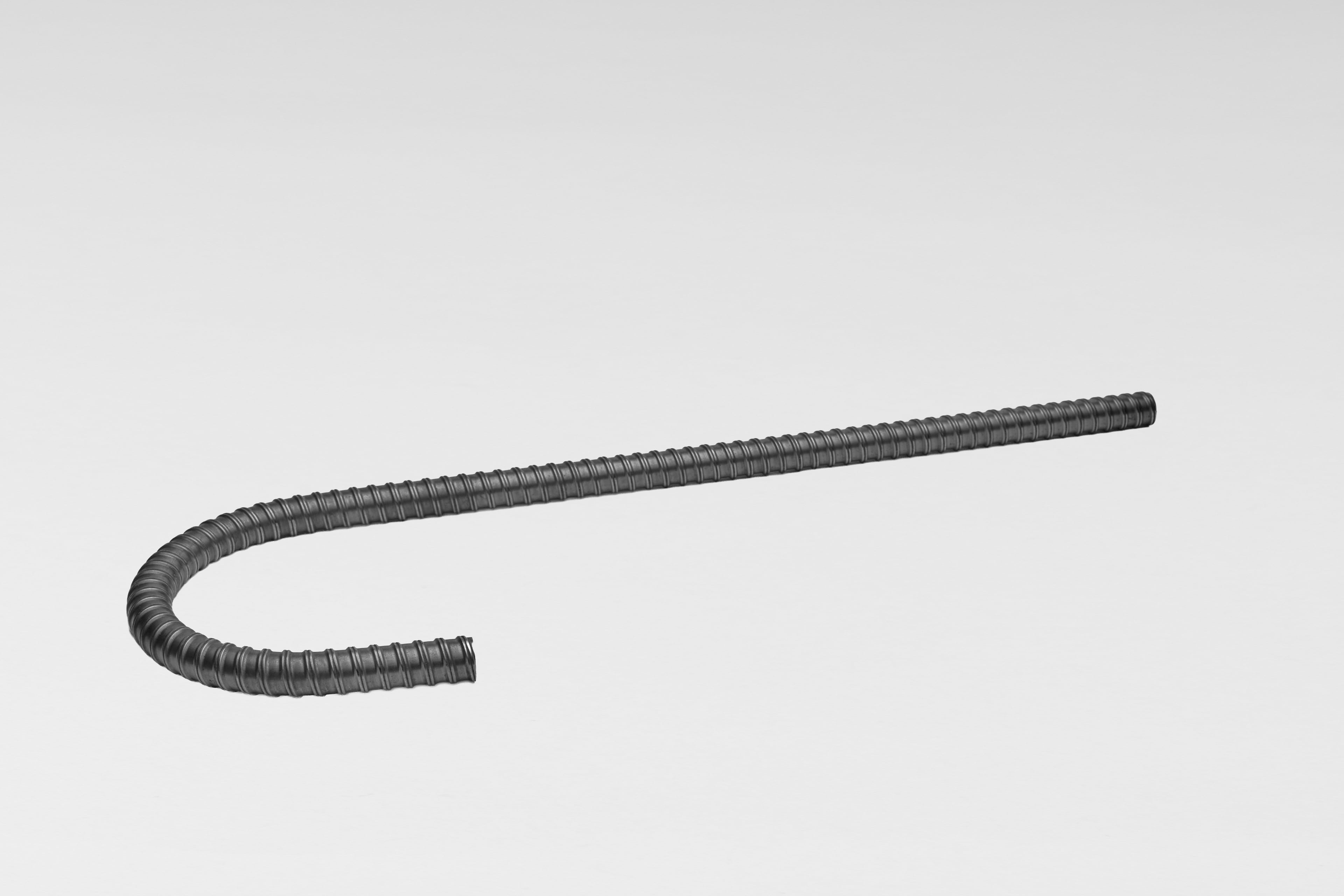

Hook Anchor
Hook Anchors are used for anchoring single-sided shuttering, climbing formwork etc.
Article No. | Bar Ø [mm] | Length [mm] | Hook Ø [mm] | Weight [kg/no.] |
|---|---|---|---|---|
15 FS 3047/250 | 15 | 250 | 100 | 0.75 |
15 FA 3047/250 | 15 | 250 | 100 | 0.72 |
15 FS 3047/450 | 15 | 450 | 150 | 1.05 |
15 FA 3047/450 | 15 | 450 | 200 | 1.01 |
20 FS 3047600 | 20 | 600 | 100 | 2.24 |
20 FA 3047/600 | 20 | 600 | 100 | 2.16 |
26 ES 3047/800 | 26.5 | 800 | 150 | 5.47 |
26 FA 3047/800 | 26.5 | 800 | 200 | 5.35 |
Safety Instructions
Appropriate use of form ties and accessories is necessary to prevent accidents and failure. All products are intented to be used by qualified and experienced workmen. It is the user's responsibility to continually inspect working hardware for wear and to discard worn parts. Improper use of the DYWIDAG Form Ties can expose workers to extreme danger that may result in severe injury or death.
