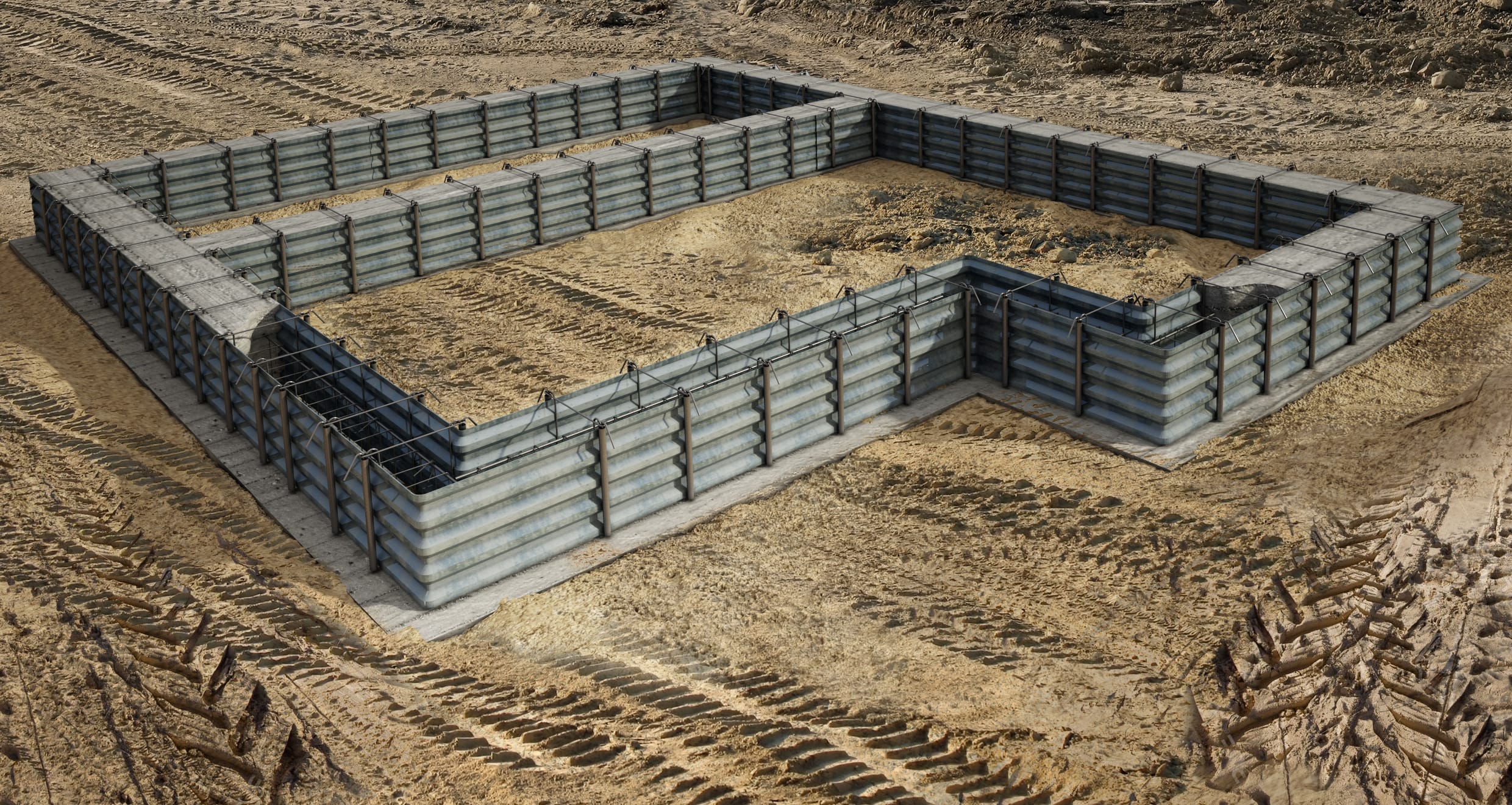

RECOSTAL^® Foundation Formwork

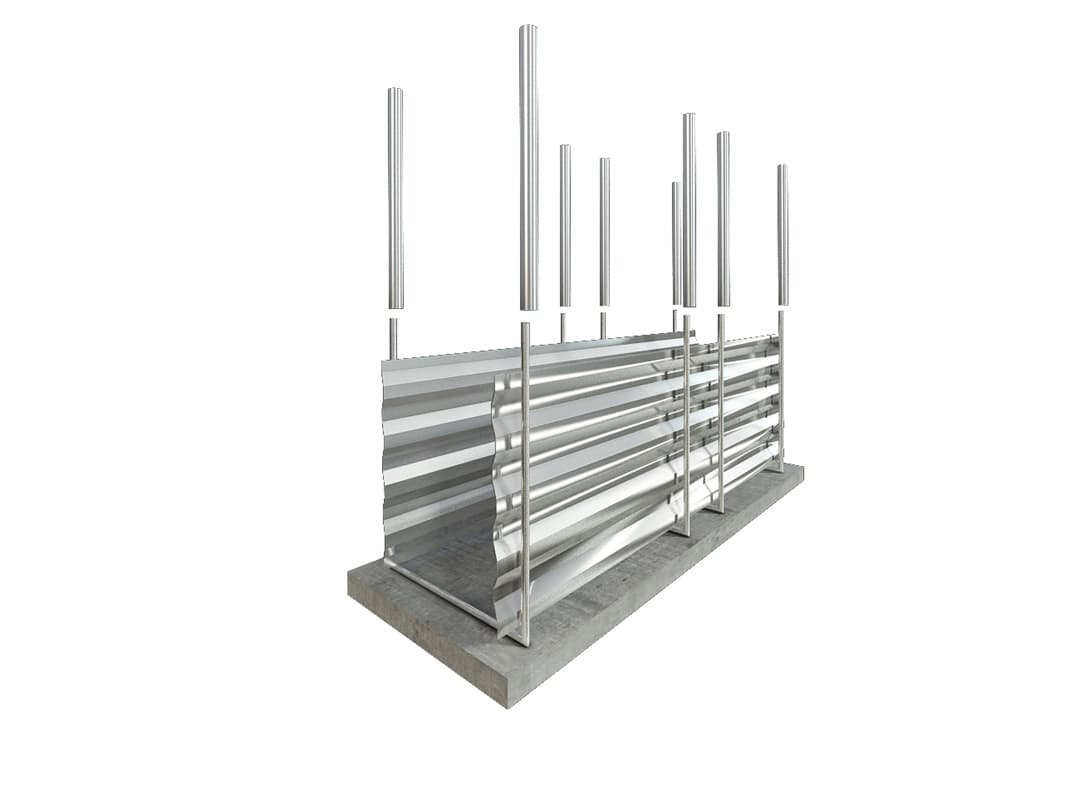

RECOSTAL® Foundation Formwork is a complete assembly system with key profiled shuttering units. The accessories support the system and enable the unobstructed installation of the reinforcement. The formwork is self-supporting up to a height of H = 1.0 m. The distance of the accessories is always ≤1.0 m. The tube diameter varies depend on the height of foundations. There are three types of RECOSTAL® Foundation Formwork: ES, FS, ET.

The Benefits:

Fully self-supporting up to 100 cm
Highly time-efficient
No separate concrete pour
Fast installation without crane
No relocation of formwork
Stable structure
Free foundation formwork layout plan, installation diagram and training

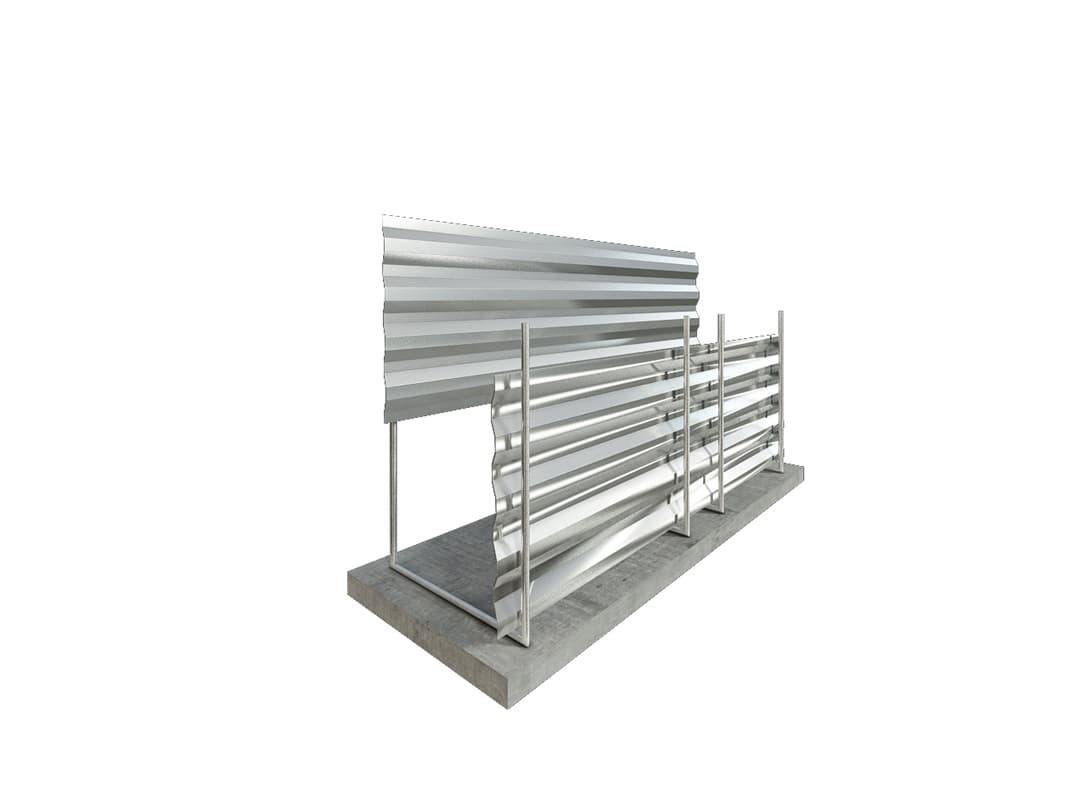

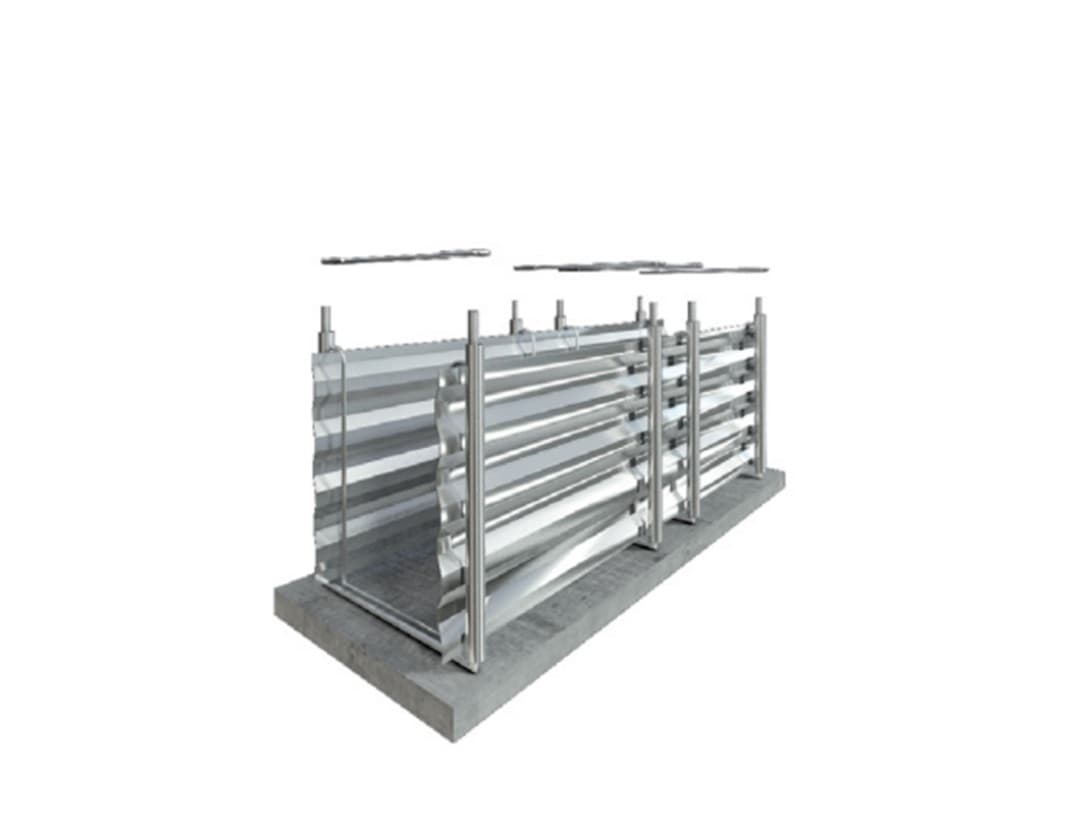

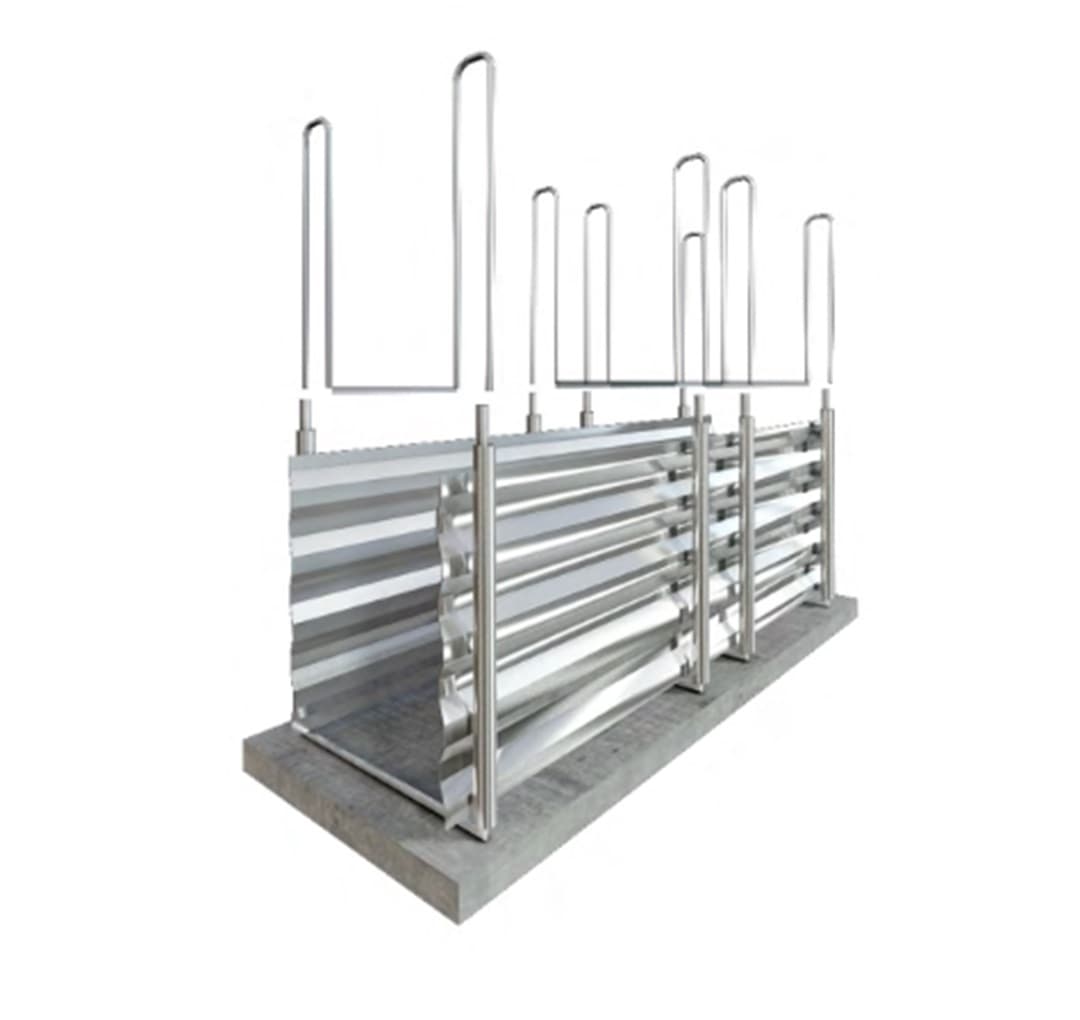

Self-supporting foundation formwork type FS and ES as complete assembly system with trapezoidal profiled formwork units. All parts are precisionmade and pre-fabricated according to the layout plan. Due to the form ties and formbraces (accessories) provided with the formwork units, the system is self-supporting up to a formwork height of H = 1.0 m. Foundation formwork type ET as an assembly system with trapezoidal profiled formwork units. All parts are precision-made and pre-fabricated according to the layout plan. Overlaps are fixed with hexagon head screws, which are included in the delivery. In order to withstand concrete pressure, the units are supported on site by placing backfill material.

Our service:

project of shoring foundations or the isolated footings with RECOSTAL^®Foundation Formwork
a project of installation RECOSTAL^®Foundation Formwork with a detailed scheme of installation all of the elements
training and supervisory with installation RECOSTAL^®Foundation Formwork

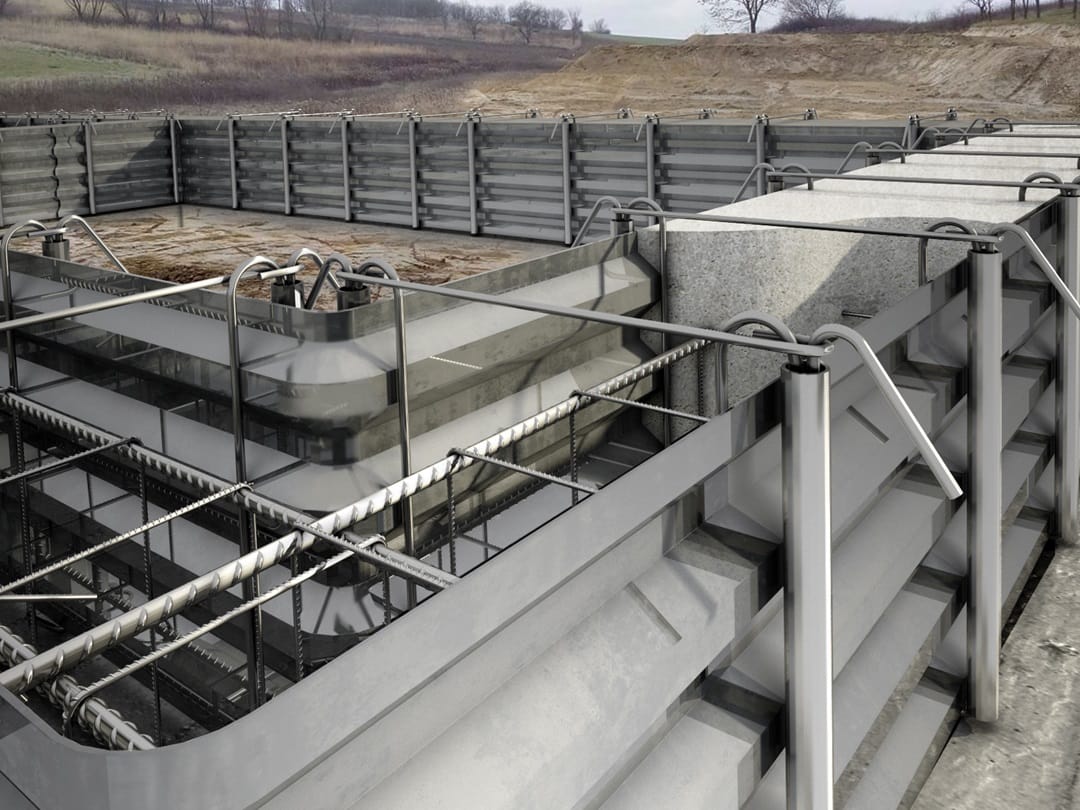

Type FS

Length of the formwork units [m]	Formwork height [m]	Formwork width [m]
L= 2.25 and 3.1	H= 0.25 to 1.25 (greater heights on request)	B=0.2 to 1.2 (greater widths as type ES)

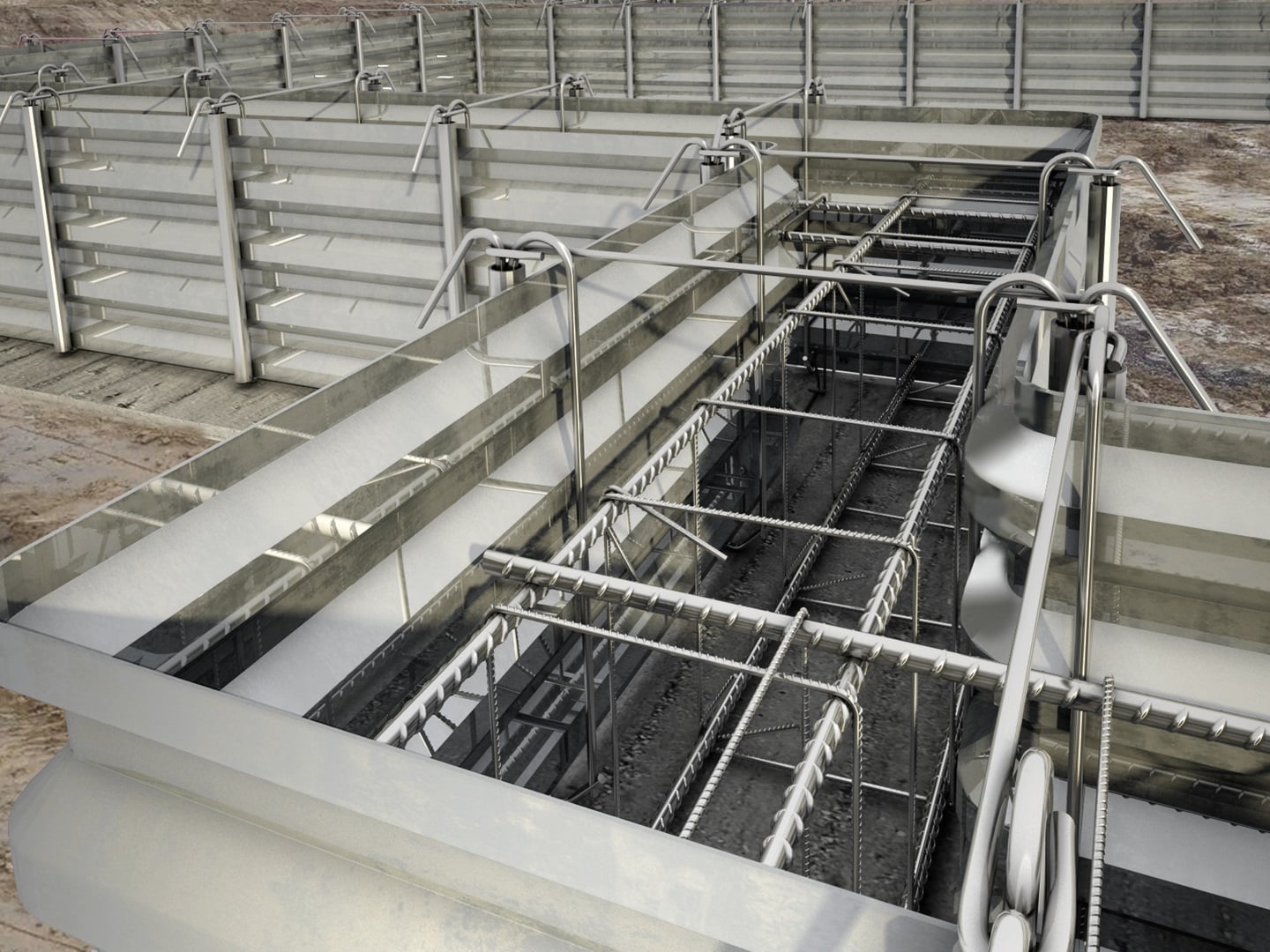

Type ES

Length of the formwork units [m]	Formwork height [m]	Formwork width [m]
L=2.25 and 3.1	H= 0.25 to 1.25 (greater heights on request)	B > 1.20 m

Foundation formwork type ET as an assembly system with trapezoidal profiled formwork units. All parts are precision-made and pre-fabricated according to the layout plan. Overlaps are fixed with hexagon head screws, which are included in the delivery. In order to withstand concrete pressure, the units are supported on site by placing backfill material.
