RECOSTAL® Speed Edge

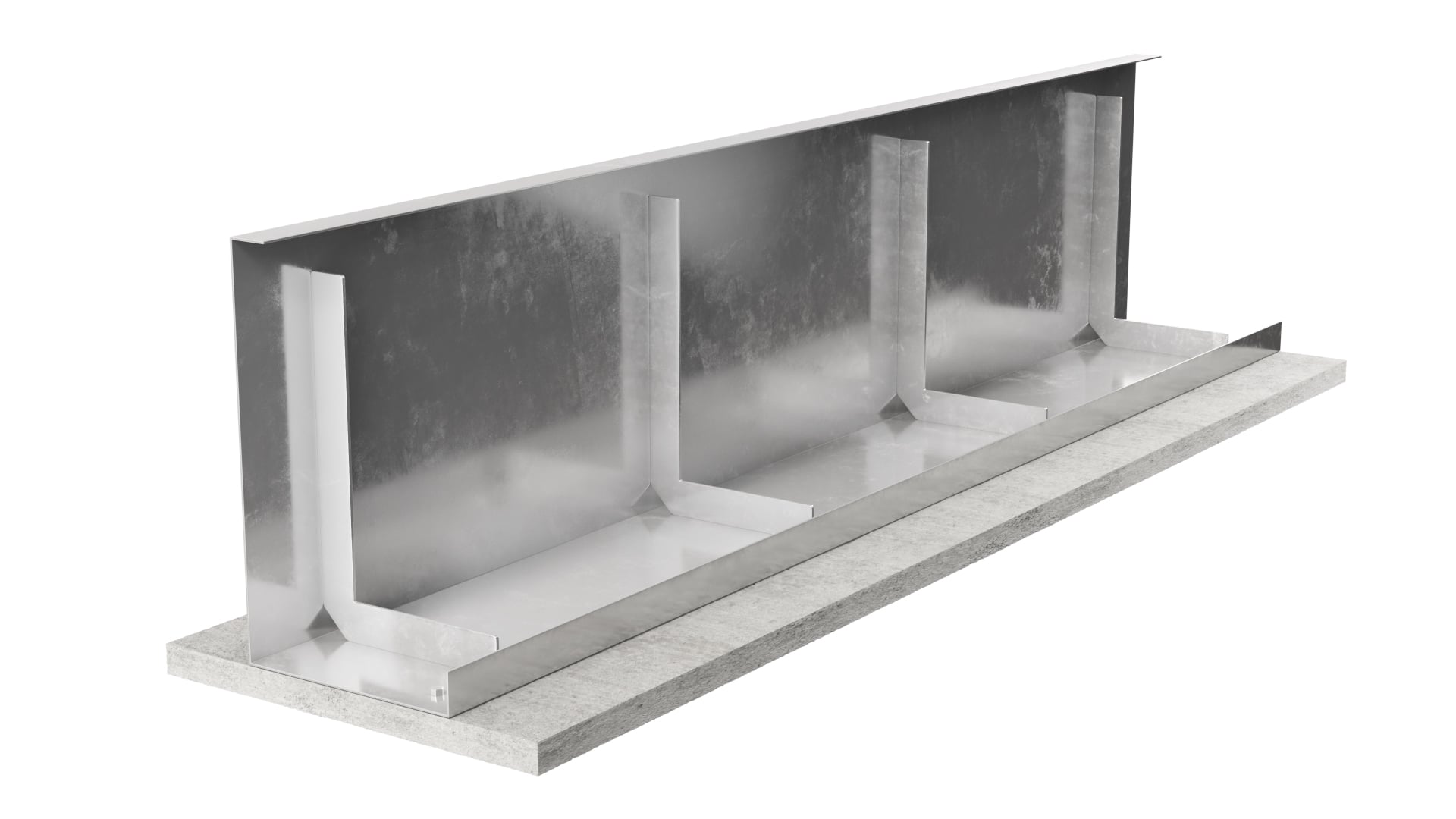

RECOSTAL® Speed Edge Formwork is an innovative solution made of galvanised steel sheets used for base slabs and floor slabs. It is available in standard lengths of 2.25 m and in heights of 14 cm to 50 cm.
Benefits:
Installation of 1 m of RECOSTAL® Speed Edge is 6 times faster than the traditional method
Fully self-supporting up to 50 cm
Cost saving due to less excavation and quick assembly
Fast installation
Lightweight construction
Corners simply bent into shape

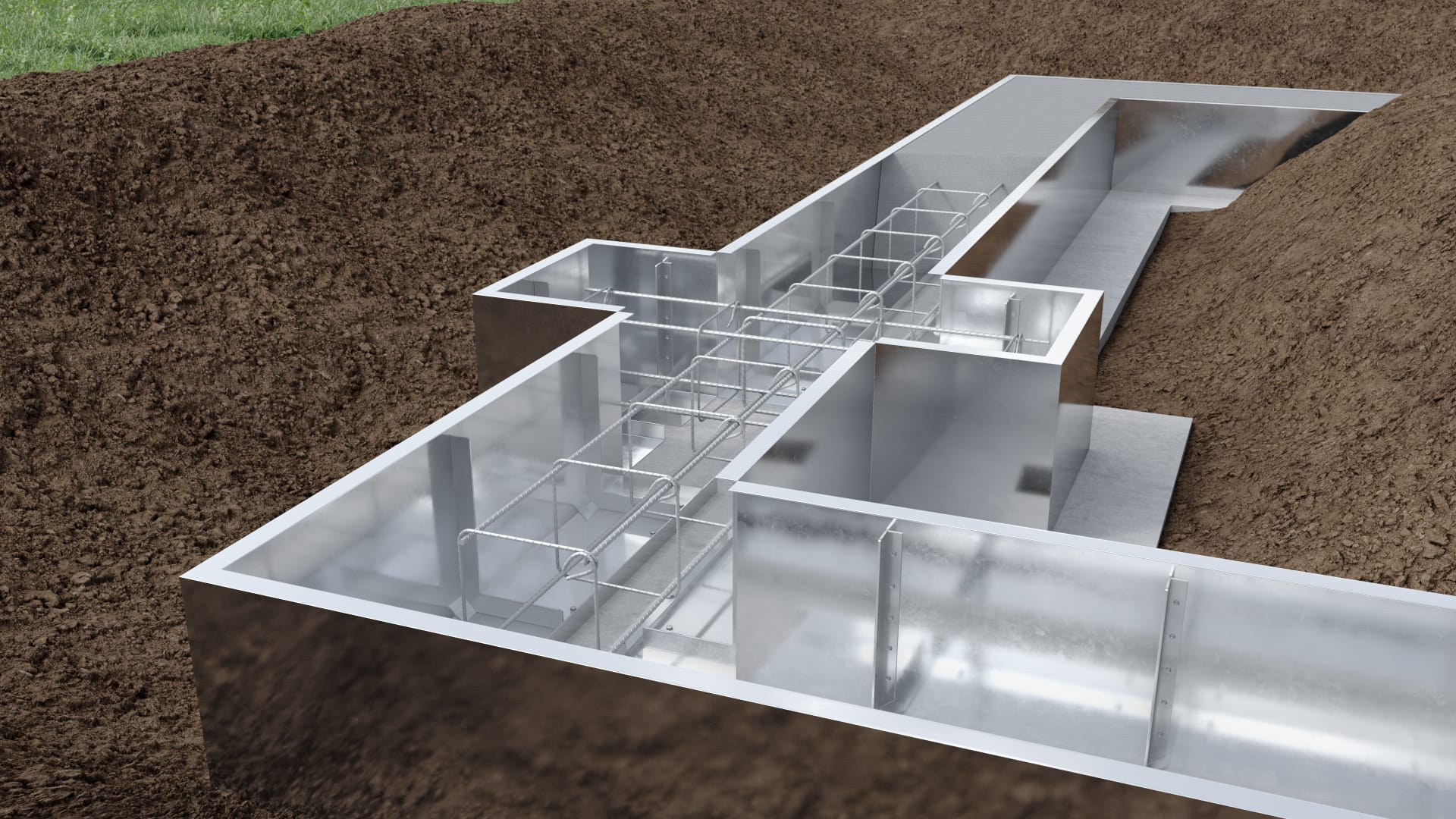

Complex slabs easily formed
No stripping needed

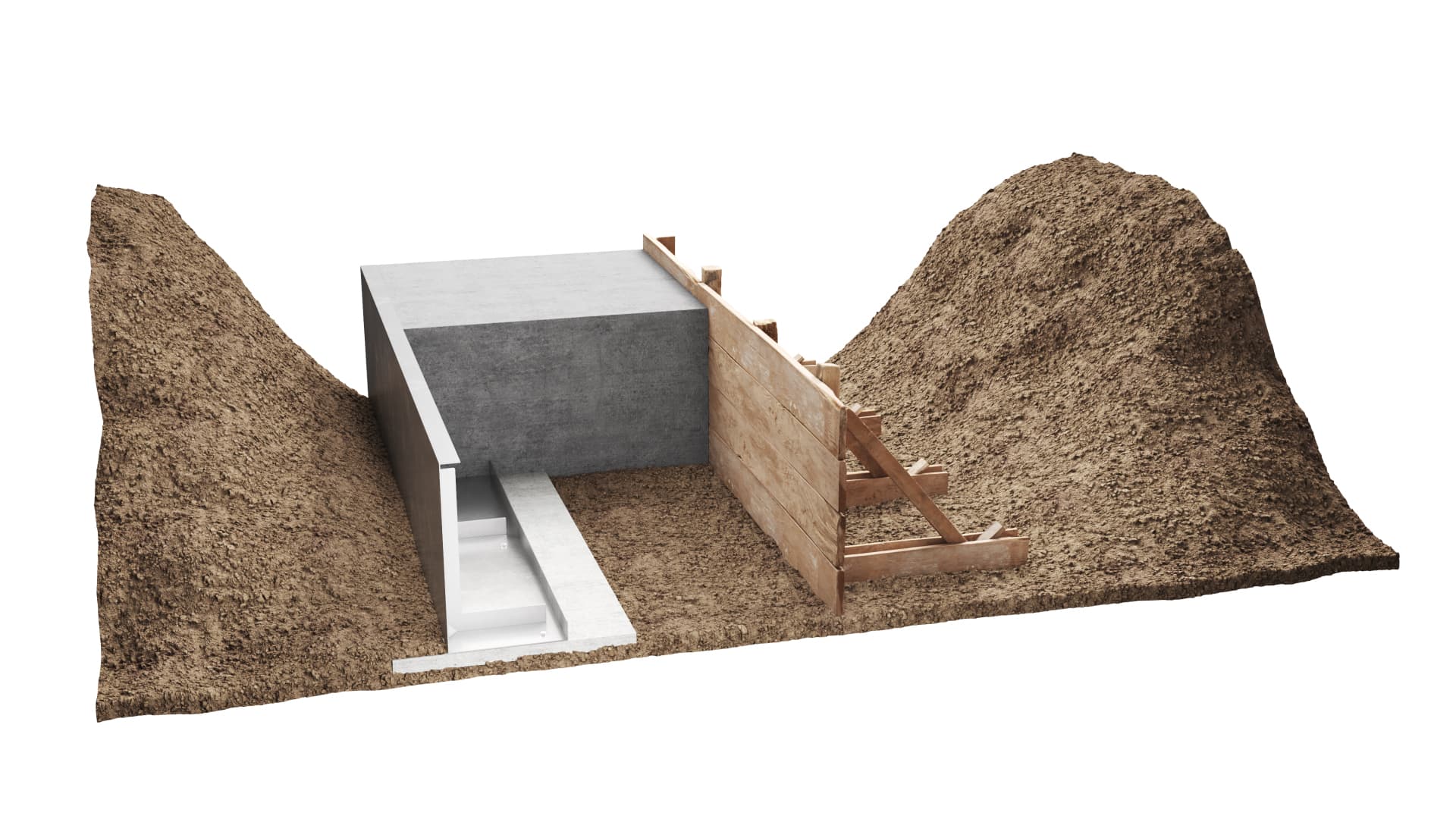

Smaller foundation trenches – using RECOSTAL® Speed Edge, the foundation trench can be approx. 1 m narrower than with traditional formwork
Does not require disassembly
Installation without crane
Similar products
General recommendations:
During the installation observe the compulsory security standards - wear protective gloves.
STEP 1 - on the ground

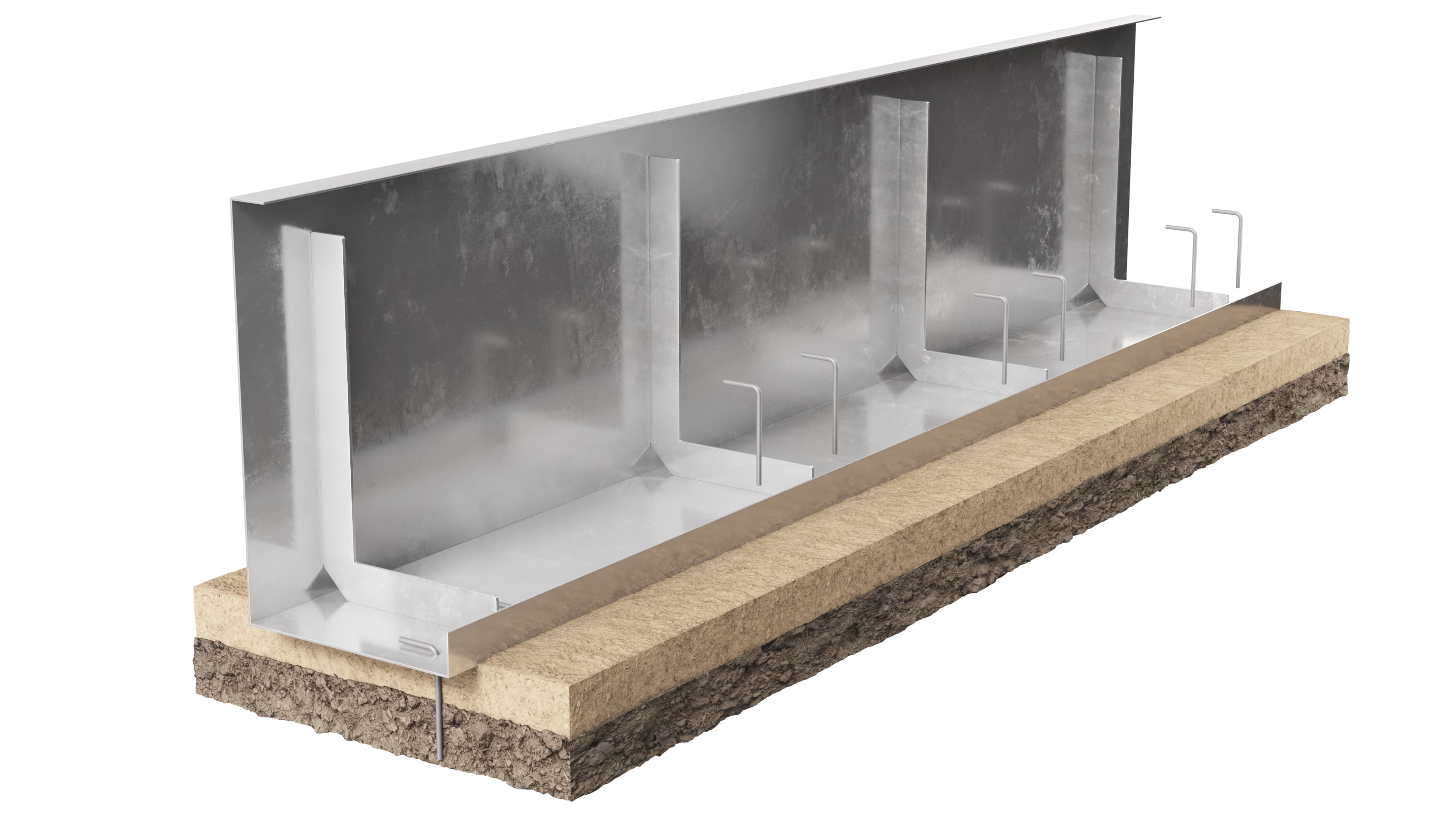

Installation of RECOSTAL® Speed Edge on the ground.
STEP 1 - on concrete

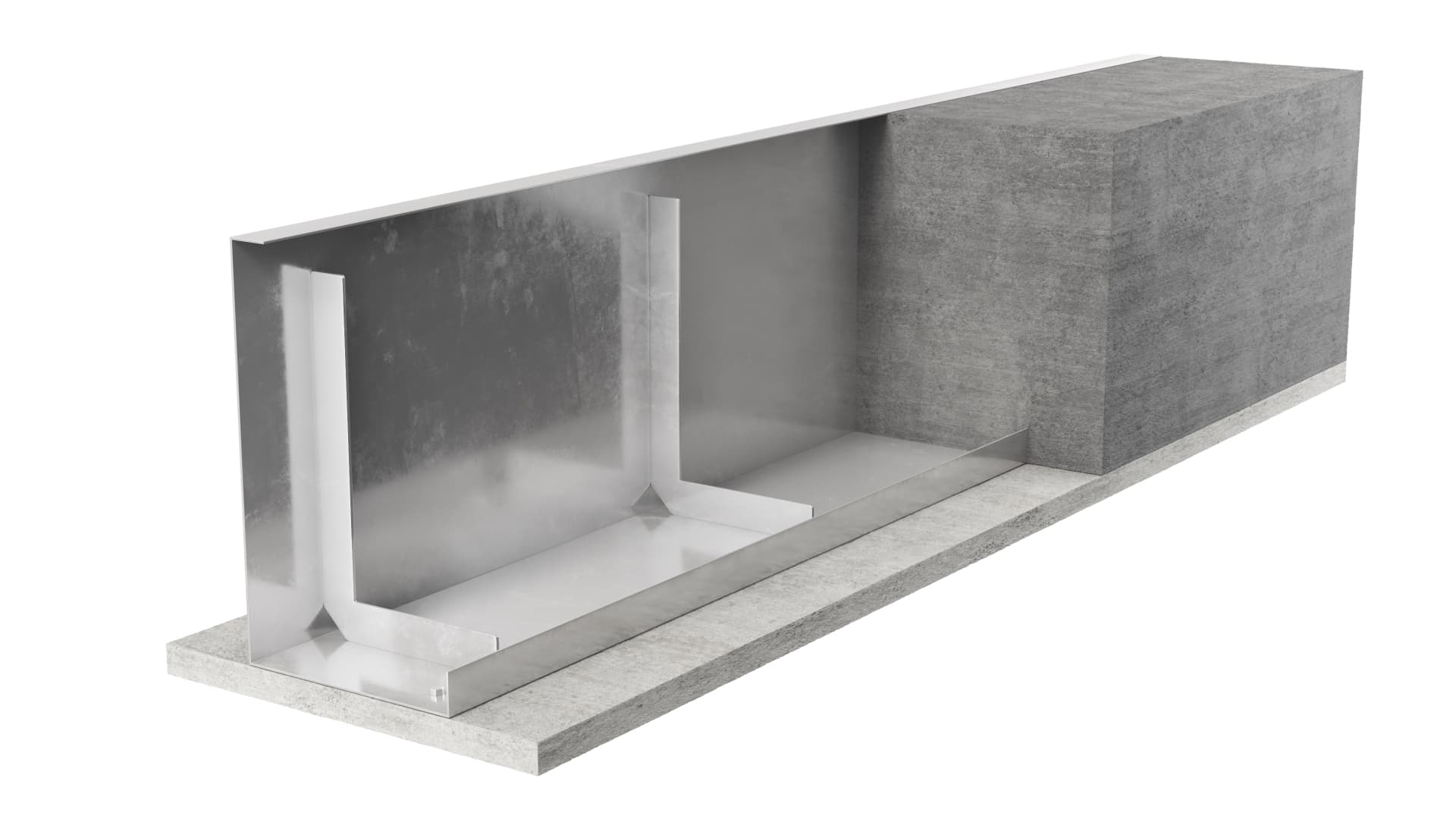

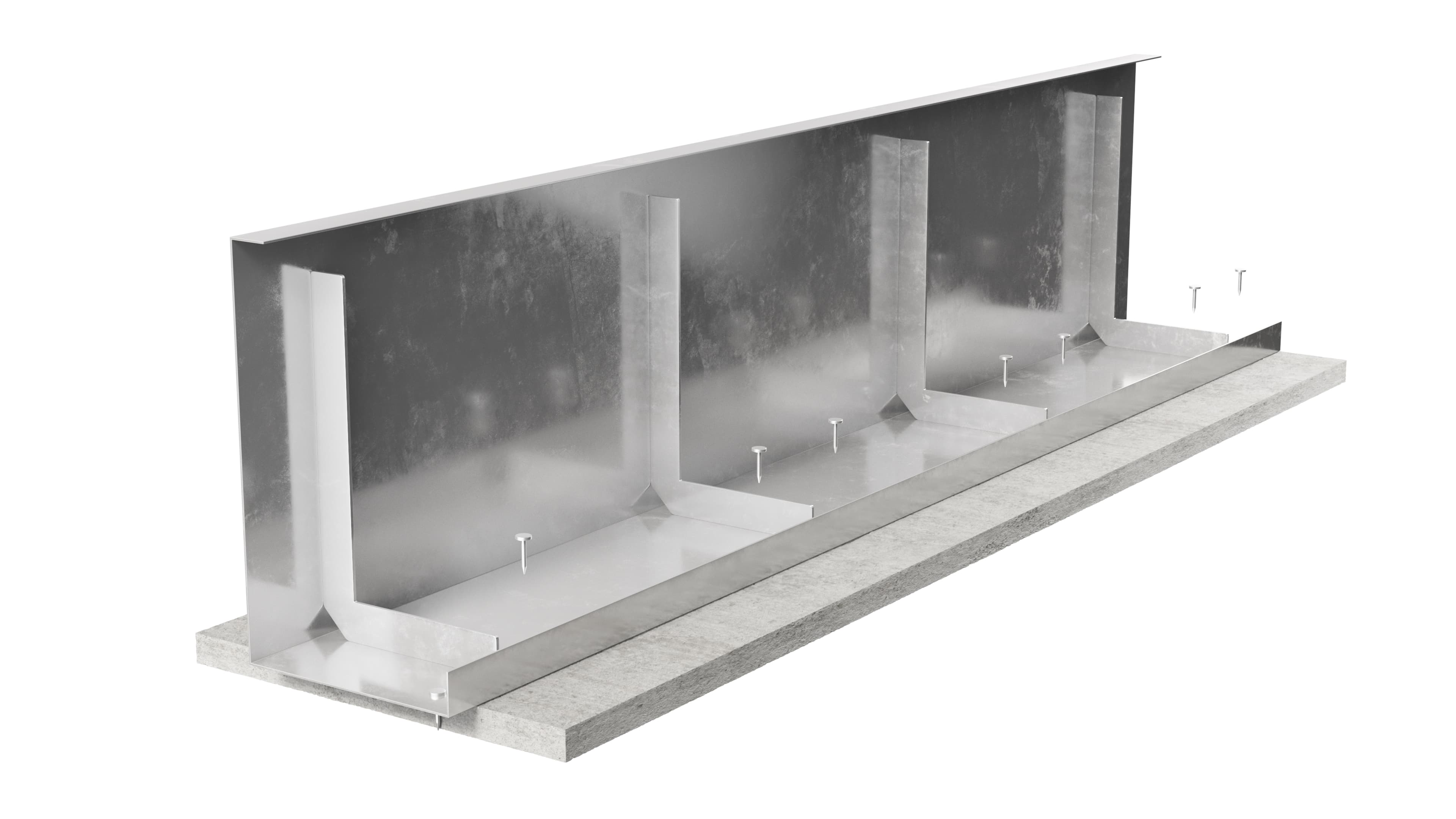

Installation of RECOSTAL® Speed Edge on bedding concrete.
STEP 2

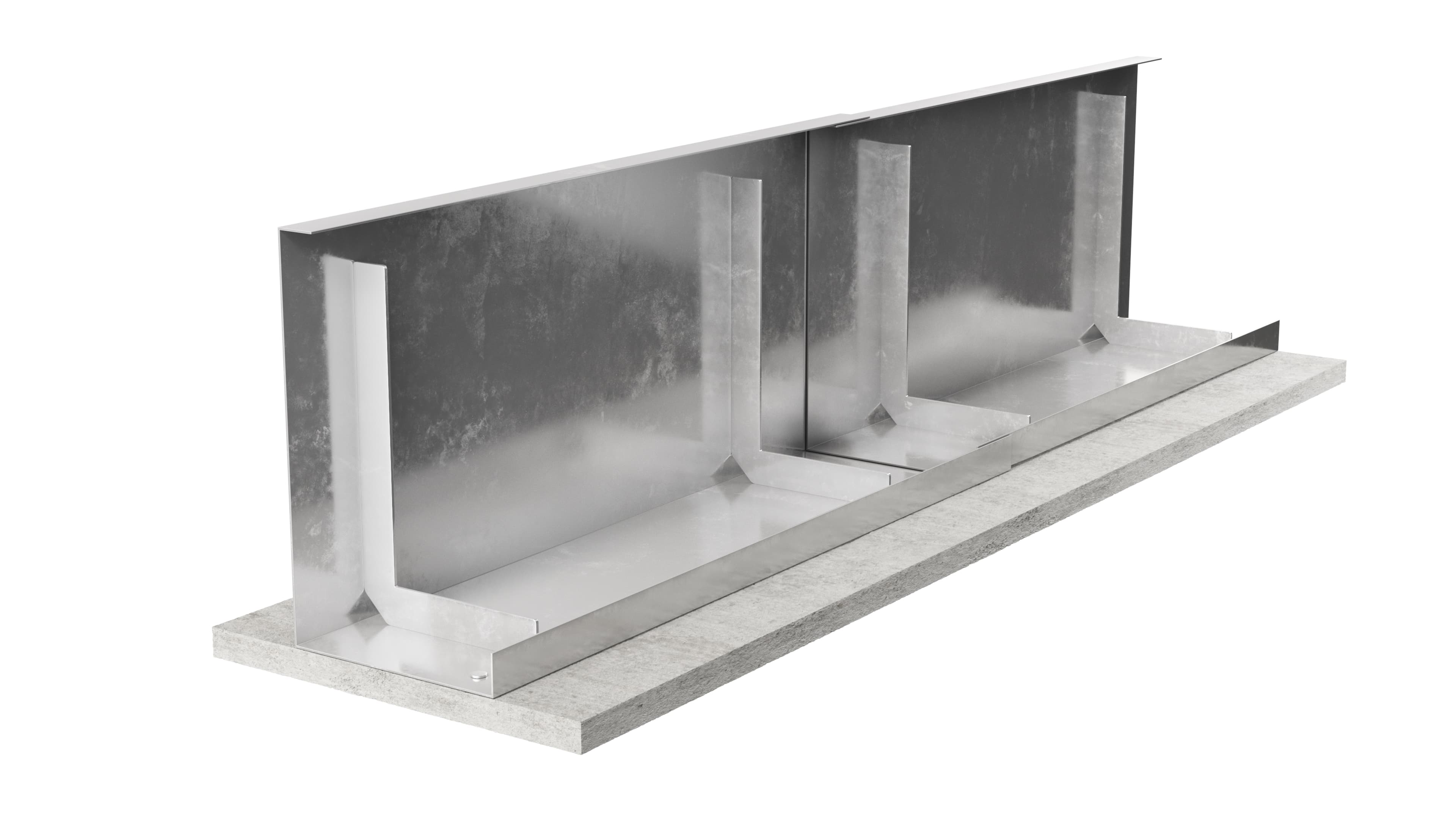

Connecting of RECOSTAL® Speed Edge. Joining the cut element with overlap of 3-4 cm.
STEP 3

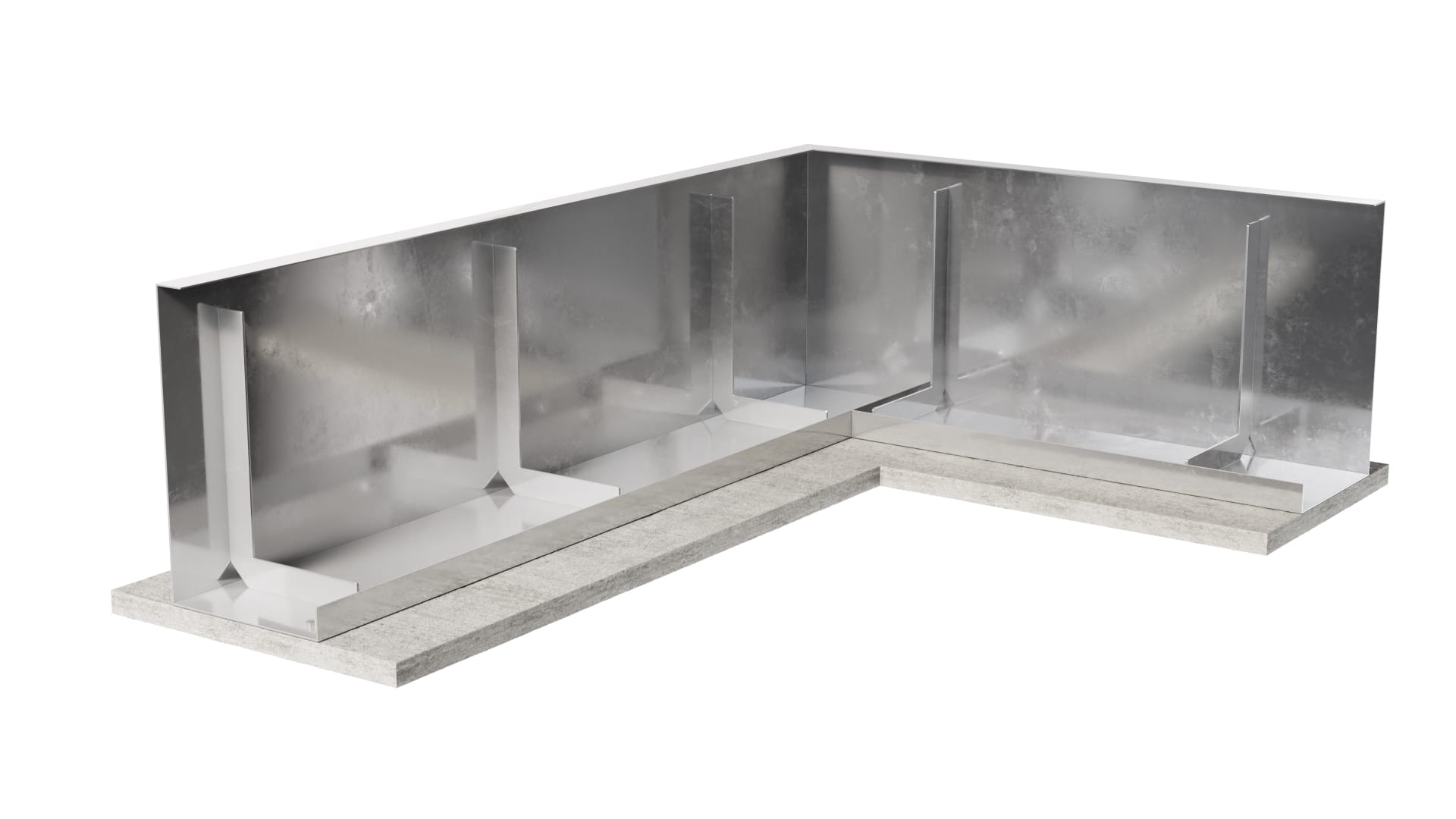

Cutting the mountig foot and top of element at the corner. Bending the cut metal sheet at a right angle.
STEP 4

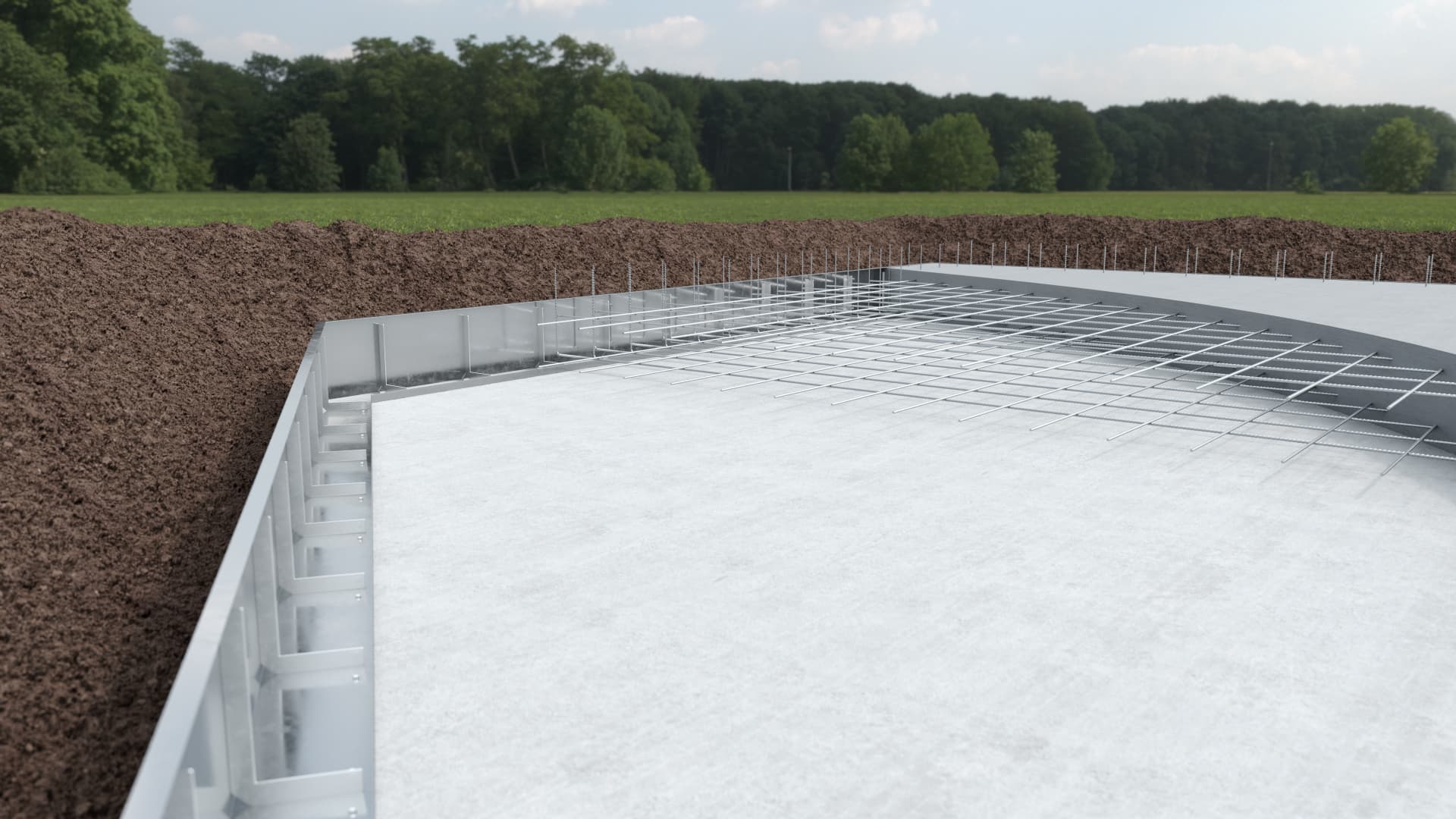

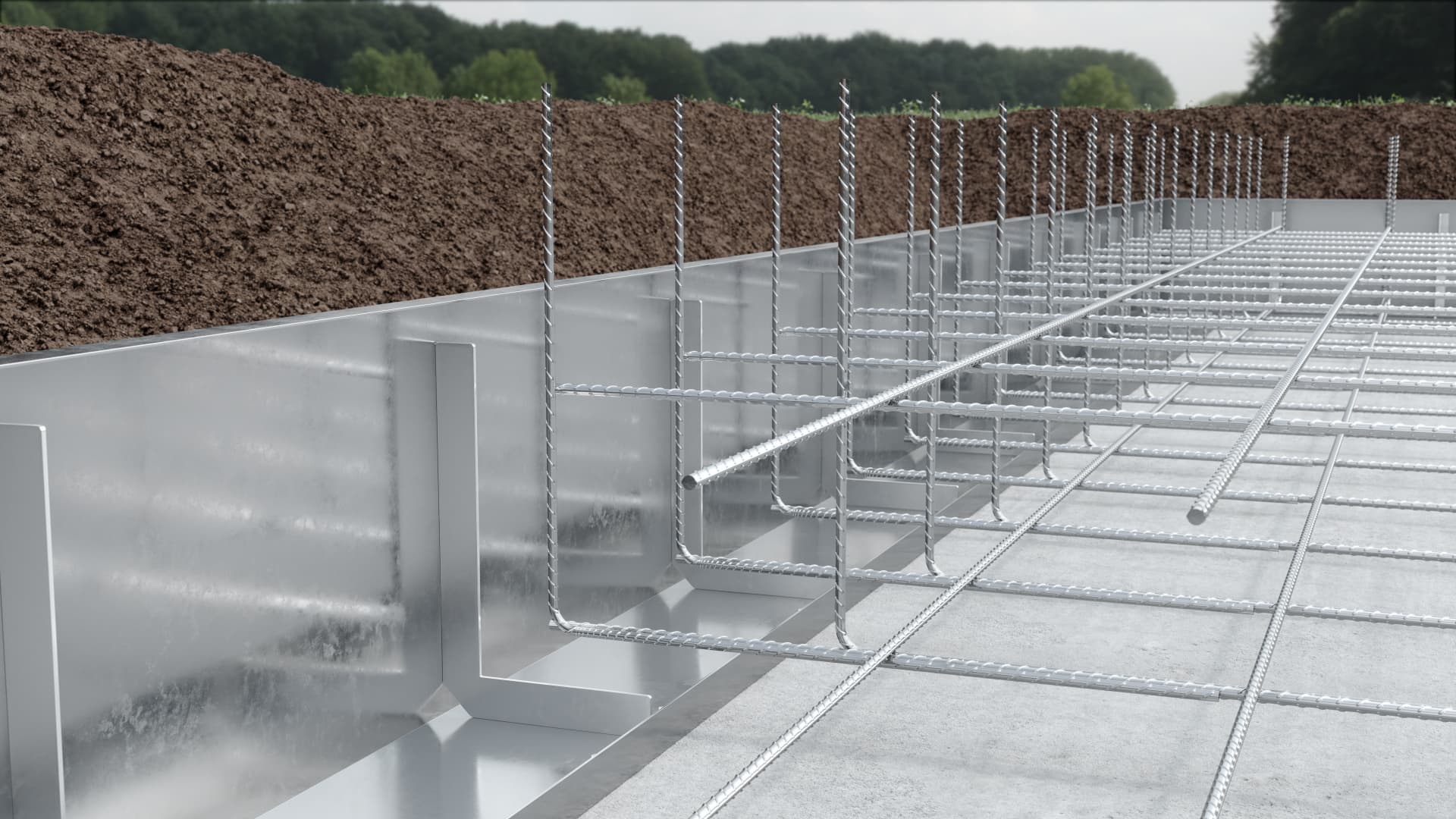

Concreting of foundation slab.
