DYWIDAG recoMesh

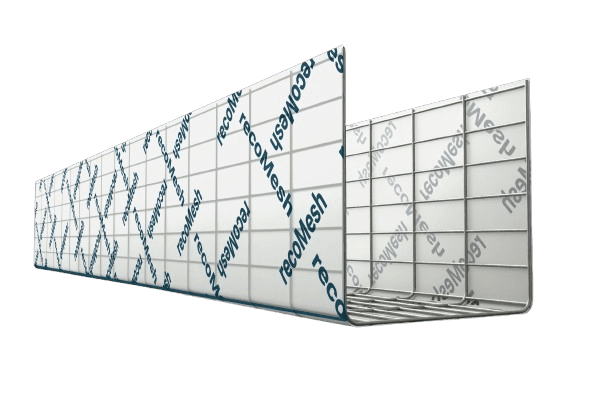

DYWIDAG recoMesh permanent formwork is used for ground beams, Pile Caps and Bases. Made from polyethylene sheets heat-shrunk on both sides and bright drawn mild steel mesh manufactured to BS 4482 using 4 mm main wires at 150 mm centres and 3 mm Cross Wires at 75 centres electronically welded at every intersection and complying with BS EN ISO 9001.2000.
The Benefits
Simplified installation: Pre-marked units streamline the building process, making installation swift and cost-effective
Cost Savings: Eliminates the necessity for over digging and decreases excessive concrete demands
When used for ground beams, it eliminates the need for concrete blinding
Customisation: Adapted to meet specific project requirements, recoMesh delivers accuracy and excellence in every application
Main Characteristics
100% mild steel mesh
40% Polyethylene film
Light weight (1.8 kgs/m2 total)
Tested independently and can withstand any concrete pressure
Non-toxic and therefore does not affect groundwater
All edges are flush finished leaving no harmful protruding wires
