RECOFORM 1000

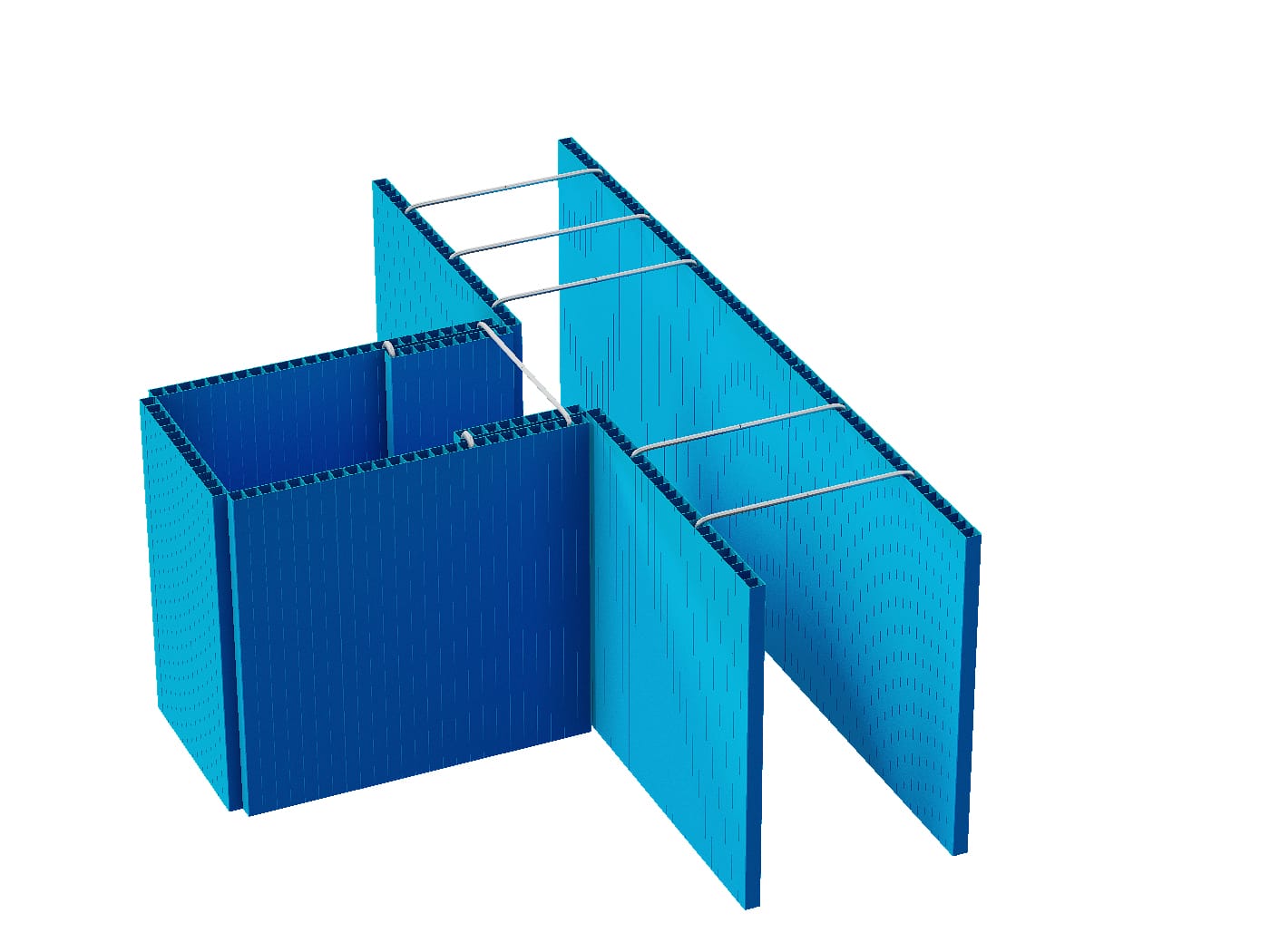

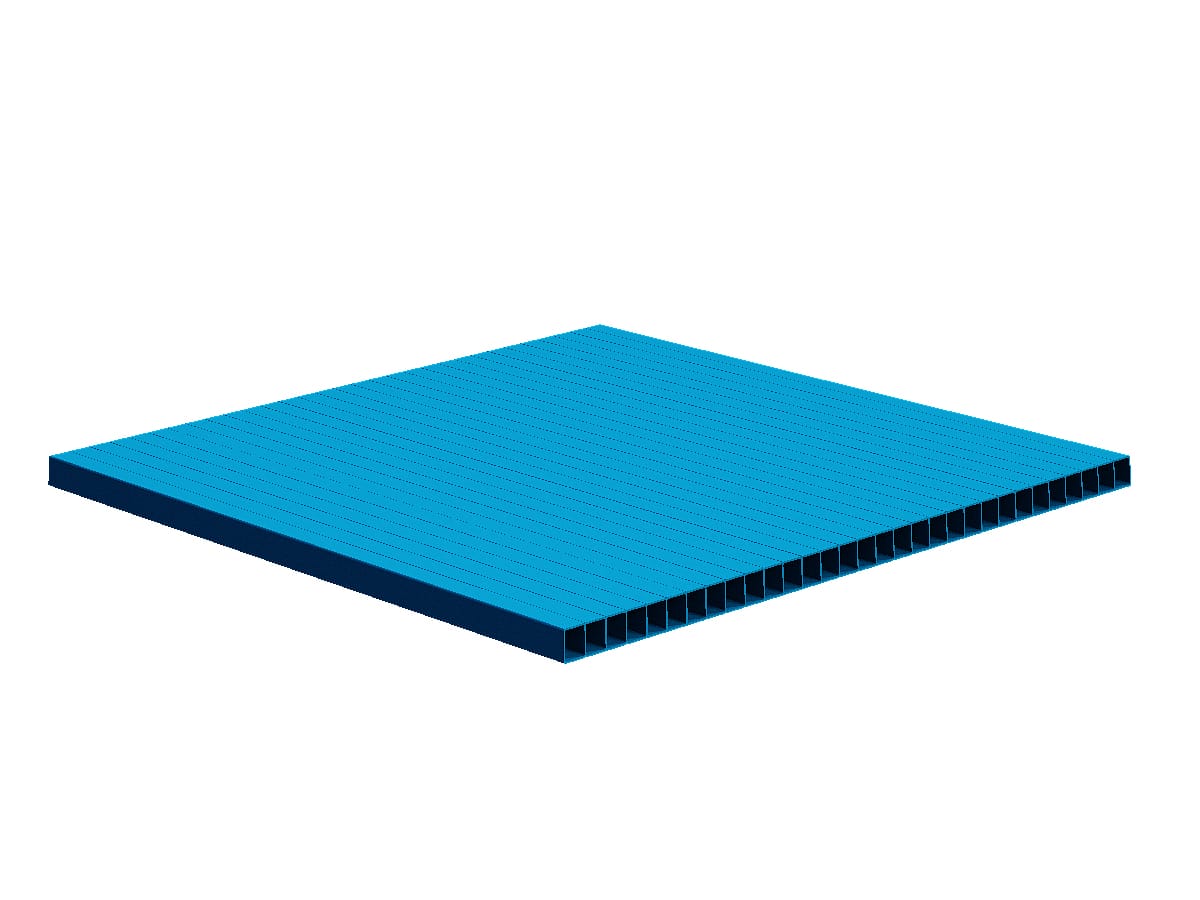

RECOFORM 1000 - polypropylene hollow core plank.
It is used for making:
formwork for foundations

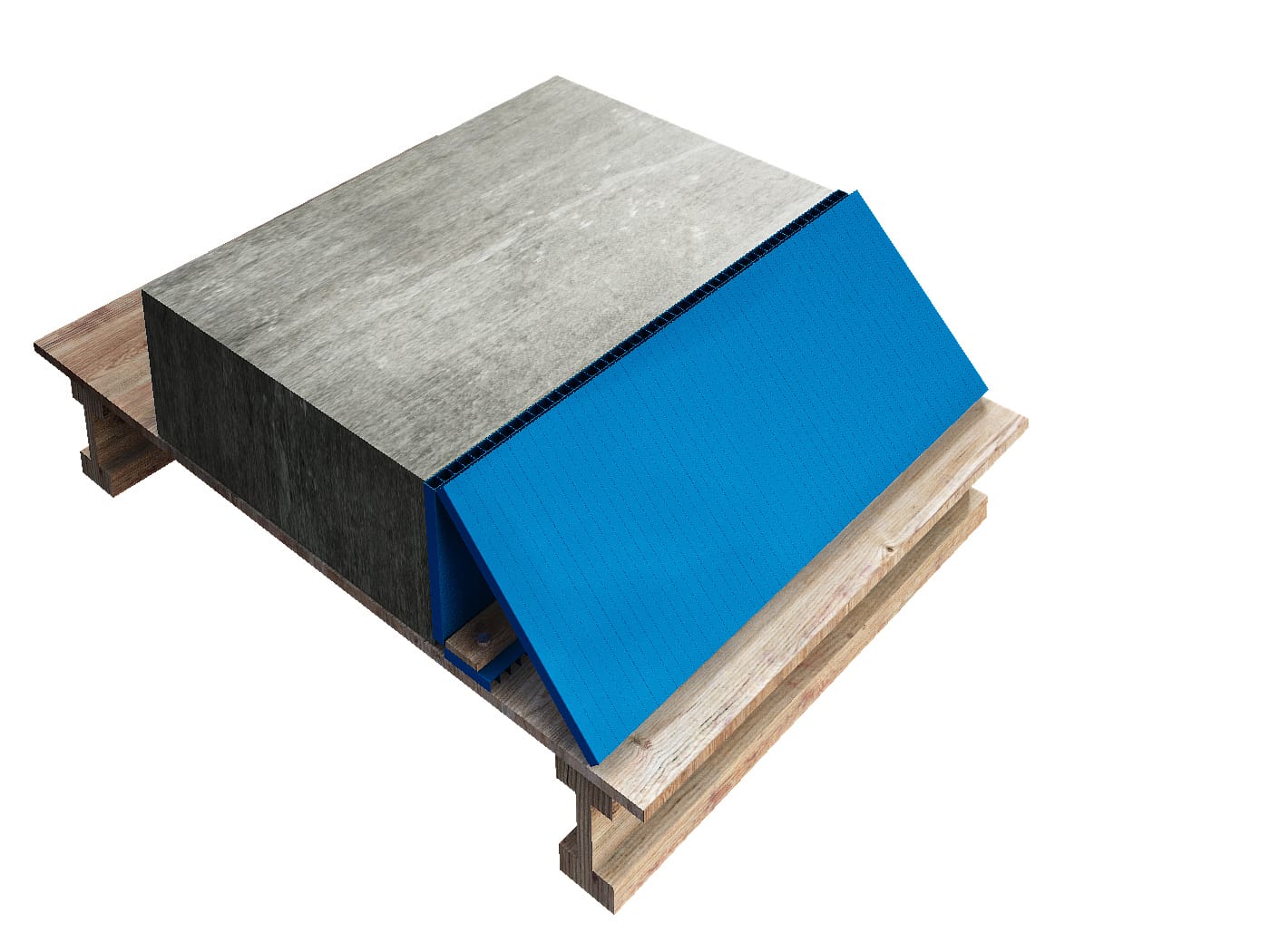

formwork for RC slabs
formwork for openings
RECOFORM 1000 can be additionally stiffened by putting reinforcement bars into panel holes.
RECOFORM 1000 can be cut on site and then formed in every shape.
RECOFORM 1000
TYPE | DIMENSIONS [m] | MATERIAL | QUANTITY [items/pallet] |
|---|---|---|---|
RECOFORM 1000 | 2.4 x 2.4 | polipropylene | 100 |
RECOFORM 1000 Strong | 2.4 x 2.4 | polipropylene | 500 |

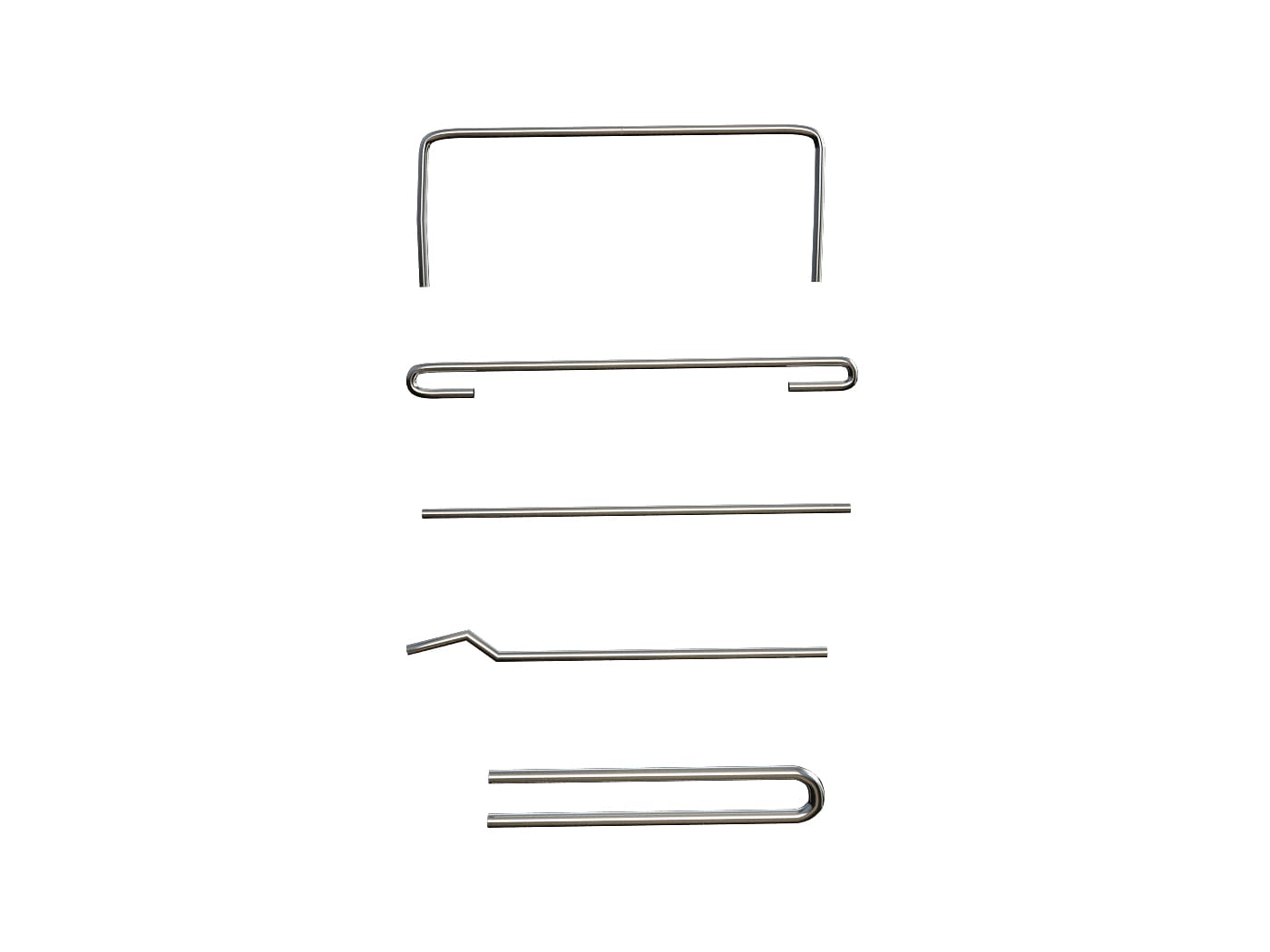

D clip | by order | steel | 500 |
F clip | by order | steel | 500 |
P clip | L = 0.20 | steel | 500 |
V clip | by order | steel | 500 |
RECOFORM 1000 thickness - 10 mm. Dimensions of clips depend on dimensions of shoring elements.
Similar products
General recommendations:
During the installation observe the compulsory security standards - wear protective gloves.

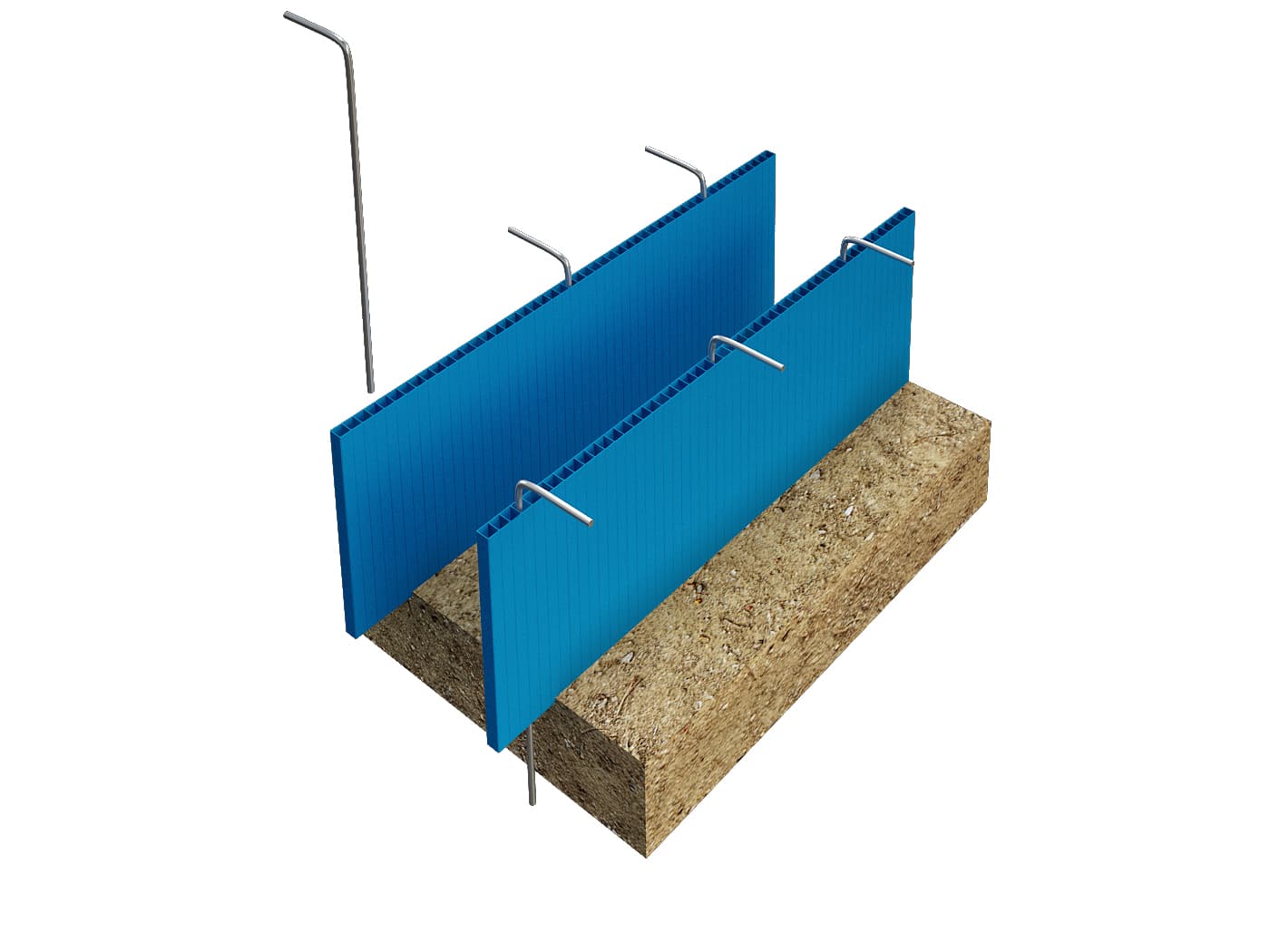

STEP 1 - SELF-SUPPORTED H = 30 CM
RECOFORM 1000 installation on the ground with anchor bars.

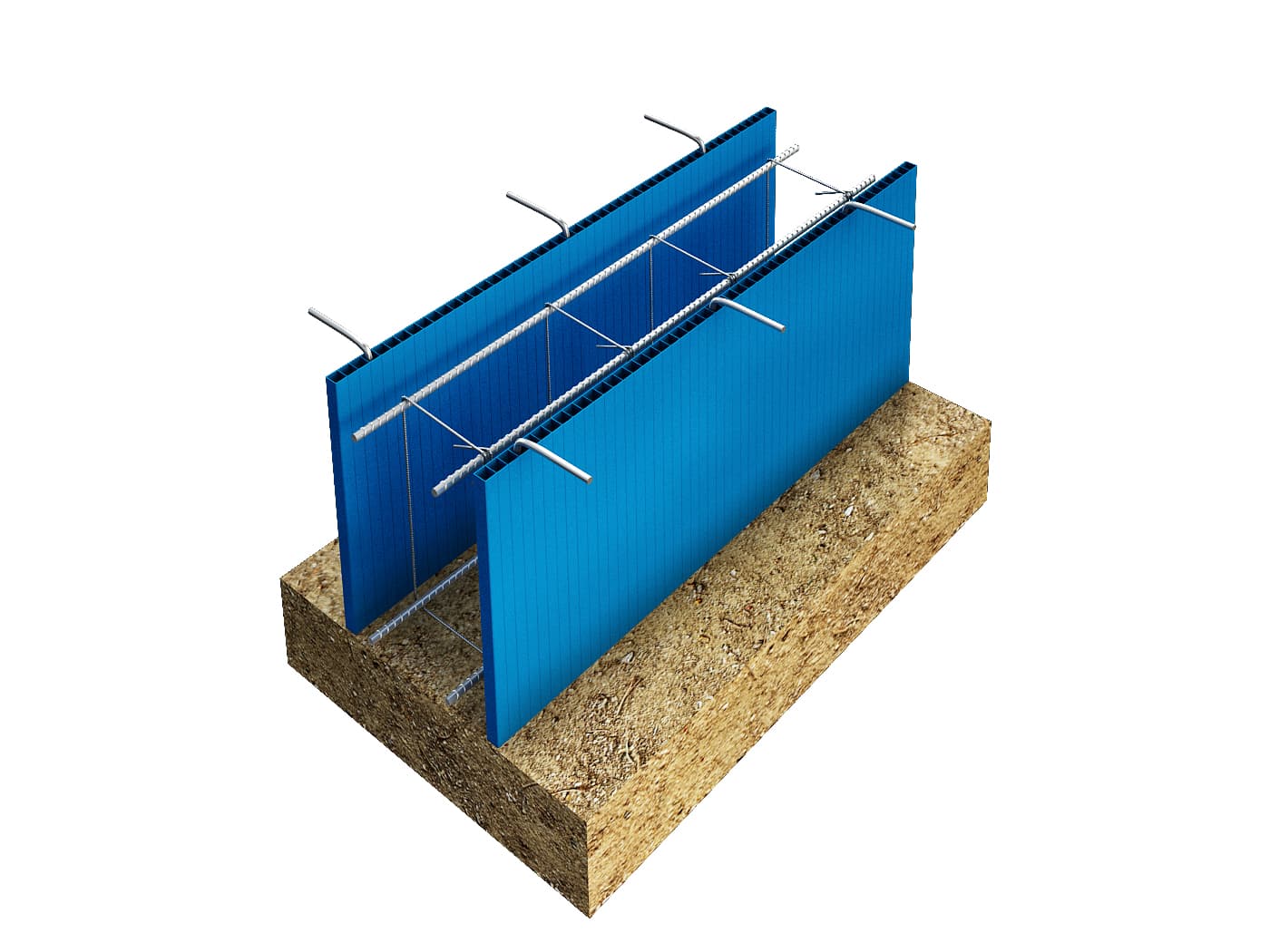

STEP 1 - STAYS H > 30 CM
RECOFORM 1000 installation on the ground with anchor bars and reinforcement installation.

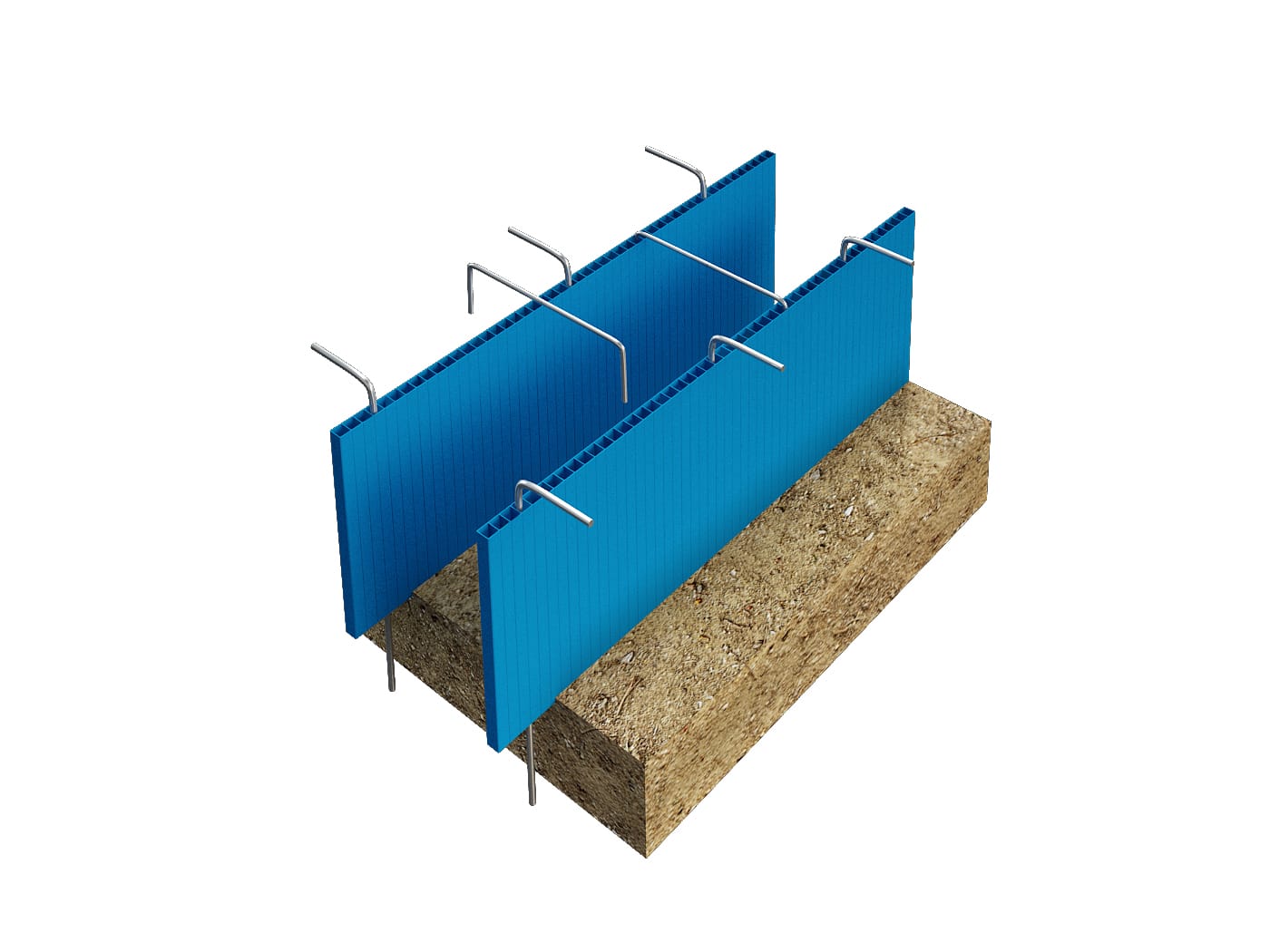

STEP 2 - SELF-SUPPORTED H = 30 CM
D clip installation.

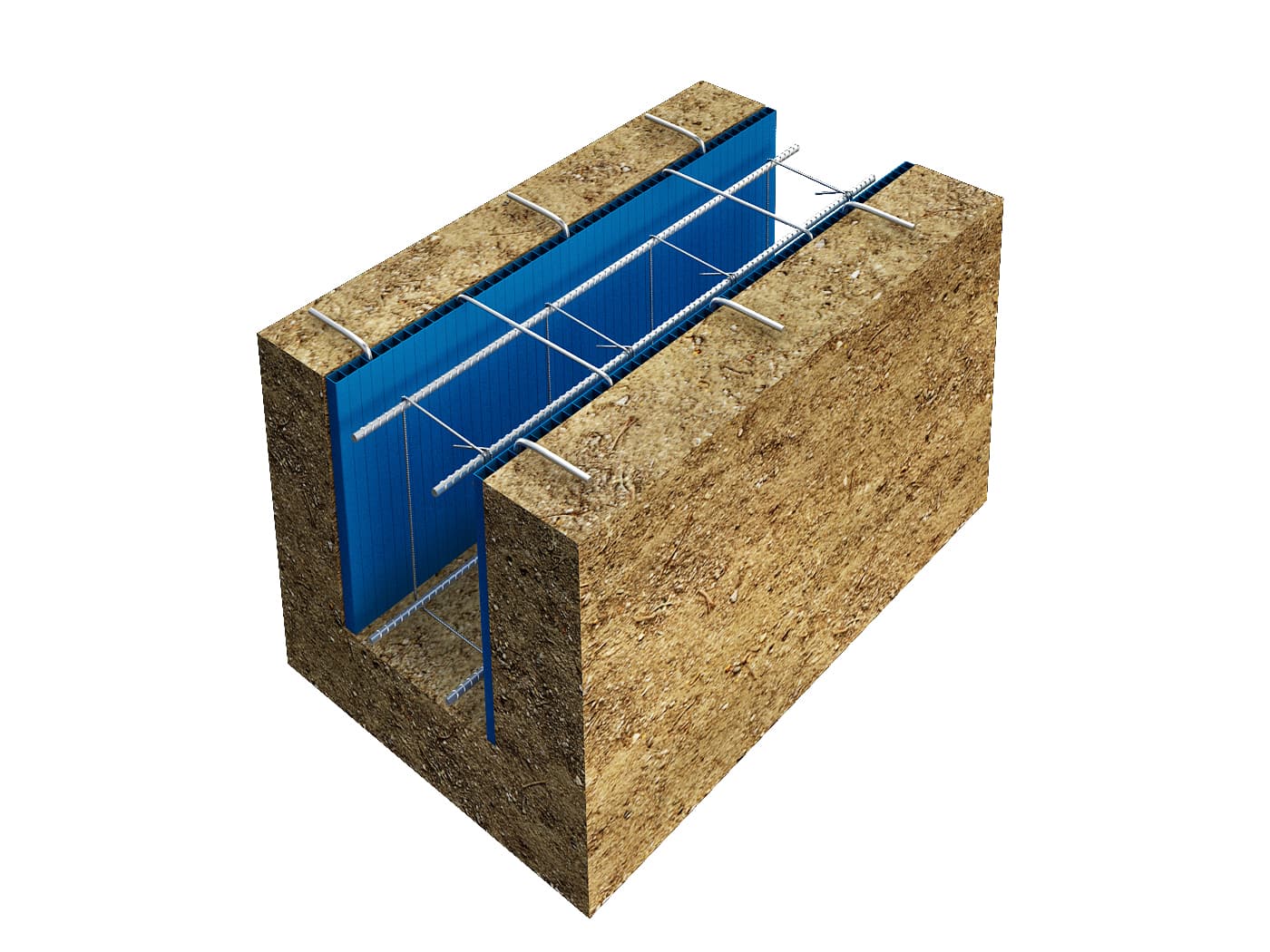

STEP 2 - STAYS H > 30 CM
D clip installation. Covering of formwork by ground or application of support.

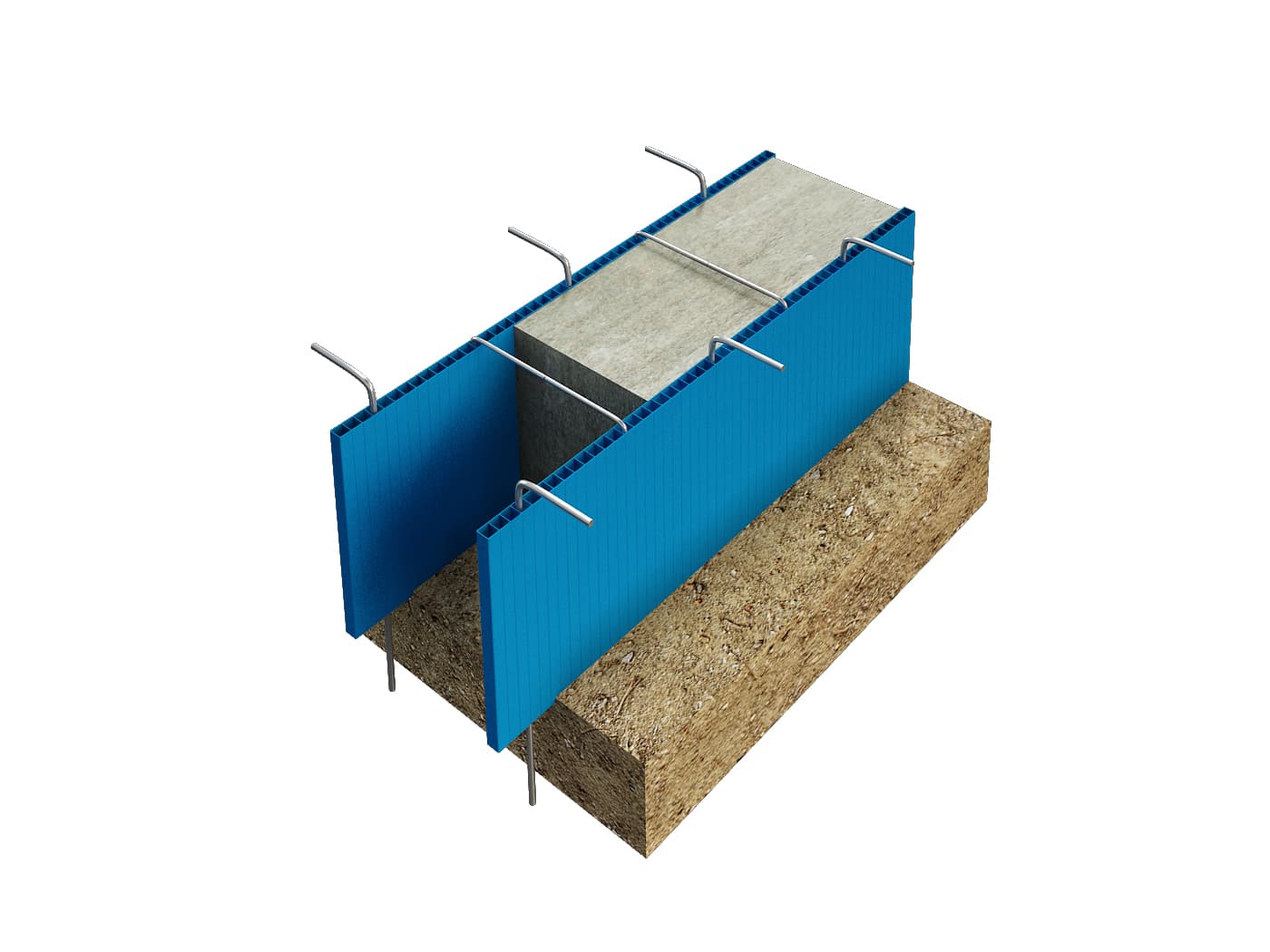

STEP 3 - SELF-SUPPORTED H = 30 CM
Concreting.

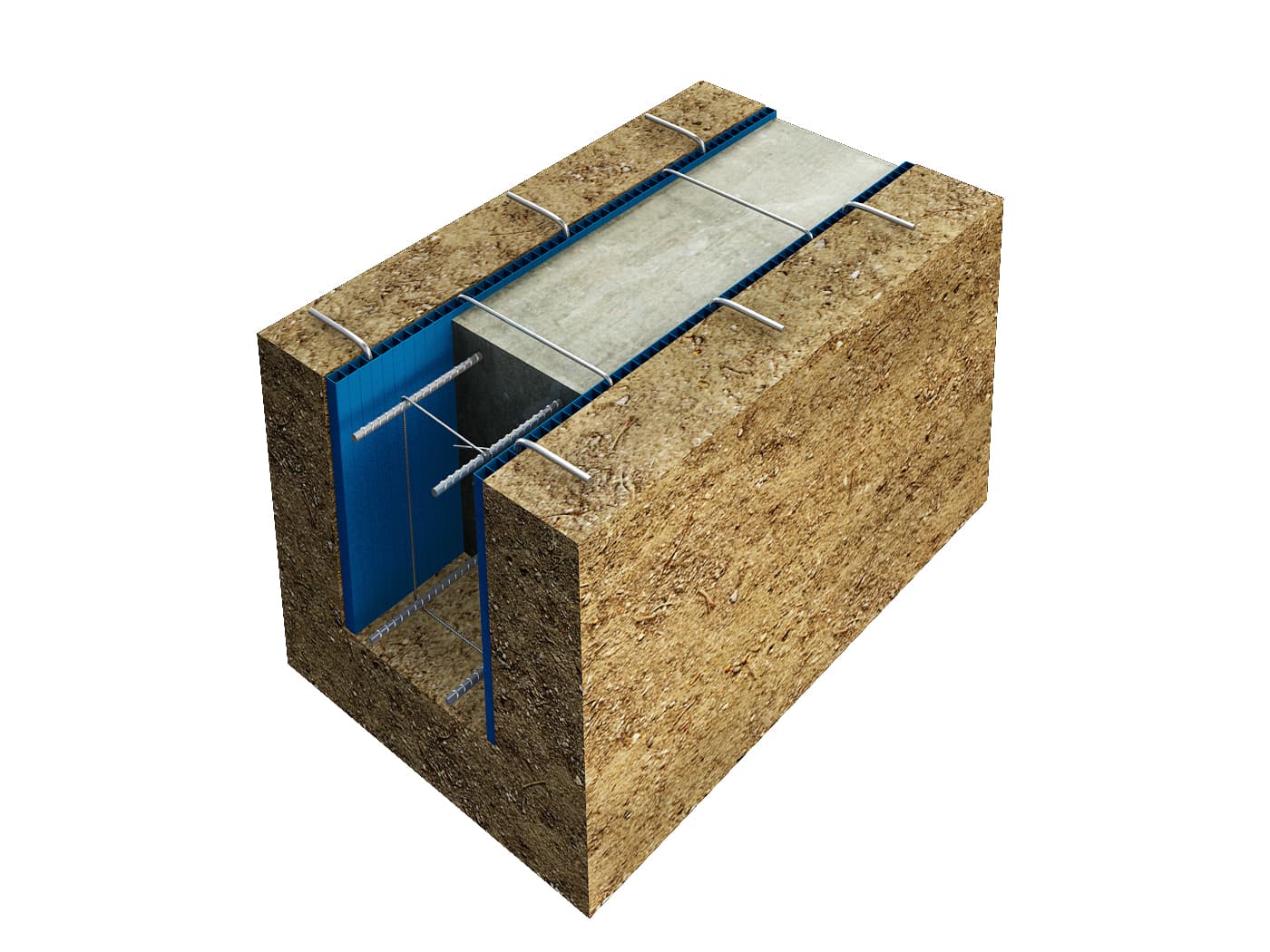

STEP 3 - STAYS H > 30 CM
Concreting.
