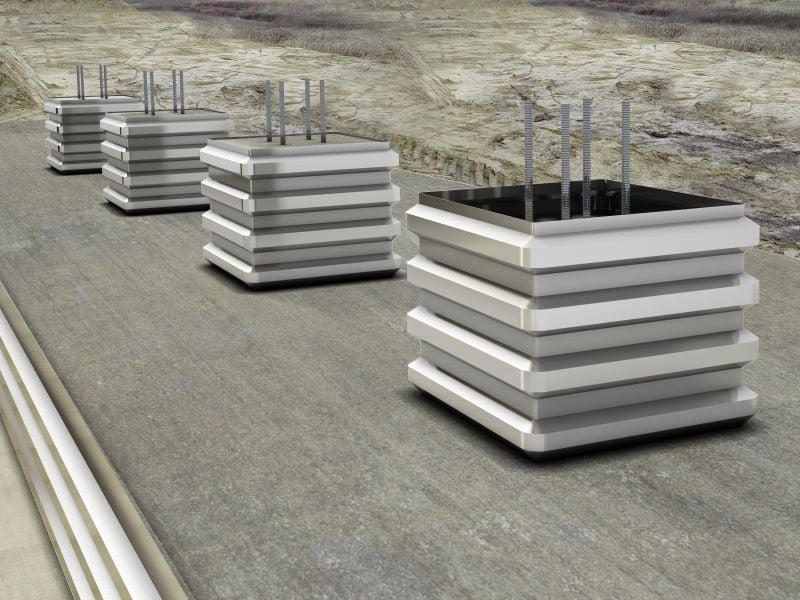

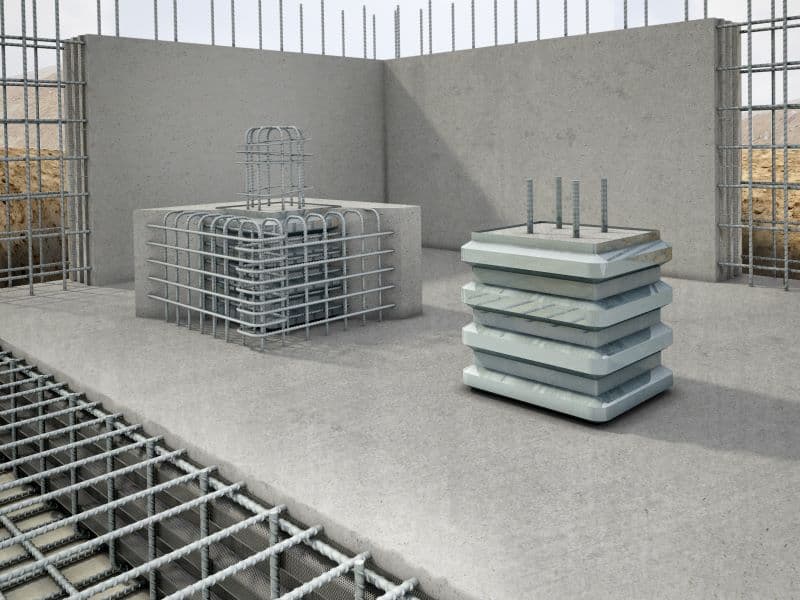

RECOSTAL® Box

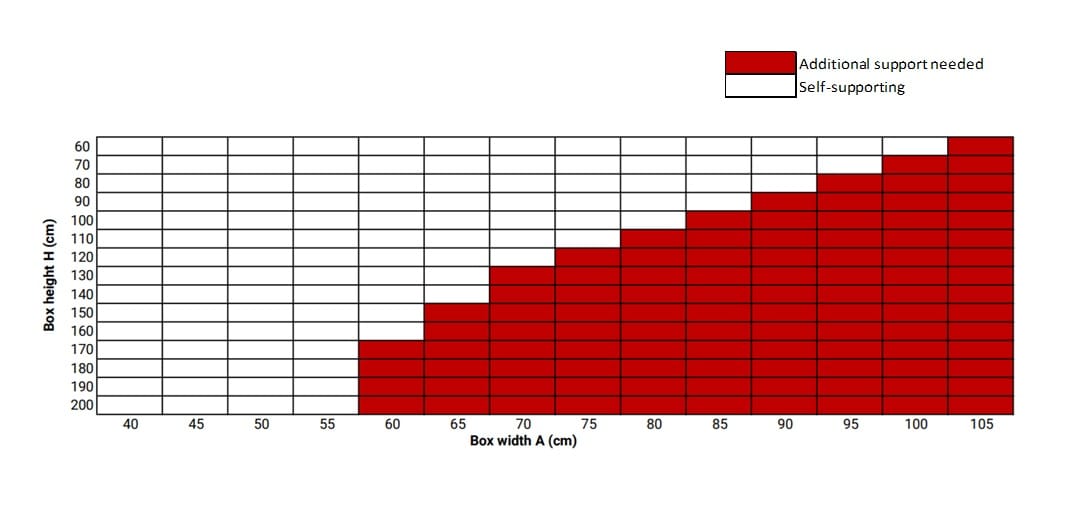

RECOSTAL® Box is a metal permanent formwork for foundation columns and openings. Trapezoidaly profiled and with optional anchors or expanded base, RECOSTAL® Box ensure connection of the formwork to poured concrete with superior shear transfer. Most dimension combinations are self-supporting, exemptions depicted in the table (diagram).
The Benefits:
High load-bearing (see: diagram)
Easy and low transport costs, especially when is flat for transport
Assembly takes approximately 1 minute
Trapezoidal profile for superior shear transfer
Optional base
Anchors for larger forms

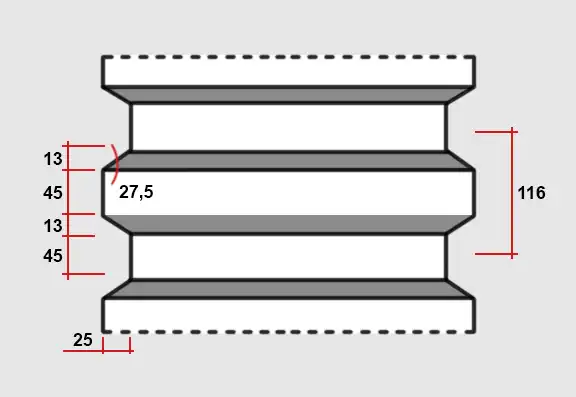

RECOSTAL® Trapezoidal Profile
The profile corresponds to the category "keyprofiled" according to Eurocode 2.

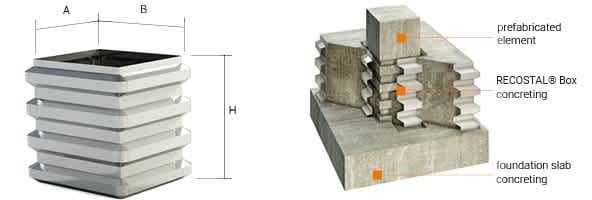

Diagram RECOSTAL® Box
What information is needed to place an order?
When ordering, the following dimensions must be given:
dimensions A x B x H = ... cm
metal sheet thickness: 0.7 mm (standard) or 1.0 mm
with/without bottom
Similar products
General recommendations:
During the installation observe the compulsory security standards - wear protective gloves and work clothes with long sleeves.
During transport and storage, protect against mechanical damage.

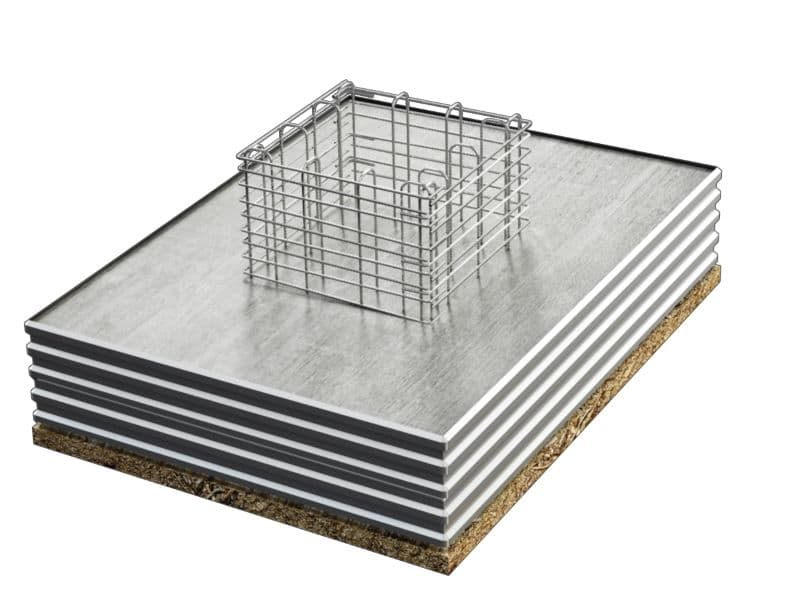

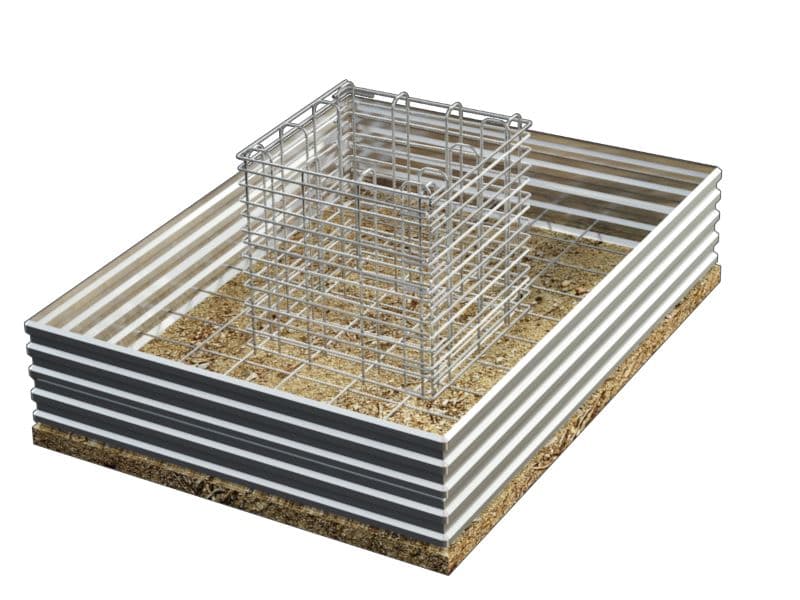

STEP 1
Shoring and reinforcement installation of isolated footing.
STEP 2
Concreting of isolated footing.

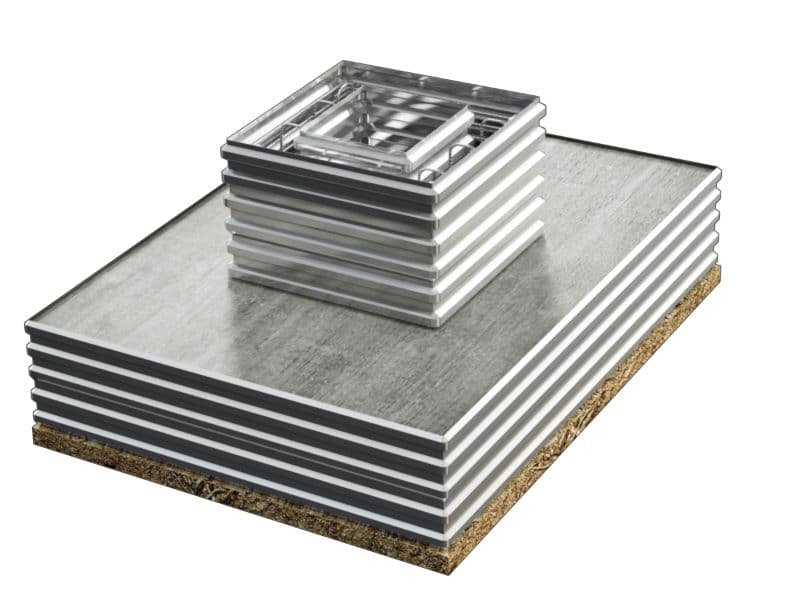

STEP 3
Formwork of bell foundation.

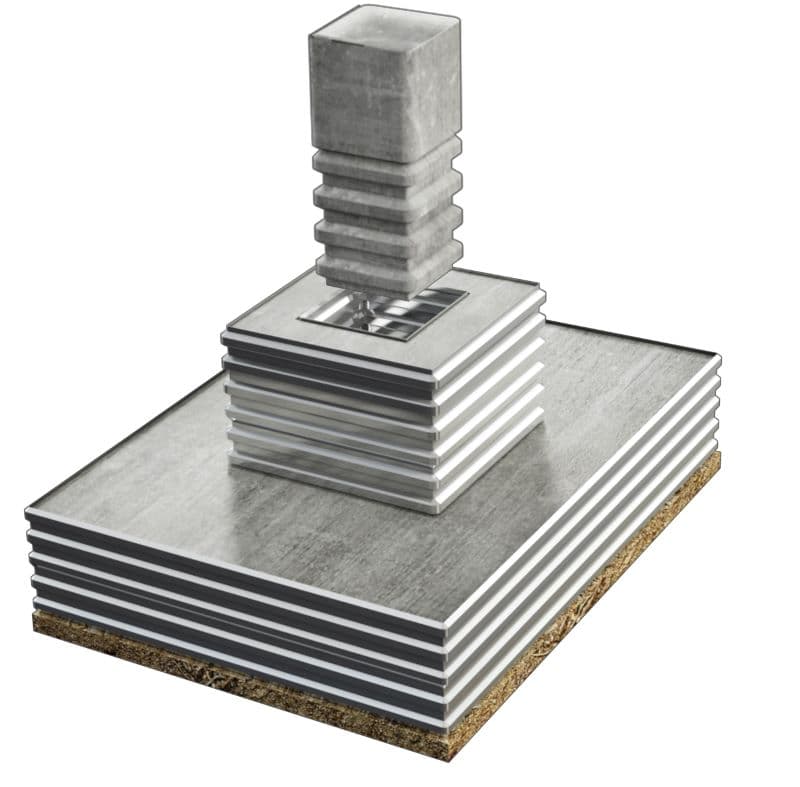

STEP 4
Concreting of bell foundation.
