RECOSTAL® 2000 GT

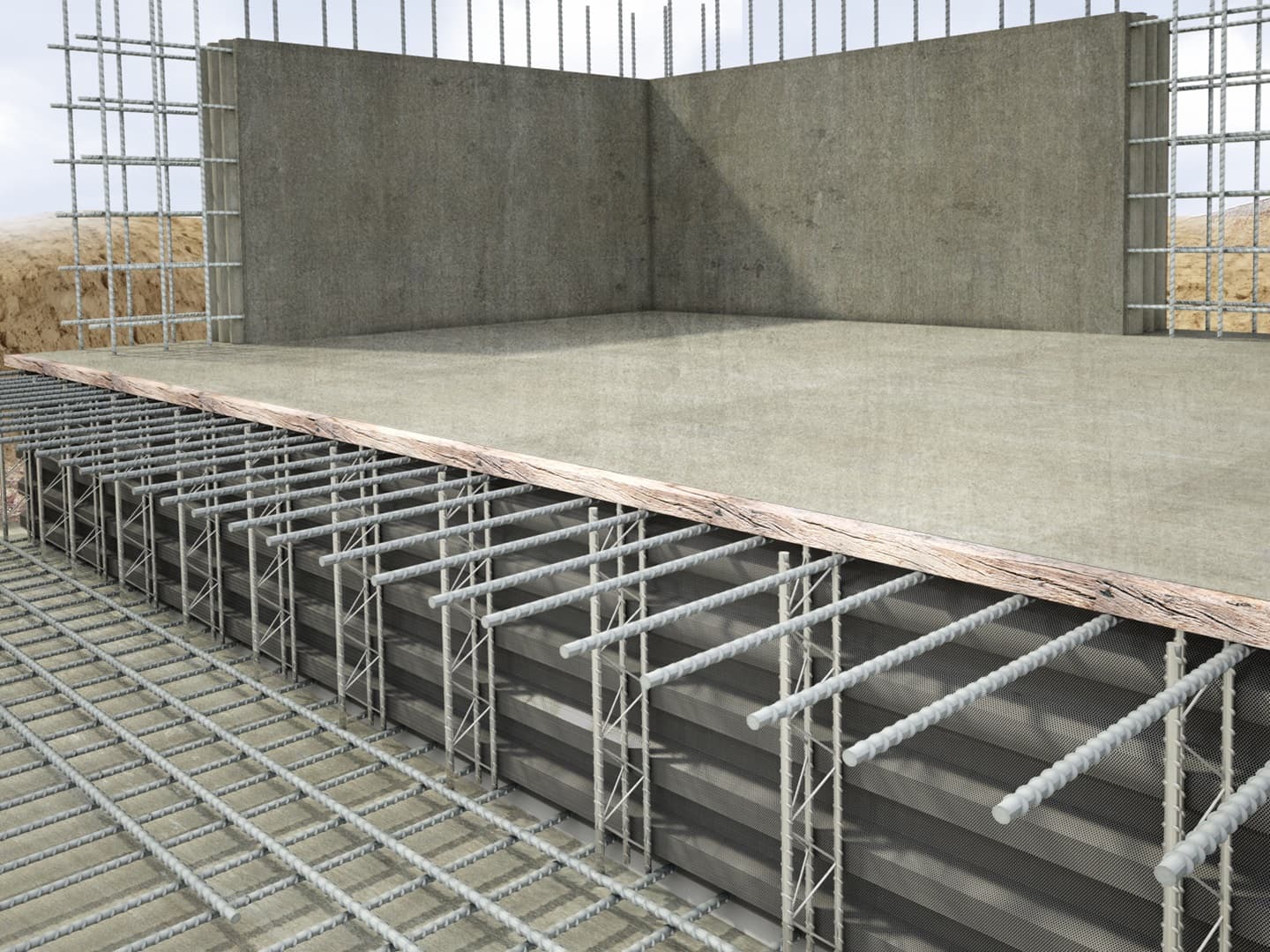

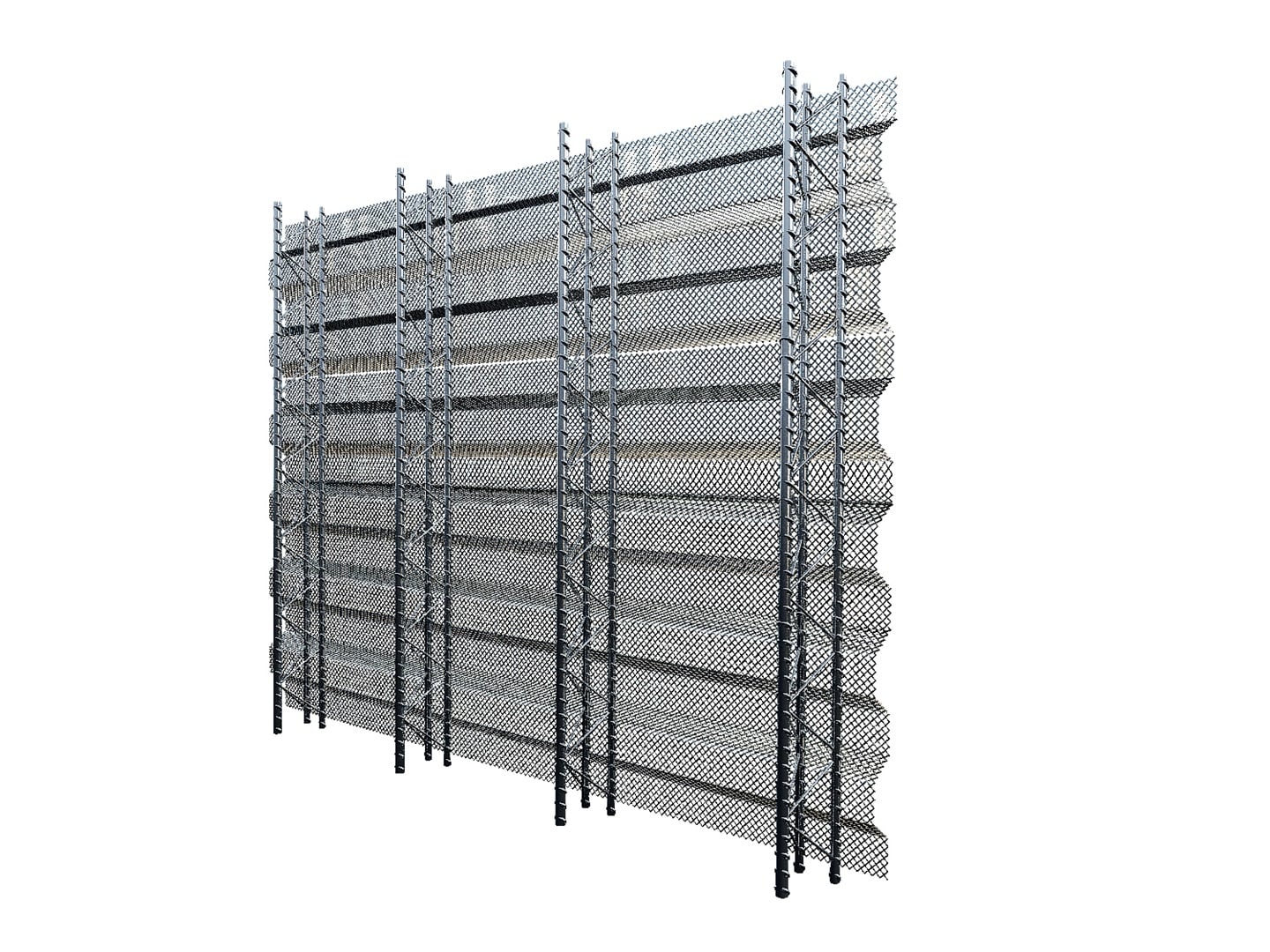

RECOSTAL® 2000 GT Formwork is used for making construction joints in reinforcement structures. The load bearing structure is made of lattice girder. RECOSTAL® 2000 GT shuttering unit consists of finely-meshed, trapezoidally profiled expanded metal with welded lattice supports. These units are normally used to install formwork for construction joints in base slabs. The bearing capacity is clearly separated into a vertical and a horizontal direction. The load per surface resulting from the pressure of fresh concrete is carried by the trapezoidal profile and transferred to the vertical lattice supports. These supports bear the load and transfer it to the top and bottom end points.
The Benefits:
Fully self-supporting in all dimensions and heights to 150 cm
Trapezoidal profile according to Eurocode 2
No additional support is necessary
Fast installation
Low transport costs
Installation without a crane

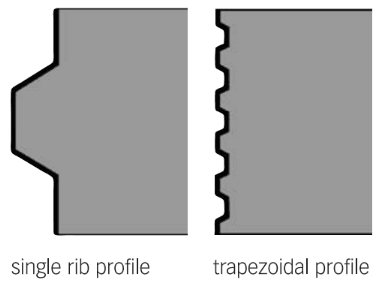

Profile Evaluation
Evaluation of single rib profile compared to an even trapezoidal profile.
Similar products
General recommendations:
During the installation observe the compulsory security standards - wear protective gloves.
Self-supporting in all heights to 150 cm
For height more than 150 cm we can offer RECOSTAL® 2000 GT-Z version with additional support with reinforcement bars

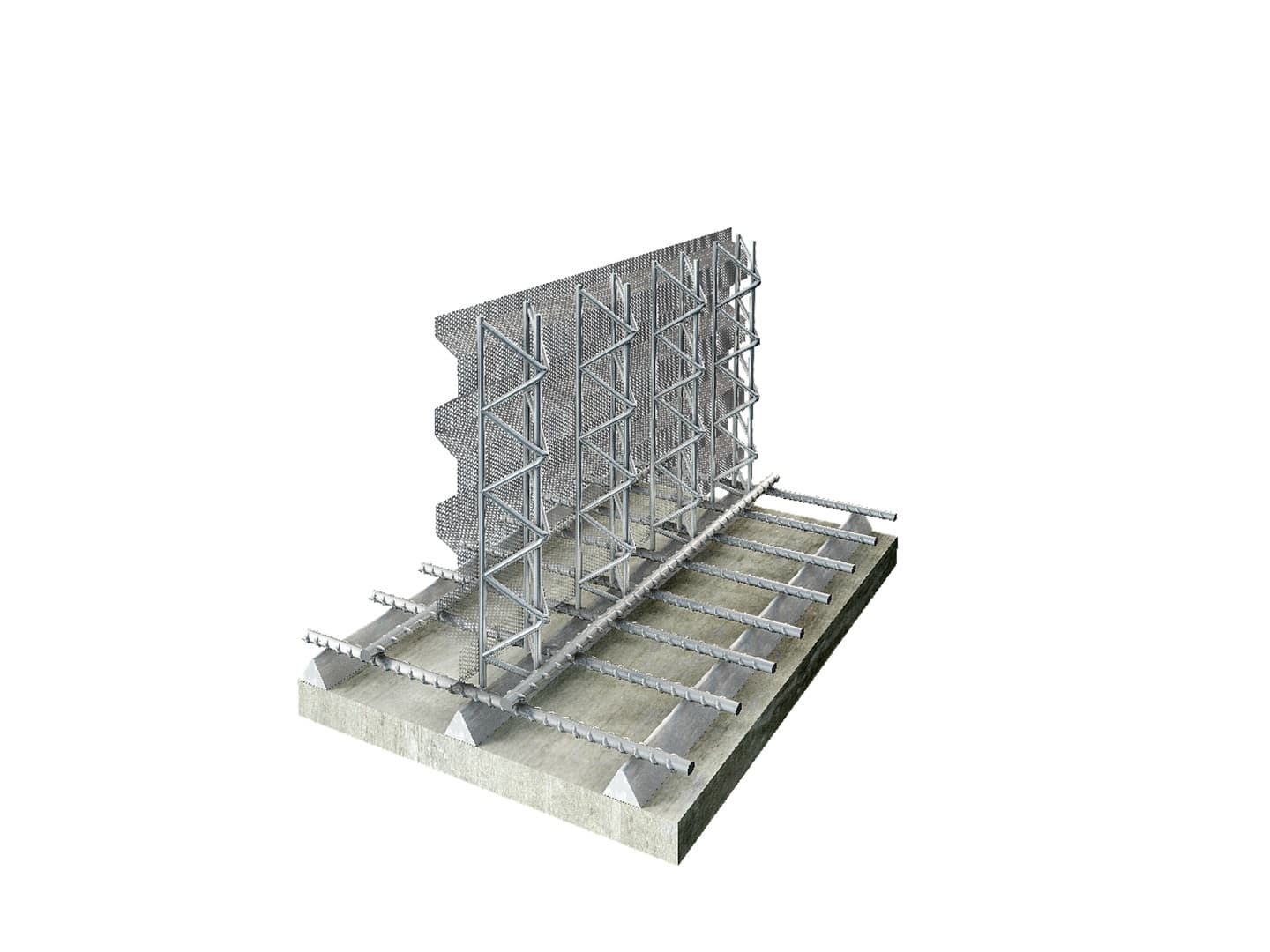

STEP 1 - SELF-SUPPORTED H ≤ 150 CM
Installation of RECOSTAL® 2000 GT to reinforcing mesh.

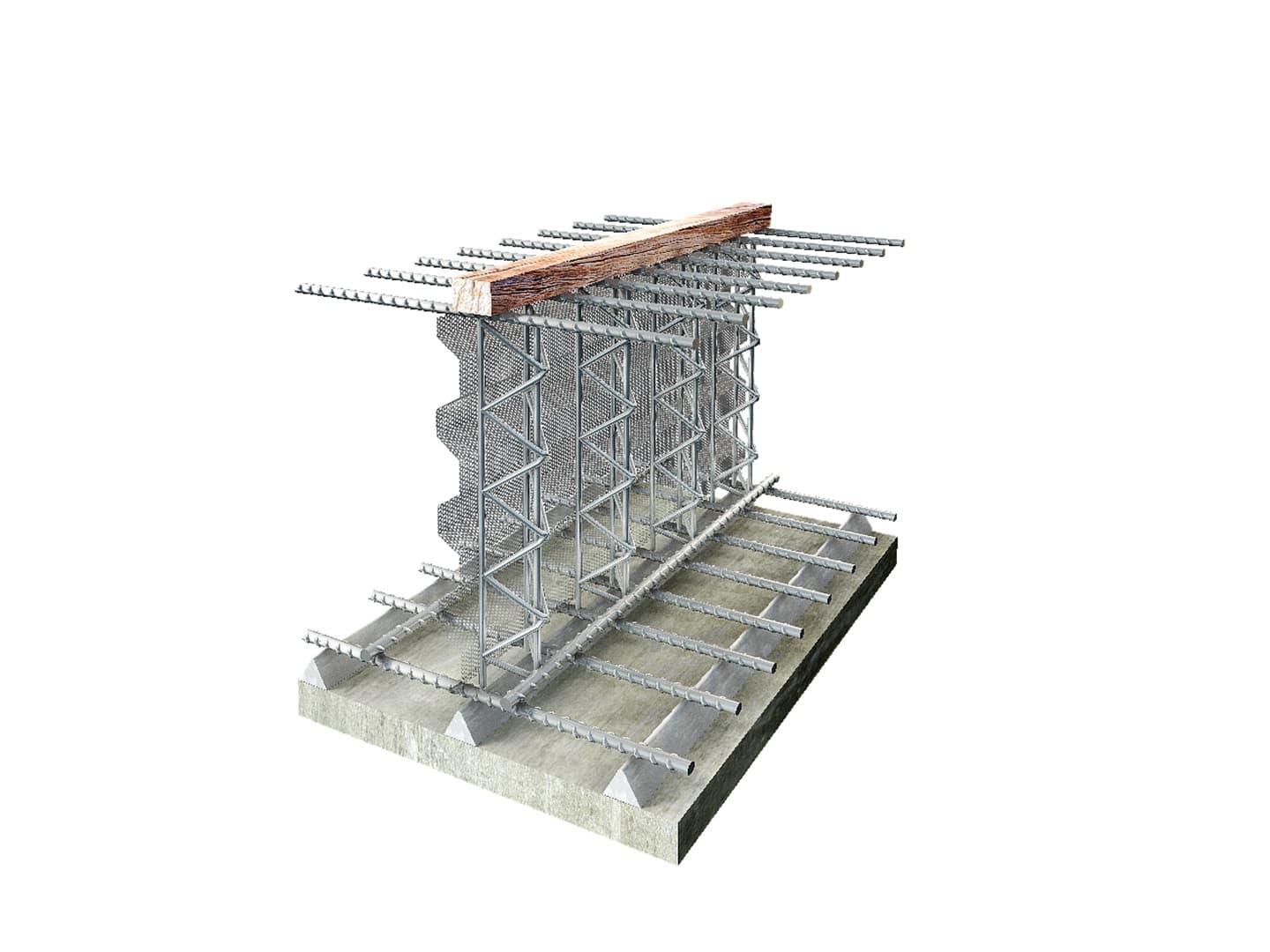

STEP 2 - SELF-SUPPORTED H ≤ 150 CM
Addition of upper reinforcement and wooden beam.

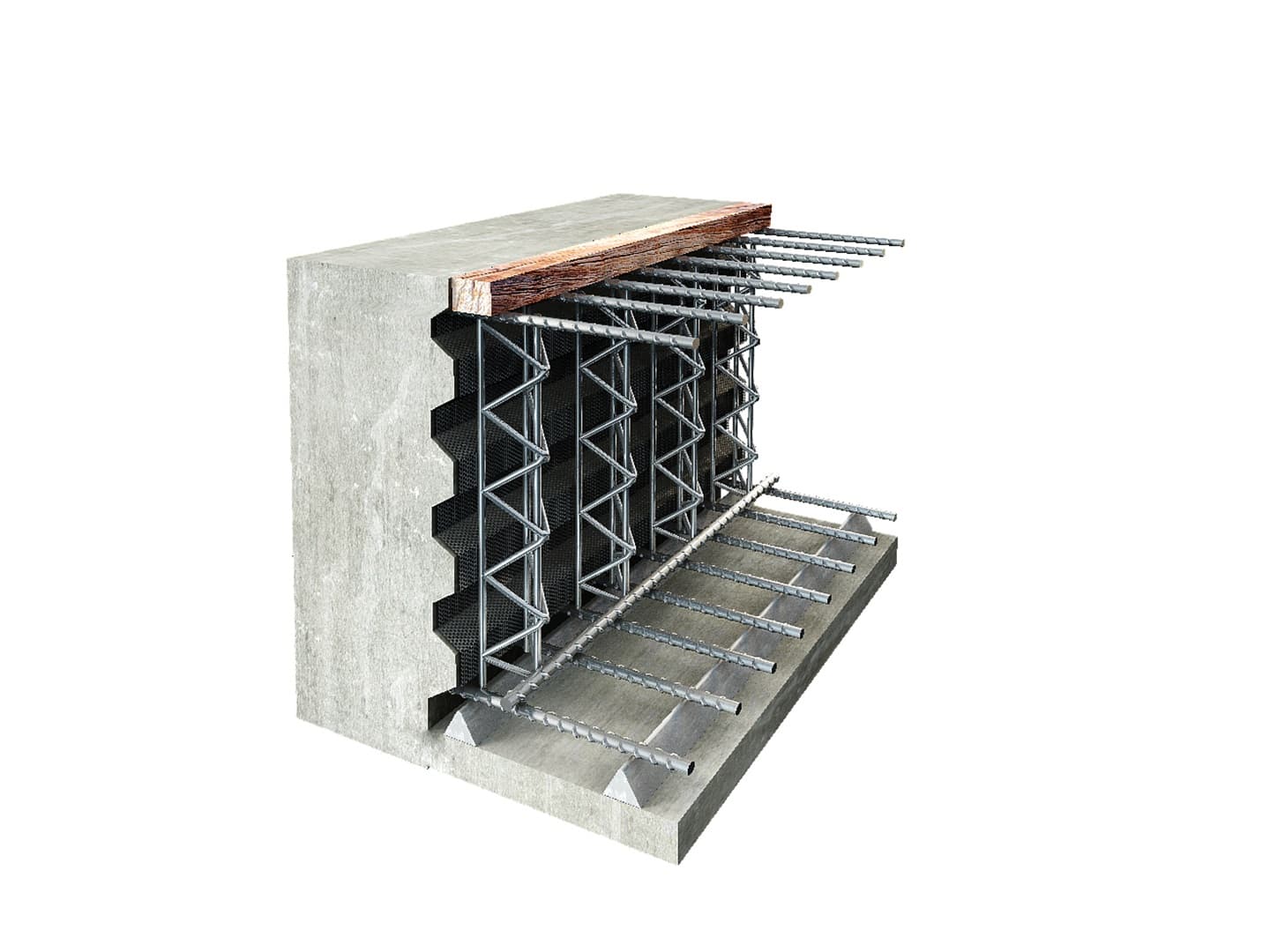

STEP 3 - SELF-SUPPORTED H ≤ 150 CM
Concreting - to do with pressure on the trusses.
