RECOSTAL® 2000
RECOSTAL® 2000 Formwork is used for making construction joints in reinforcement structures. The load bearing structure is made from a rebar mat.

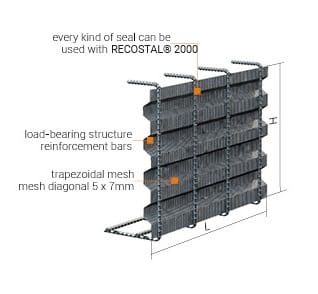

Load-bearing structure made of steel bars with diameters which depend on slab thickness.
The Benefits:
Fully self-supporting up to 90 cm
Trapezoidal profile according to Eurocode 2
No additional support is necessary
Fast installation
Low transport costs
Installation without a crane

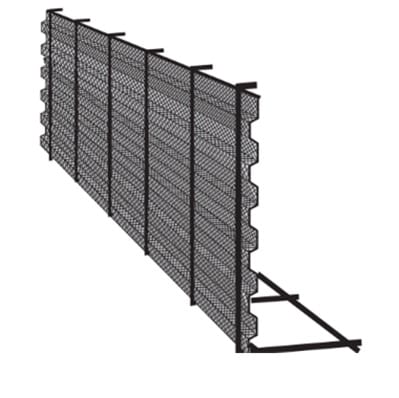

RECOSTAL® 2000 - Option 1
Unit length 2.25 m, self supporting in all heights from 20 cm - 90 cm.
RECOSTAL® 2000 - Option 2

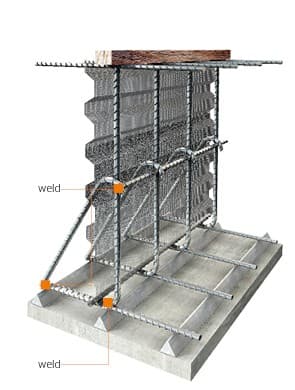

RECOSTAL® 2000 Z for heights up to H = 2.00 m additional support wih reinforcing bars to be placed in sight.

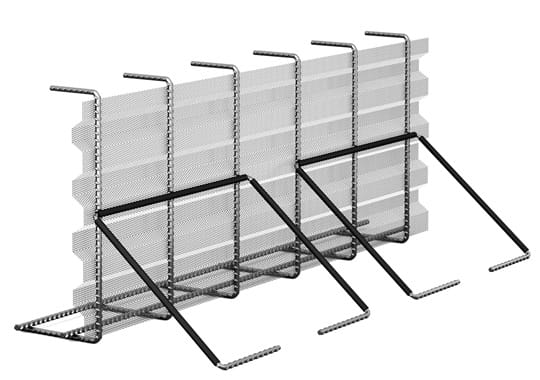

RECOSTAL® 2000 D - Option 3

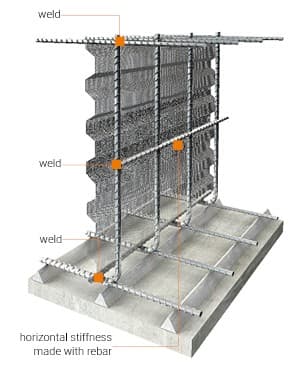

RECOSTAL® 2000 D for heights up to H = 2.00 additional support with reinforcing struts to be placed placed in site.
Similar products
General recommendations:
During the installation observe the compulsory security standards - wear protective gloves.
Up to 90 cm RECOSTAL® 2000 is self-supported.

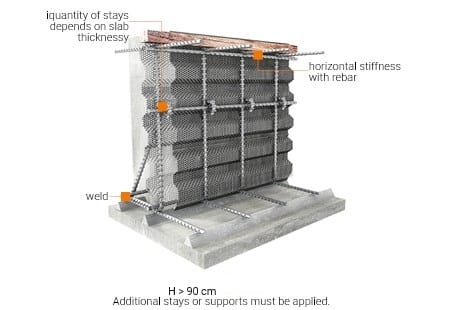

Above 90 cm stays made with rebars are needed.

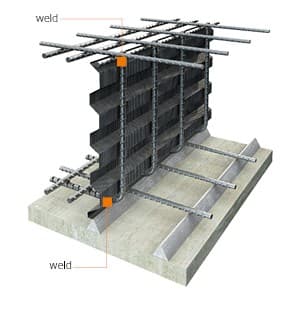

STEP 1 - SELF-SUPPORTED H = 30-90 CM
Installation of RECOSTAL® 2000 to reinforcing mesh.

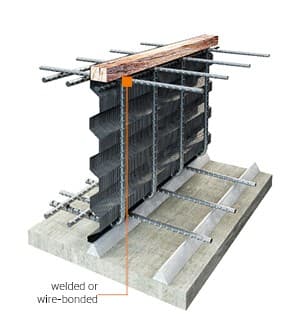

STEP 2 - SELF-SUPPORTED H = 30-90 CM
Adding a wooden beam.

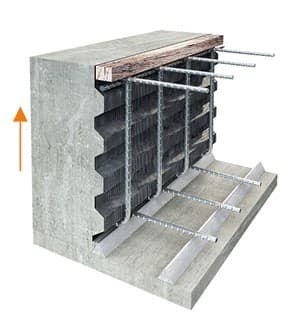

STEP 3 - SELF-SUPPORTED H = 30-90 CM
Concreting - to do with a pressure on the bars.

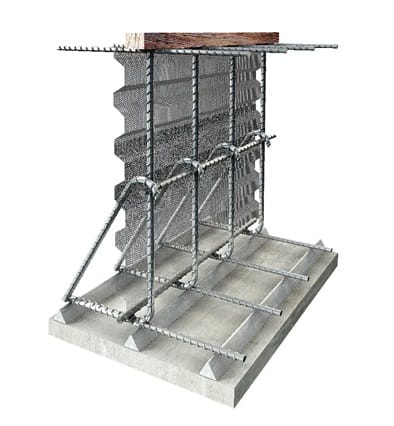

STEP 1 - STAYS H > 90 CM
Installation of RECOSTAL® 2000 Z.
STEP 2 - STAYS H > 90 CM
Installation of stays or supports.

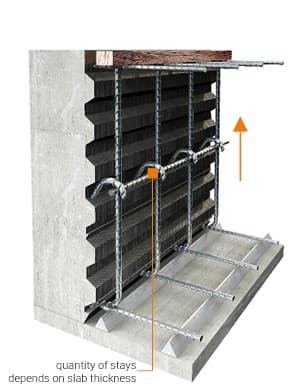

STEP 3 - STAYS H > 90 CM
Concreting - to do with a pressure on the bars.
