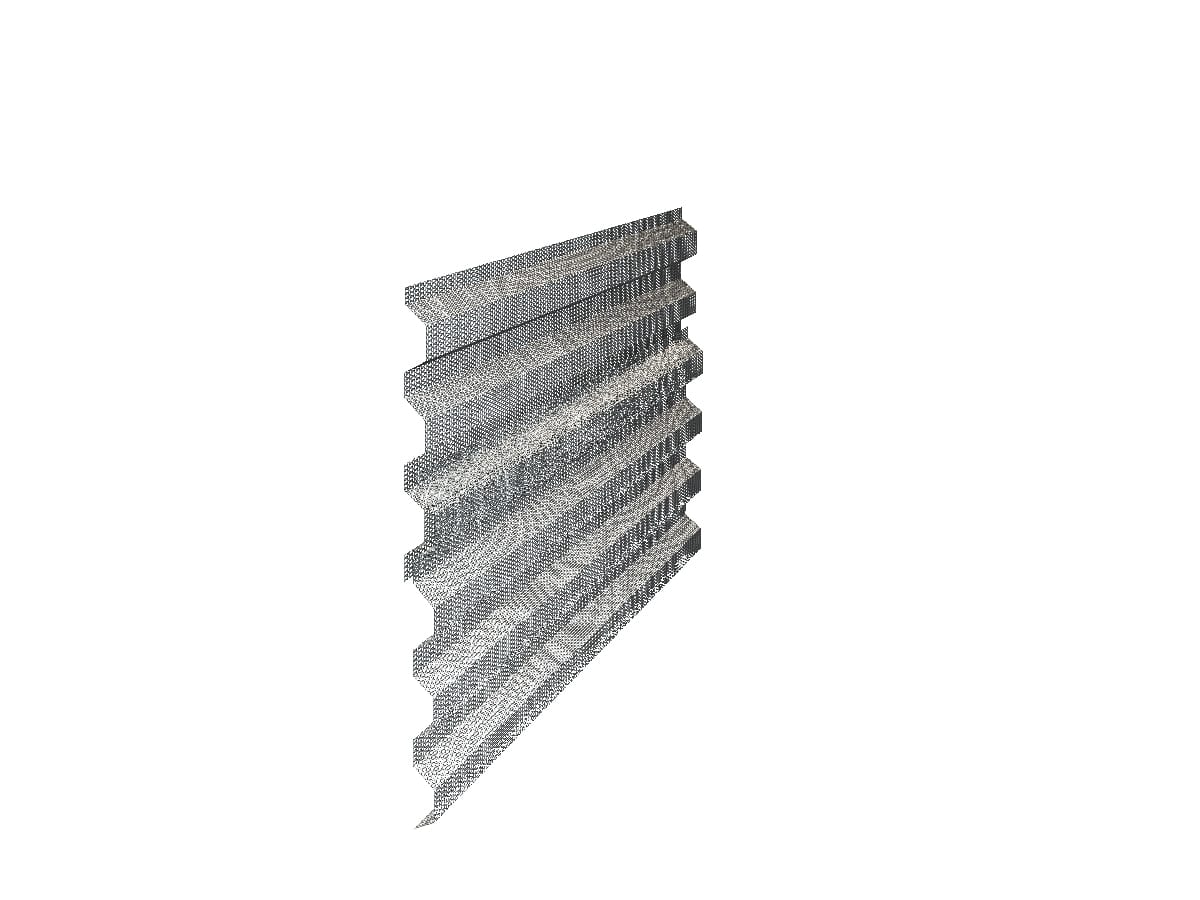

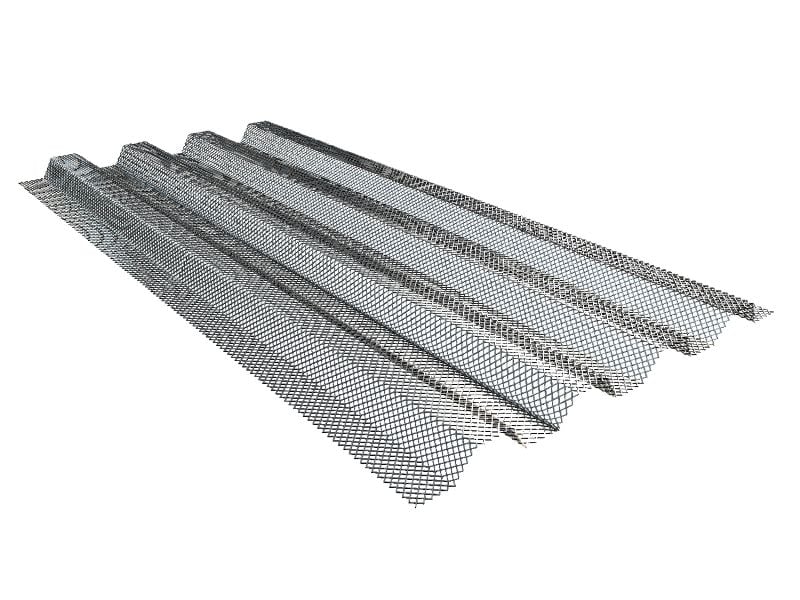

RECOSTAL® 1000

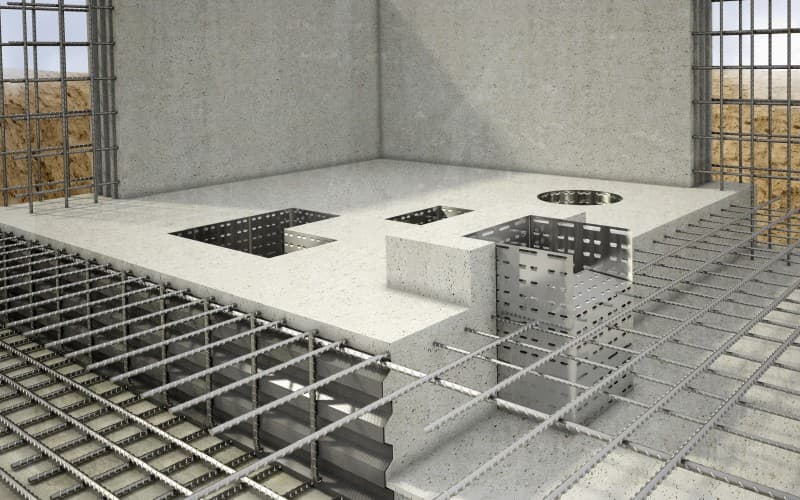

RECOSTAL® 1000 Formwork is used for making construction joints in reinforced concrete structures. Necessary for such elements as foundation slab, walls and ceiling.
The Benefits:
Self-supporting up to 30 cm
Trapezoidal profile according to EC (Eurocode) 2
Fast installation
Low transport costs
Installation without a crane

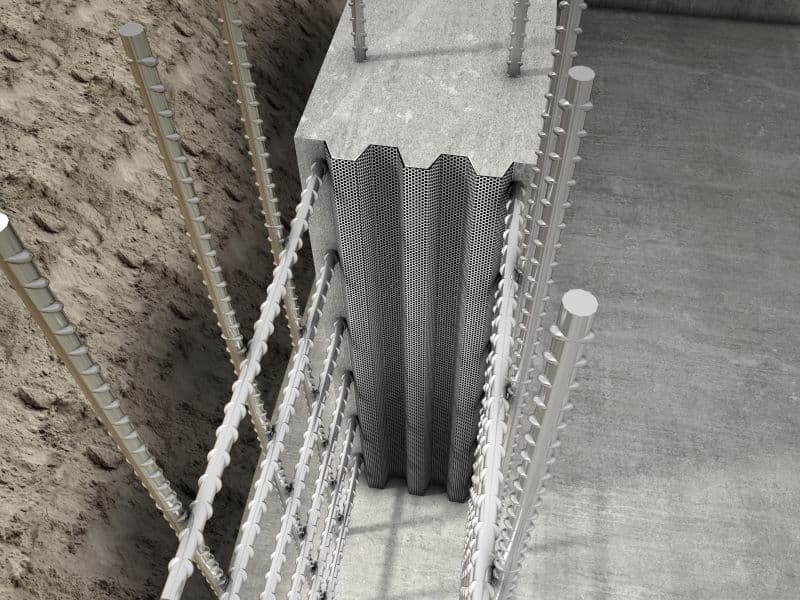

Key profile construction joints eliminate ”key displacement” between neighbouring reinforced concrete and guarantee continuity of seal construction.
Profile meets all requirements for the highest category construction joints according to EC 2.
Similar products
General recommendations:
During the installation observe the compulsory security standards - wear protective gloves.
Up to 30 cm RECOSTAL® 1000 is self-supported.
Above 30 cm stays made with rebars are needed.

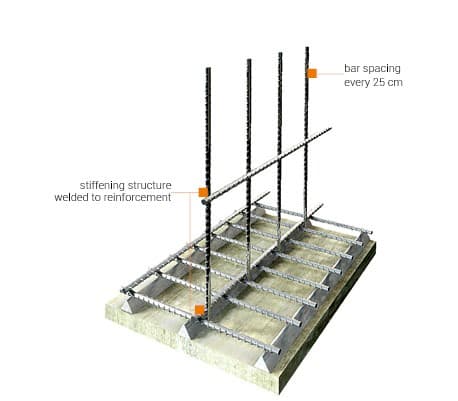

STEP 1 - SELF-SUPPORTED H ≤ 30 CM
Installation of reinforcing mesh.

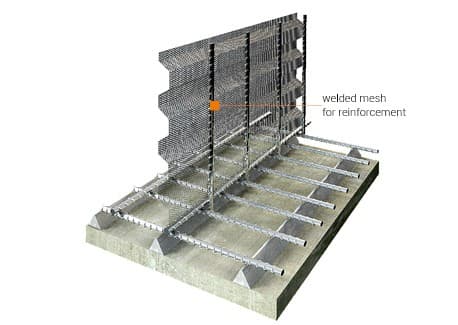

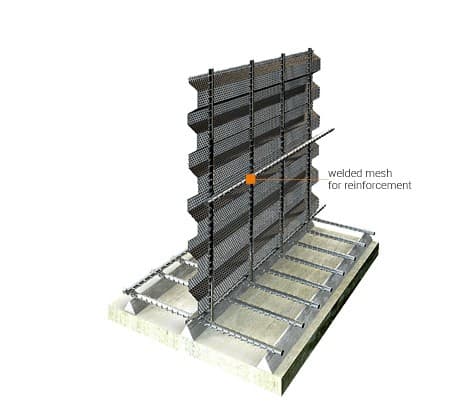

STEP 2 - SELF-SUPPORTED H <= 30 CM
Installation of RECOSTAL® 1000 for reinforcing mesh.

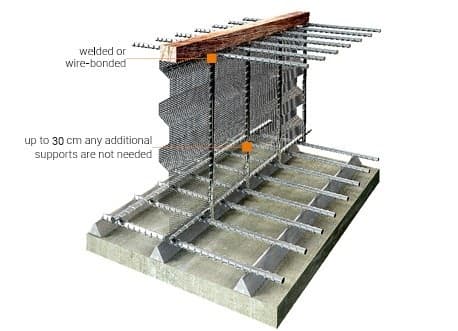

STEP 3 - SELF-SUPPORTED H <= 30 CM
Upper reinforcement installation and welding. to vertical bars. Adding a wooden beam.

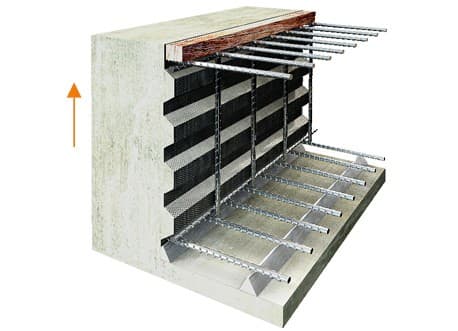

STEP 4 - SELF-SUPPORTED H <= 30 CM
Concreting - to do with pressure on the bars.

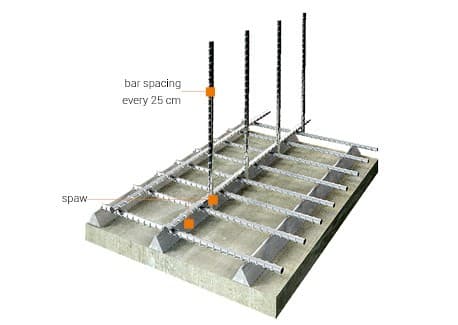

STEP 1 - STAYS H > 30 CM
Installation of reinforcing mesh.
STEP 2 - STAYS H > 30 CM
Installation of RECOSTAL® 1000 to reinforcing mesh.

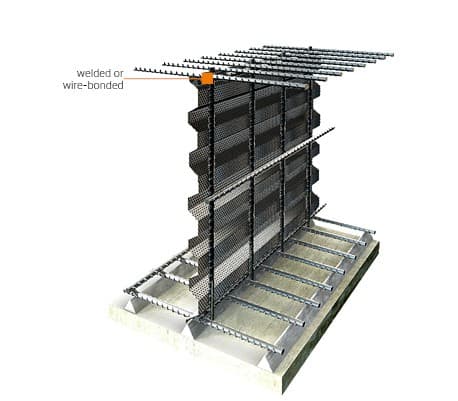

STEP 3 - STAYS H > 30 CM
Upper reinforcement installation and welding to vertical bars.

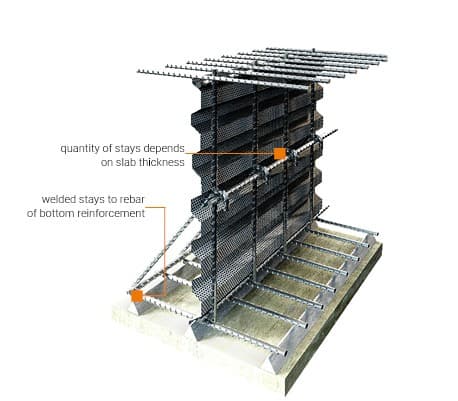

STEP 4 - STAYS H > 30 CM
Installation of stays or supports.

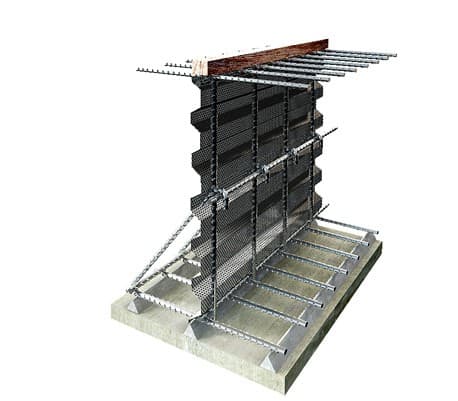

STEP 5 - STAYS H > 30 CM
Adding a wooden beam.

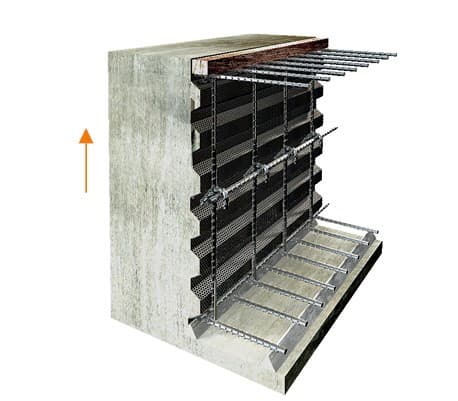

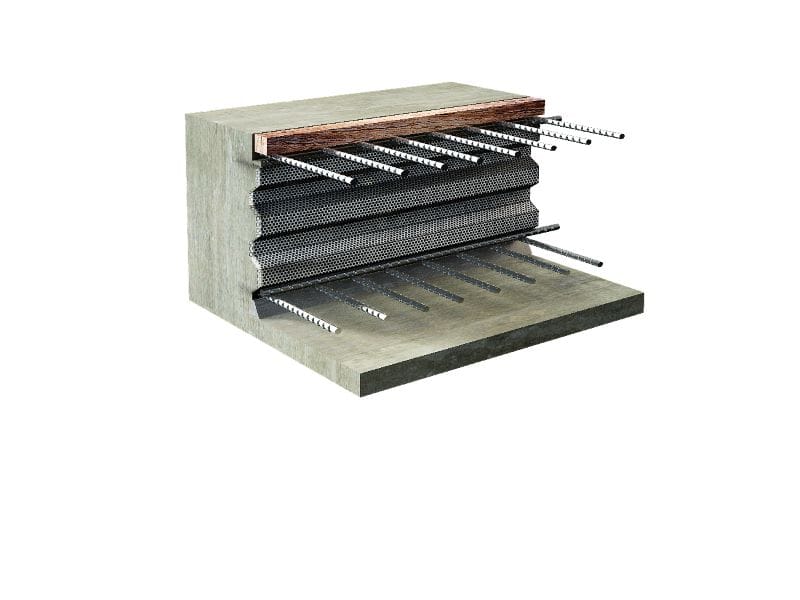

STEP 6 - STAYS H > 30 CM
Concreting - to do with pressure on the bars.
