RECOSTAL® 1000 F activ
RECOSTAL® 1000 F activ is permanent formwork with metal waterstop contaflexactiv covered with bentonite.
RECOSTAL® 1000 F activ is used for making construction joints in reinforcement structures of foundation slabs, reinforced concrete walls and in ceilings. Shuttering unit with metal waterstop ensures the tightness of the construction joint.
The Benefits:
Self-supporting up to 30 cm
Metal waterstop with activ bentonite coating
Working interval tightness up to 0.5 MPa with constant pressure and also with variable pressure
Active bentonite has been tested for continuous tightness of the working break even after a drying period
Trapezoidal profile according to EC 2
Fast installation
Low transport costs
Installation without a crane

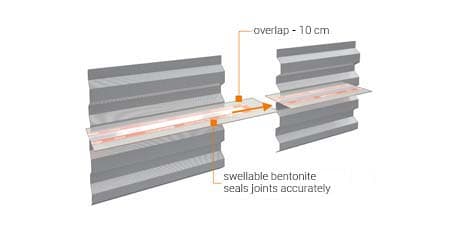

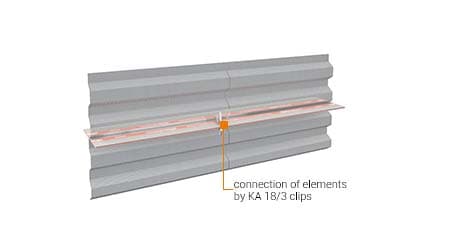

CONNECTING CONSECUTIVE ELEMENTS
Similar products
General recommendations:
During the installation observe the compulsory security standards - wear protective gloves.
Up to 30 cmRECOSTAL® 1000 F activ is self-supported.
Above 30 cm stays made with rebars are needed.
STEP 1 - SELF-SUPPORTED H ≤ 30 CM
Installation of RECOSTAL® 1000 F activ to reinforcing mesh.
STEP 2 - SELF-SUPPORTED H ≤ 30 CM
Addition of upper reinforcement and wooden beam.
STEP 3 - SELF-SUPPORTED H < 30 CM
Concreting.

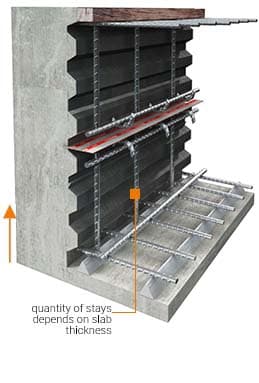

STAYS > 30 CM
Over 30 cm support must be provided on site.
