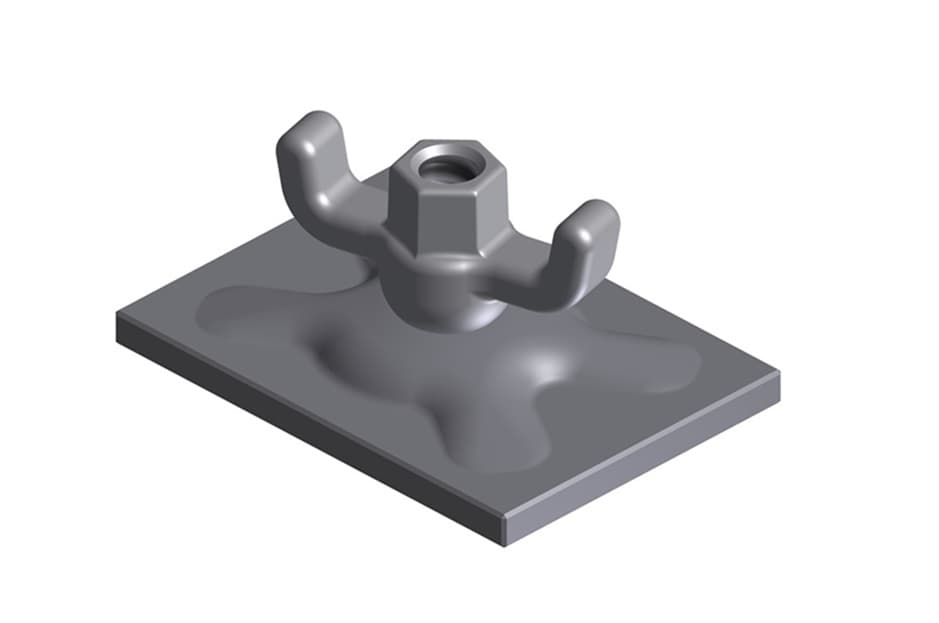

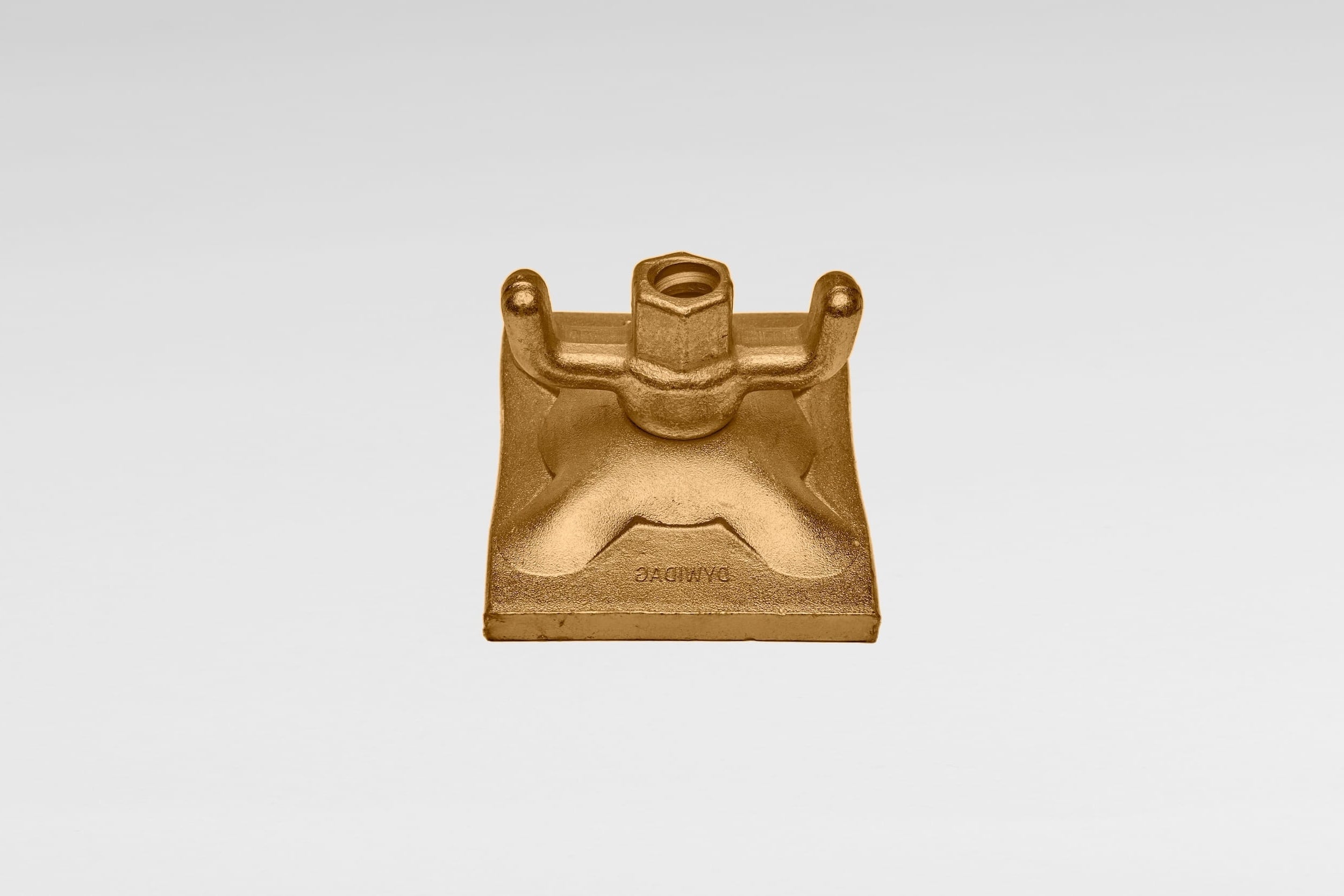

Combination Plate
Combination Plates consist of a waler plate and a forged wing nut that are articulated (max. 5°) but undetachable. The load capacity for wood and steel walings corresponds to the values of the base plates.
Article No. | Bar Ø [mm] | Plate [mm] | Hex [mm] | Weight [kg/no.] |
|---|---|---|---|---|
15 F 1020 | 15 | 120 x 120 x 10 | 27 | 1.42 |
15 F 1021 | 15 | 140 x 100 x 10 | 27 | 1.42 |
15 F 1023 | 15 | 200 x 150 x 10 | 27 | 2.70 |
Galvanized, nut: forged, plate: steel S235,
max. articulation of nut: 5°
Working load 30 kN if supported on timber
Working load 90 kN if use with steel Walings
Safety Instructions
Appropriate use of form ties and accessories is necessary to prevent accidents and failure. All products are intented to be used by qualified and experienced workmen. It is the user's responsibility to continually inspect working hardware for wear and to discard worn parts. Improper use of the DYWIDAG Form Ties can expose workers to extreme danger that may result in severe injury or death.
