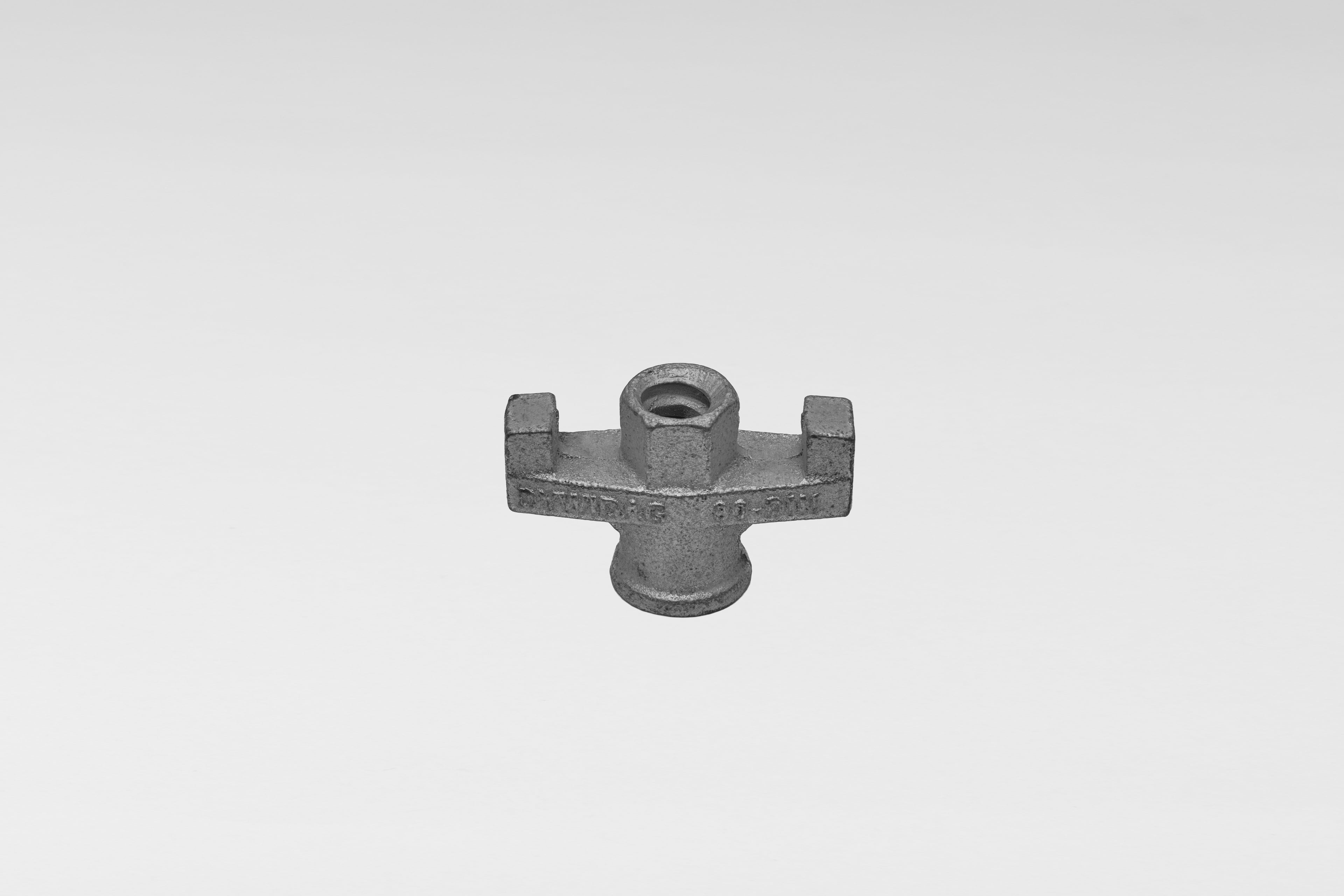

Wing Nut
With different Waler Plates, Wing Nuts can be used as anchor nuts both for timber and steel walings. They can be fixed and loosened using a hexagon wrench or a threadbar. If necessary, a clamping effect can be attained or overcome by applying hammer strokes to the wings.
Article No. | Bar Ø [mm] | Height [mm] | Hex [mm] | Weight [kg/no.] |
|---|---|---|---|---|
12 F 2071 | 12 | 50 | 24 | 0.19 |
15 F 2071 | 15 | 55 | 27 | 0.35 |
20 F 2177 | 20 | 60 | 36 | 0.48 |
26 E 2177 | 26.5 | 65 | 46 | 0.87 |
Cast, galvanized
Safety Instructions
Appropriate use of form ties and accessories is necessary to prevent accidents and failure. All products are intented to be used by qualified and experienced workmen. It is the user's responsibility to continually inspect working hardware for wear and to discard worn parts. Improper use of the DYWIDAG Form Ties can expose workers to extreme danger that may result in severe injury or death.
