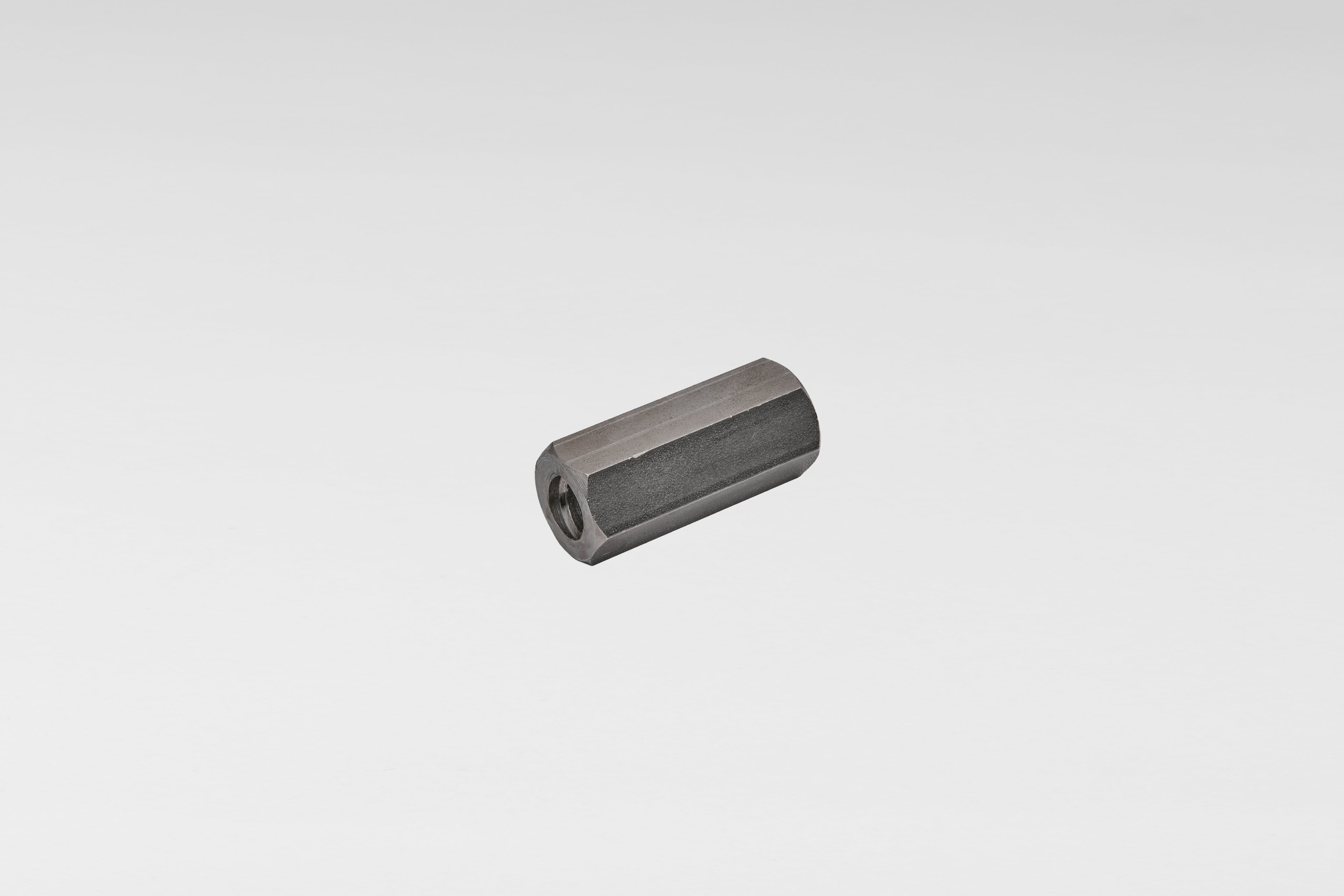

Hex Nut
Similar to Wing Nuts, Hex Nuts can be used as anchor nuts in conjunction with a Waler Plate or a Flat Bearing Plate.
Article No. | Bar Ø [mm] | Length Ø [mm] | Hex [mm] | Weldable | Weight [kg/no.] |
|---|---|---|---|---|---|
Hex Nut – designed to take the full bar load1) |
|
| |||
15 F 2002/50 | 15 | 50 | 30 | Yes | 0.22 |
15 F 2002/70 | 15 | 70 | 30 | Yes | 0.30 |
15 VA 2002/502) | 15 | 50 | 30 |
| 0.22 |
15 F 2002/50/G3) | 15 | 50 | 30 |
| 0.19 |
20 F 2002/70 | 20 | 70 | 36 | Yes | 0.40 |
26 E 2002/601) | 26.5 | 60 | 46 | Yes | 0.60 |
26 E 2002/80 | 26.5 | 80 | 46 | Yes | 0.80 |
Lock Nut – designed for securing, not for taking loads |
| ||||
15 F 2040/30 | 15 | 30 | 30 | Yes | 0.15 |
20 F 2040/30 | 20 | 30 | 36 | Yes | 0.16 |
26 E 2040/30 | 26.5 | 30 | 46 | Yes | 0.30 |
1) Working load of 26 E 2002/60: 200 kN
2) Stainless steel, grade VA
3) Cast, galvanized
All Hex Nuts are also available galvanized > Article No. …/V
(example: 15 F 2002/50/V)
Safety Instructions
Appropriate use of form ties and accessories is necessary to prevent accidents and failure. All products are intented to be used by qualified and experienced workmen. It is the user's responsibility to continually inspect working hardware for wear and to discard worn parts. Improper use of the DYWIDAG Form Ties can expose workers to extreme danger that may result in severe injury or death.
