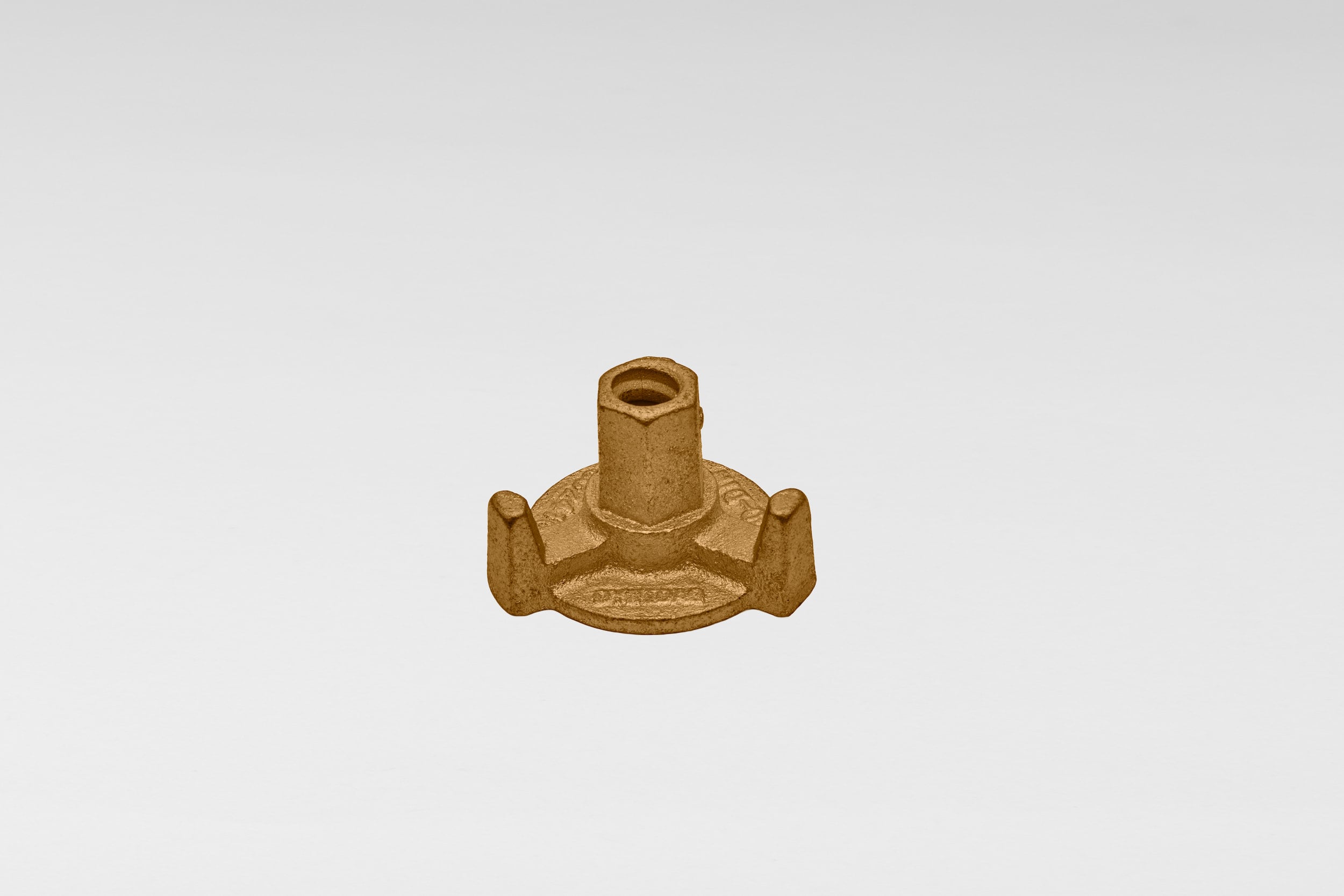

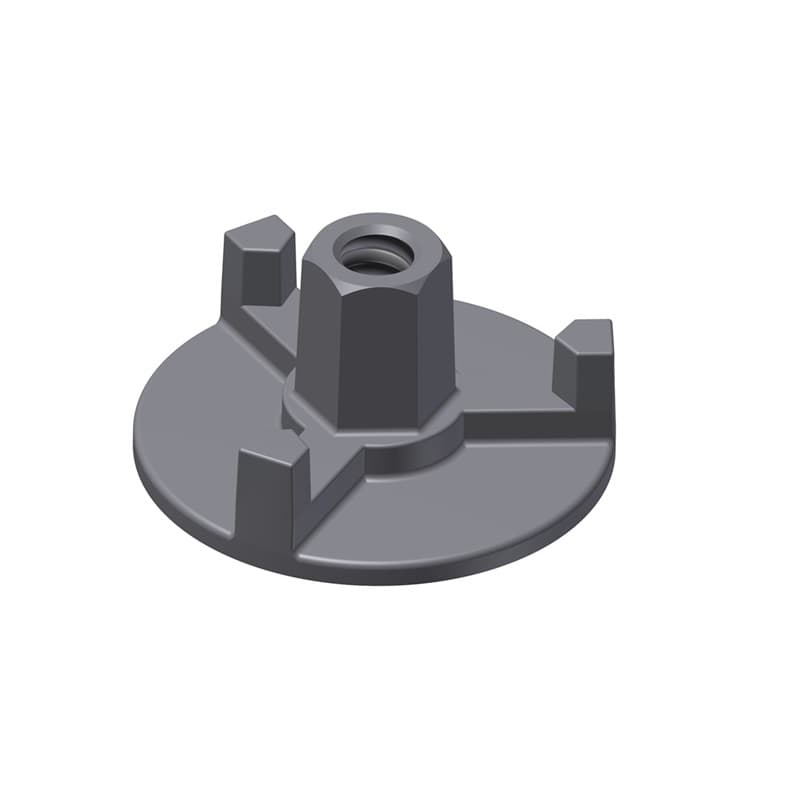

Flanged Wing Nut
The Flanged Wing Nut, which is available in five different diameters, differs from the Wing Nut by a larger pedestal allowing a direct bearing on walings.
It can be screwed on or loosened using a hexagon wrench, threadbar or hammer.
Article No. | Bar Ø [mm] | Plate Ø [mm] | Height [mm] | Hex [mm] | Hole Ø1) [mm] | Weight [kg/no.] |
|---|---|---|---|---|---|---|
12 F 2072 | 12 | 70 | 50 | 24 | - | 0.45 |
15 F 2072/70 | 15 | 70 | 53 | 27 | ≤ 35 | 0.53 |
15 F 2072/100 | 15 | 100 | 53 | 27 | ≤ 35 | 0.7 |
15 F 2072/130 | 15 | 130 | 53 | 27 | ≤ 35 | 0.9 |
20 F 2072/130 | 20 | 130 | 65 | 36 | ≤ 40 | 1.53 |
1) Maximum diameter of the hole
Cast, galvanized
Safety Instructions
Appropriate use of form ties and accessories is necessary to prevent accidents and failure. All products are intented to be used by qualified and experienced workmen. It is the user's responsibility to continually inspect working hardware for wear and to discard worn parts. Improper use of the DYWIDAG Form Ties can expose workers to extreme danger that may result in severe injury or death.
