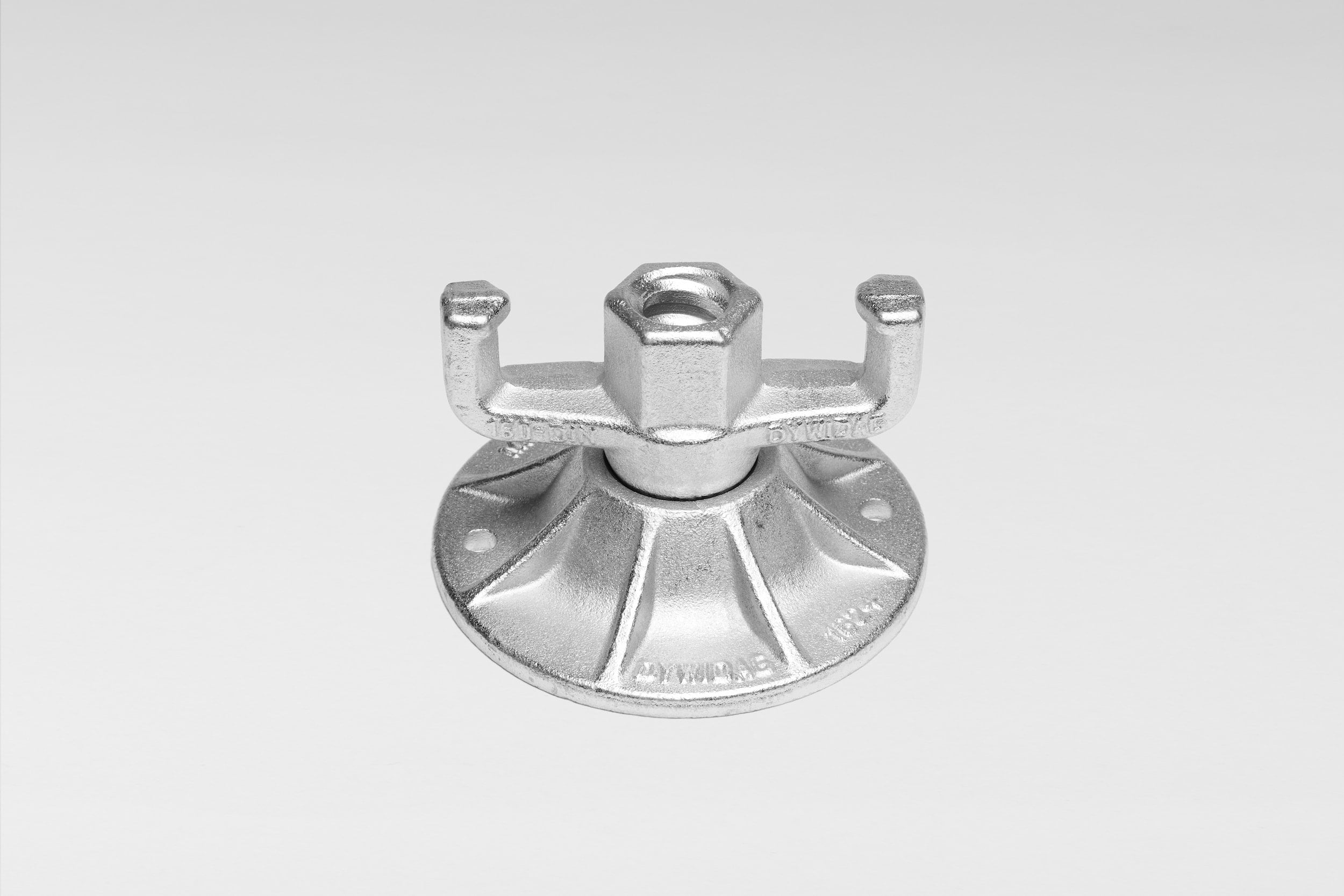

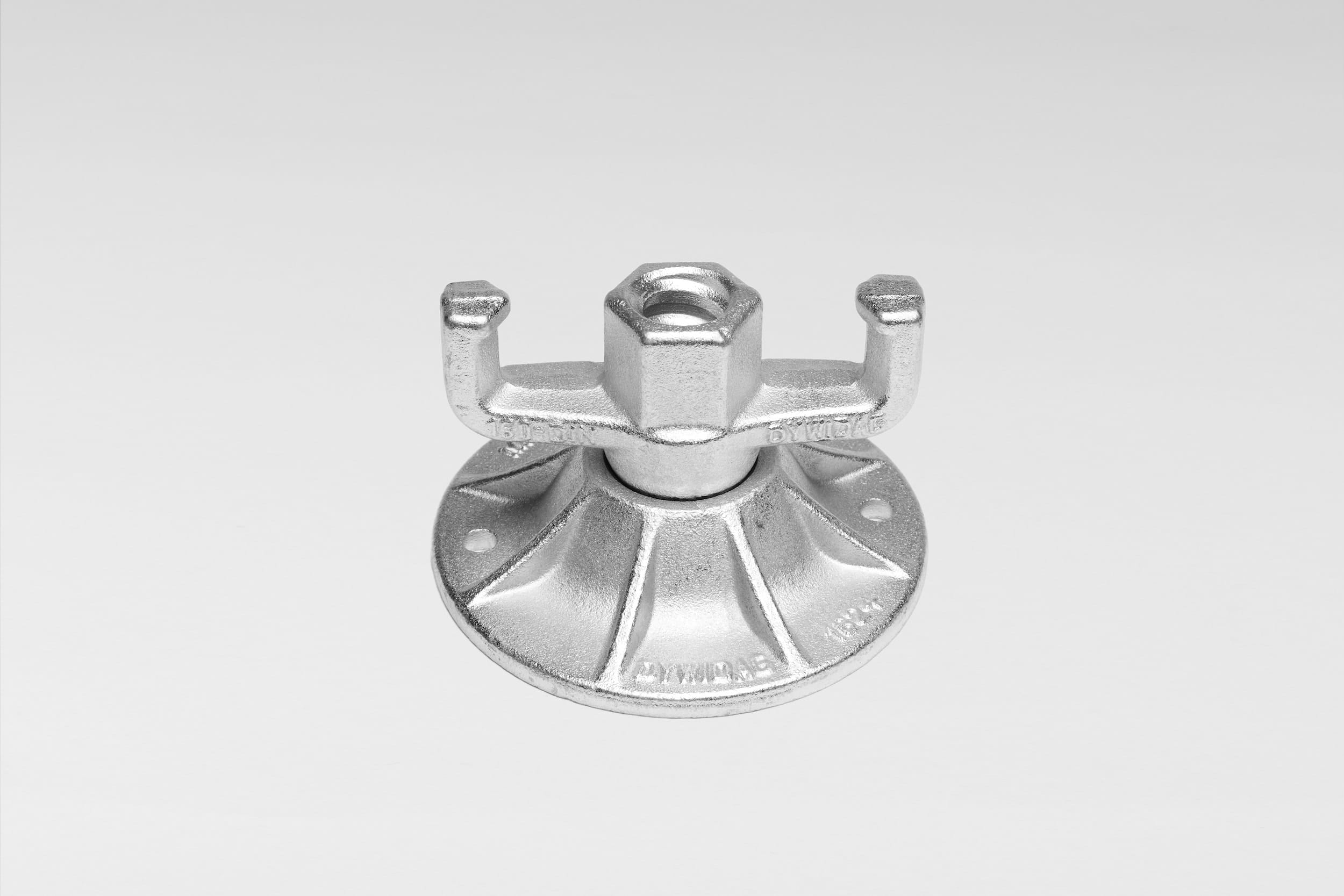

Slope Plate
Slope Plate is part of the DYWIDAG® Form Tie System, designed to transfer loads from the anchor bar to the formwork surface at an angle. It is used where the formwork surface is not perpendicular to the tie axis.
Technical Features:
Equipped with a wing nut permanently connected to the plate (non-detachable)
Both plate and nut are cast components
Swivel angle of wing nut: approx. 15° for square plates, approx. 5° for round plates
Service load [kN]: 160 kN (with 20 F bar) and 90 kN (with 15 F bar)
Why choose DYWIDAG Slope Plate?
Fully compatible with the original DYWIDAG® Threadbar
Ensures uniform load transfer and formwork stability
Robust and precise design manufactured according to DIN standards
Proven performance on some of Europe’s largest construction projects
Guaranteed safety and durability thanks to DYWIDAG’s in-house production and quality control
Fast production thanks to in-house manufacturing in Germany
Like the Combination Plate, the Slope Plate also features a wing nut that is undetachable from the plate. In the case of the Slope Plate, both the plate and the nut are cast. The articulation of the wing nut is approx. 15° for square plates and 5° for round plates.
Article no. | Bar Ø [mm] | Plate [mm] | Height [mm] | Hex [mm] | Articulation [°] | Weight [kg/St.] |
|---|---|---|---|---|---|---|
15 F 1026 | 15 | 120 x 120 | 65 | 27 | max. 15 | 1,10 |
15 F 1030 | 15 | Ø 120 | 65 | 27 | max. 5 | 1,00 |
20 F 1030 | 20 | Ø 130 | 85 | 36 | max. 10 | 1,52 |
Galvanized, for inclined formwork
15 F 1026/15 F 1030: Casts
20 F 1030: Forged
15 F 1026 and 20 F 1030 for use with steel walings
Safety Instructions
Appropriate use of form ties and accessories is necessary to prevent accidents and failure. All products are intented to be used by qualified and experienced workmen. It is the user's responsibility to continually inspect working hardware for wear and to discard worn parts. Improper use of the DYWIDAG Form Ties can expose workers to extreme danger that may result in severe injury or death.
