Pressed Waler Plate
Pressed Waler Plate

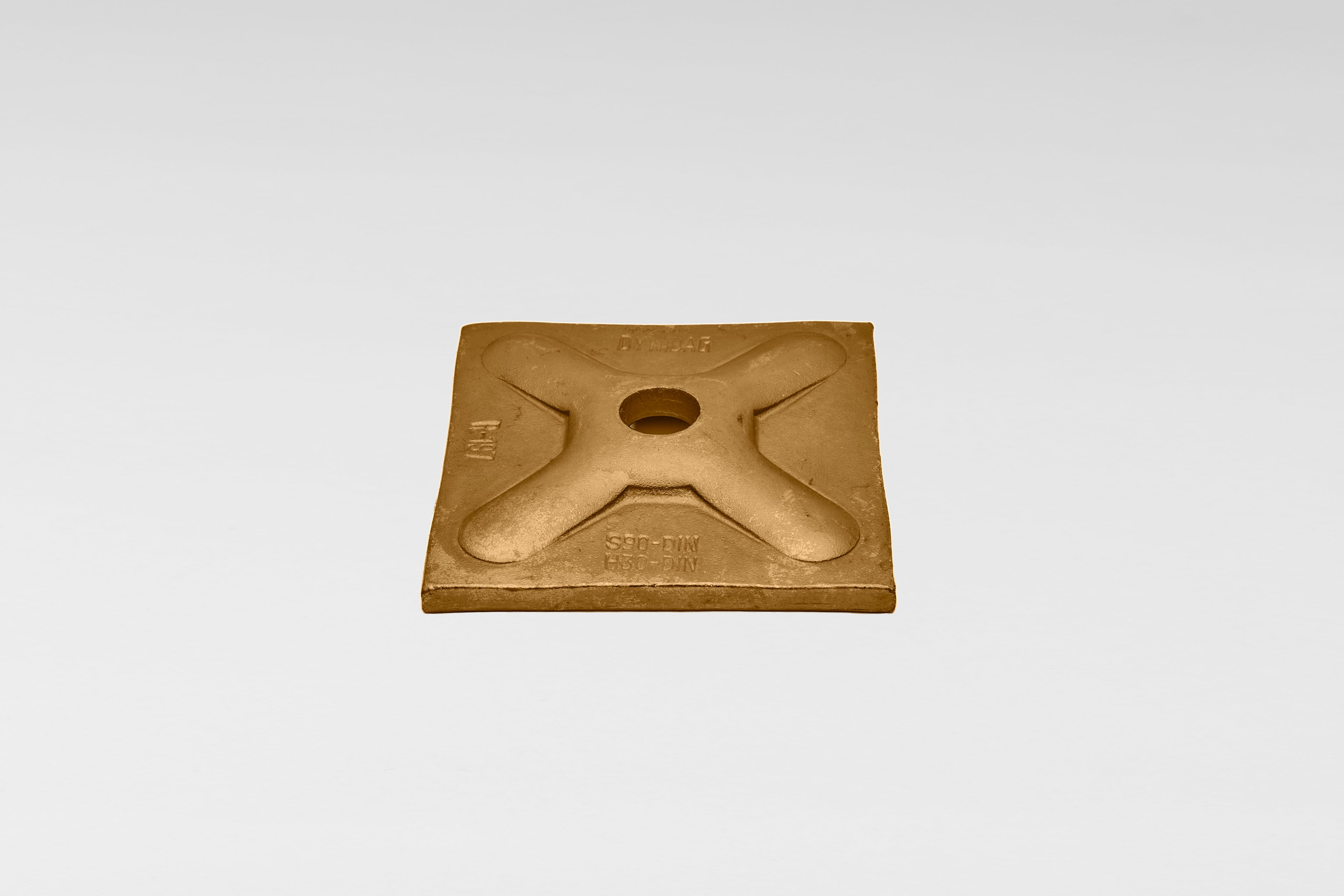

This is a pressed steel waler plate used to reinforce and stabilize formwork, ensuring even load distribution and structural support.
The Benefits:
High strength and durability
Even load distribution along the formwork
Quick and easy installation
Improves stability and safety of formwork
Pressed Waler Plates are used for timber or steel walings in conjunction with a winged nut or a hex nut for load transfer. The embossing of the plate increases its rigidity. Load capacity depends on the contact area, the admissible bearing pressure and the threadbar that is used.
Article No. | Bar Ø [mm] | Plate [mm] | Hole Ø [mm] | Weight [kg/no.] |
|---|---|---|---|---|
15 F 2062 | 15 | 140 x 100 x 10 | 20 | 1.15 |
15 F 2066 | 15 | 120 x 120 x 10 | 20 | 1.10 |
15 F 2097 | 15 | 200 x 150 x 10 | 20 | 2.30 |
Galvanized, steel grade S235 or similar
15 F 2062: For use with steel waling
15 F 2066: Working load of 20 kN if supported on timber
15 F 2097: Working load of 50 kN if supported on timber
Safety Instructions
Appropriate use of form ties and accessories is necessary to prevent accidents and failure. All products are intented to be used by qualified and experienced workmen. It is the user's responsibility to continually inspect working hardware for wear and to discard worn parts. Improper use of the DYWIDAG Form Ties can expose workers to extreme danger that may result in severe injury or death.
