RECOSTAL® Keyboard XLV/XLW

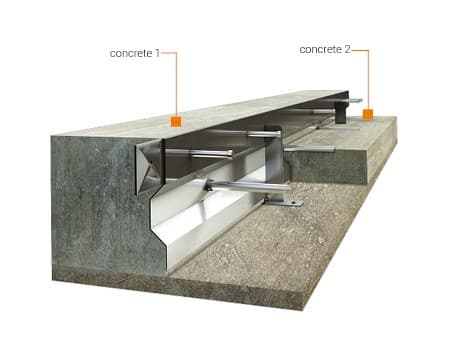

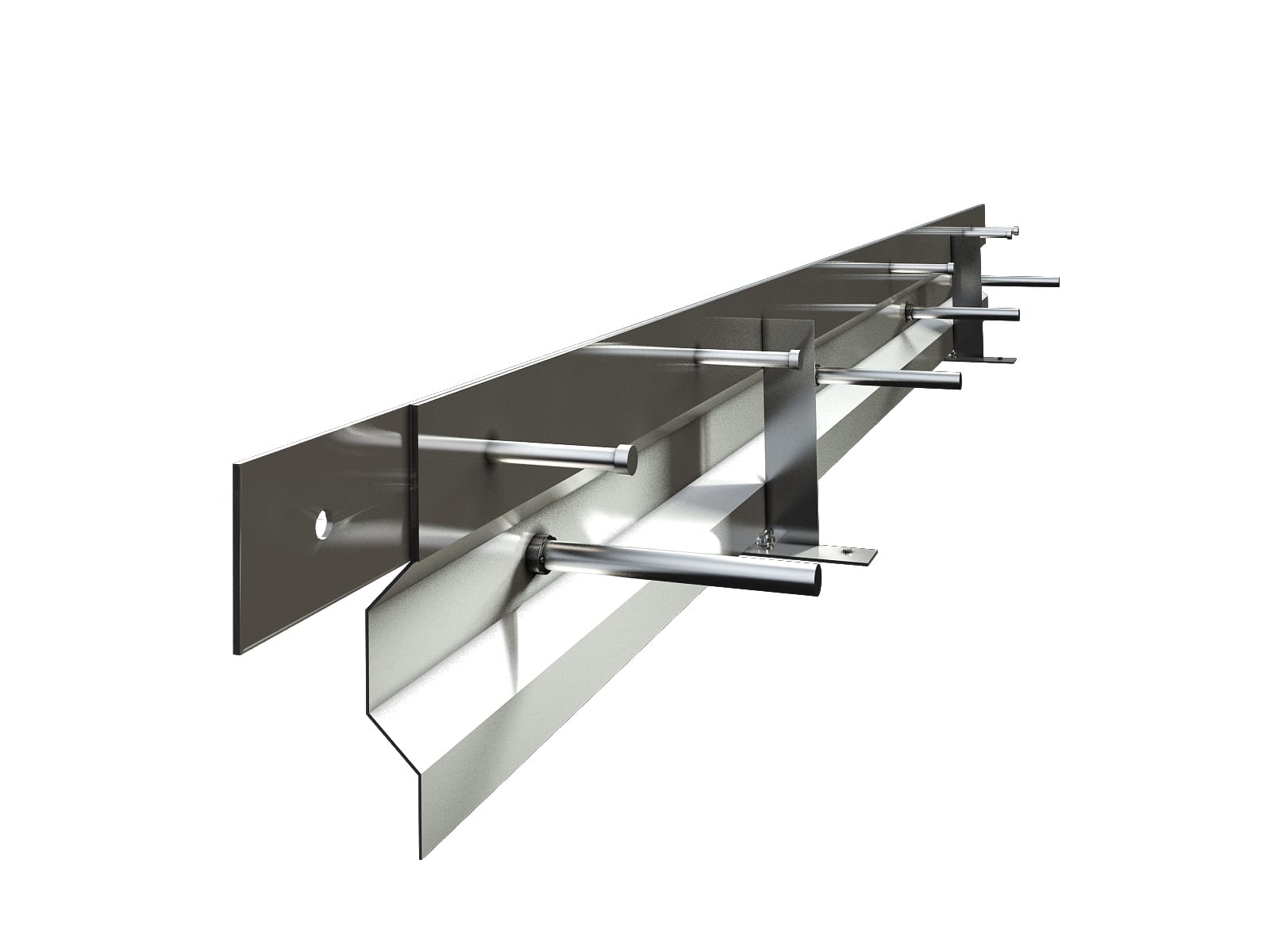

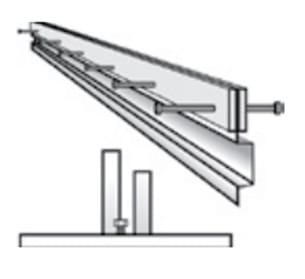

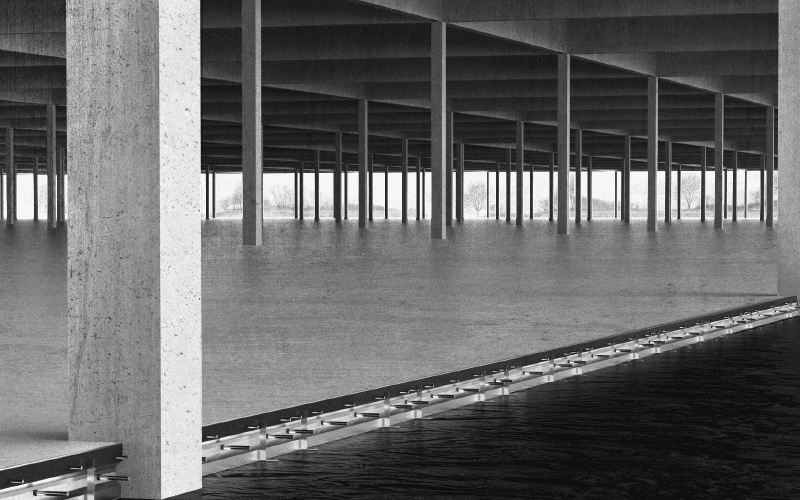

RECOSTAL® Keyboard XLV/XLW units are designed for the installation of isolation joints in industrial floor slabs and deck slabs with controlled cracks along the joint. The trapezoidal profile induces a key-profiled control joint. The top of the units consists of edge protection profiles which protect the concrete edges from spalling. There is a choice between type RECOSTAL® Keyboard XLV and type RECOSTAL® Keyboard XLW, depening on the respective requirement for edge protection. To withstand stronger shear forces, the RECOSTAL® Keyboard XLV/XLW unit can also be equipped with dowel bars. The available RECOSTAL® Keyboard XLV/XLW variants are used to create dilatations.
The Benefits:
Trapezoidal profile
Fast Installation
Special types and sizes on request
Adjustable height with KBS formbrace
Optional dowel bars, sleeves and openings
Joint expansion less than 3 mm
For RECOSTAL® Keyboard XLV-D, XLW-D variants: standard dilatation thickness 1 cm
Technical Data:
Material: Galvanized steel sheet
Edge protection material: Black steel with welded bolts or stainless steel
Unit length: RECOSTAL® Keyboard XLV – 295 cm; RECOSTAL® Keyboard XLW - 300 cm
Dilatation: Styrofoam 1 cm (different thickness on request)
Packaging: packed on pallets, shrink wrapped
Unit height = 120-265 cm
Storage: no limitation
Associated System Products:
Dowel sleeve, PVC, for dowel bars Ø 20 mm
Dowel bar Ø 20 mm
KBS formbrace
List of parts RECOSTAL® Keyboard XLV/XLW
Type | Formbrace type | Unit height [mm]1) | Slab height [mm]1) |
|---|---|---|---|
XLV/XLW 150 | KBS 150 | 120 | 150 |
XLV/XLW 180 | KBS 180 | 145 | 180 |
XLV/XLW 200 | KBS 200 | 165 | 200 |
XLV/XLW 250 | KBS 250 | 215 | 250 |
XLV/XLW 300 | KBS 300 | 265 | 300 |
1) Other heights available on request
Similar products
General recommendations:
The RECOSTAL® Keyboard KBS formbraces are positioned at distances of approx. 1.00 m (note sticker pointing out direction) and rigidly fixed with pegs and/or mortar.
Then the RECOSTAL® Keyboard units are placed into the formbraces, adjusted in height and lap joints are fixed with the plastic screws included in the delivery.
During the installation observe the compulsory security standards - wear protective gloves.
STEP 1

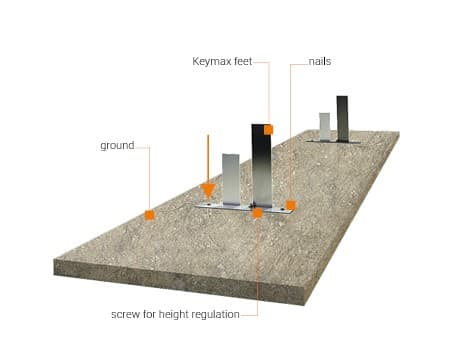

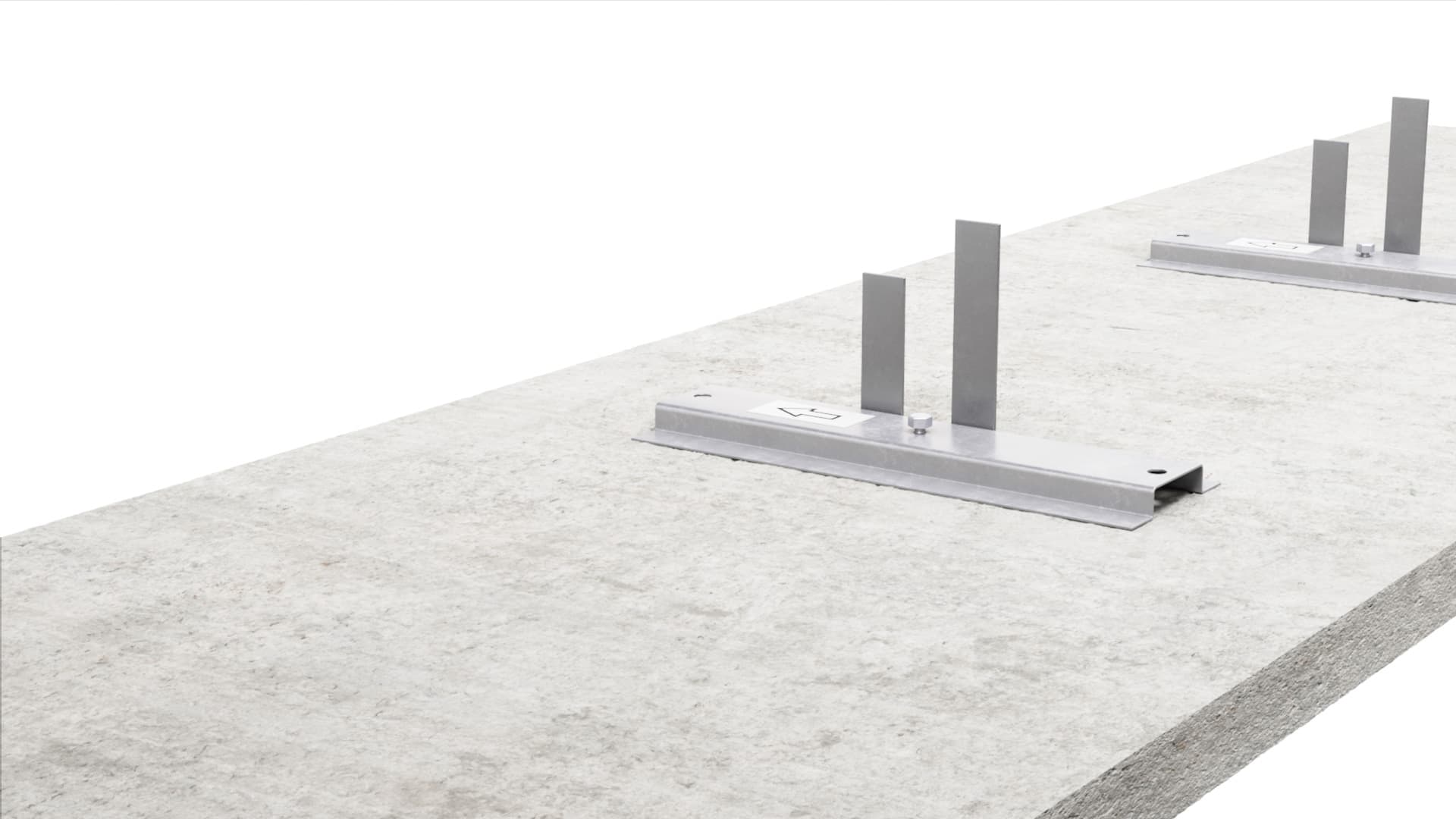

Installation of RECOSTAL® Keyboard metal feet using nails.
STEP 2

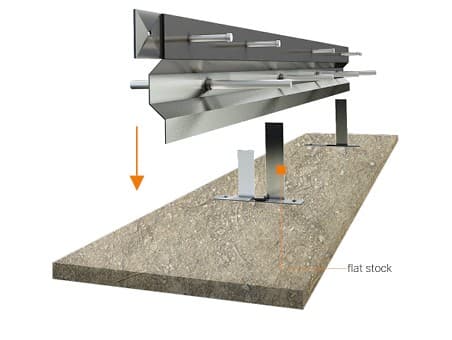

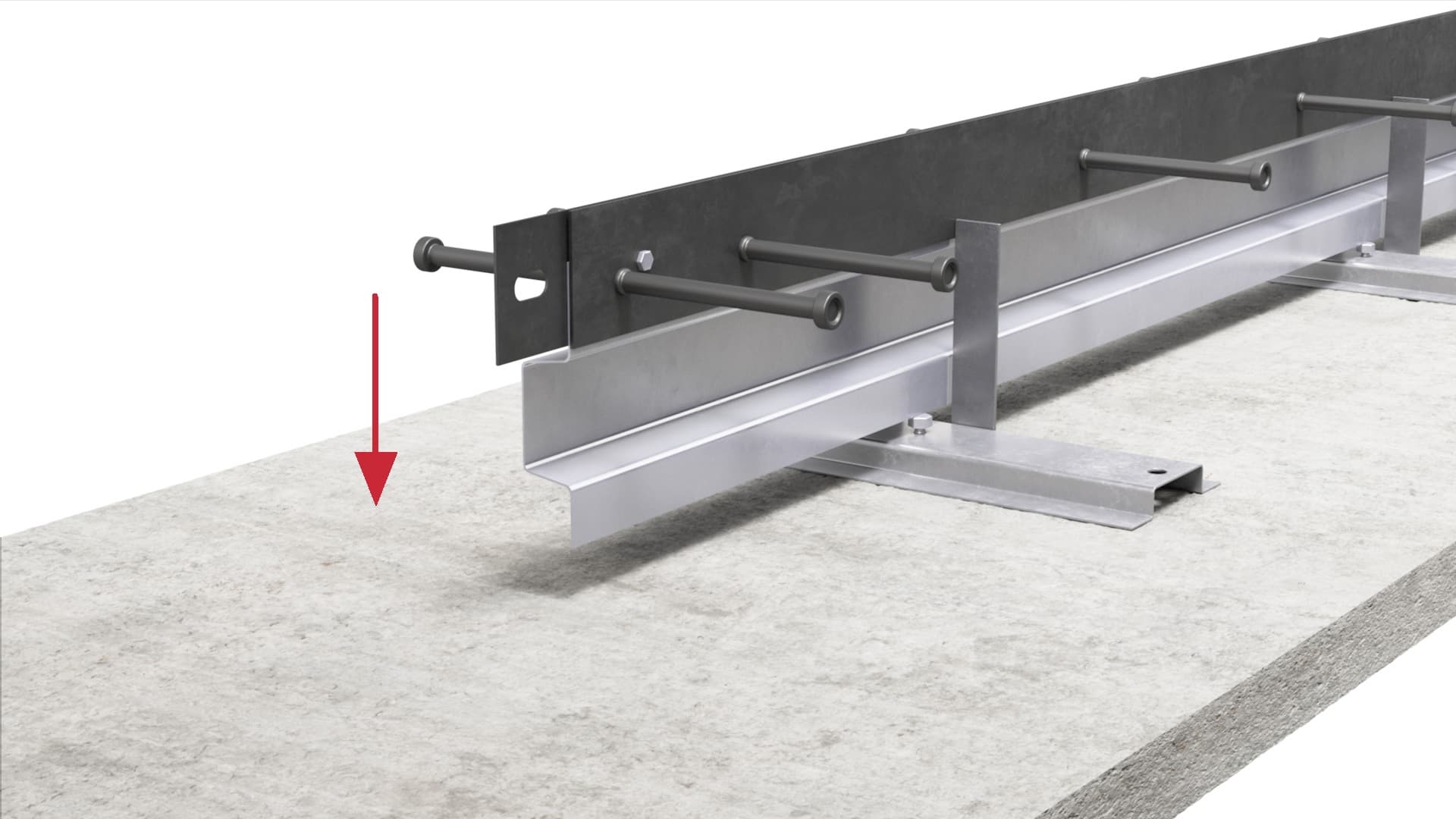

Setting of RECOSTAL® Keyboard between flat stocks of feet.
STEP 3

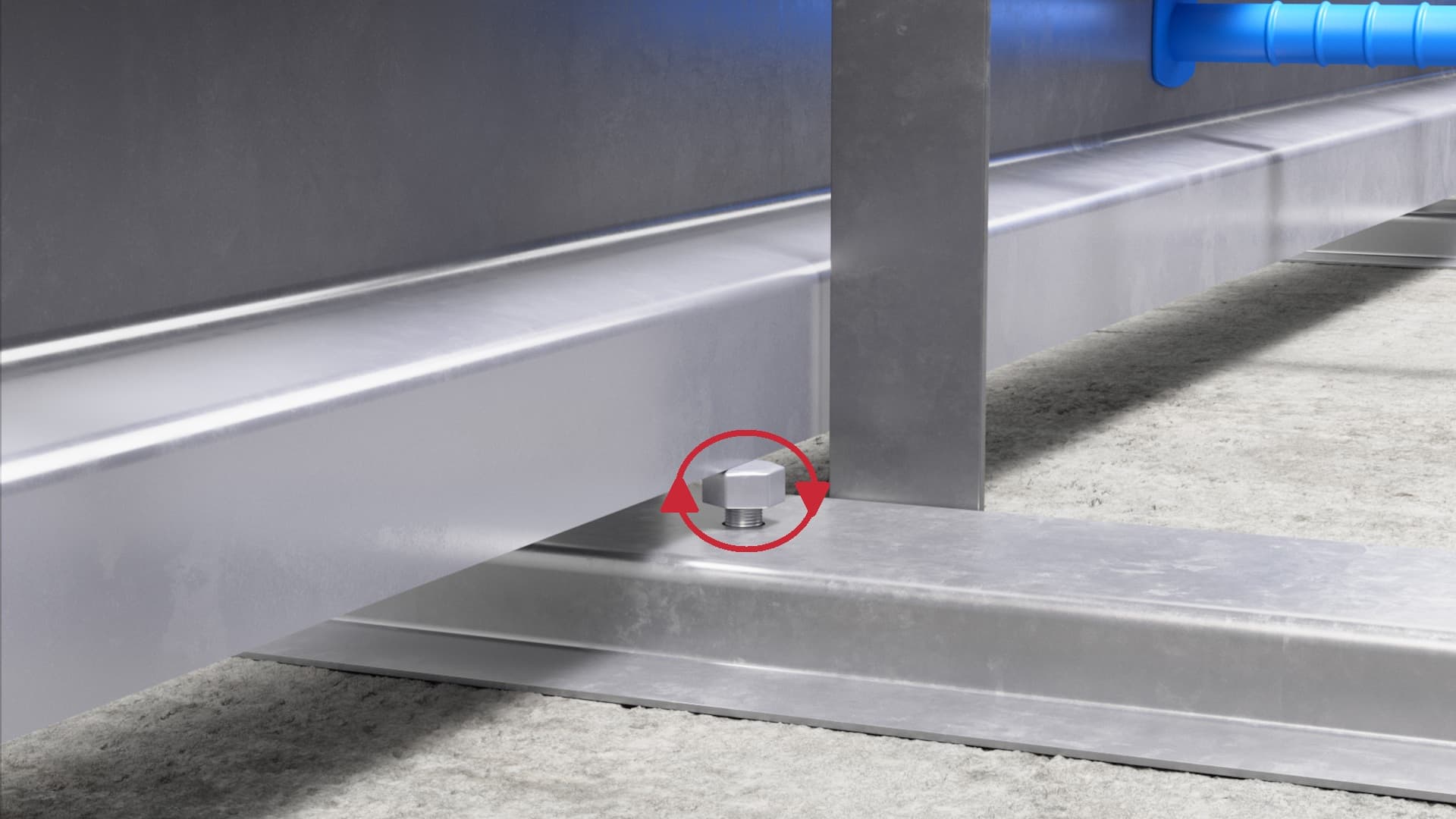

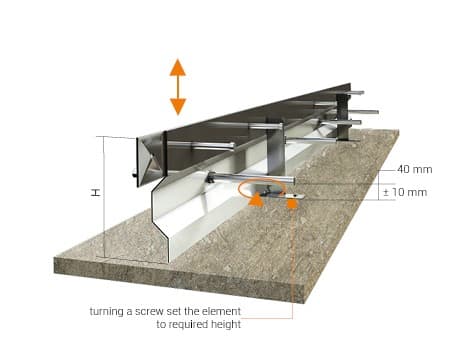

Height setting.
STEP 4

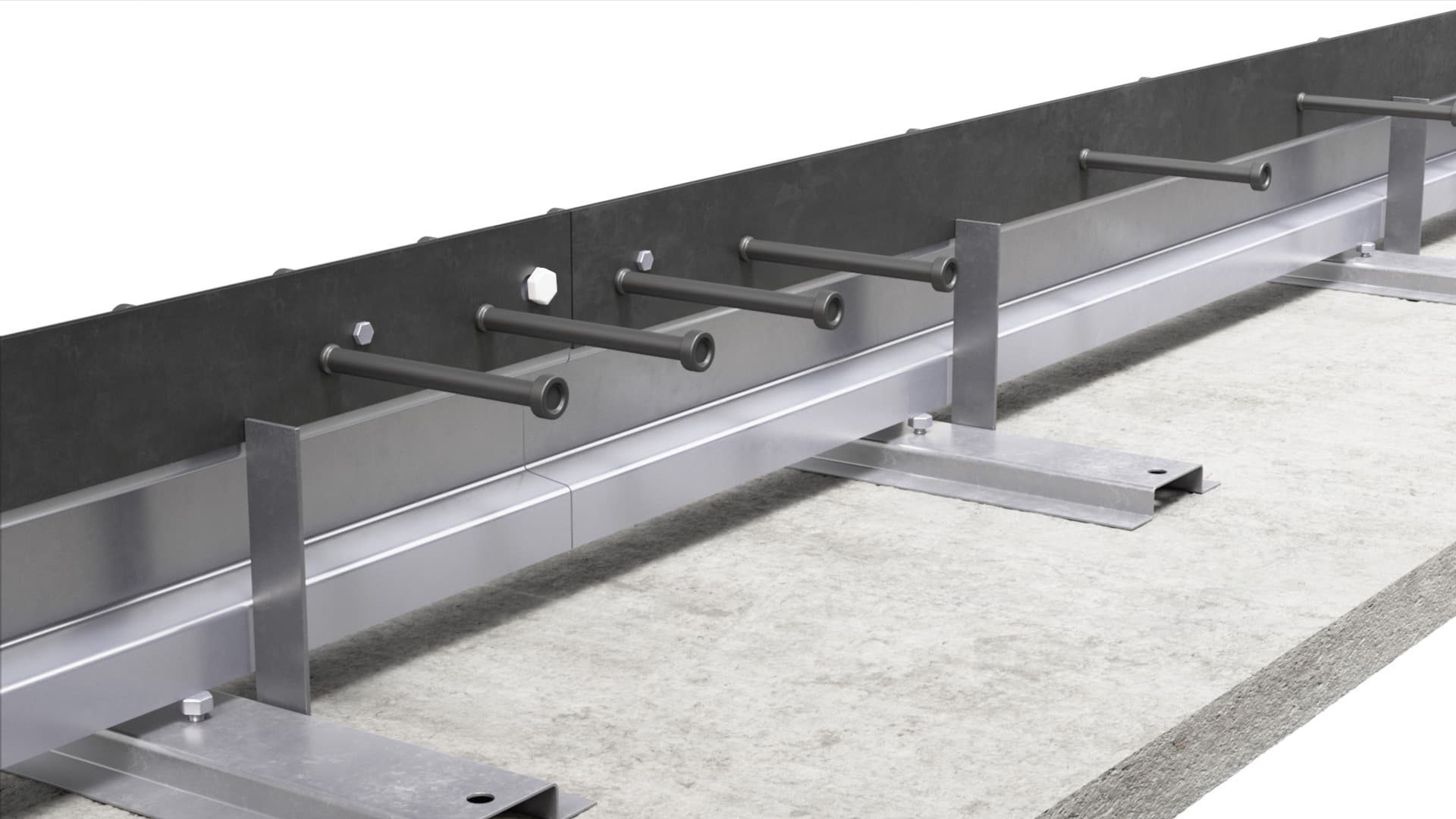

Lap joints are fixed with the plastic screws included in the delivery.
STEP 5

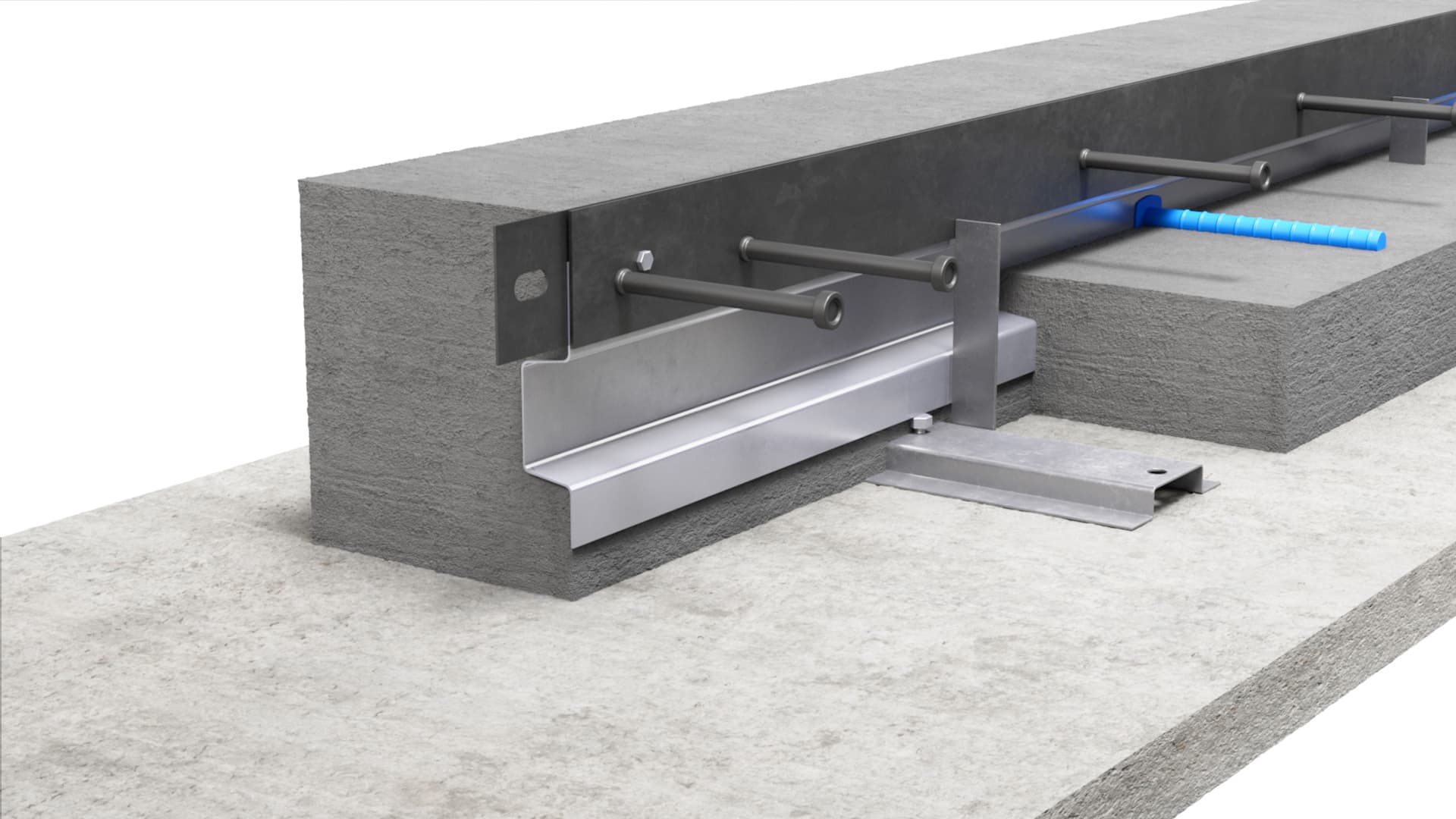

Concreting.
