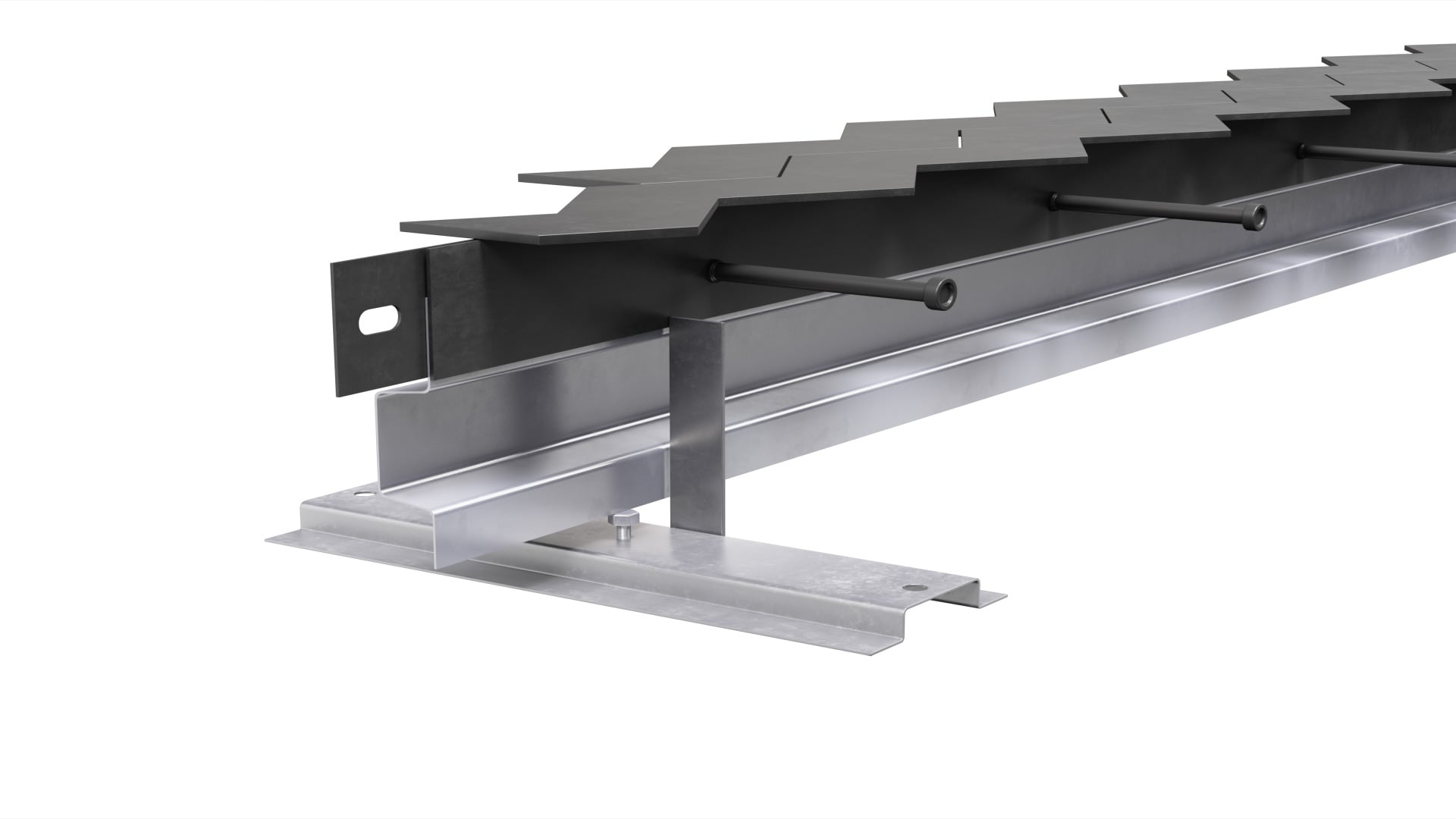

RECOSTAL® Keyboard XLS
RECOSTAL® Keyboard XLS units are designed for the installation of isolation joints in industrial floor slabs and deck slabs with controlled cracks along the joint. The trapezoidal profile induces a key-profiled control joint. A sinusoidal edge protection profile with an amplitude of 75 mm forms the top of the unit to prevent spalling of concrete edges and to ensure vibration and shock-free passage of mobile materials handling trucks with different types of wheels over the construction-related joints in large-area industrial floor slabs. To withstand stronger shear forces, the RECOSTAL® Keyboard XLS unit can also be equipped with dowel bars. The available RECOSTAL® Keyboard XLS variant is used to create dilatations.
The Benefits:
Trapezoidal profile
Sinusoidal edge protection
Fast Installation
Special types and sizes on request
Adjustable height with KBS formbrace
Optional dowel bars, sleeves and openings
Joint expansion less than 3 mm
For RECOSTAL® Keyboard XLS variant, standard dilatation thickness 1 cm
List of parts RECOSTAL® Keyboard XLS
Type | Formbrace type | Unit height [mm] | Slab height [mm]1) |
|---|---|---|---|
XLS 150 | KBS 150 | 120 | 150 |
XLS 180 | KBS 180 | 145 | 180 |
XLS 200 | KBS 200 | 165 | 200 |
XLS 250 | KBS 250 | 215 | 250 |
XLS 300 | KBS 300 | 265 | 300 |
1) Other heights available on request
Similar products
General recommendations:
During the installation observe the compulsory security standards - wear protective gloves.
STEP 1

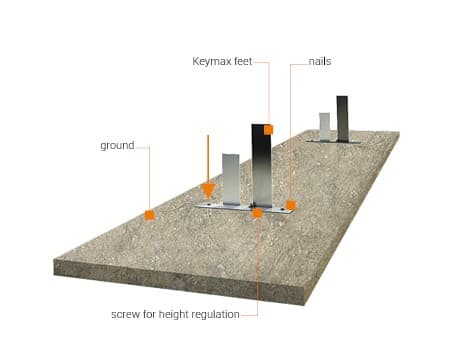

Installation of RECOSTAL® Keyboard metal feet using nails.
STEP 2

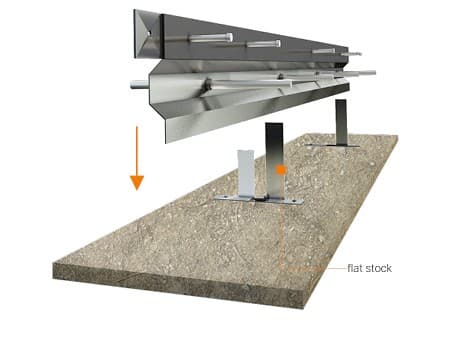

Setting of RECOSTAL® Keyboard between flat stocks of feet.
STEP 3

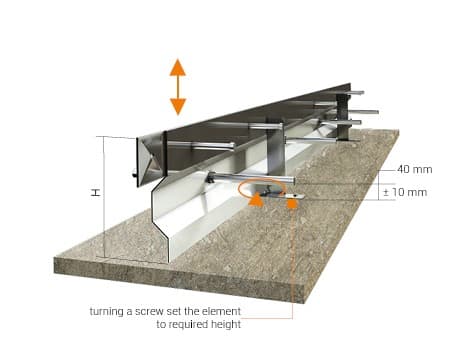

Height setting.
STEP 4

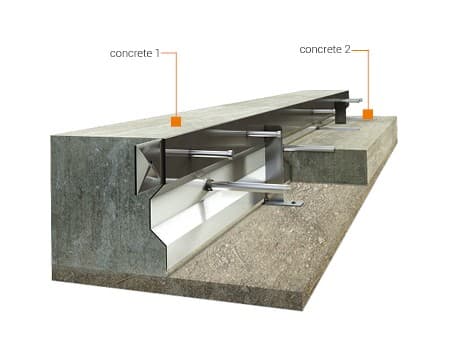

Concreting of section 1 and 2.
