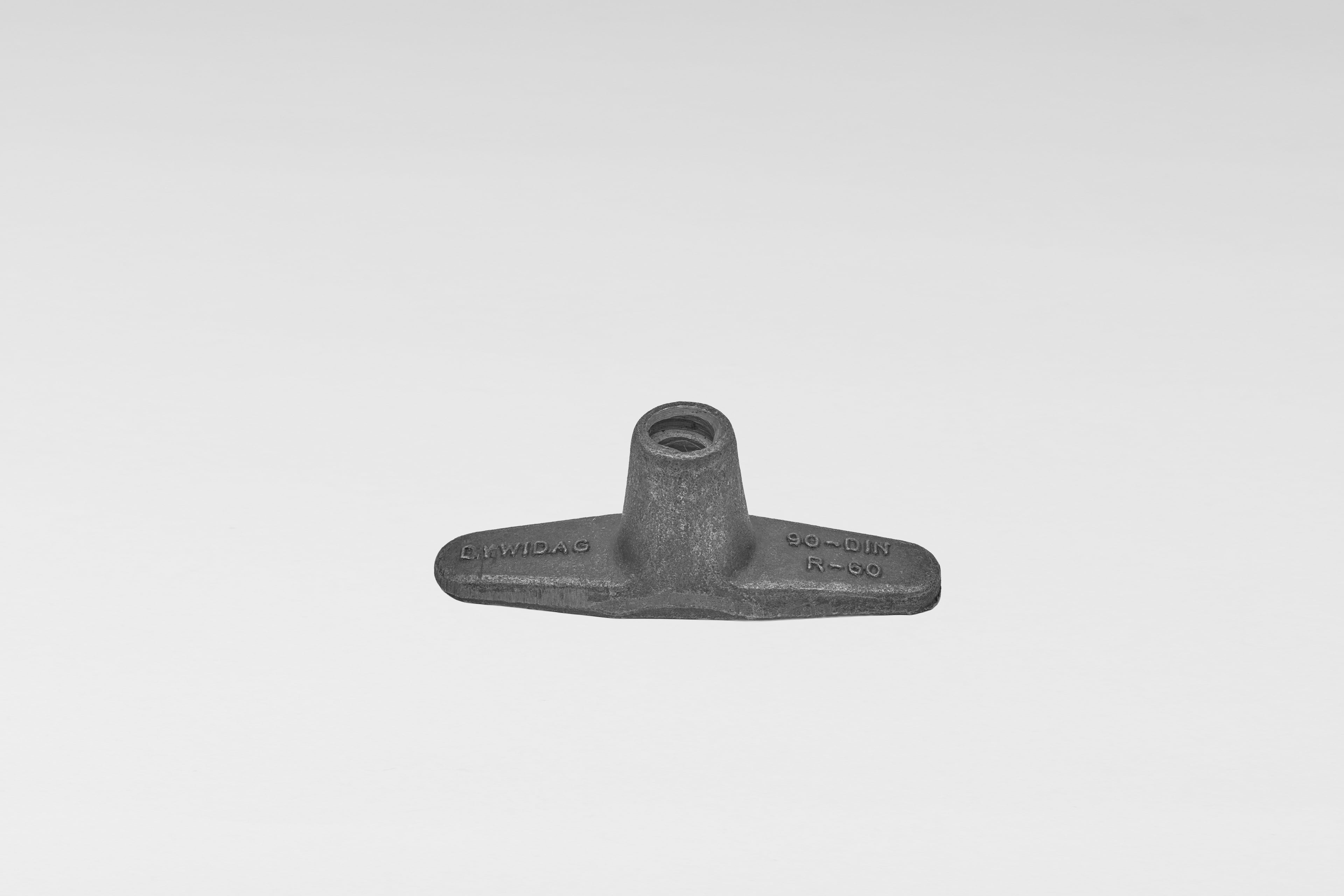

Weldable Neck Flange

This is a weldable neck flange used to connect and support elements in steel and concrete structures.

The Benefits:

Weldable design allows secure connections to steel structures
High load capacity for supporting structural elements
Versatile use in concrete and steel construction
Durable and reliable for long-term applications

This flange can be welded on in order to anchor sheet pile walls at a 90° angle without perforating them. The material characteristics and dimensions of the welding area ensure the transfer of the full working load.

Article No.	Bar Ø [mm]	Length x Width x Height [mm]	Weight [kg/no.]
15 F 3026	15	130 x 30 x 50	0.37

Safety Instructions

Appropriate use of form ties and accessories is necessary to prevent accidents and failure. All products are intented to be used by qualified and experienced workmen. It is the user's responsibility to continually inspect working hardware for wear and to discard worn parts. Improper use of the DYWIDAG Form Ties can expose workers to extreme danger that may result in severe injury or death.
