conSTIC 150

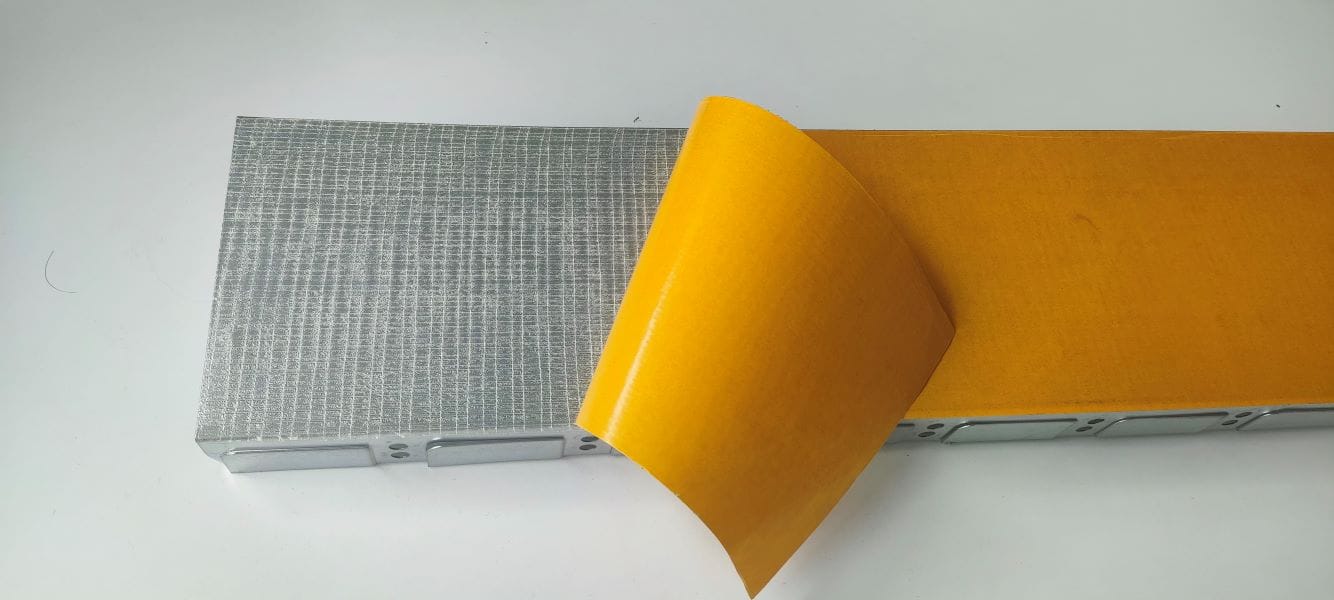

CONTEC® conSTIC 150 is high-performance, adhesive metal waterstop. conSTIC 150 is a metal waterstop made of galvanized sheet steel with a special elastic adhesive coating on both sides. The special elastic coating consists of a pressure-sensitive adhesive that is activated by concrete pressure and heating after removing the protective foil film, creating a permanently very strong adhesive bond between the metal and the concrete.

conSTIC 150 is intended for the use as a permanent internal seal against pressurised water for construction and control joints in walls, floors and base slabs in impermeable to water concrete constructions ("White tanking") without additional concrete upturn.

Many variations of conSTIC 150 combined with RECOSTAL^® Shuttering Units are possible.

Variants:

conSTIC 150 - metal waterstop without foot

Length: 2.00 m

Height: 150 mm

conSTIC 150 F - metal waterstop with foot and holes for attachment to the reinforcement with tying wire

Length: 2.00 m

Height: 150 mm

conSTIC 150 R - metal waterstop in roll in different lenghts

Length: 10 m, 15 m, 20 m

Height: 150 mm

The Benefits:

Cost-effective, proven technology offering great value
Flexible, multi-purpose product suitable for sealing in a variety of situations (horizontally and vertically useable)
Pressure sensitive adhesive bond technology
Extremely strong adhesive bond to concrete
Elastic, non rigid coating
High safety/reliability from adhesive overlap
Straightforward on-site application — simply remove foil film to activate adhesive
No additional kicker in base slab to wall joint required
Embedment depth in concrete at least 3 cm
Tested for joint expansion of up to 1.0 mm at 5 bar water pressure with 3 cm embedded depth
Suitable for the use in changing water levels
General building authority test certificate (abP)
