contecSEAL 150
CONTEC® contecSEAL 150 is new generation metal waterstop.
contecSEAL 150 is a metal waterstop made of galvanized sheet steel with a special elastic coating on both sides. contecSEAL 150 is intended for the use as a permanent internal seal against pressurised water for construction and control joints in walls and floors and base slabs in impermeable to water concrete constructions (“White tanking”) in building constructions and civil engineering without additional concrete upturn.

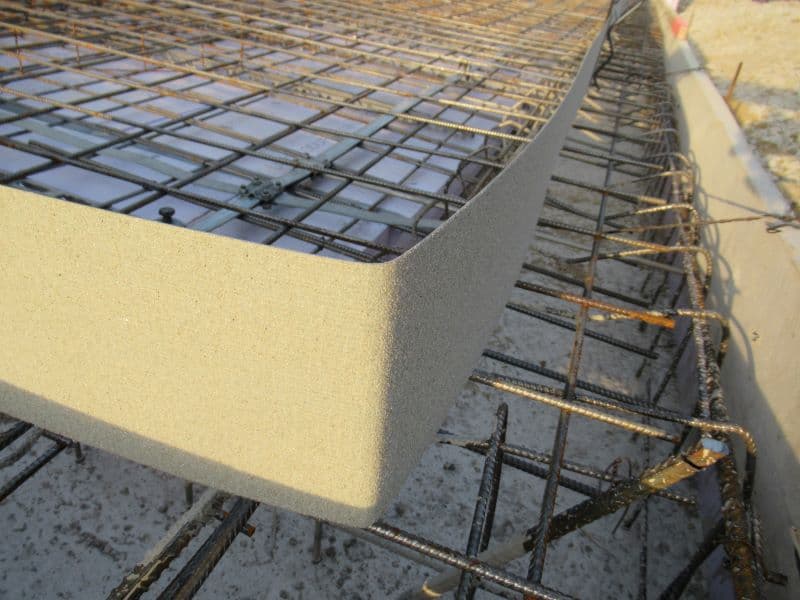

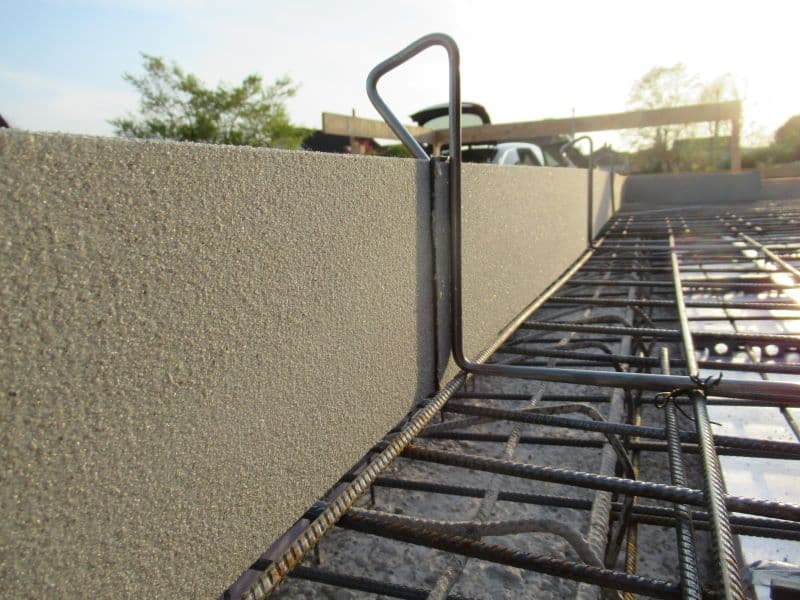

The product is mainly installed in the middle of the construction or control joint (base slab to wall, wall to wall, base slab to base slab, wall to floor slab) in the construction part to be waterproofed in in-situ concrete and precast construction.
Suitable for horizontal and vertical applications.
Many variations of contecSEAL 150 combined with RECOSTAL® Shuttering Units are possible.
Variants:
contecSEAL 150 - metal waterstop without foot
Lenght: 2.00 m
Height: 150 mm

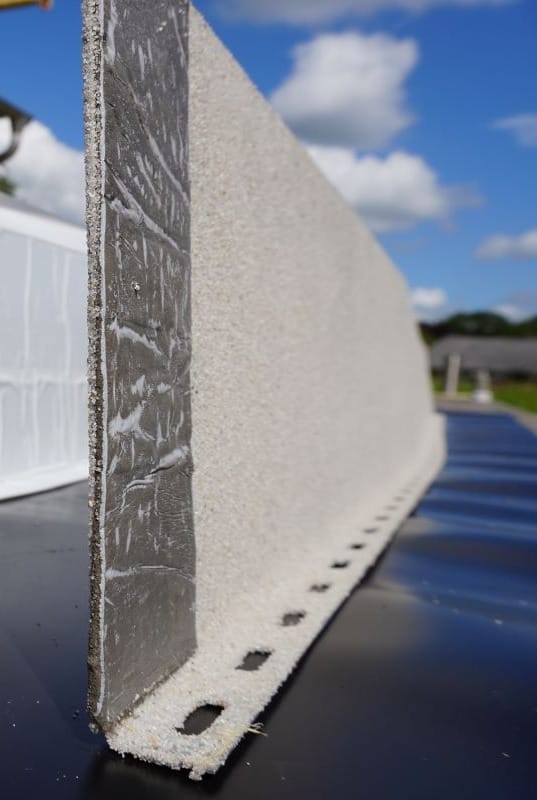

contecSEAL 150 F - metal waterstop with foot and holes for attachment to the reinforcement with tying wire
Lenght: 2.00 m
Height: 150 mm

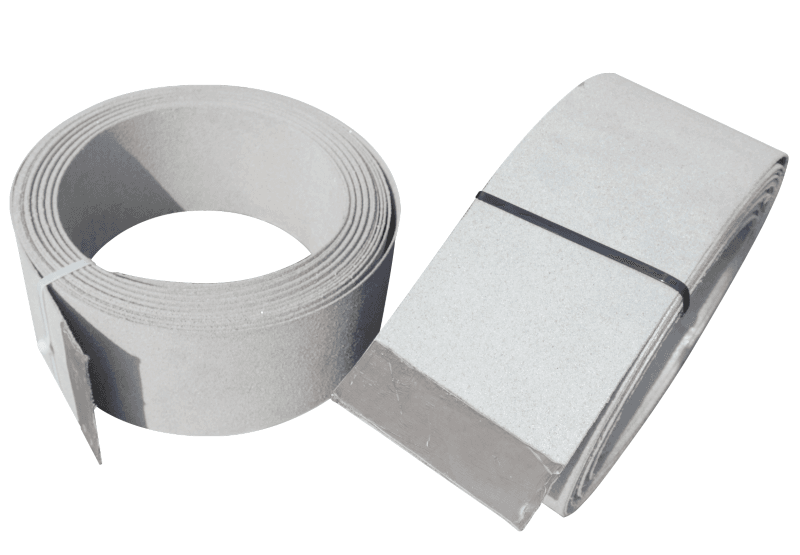

contecSEAL 150 R - metal waterstop in roll in different lenghts
Lenght: 10 m, 15 m, 20 m
Height: 150 mm
All the advantages of the traditional systems have been technologically combined into one single product.
The Benefits:
Extremely strong adhesive bond to concrete
Increased leak path
Fresh concrete and labyrinth seals
Elastic, non-rigid mineral coating
Safe application due to a special doublesided elastic coating
Pressure sensitive adhesive bond
Non-stick surface
Fast, effective installation (no protective film required, no additional concrete upstand in base slab to wall joint required)
Embedment depth in concrete at least 3 cm
Water pressure resistance up to 5 bar joint expansion of up to 0.5 mm and embedment depth 3 cm
Tested for joint expansion of up to 1.0 mm at 2 bar water pressure
Suitable for the use in changing water levels
General building authority (abP) test certificate
Technical Data:
Basic metal waterstop: galvanized sheet steel
Unit length: 2000 mm
Unit height: 150 mm
Sheet metal thickness: approx. 0.65 mm
Total thickness: approx. 1.1 mm
Special coating: double-sided special adhesive + granulated quartz with silicon dioxide components
Special contact adhesive: APEO-free contact coating
Colour: beige with white quartz inclusions
Surface: non-adhesive
