contaflex
CONTEC® contaflex metal waterstop with bituminous-polymer coating, which are used to ensure full watertightness of construction joint in reinforced concrete structures.
Elastic bituminous material which guarantees good adhesion to concrete.
Variants:
BR - Metal waterstop without foot and one side bituminous coating
BR - Metal waterstop in roll and one side bituminous coating
BS - Metal waterstop with foot and one side bituminous coating
BR+ - Metal waterstop without foot and double side bituminous coating
BR+ - Metal waterstop in roll and double side bituminous coating
BS+ - Metal waterstop with foot and double side bituminous coating
The Benefits:
Metal waterstop with bituminous coating
Working interval tightness up to 0.5 MPa with constant pressure and also with variable pressure
Bituminous coating is protected by a film against contamination
Fast installation
Low transport costs

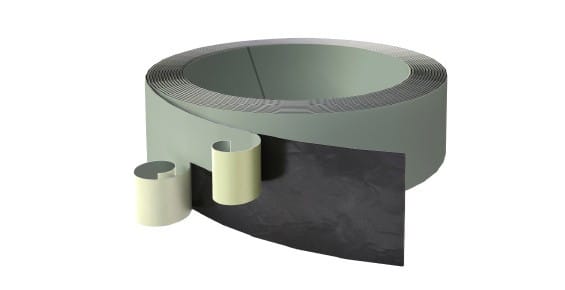

contaflex tapes
Similar products
General recommendations:
During the installation observe the compulsory security standards - wear protective gloves.
STEP 1

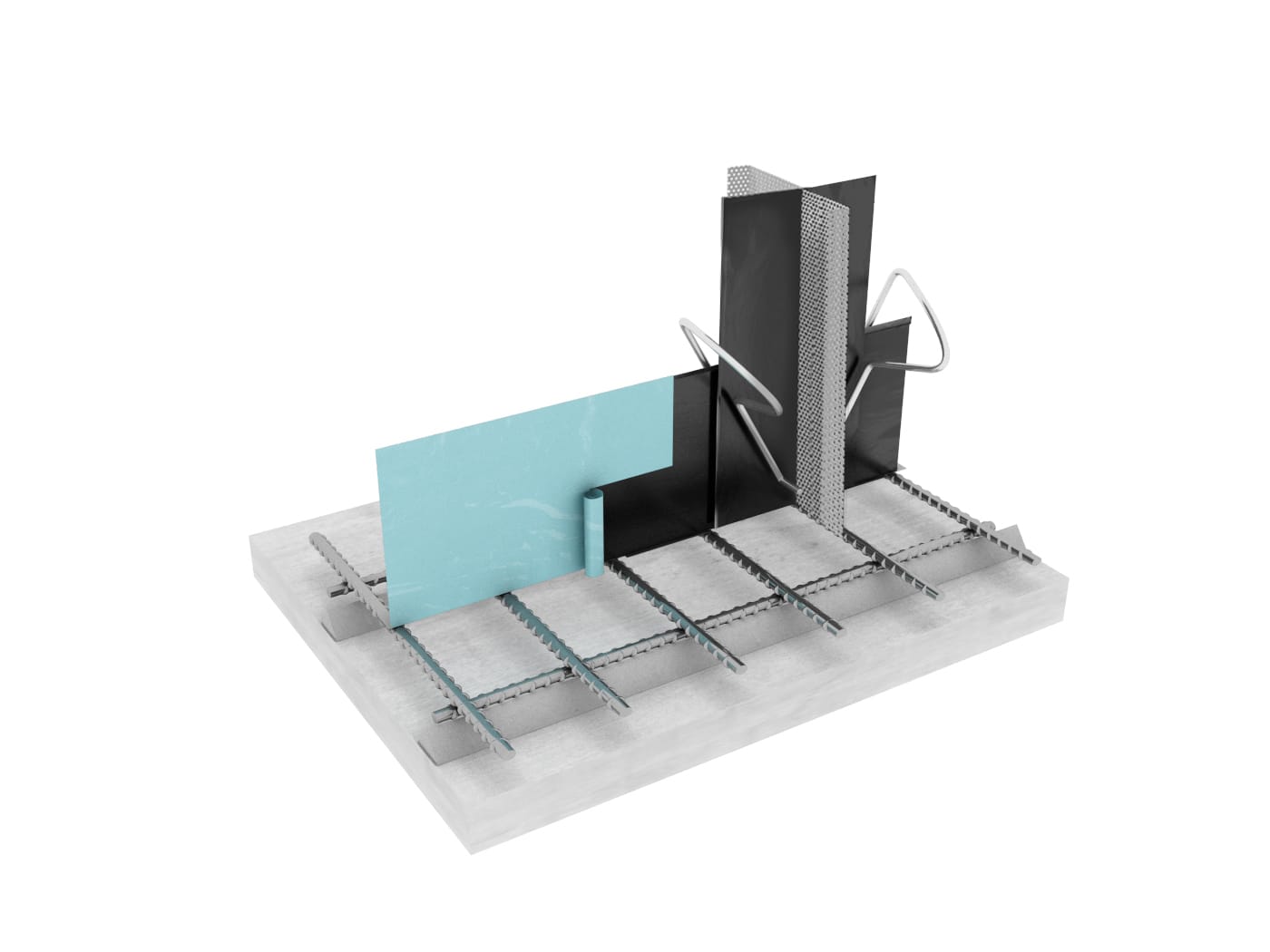

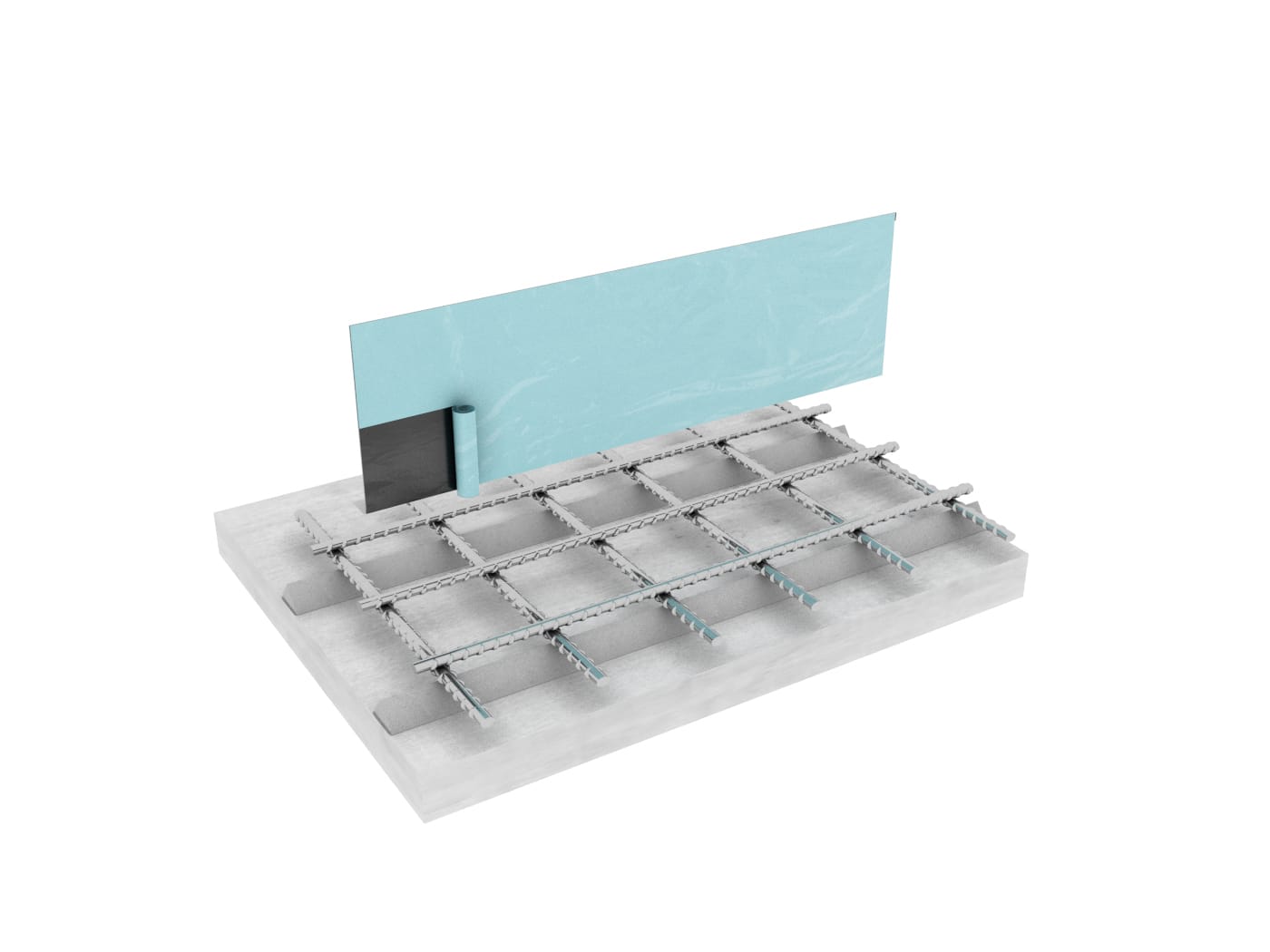

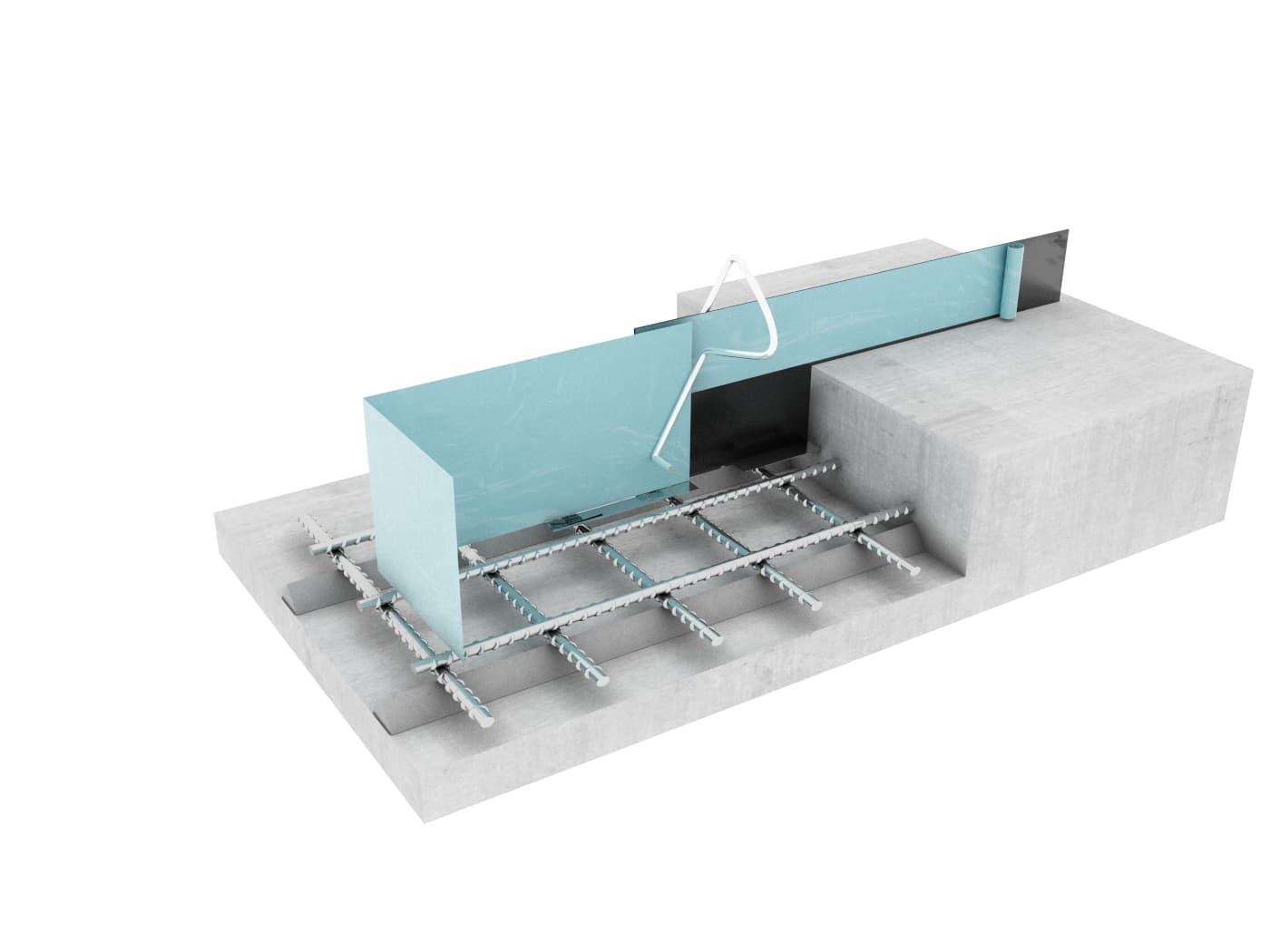

Placing contaflex BS/BS+ element on the upper reinforcement of the reinforced concrete slab.
STEP 2

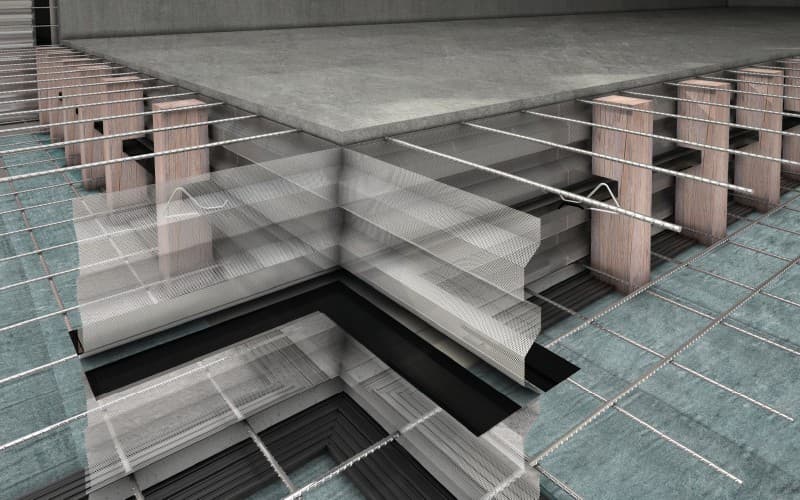

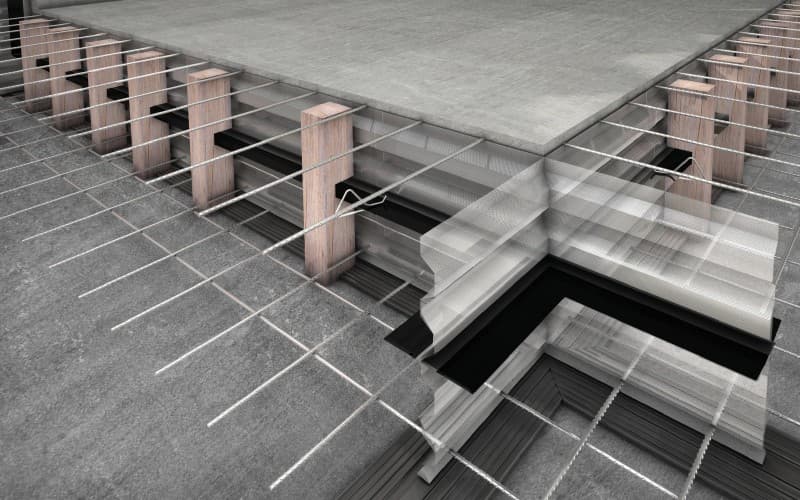

Connecting consecutive sections with overlap using KA 18/3 clips. Making the corner or junctions during the fitting by cutting mounting foot and bending the element. Concreting.

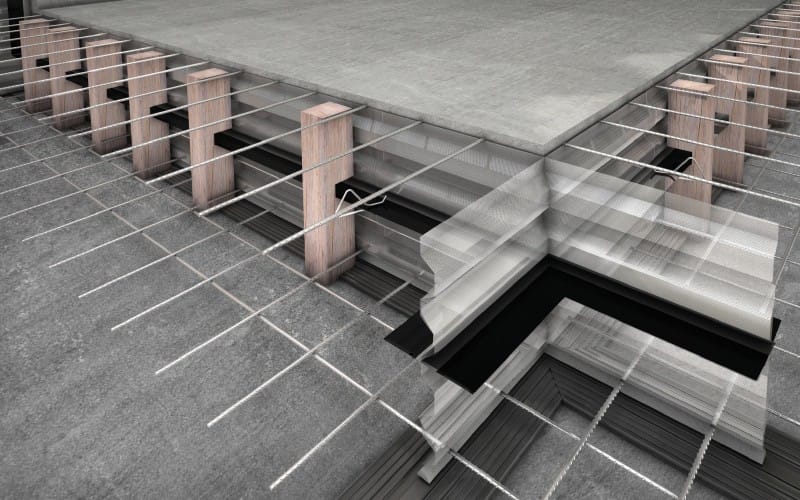

INSTALLATION OF contaflex BS/BS+

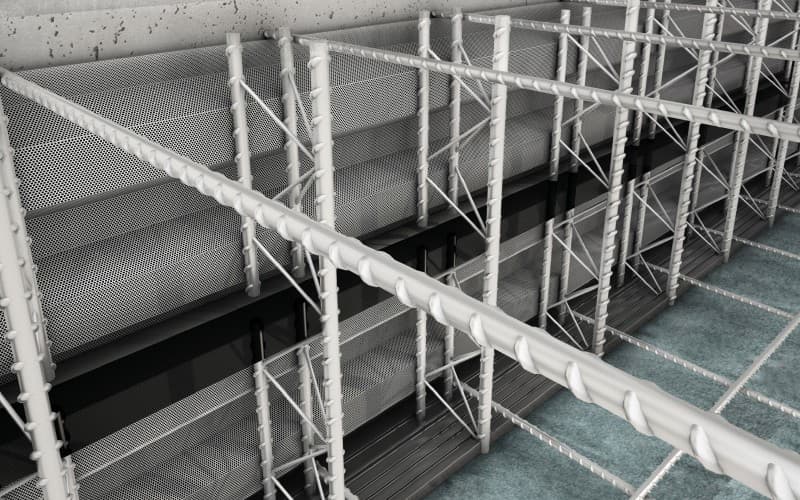

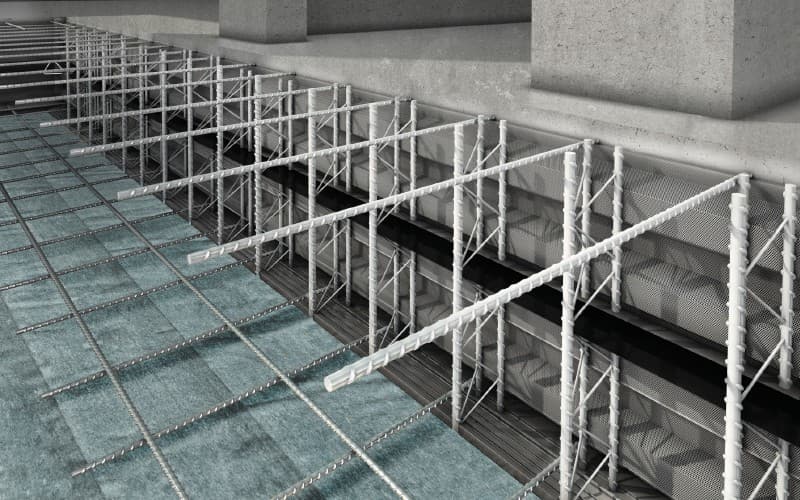

Installation of contaflex BS/BS+ with bendable metal sheets.
INSTALLATION OF contaflex BR/BR+

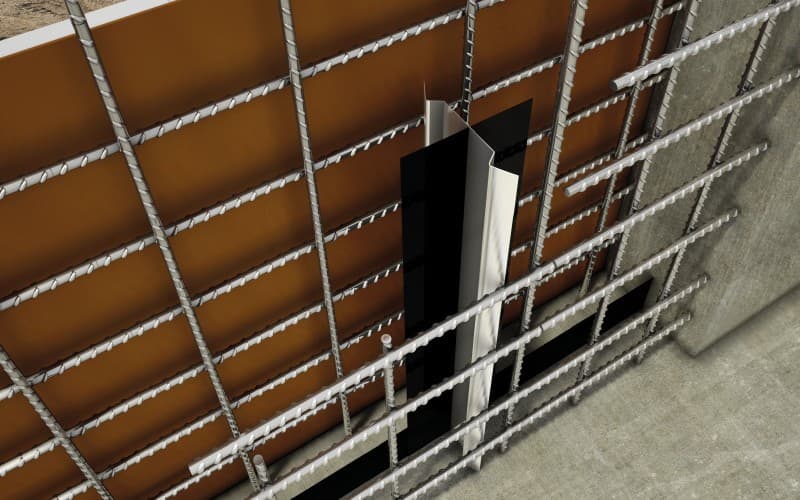

Contaflex BR/BR+ should be stabilized with KA 8/18/3 or KA 8/25/3 clamps and additionally fixed to reinforcement mesh using tie wire.
CONNECTING BY USE OF KS SCREW
Connection to the PVC tapes is carried out with the CONTEC® contaflex CFB.

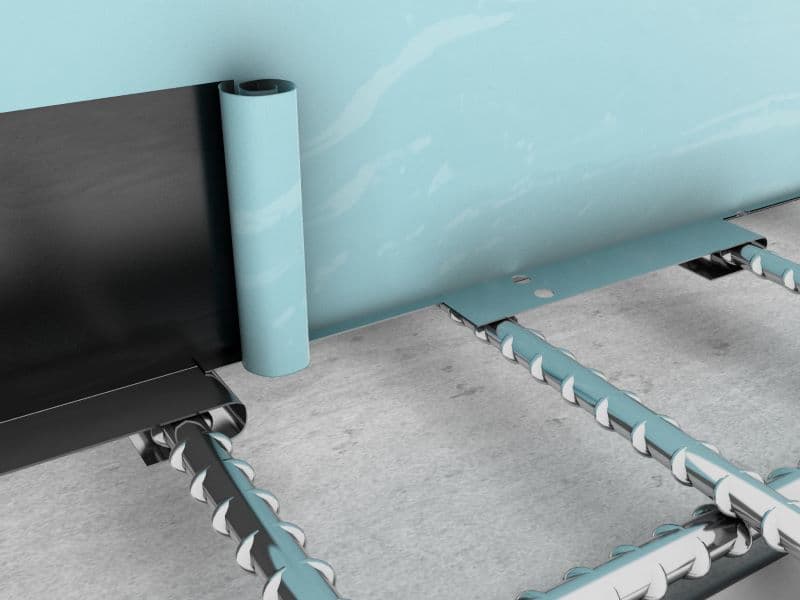

CONNECTING BY USE OF KA CLIPS
Connecting contaflex and RECOSTAL® 1000 F bitum sheets with clips.
