Waterstop RX®
Waterstop RX® - bentonite tapes used for sealing horizontal and vertical construction joints in structures. Under influence of water active bentonite swells and next as a gel fills all empty spaces in concrete.
The Benefits:
Approved according to general building inspection certificate (abP) up to 20 m (2.0 bar) water column
Active sealing effect
Suitable for alternating water zones
Easy installation
Tape types:

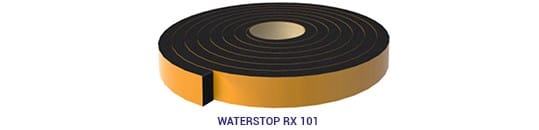

RX 101 - simple tape 20 x 25 mm.
RX 103 - simple tape 10 x 15 mm.
RX 101 DH - tape with extended swelling time
XP - tape for use in places of occurence of fresh and highly saline groundwater
Waterstop
TYPE | DIMENSION [mm] | QUANTITY [m/pack] | QUANTITY [m/pall.] |
|---|---|---|---|
RX 103 | 10 x 15 | 6.0 | 864 |
RX 101 | 20 x 25 | 5.0 | 720 |
XP | 10 x 15 | 6.0 | 864 |
Revofix - mesh | 1 m | 9 - 30 | - |
Cetseal - glue | - | 290 ml | - |
Further Swellingtapes
BT 2025 S
BT 2025 R
Contaseal CS 200
Contaseal CS 201
Contaseal CS 202
Contaseal CS 204
Contaseal CS 302
Contaseal CS 304
Contaseal CS 305
Similar products
General recommendations:
During the installation observe the compulsory security standards - wear protective gloves and work clothes with long sleeves.
Protect against moisture, mechanical damage and adverse chemical factors.
STEP 1

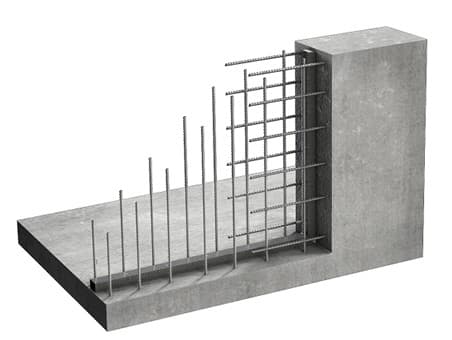

Preparation of the ground - should be cleaned, dry and flat area if possible.
STEP 2

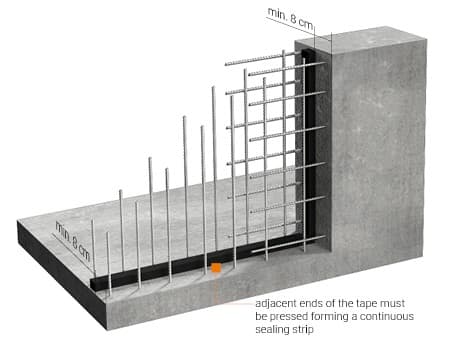

Removal of spacer paper and Waterstop application with min. 8 cm of concrete cover.
STEP 3

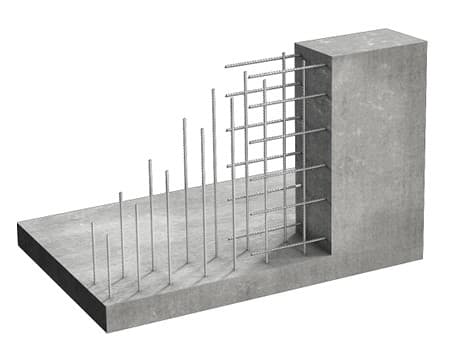

Fixing Waterstop to concrete using Revofix mesh and nails or glue providing good adhesion to the concrete.
STEP 4

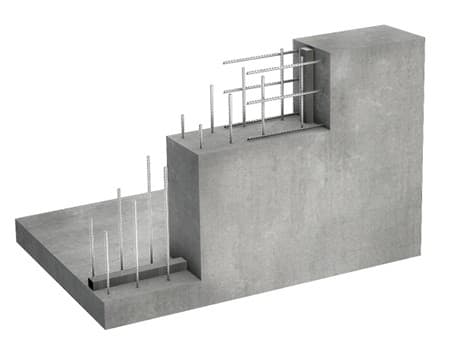

Concreting of wall.
