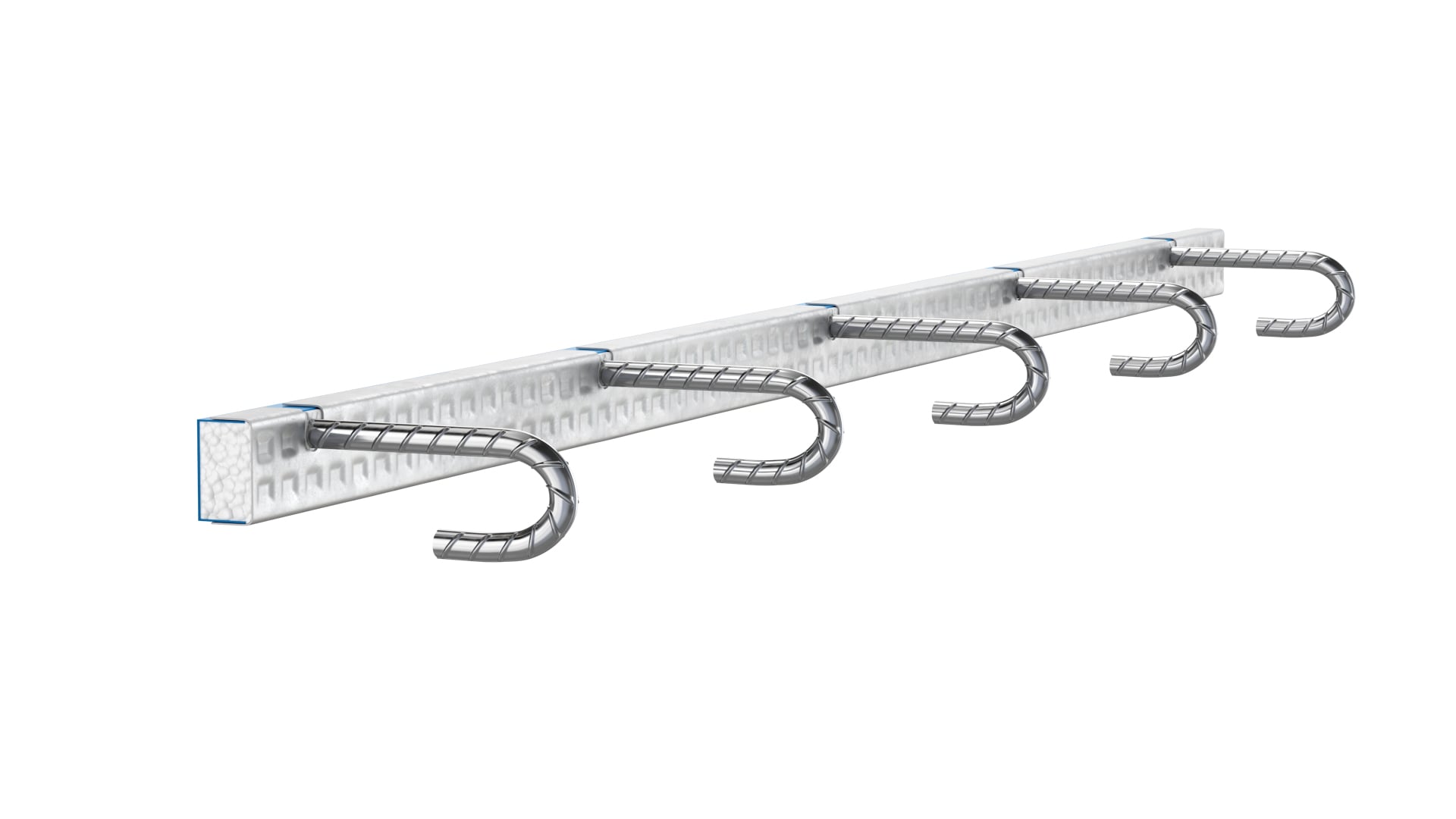

RECOSTAL® VHQ

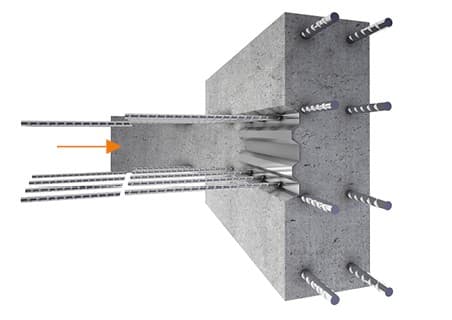

RECOSTAL® VHQ is pre-bent reinforcement in a galvanized perforated casing. It ensures quick and safe horizontal continuity of reinforcement between two structural elements of relative small thickness.
Main Characteristics:
Standard length: 1.25m (on request up to 2.2m)
Flat perforated casing
Fast Installation
Special types and sizes on request
Reinforcement steel B500B, B500B-FI, B500C, B500SP, B550B

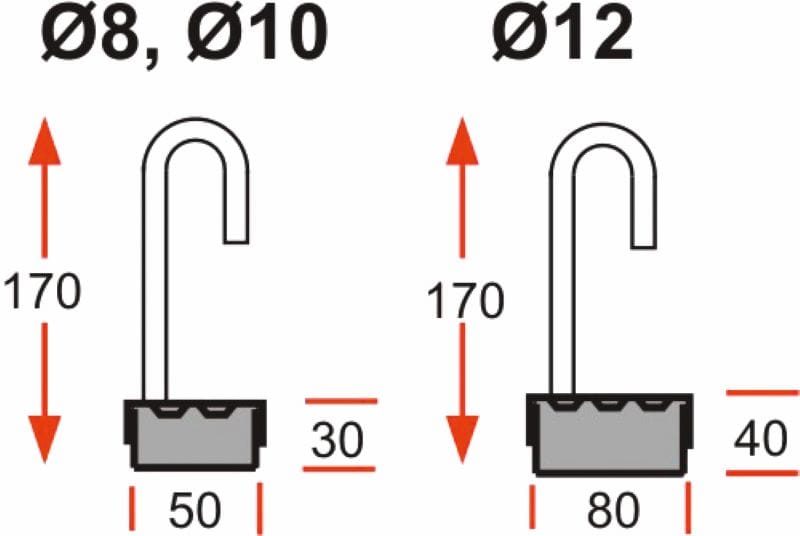

Diagram
Graph for the Determination of the Production-Related required Box Widths and Max. Producible L0-Lengths
Technical data of RECOSTAL® VHQ
Standard L = 1.25 m.
”key profile” category. Product meets all the requirements according to EC 2.
Reinforcement steel: B 500 B, B500 C.
Type | Ø (mm)/s (cm) | Lap length Ø (mm)/s (cm) L0 [cm] | Centers - s (cm) |
|---|---|---|---|
VHQ | 8/15 | 32 | 15 |
VHQ | 8/20 | 32 | 20 |
VHQ | 8/25 | 32 | 25 |
VHQ | 10/15 | 39 | 15 |
VHQ | 10/20 | 39 | 20 |
VHQ | 10/25 | 39 | 25 |
VHQ | 12/15 | 46 | 15 |
VHQ | 12/20 | 46 | 20 |
VHQ | 12/25 | 46 | 25 |
Similar products
General recommendations:
During the installation observe the compulsory security standards - wear protective gloves.
STEP 1

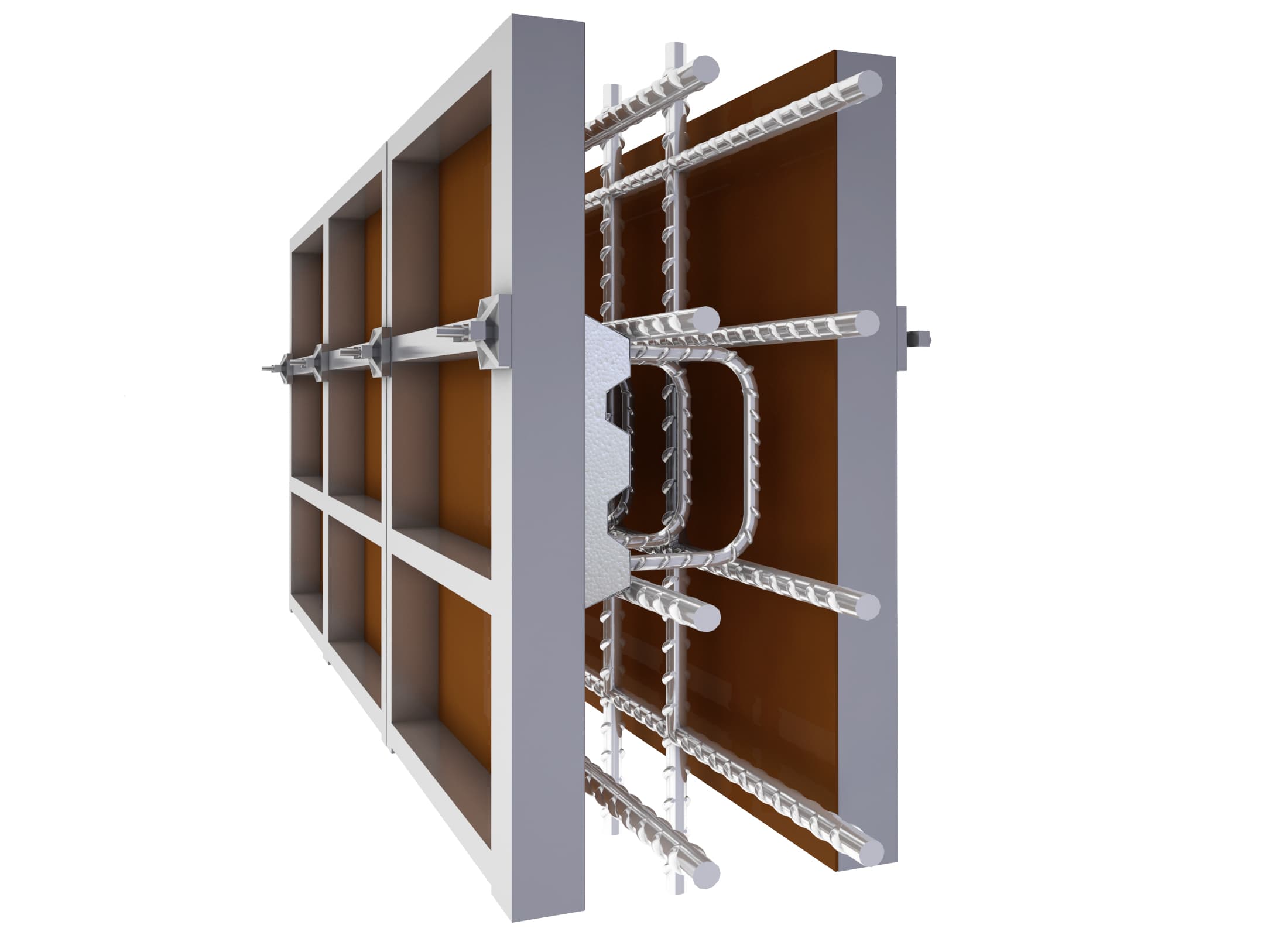

Installation of RECOSTAL® Starter Packs to formworks. Connecting anchor channel with reinforcement.
STEP 2

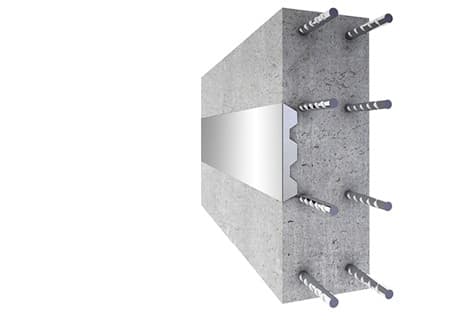

Closing formworks and concreting.
STEP 3

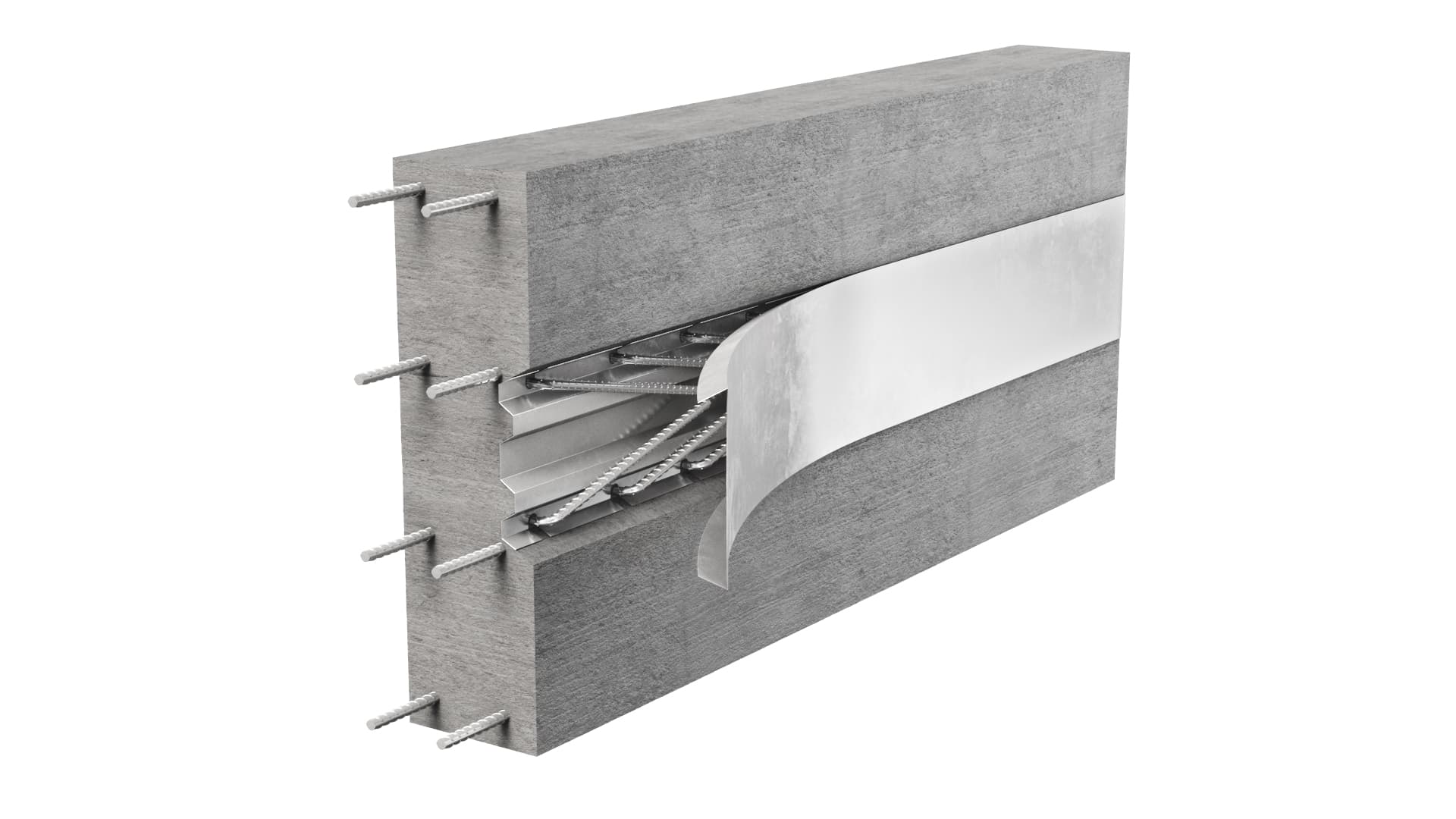

Stripping off RECOSTAL® Starter Packs Cover.
STEP 4

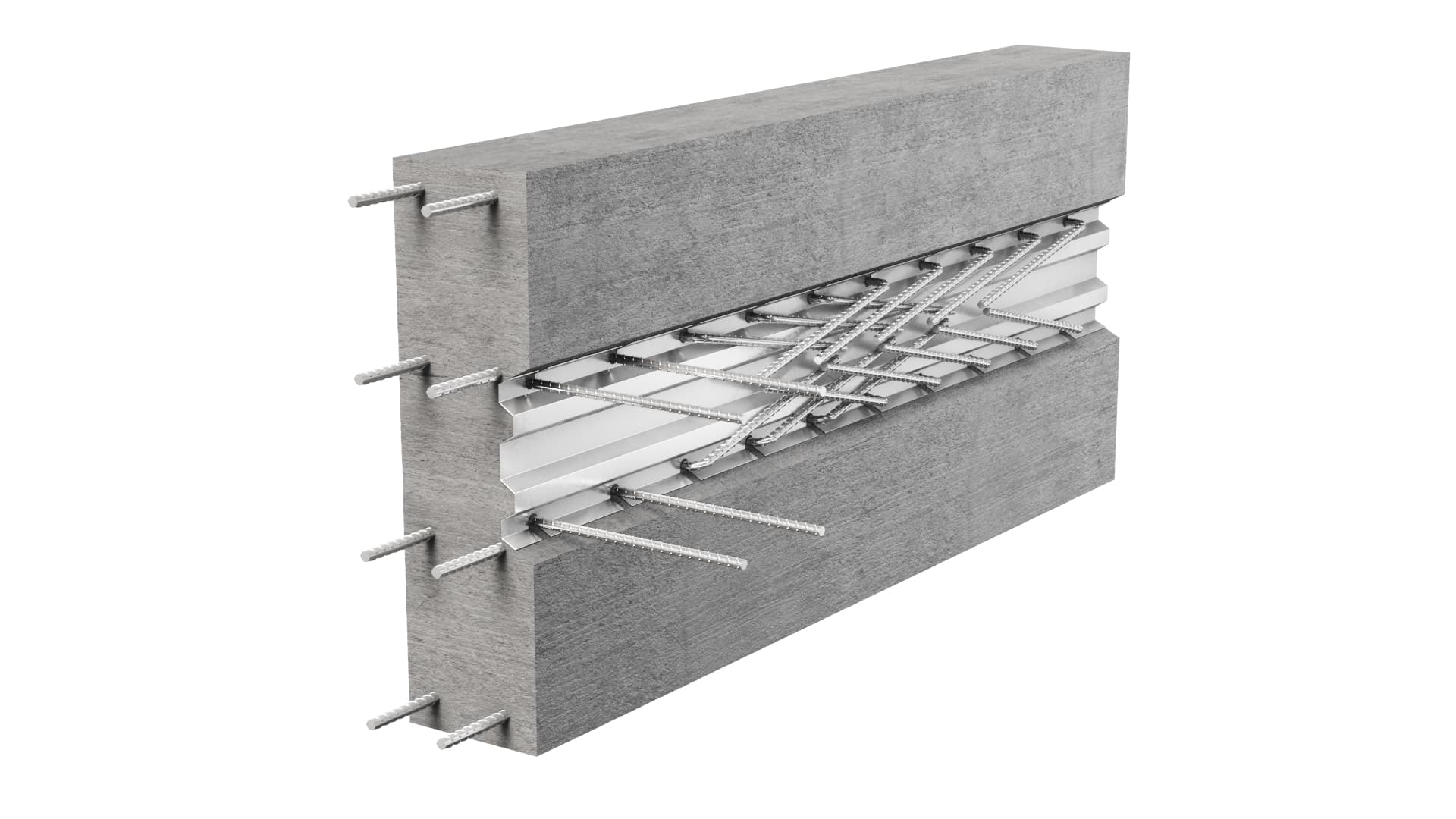

Bending the exposed rebars.
STEP 5
Connecting steel bars with rebars of consecutive elements. Concreting.
