RECOSTAL^® RSH

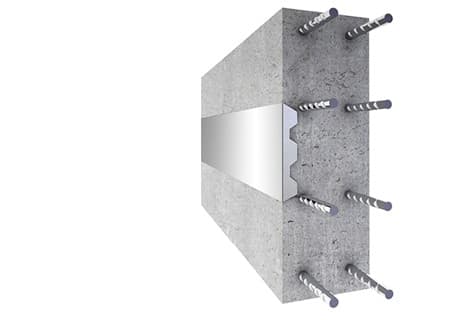

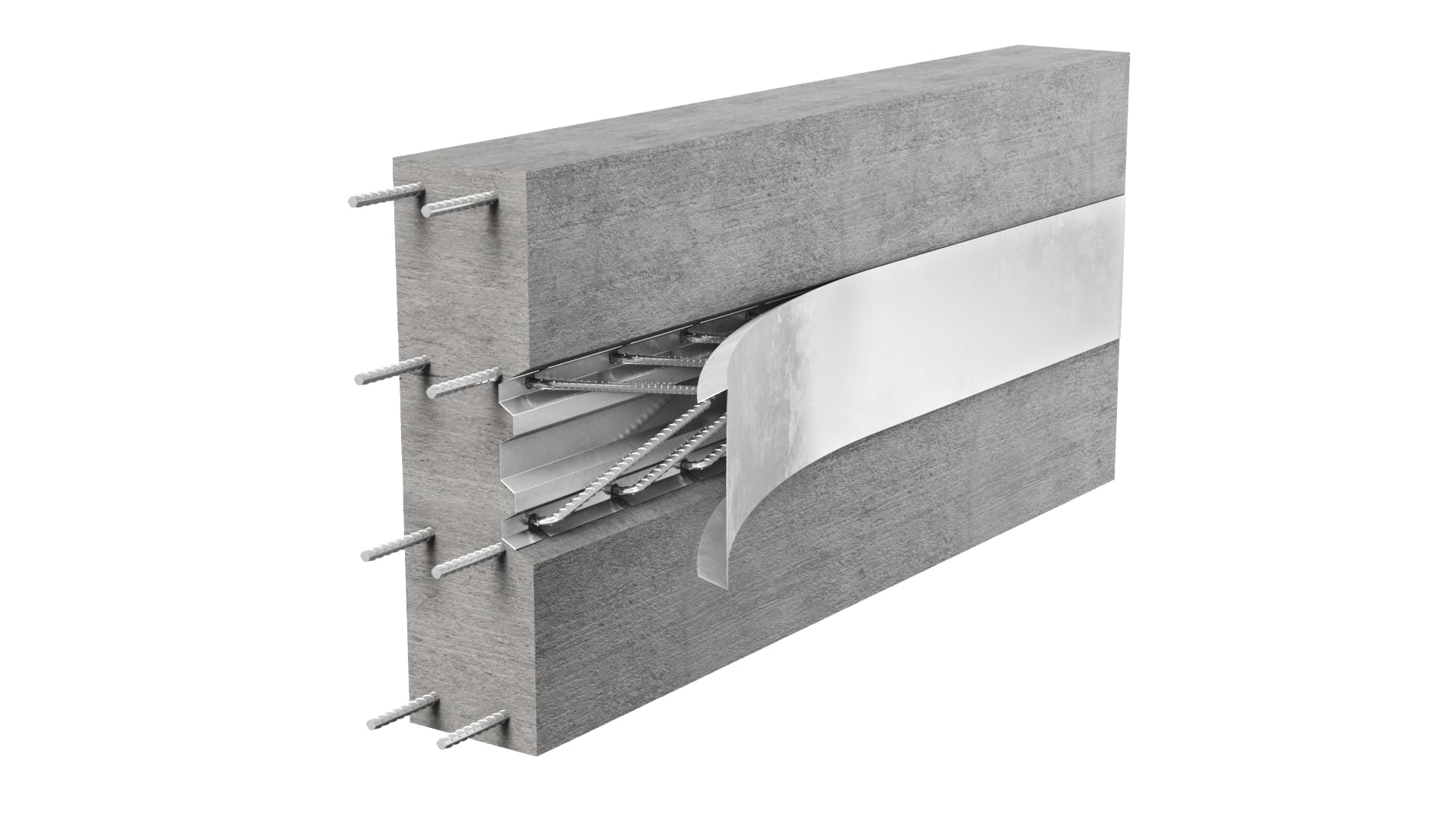

RECOSTAL^®RSH with trapezoidal profile for transverse stresses, key profiled continuity system, which is intended to be used for connecting elements of the following structures: reinforced concrete, monolithic and prefabricated.

RECOSTAL^® RSH is offered in many types: double-row, activ (with active bentonite seal), bitum (with bituminous seal), special.

The main advantages of RECOSTAL^®RSH is the strong and robust box with high dimensional stability and a trapezoidal profile, which guarantees the highest bearing capacity according to Eurocode 2. Joint category “key profiled” according to DIN EN 1992- 1-1/NA. RECOSTAL^® Starter Packs meet the requirements of the DBV Bulletin.

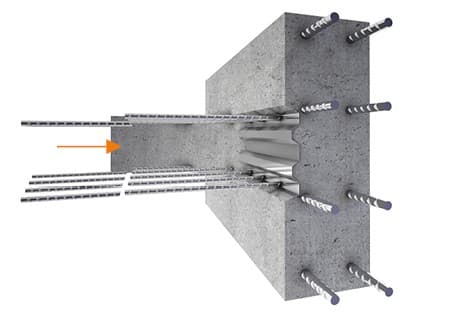

RECOSTAL® RSH ensures time saving installation of secure connections between steel reinforced concrete construction parts that are created with different pour sequences. Therefore, floor slabs, walls or staircases can be installed subsequently with rigid connections corresponding to the highest joint category “key profiled“.

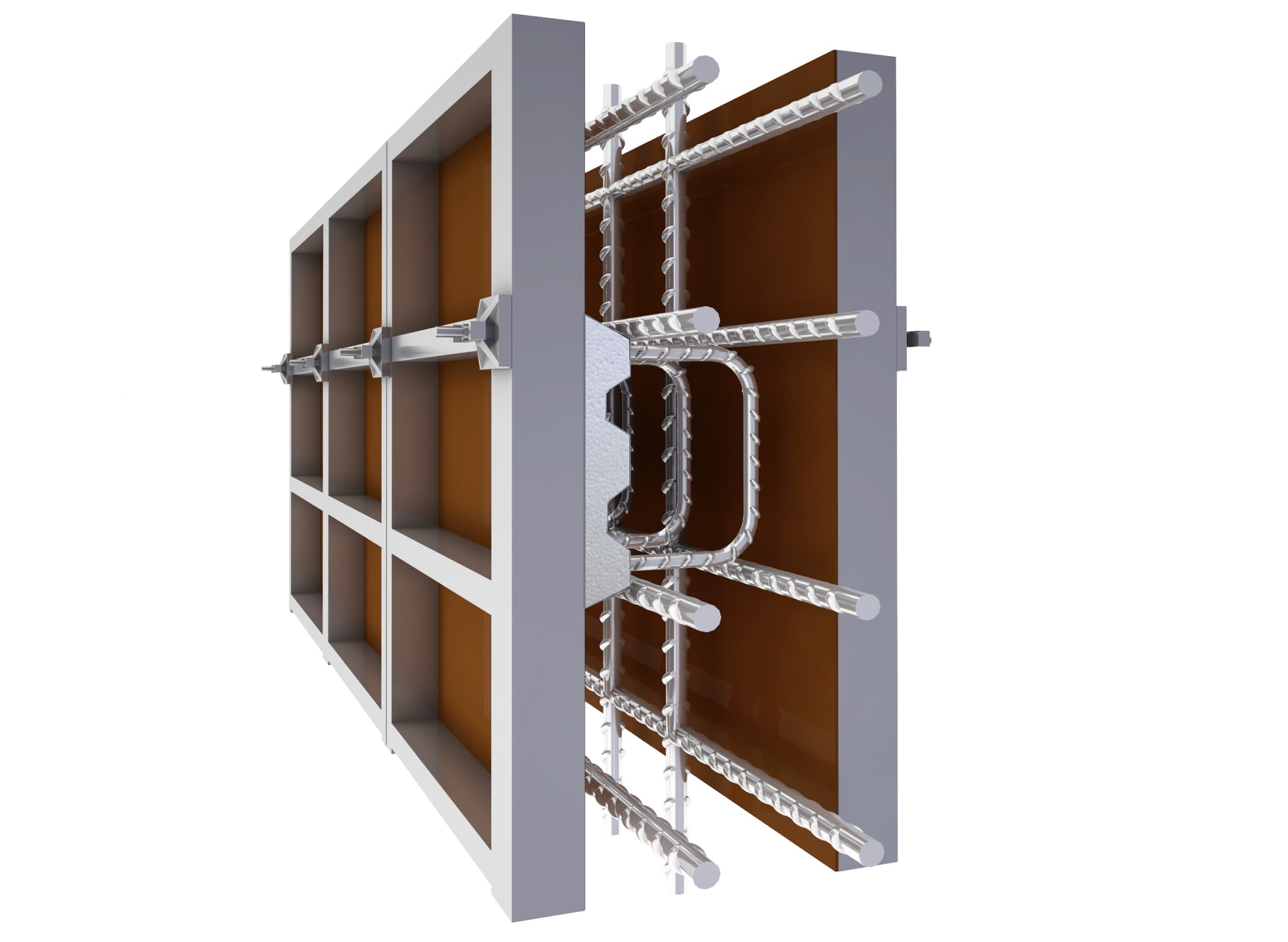

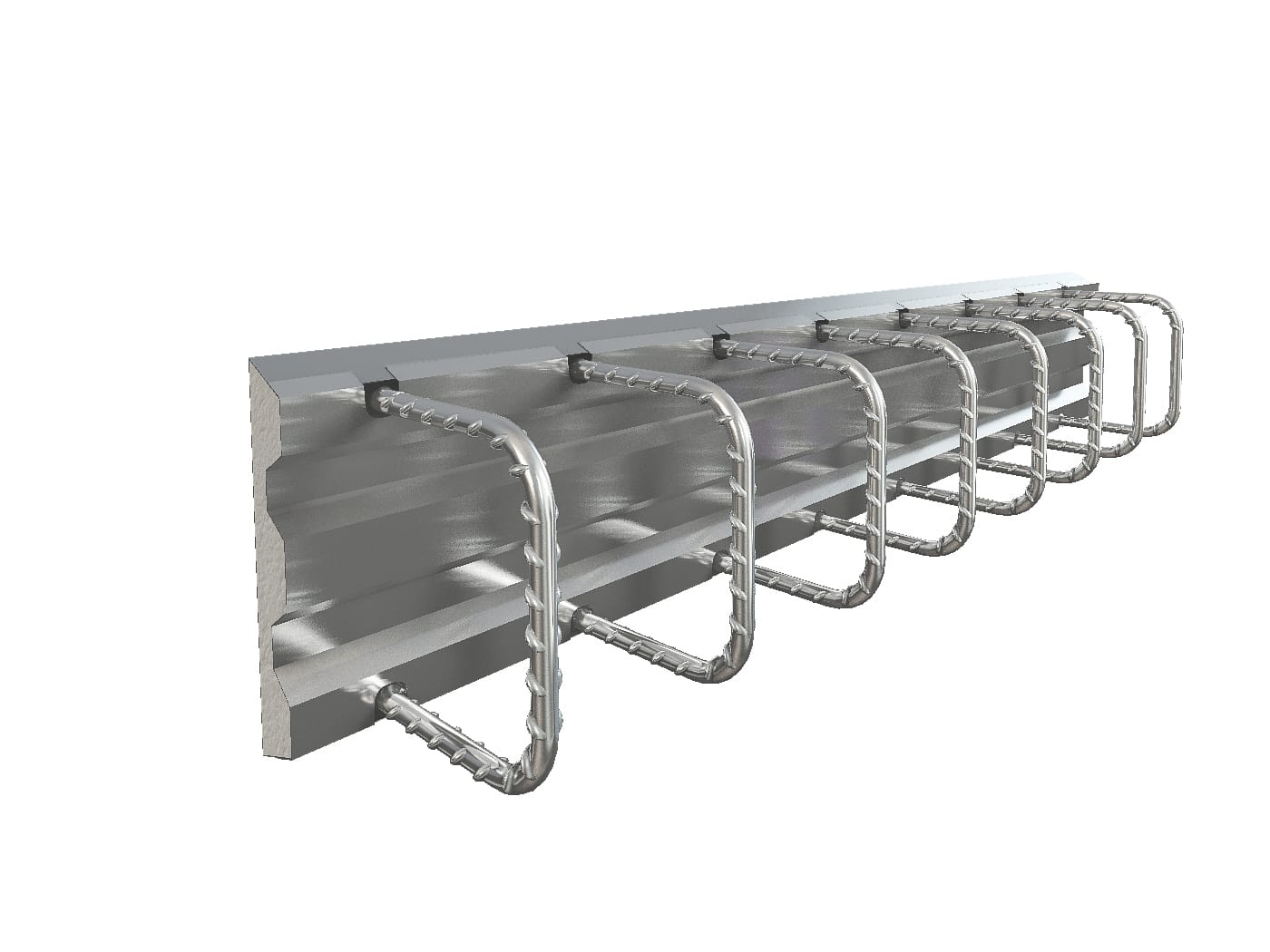

The large variety of shapes offers the perfect connection for many different design situations. The standard range includes starter packs with 8, 10 and 12 mm diameter and 1.25 m unit lengths. Unit lengths exceeding 1.25 m, special types for specific solutions and the combination with waterproofing systems as well as solutions for entire projects are possible on request.

The benefits:

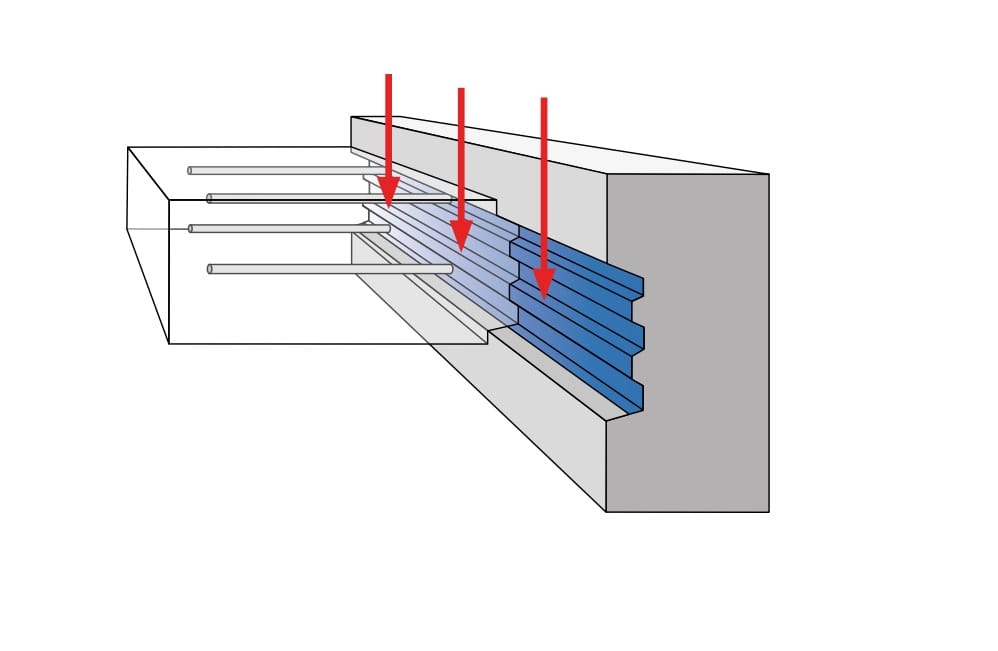

The highest bearing capacity due to key profiled boxes
The strong and robust box with high dimensional stability and a trapezoidal profile, which guarantees the highest bearing capacity
Fast and cost effective installation
Easy removal of the sheet metal cover

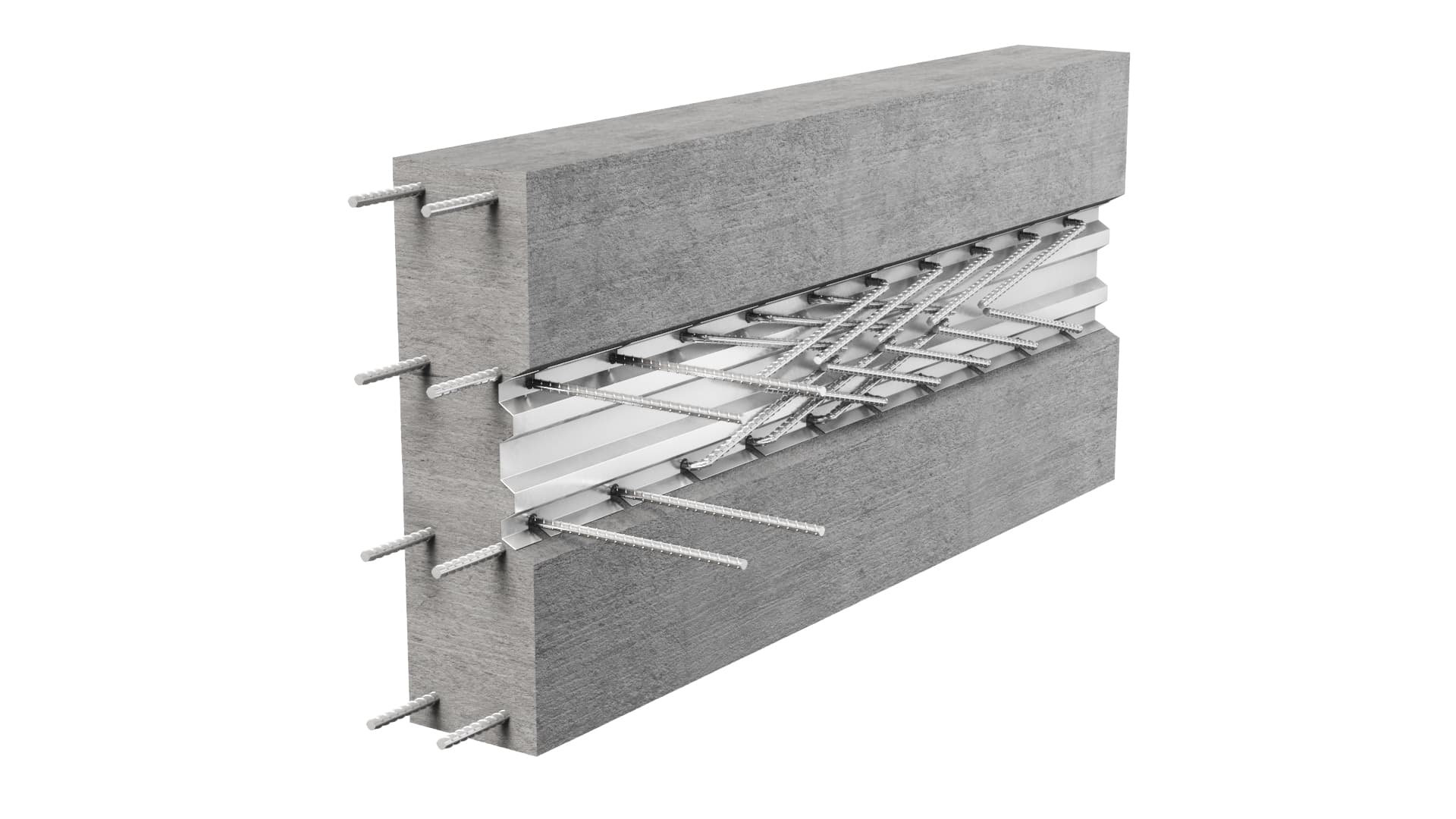

Trapezoidally profiled box for excellent bond
Various possible types provide a solution for all common installation details
According to EC 2

RECOSTAL^® RSH

Diagram

Graph for the Determination of the Production-Related required Box Widths and Max. Producible L₀-Lengths

Technical data of RECOSTAL^® RSH

Standard L = 1.25 m.

”key profile” category. Product meets all the requirements according to EUROCODE 2.

TYPE	Bar width b (cm)	Ø (mm)/s (cm)	Lap length L₀ [cm]	Bar height h (cm)	Box width D [cm]
RSH 10	10	8/15	32	17	12
RSH 10	10	8/20	32	17	12
RSH 10	10	10/15	39	17	12
RSH 10	10	10/20	39	17	12
RSH 10	10	12/15	46	17	12
RSH 10	10	12/20	46	17	12
RSH 11	11	8/15	32	17	13
RSH 11	11	8/20	32	17	13
RSH 11	11	10/15	39	17	13
RSH 11	11	10/20	39	17	13
RSH 11	11	12/15	46	17	13
RSH 11	11	12/20	46	17	13
RSH 12	12	8/15	32	17	14
RSH 12	12	8/20	32	17	14
RSH 12	12	10/15	39	17	14
RSH 12	12	10/20	39	17	14
RSH 12	12	12/15	46	17	14
RSH 12	12	12/20	46	17	14
RSH 14	14	8/15	32	17	16
RSH 14	14	8/20	32	17	16
RSH 14	14	10/15	39	17	16
RSH 14	14	10/20	39	17	16
RSH 14	14	12/15	46	17	16
RSH 14	14	12/20	46	17	16
RSH 16	16	8/15	32	17	18
RSH 16	16	8/20	32	17	18
RSH 16	16	10/15	39	17	18
RSH 16	16	10/20	39	17	18
RSH 16	16	12/15	46	17	18
RSH 16	16	12/20	46	17	18
RSH 18	18	8/15	32	17	20
RSH 18	18	8/20	32	17	20
RSH 18	18	10/15	39	17	20
RSH 18	18	10/20	39	17	20
RSH 18	18	12/15	46	17	20
RSH 18	18	12/20	46	17	20
RSH 20	20	8/15	32	17	22
RSH 20	20	8/20	32	17	22
RSH 20	20	10/15	39	17	22
RSH 20	20	10/20	39	17	22
RSH 20	20	12/15	46	17	22
RSH 20	20	12/20	46	17	22
RSH 22	22	8/15	32	17	24
RSH 22	22	8/20	32	17	24
RSH 22	22	10/15	39	17	24
RSH 22	22	10/20	39	17	24
RSH 22	22	12/15	46	17	24
RSH 22	22	12/20	46	17	24
