RECOSTAL® RSH Special

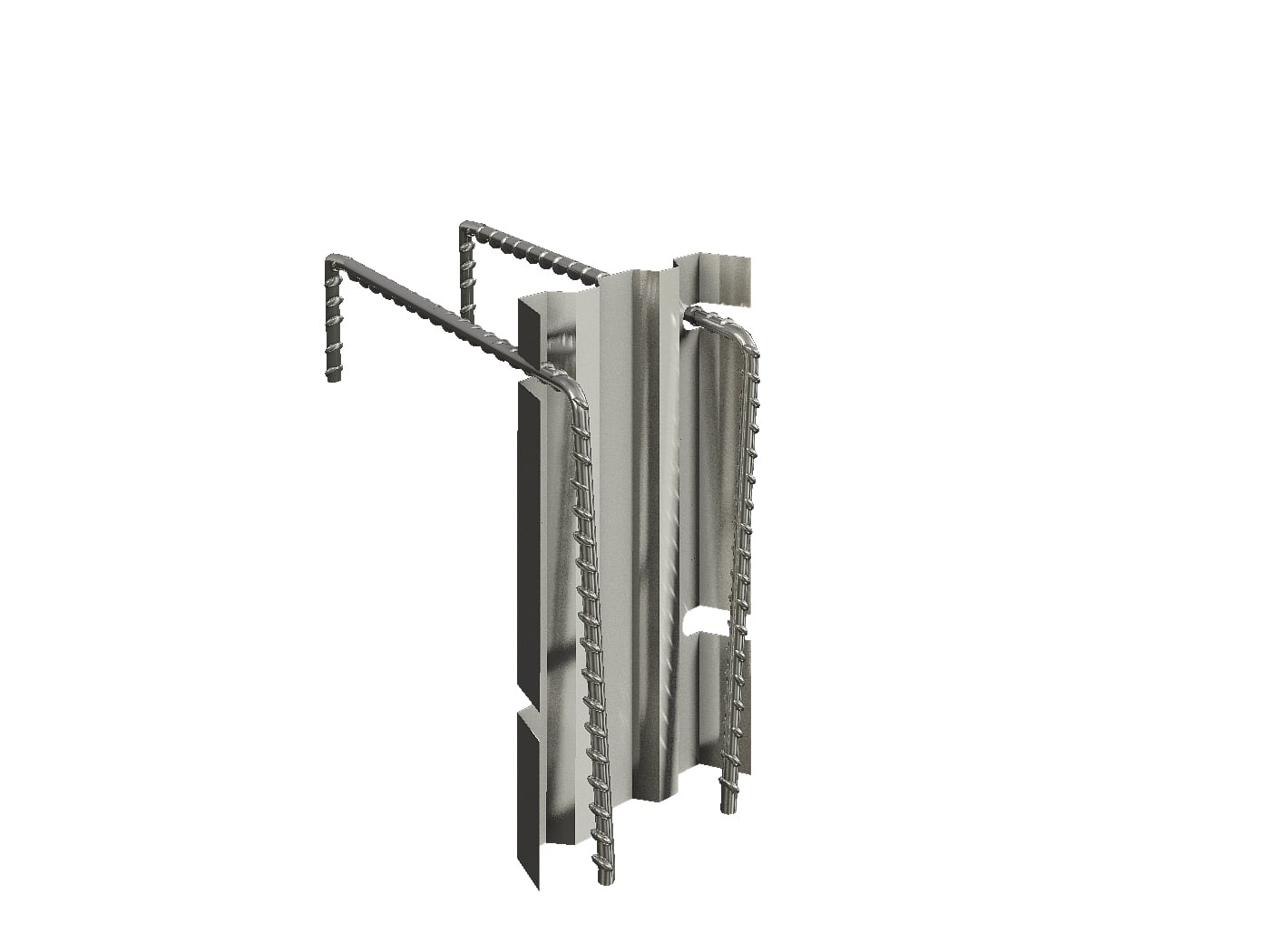

RSH Special

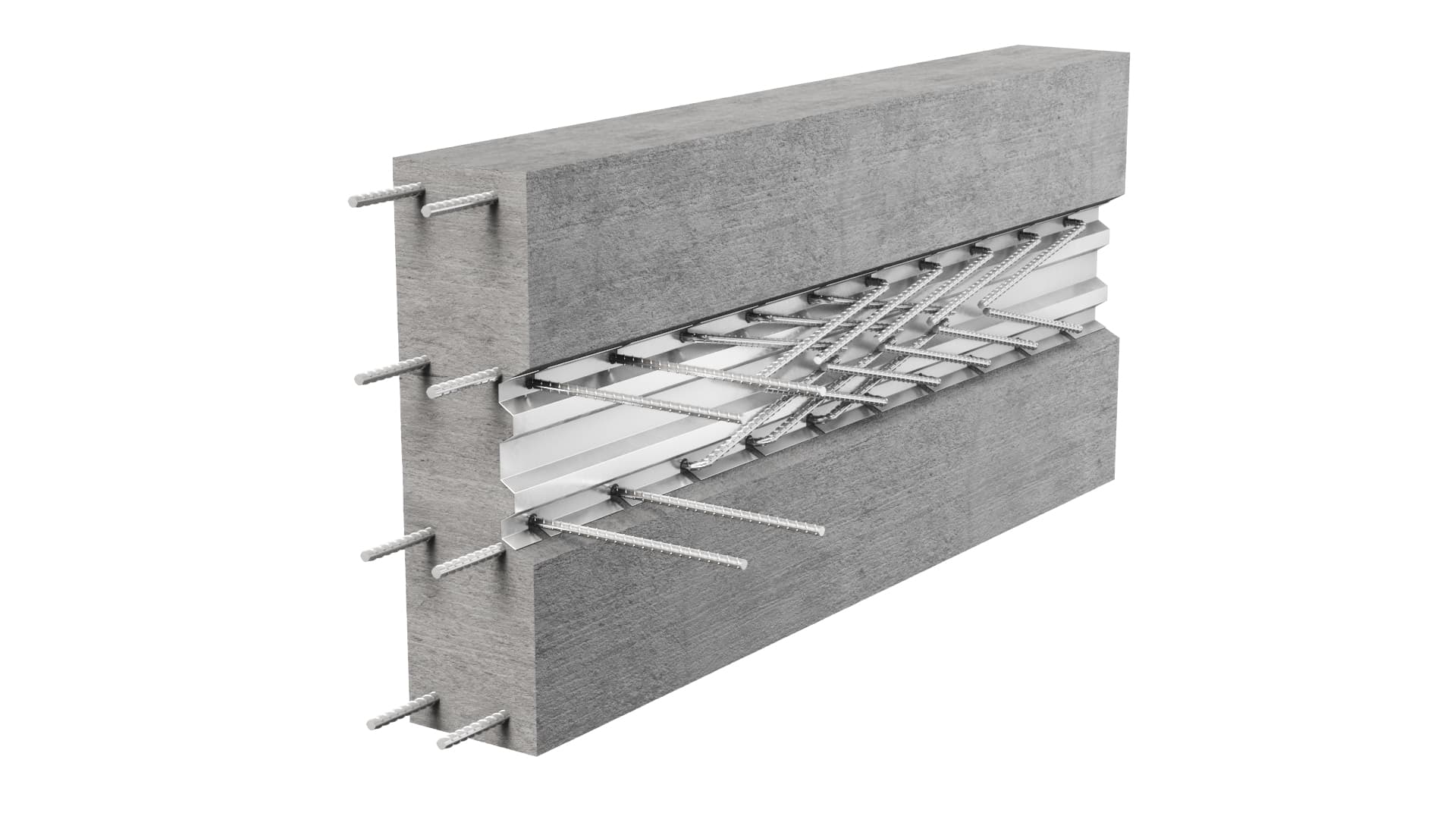

This is a special custom‑shaped steel continuity strip for connecting reinforcement in concrete joints, made for specific project requirements.
The Benefits:
Fast and cost-effective installation on site, reducing labour time.
Easy handling: simple attachment and easy removal of covers.
Excellent bond with concrete thanks to the trapezoidal profile.
Flexible special shapes: “RSH Special” versions can be tailored for project-specific joint geometries that standard types don’t cover
RECOSTAL® Starter Packs Special Types are made to specification and are available in many different shapes. Highest bearing capacity due to key profiled boxes. Highest joint category according to Eurocode 2. The main advantages of RECOSTAL® Starter Packs is the strong and robust box with high dimensional stability and a trapezoidal profile, which guarantees the highest bearing capacity according to Eurocode 2. Joint category “key profiled” according to DIN EN 1992-1-1/NA. RECOSTAL® Starter Packs meet the requirements of the DBV Bulletin.
Similar products
General recommendations:
During the installation observe the compulsory security standards - wear protective gloves.
STEP 1

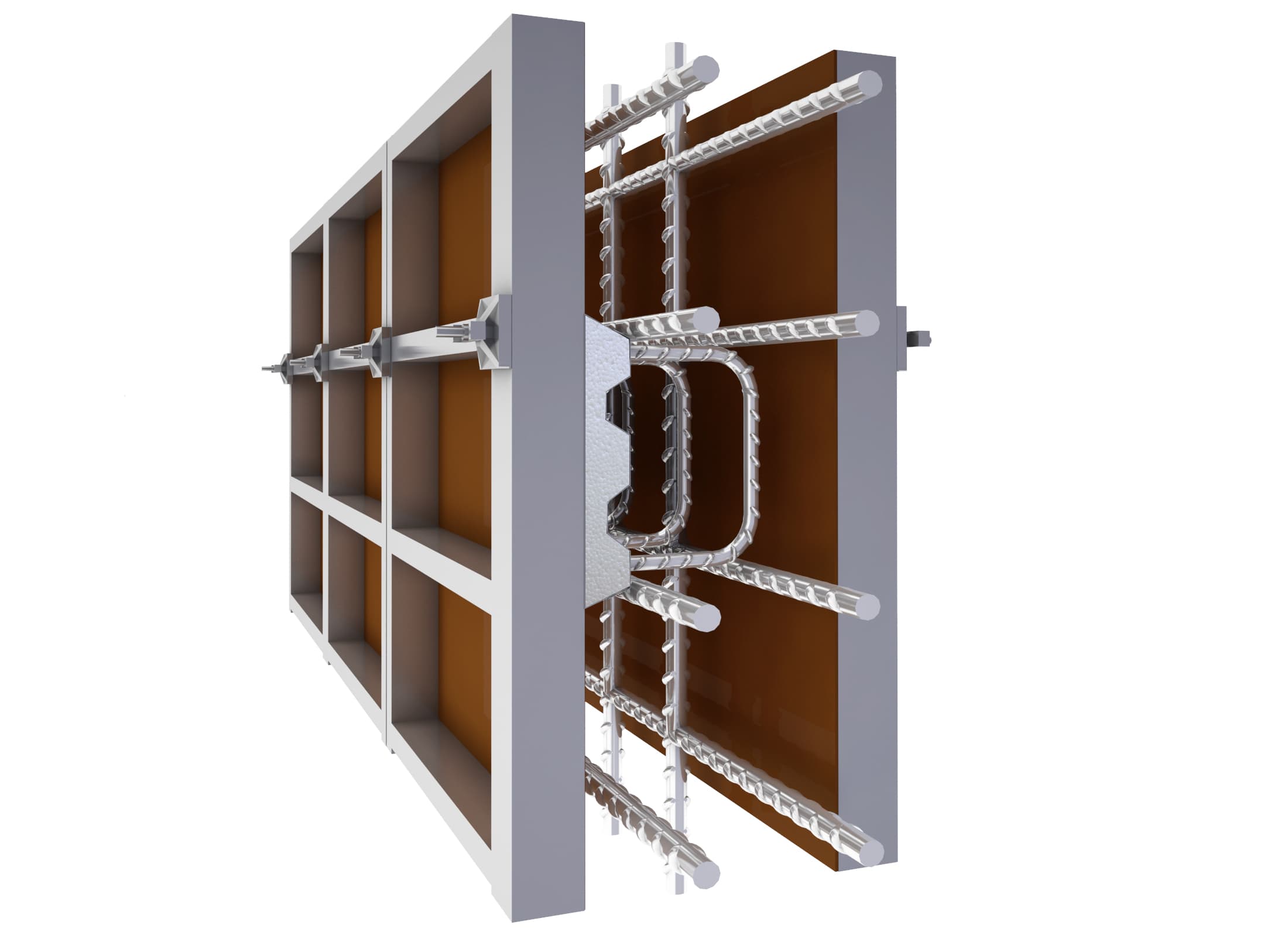

Installation of RECOSTAL® Starter Packs to formworks. Connecting anchor channel with reinforcement.
STEP 2
Closing formworks and concreting.
STEP 3

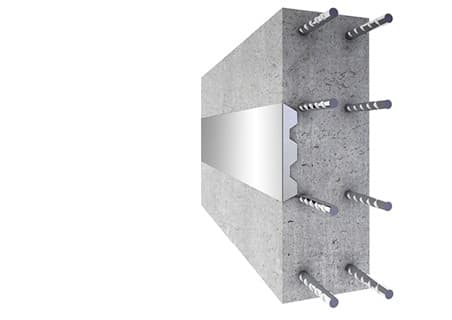

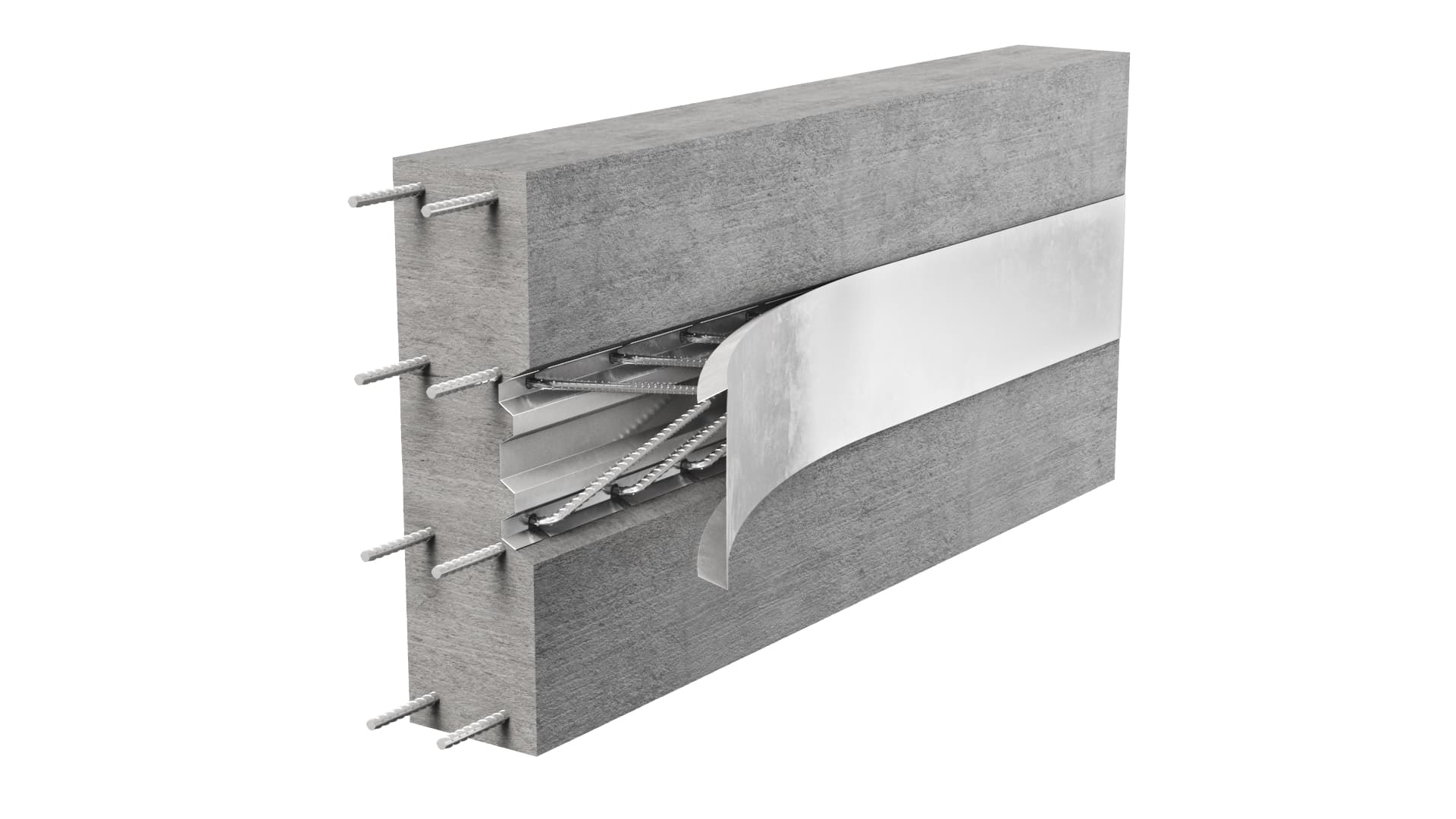

Stripping off RECOSTAL® Starter Packs Cover.
STEP 4

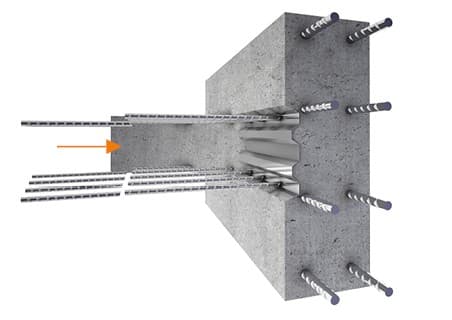

Bending the exposed rebars.
STEP 5
Connecting steel bars with rebars of consecutive elements. Concreting.
