RECOSTAL^® RSH bitum

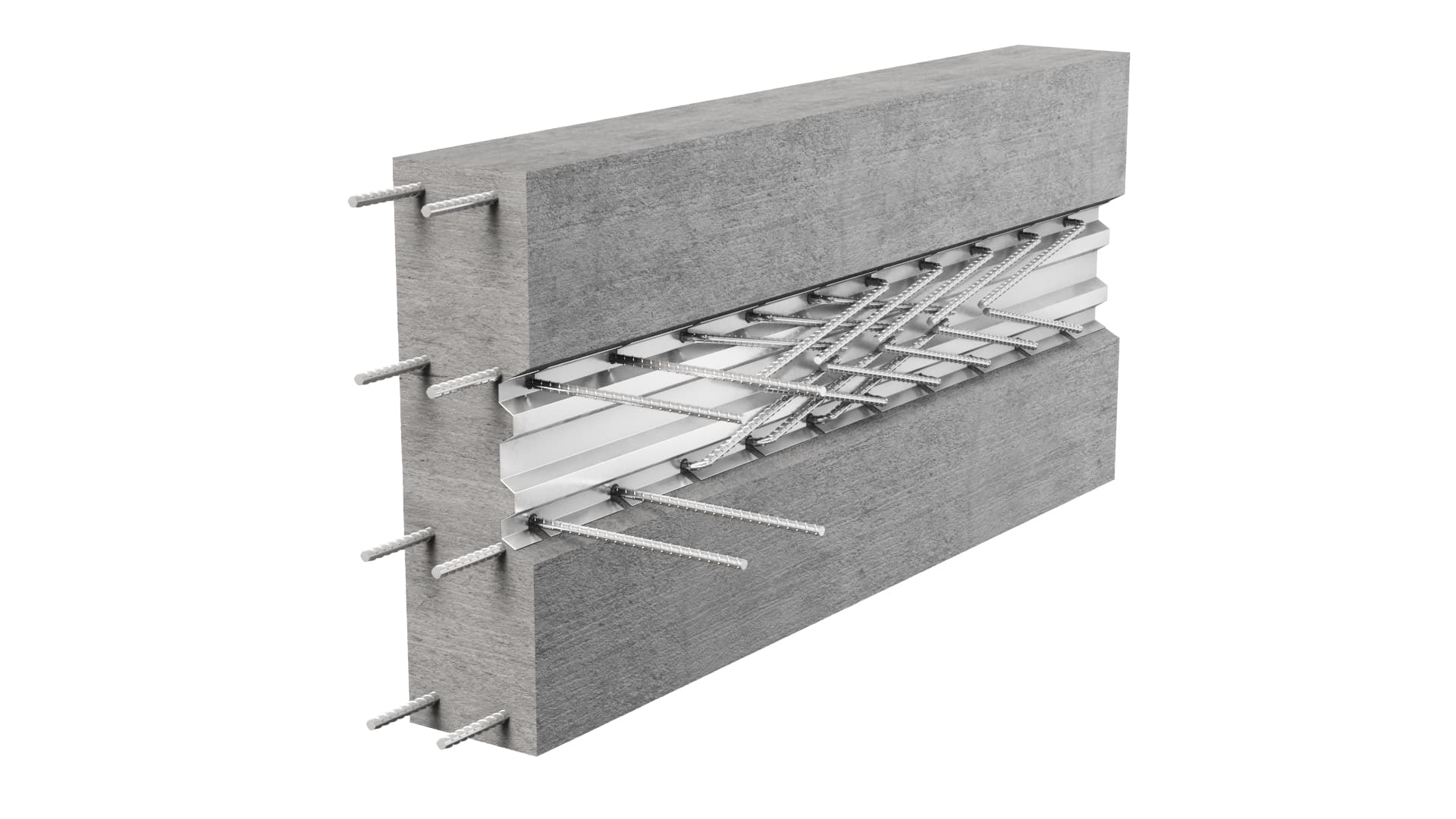

RECOSTAL^®RSH bitum is key profiled continuity system covered with with self-vulcanising bitumen tapes on both sides . Foil covering bitumen protects it from damage.

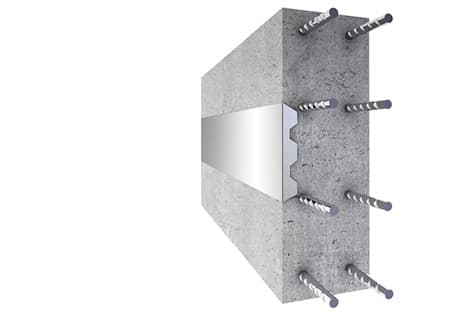

The main advantages of RECOSTAL^®RSH bitum is the strong and robust box with high dimensional stability and a trapezoidal profile, which guarantees the highest bearing capacity according to Eurocode 2. Joint category “key profiled” according to DIN EN 1992- 1-1/NA. RECOSTAL^® Starter Packs meet the requirements of the DBV Bulletin.

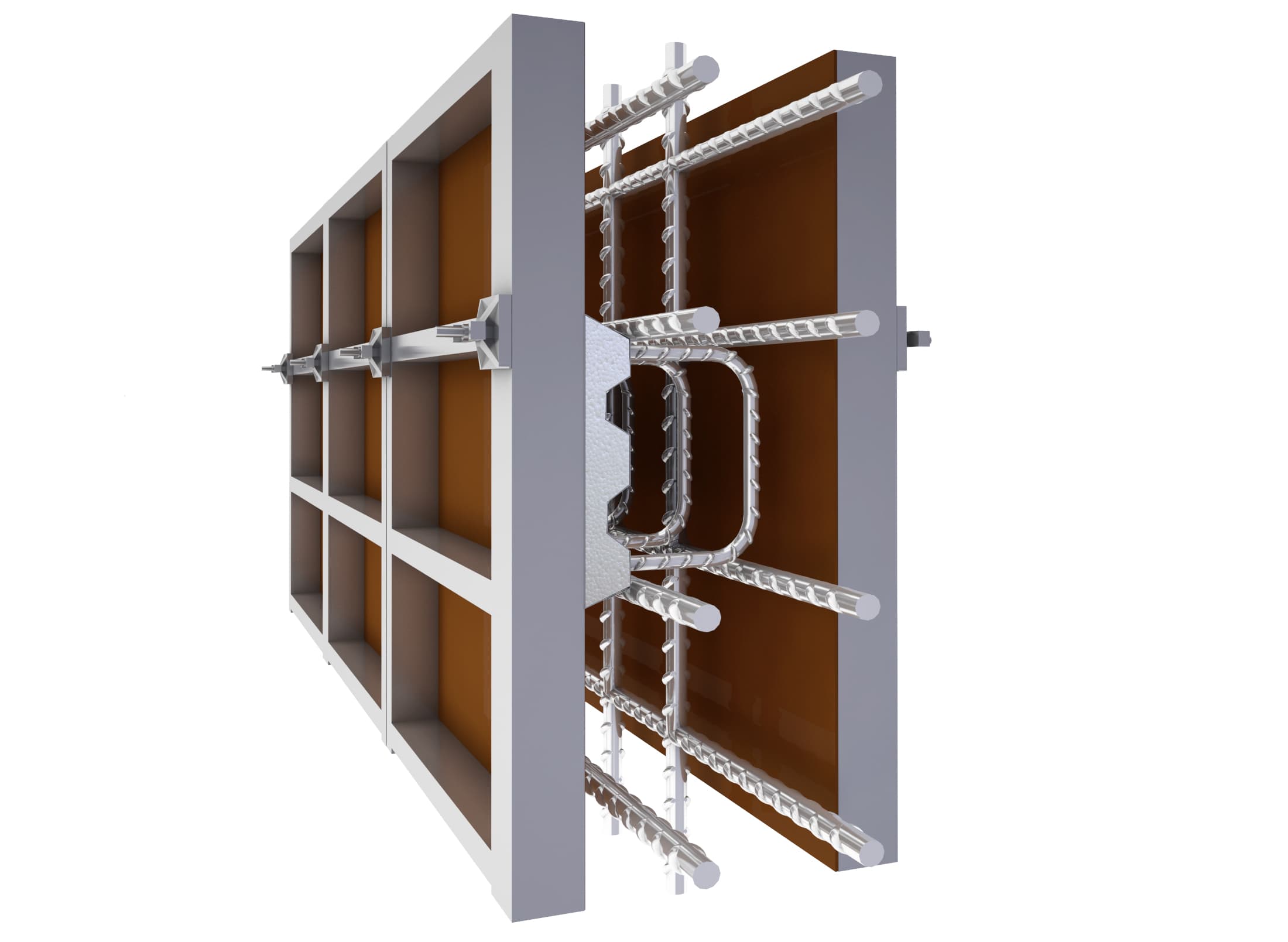

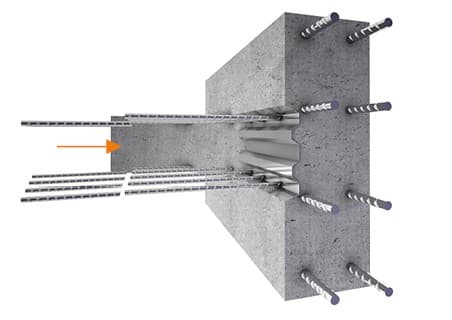

RECOSTAL^® RSH bitum ensures time saving installation of secure connections between steel reinforced concrete construction parts that are created with different pour sequences. Therefore, floor slabs, walls or staircases can be installed subsequently with rigid connections corresponding to the highest joint category “key profiled“.

The large variety of shapes offers the perfect connection for many different design situations.

The standard range includes starter packs with 8, 10 and 12 mm diameter and 1.25 m unit lengths. Unit lengths exceeding 1.25 m, special types for specific solutions and the combination with waterproofing systems as well as solutions for entire projects are possible on request.

The benefits

The highest bearing capacity due to key profiled boxes
The strong and robust box with high dimensional stability and a trapezoidal profile, which guarantees the highest bearing capacity
Fast and cost effective installation

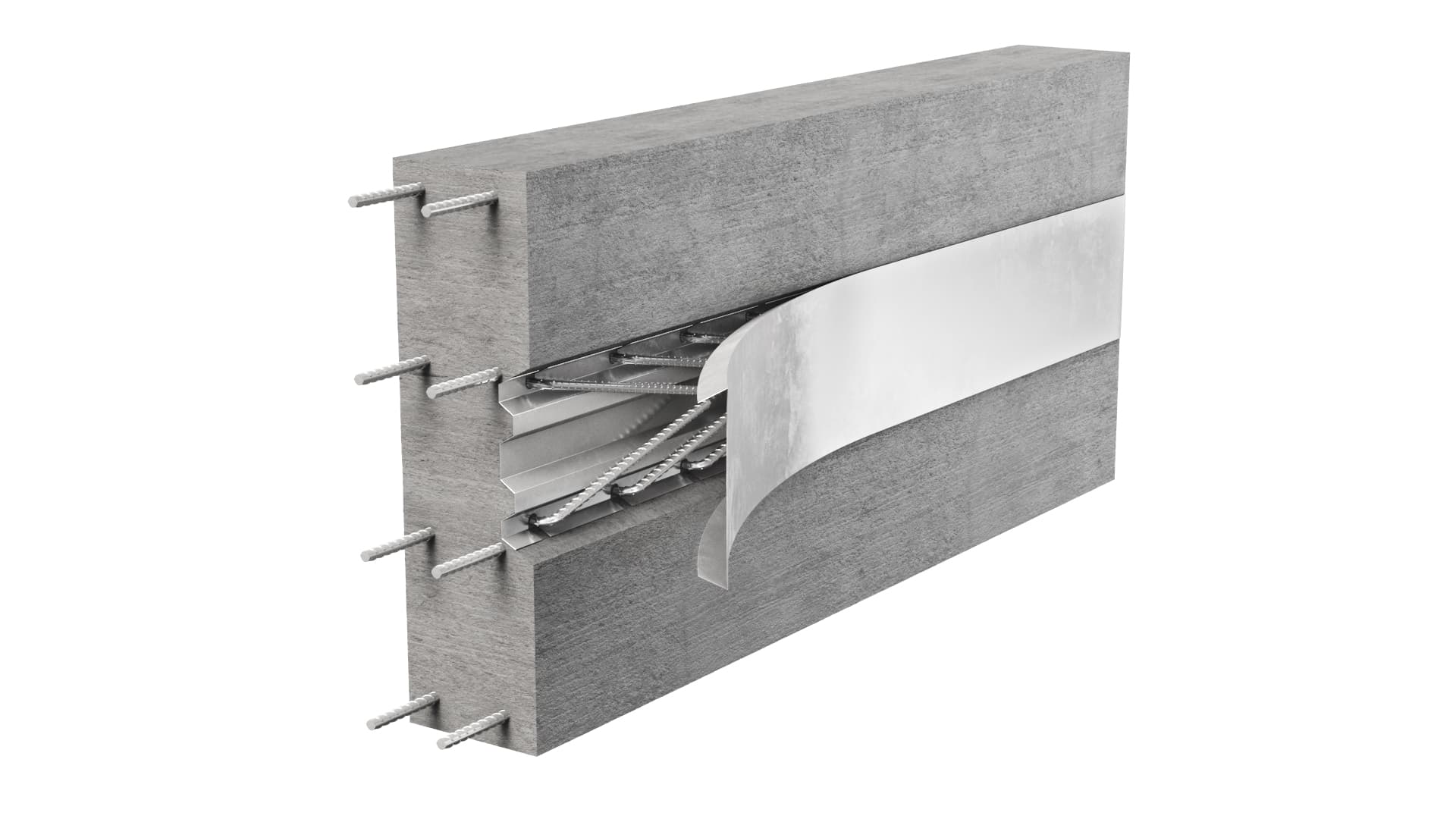

Easy removal of the sheet metal cover
Trapezoidally profiled box for excellent bond
Various possible types provide a solution for all common installation details
According to EC 2

Application:

sealed joints of slabs and walls.

Diagram

Graph for the Determination of the Production-Related required Box Widths and Max. Producible L₀-Lengths

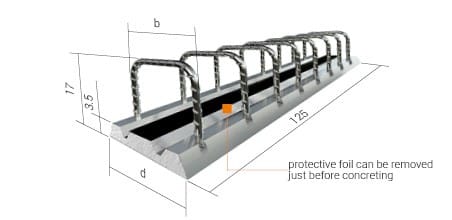

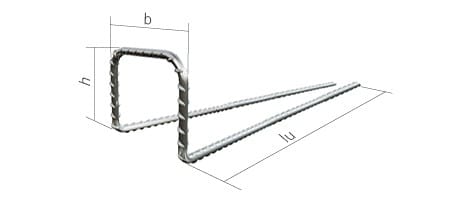

Technical data RECOSTAL^® RSH bitum

L standard = 1,25 m.

TYPE	b [mm]	STEEL ds [mm]	a [cm]	h [cm]	d [cm]	L₀[cm]
RSH 14 bitum	14	8	15	17	17	30
RSH 14 bitum	14	8	20	17	17	30
RSH 14 bitum	14	10	15	17	17	38
RSH 14 bitumen	14	10	20	17	17	38
RSH 14 bitum	14	12	15	17	17	45
RSH 14 bitum	14	12	20	17	17	45
RSH 16 bitum	16	8	15	17	19	30
RSH 16-8-20 bitumen	16	8	20	17	19	30
RSH 16 bitum	16	10	15	17	19	38
RSH 16 bitum	16	10	20	17	19	38
RSH 16 bitum	16	12	15	17	19	45
RSH 16 bitum	16	12	20	17	19	45
RSH 16 bitum	16	16	15	17	19	65
RSH 16 bitum	16	16	20	17	19	65
RSH 18 bitum	18	8	15	17	21	30
RSH 18 bitum	18	8	20	17	21	30
RSH 18 bitum	18	10	15	17	21	38
RSH 18 bitum	18	10	20	17	21	38
RSH 18-12-15 bitmen	18	12	15	17	21	45
RSH 18 bitum	18	12	20	17	21	45
RSH 18 bitum	18	16	15	17	21	65
RSH 18 bitum	18	16	20	17	21	65
RSH 20 bitum	20	8	15	17	23	30
RSH 20 bitum	20	8	20	17	23	30
RSH 20 bitum	20	10	15	17	23	38
RSH 20 bitum	20	10	20	17	23	38
RSH 20-12-15 bitumen	20	12	15	17	23	45
RSH 20 bitum	20	12	20	17	23	45
RSH 20 bitum	20	16	15	17	23	65
RSH 20 bitum	20	16	20	17	23	65
RSH 22 bitum	22	8	15	17	25	30
RSH 22 bitum	22	8	20	17	25	30
RSH 22-10-15 bitumen	22	10	15	17	25	38
RSH 22 bitum	22	10	20	17	25	38
RSH 22 bitum	22	12	15	17	25	45
RSH 22 bitum	22	12	20	17	25	45
RSH 22 bitum	22	16	15	17	25	65
RSH 22 bitum	22	16	20	17	25	65
