RECOSTAL® DFI-DFA
RECOSTAL® DFA is a permanent metal formwork for concrete expansion joints with a waterstop, allowing fast and easy installation.
The Benefits:
Self-supporting up to 75 cm single units are ready to use
Fast and easy installation
Even expansion joint
Correct position of PVC tape
Corner units and other special shapes are produced to the project
The ability to create the entire system for foundation slab, walls, and ceiling

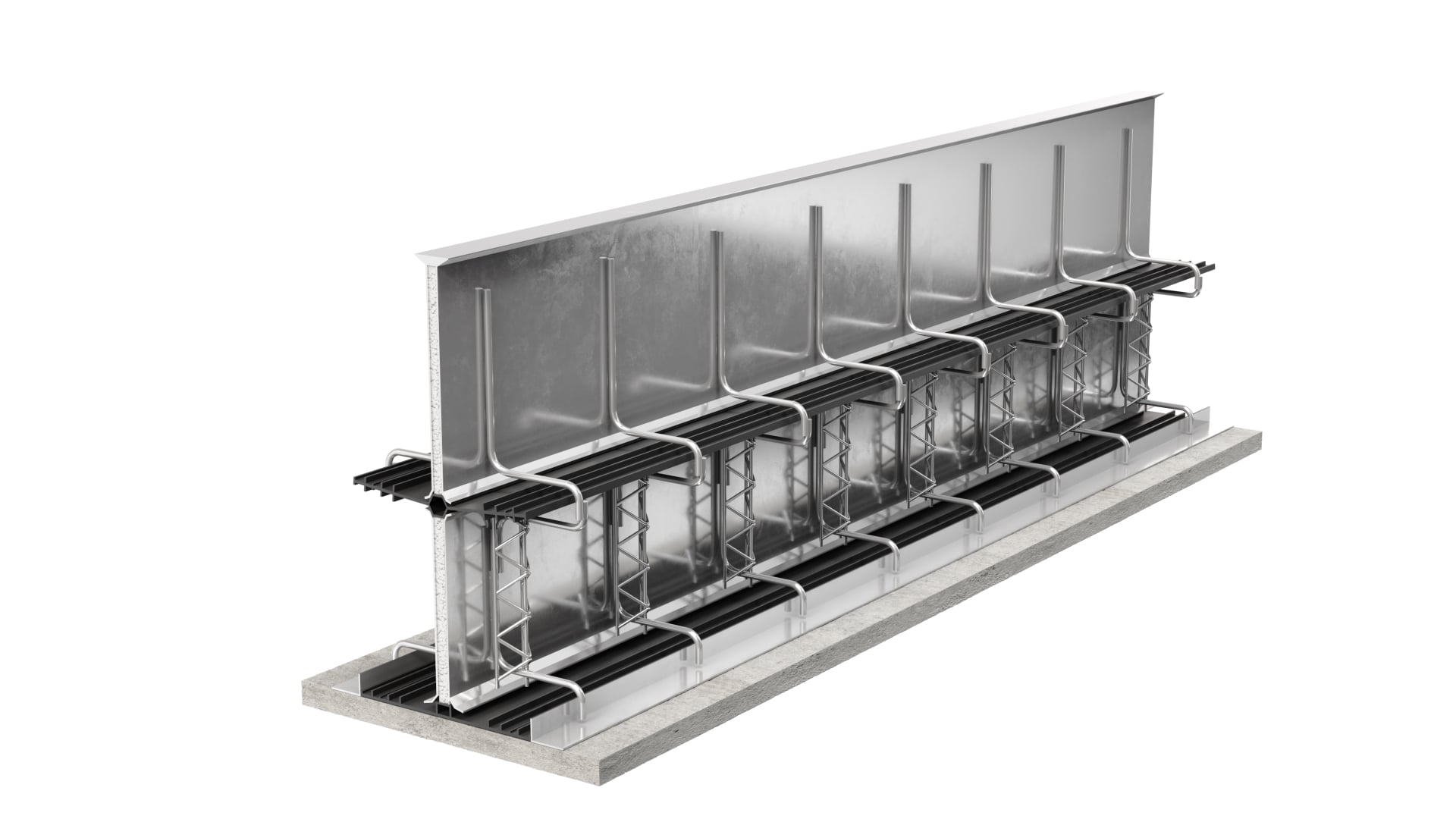

RECOSTAL® DFI-DFA is a permanent formwork made of galvanized metal sheet, bars and additional supports made with lattice girder or bars, allows shoring of expansion joint and internal + external PVC tapes/waterstops installation at the same time. Using this product, concreting on both sides of the structure is possible.
Similar products
General recommendations:
During the installation observe the compulsory security standards - wear protective gloves and work clothes with long sleeves.
During transport and storage, protect against mechanical damage.
PVC Tapes must be welded before fitting of Forband.

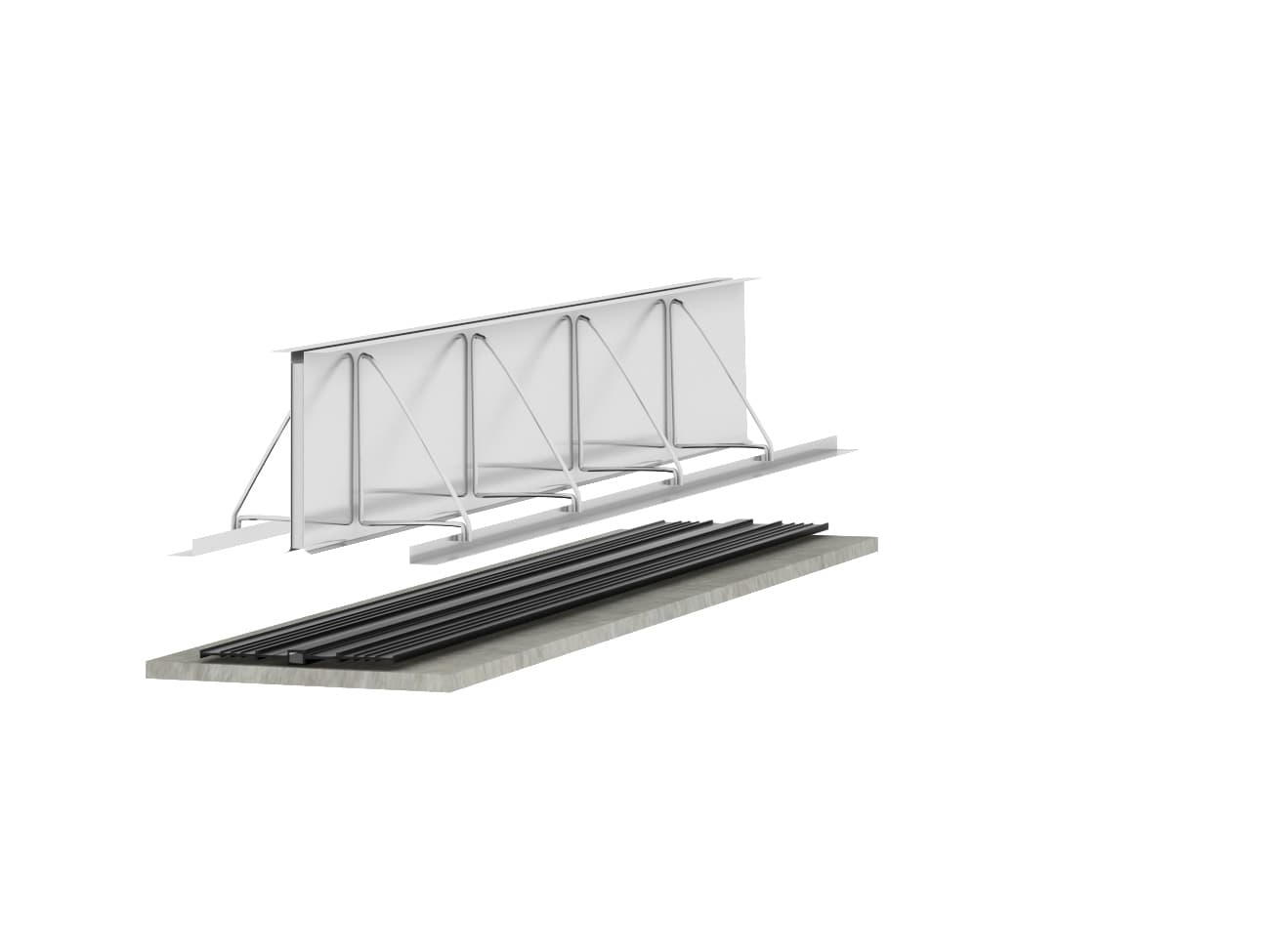

STEP 1 - RECOSTAL® DFA
Unroll PVC external tape on the ground.
STEP 2 - RECOSTAL® DFA
Setting of RECOSTAL® DFA element on previously unrolled PVC tape.
STEP 3 - RECOSTAL® DFA
Installation of element to the ground using nails.
STEP 1 - RECOSTAL® DFI
Setting of RECOSTAL® DFI on concrete bedding. Installation with nails.

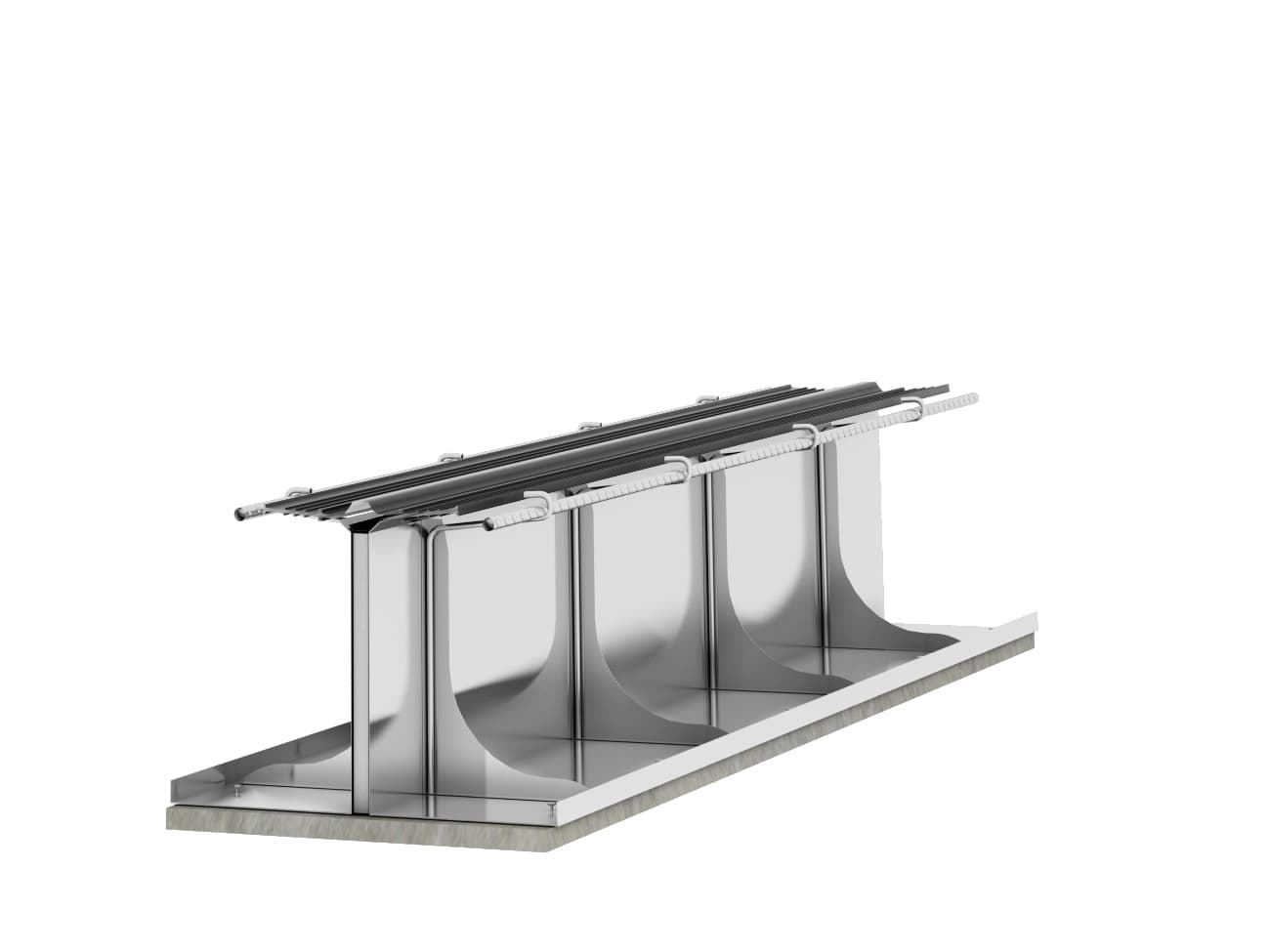

STEP 2 - RECOSTAL® DFI
Unroll PVC tape and set it on upper part of RECOSTAL® DFI structure.

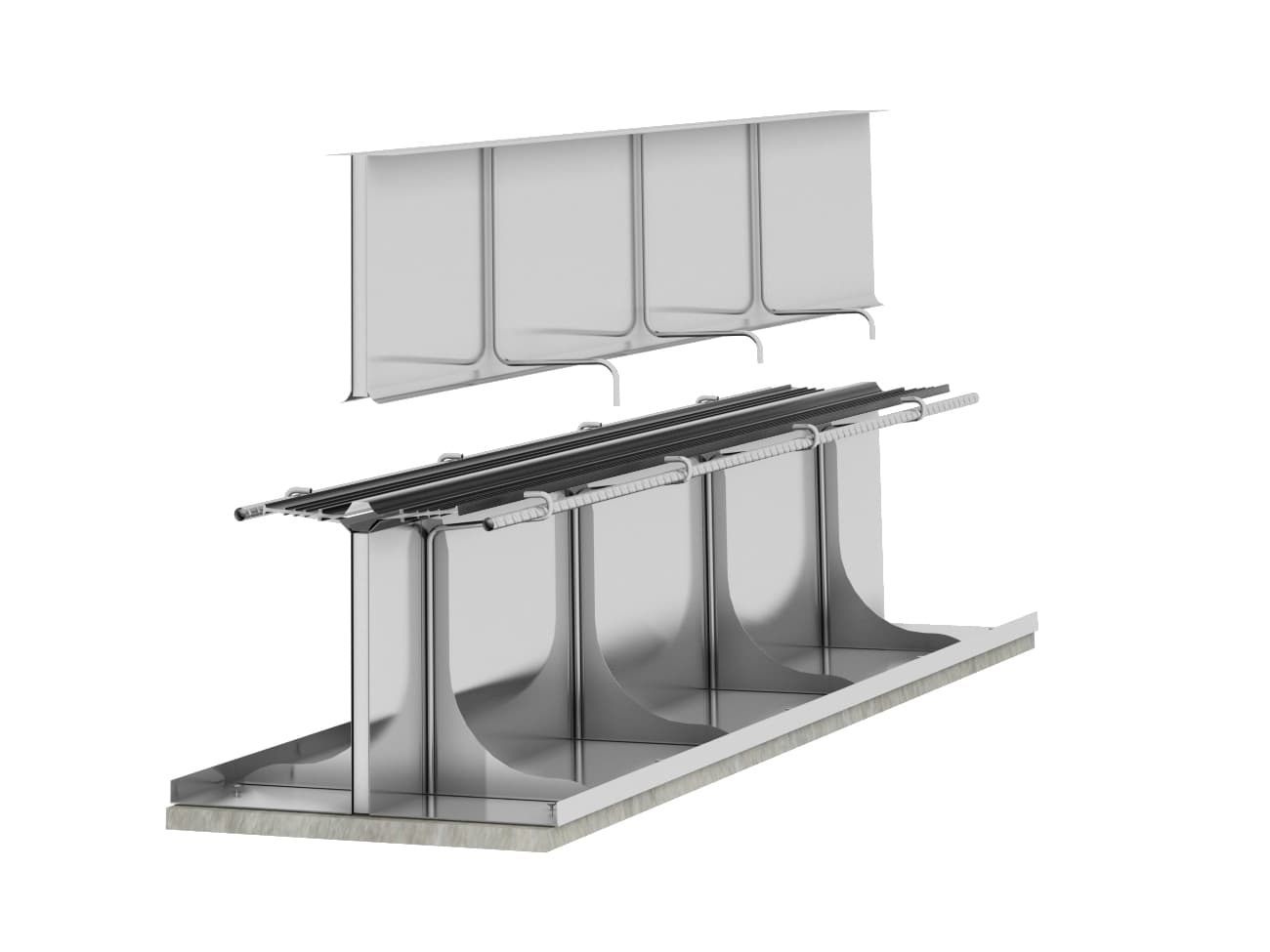

STEP 3 - RECOSTAL® DFI
Setting of upper RECOSTAL® DFI element on the bottom part. Connect both elements with wire tie.
