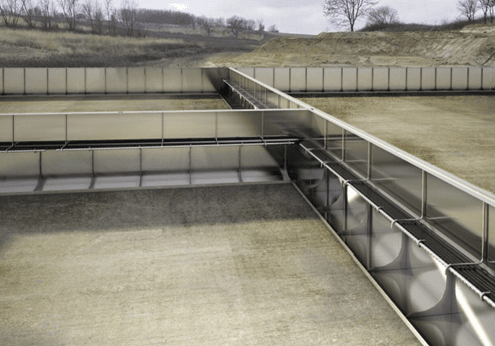

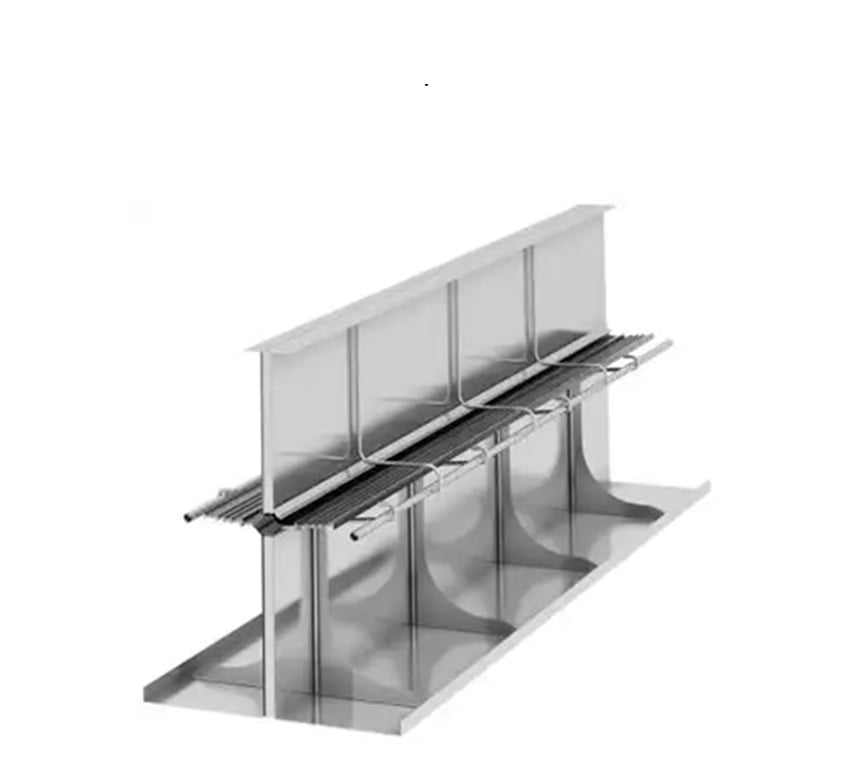

RECOSTAL® DFI
This is a permanent metal formwork element for creating and supporting expansion joints while securely positioning internal joint sealing tape in concrete structures.
The Benefits:
Self-supporting up to 70 cm – standard element
Possibility of modifying the element to increase self-support
Flat metal sheet with welded ribs and bars, quantity depending on height
Height manufactured by order
Corner units and other special shapes are produced to the project
Fast installation
Installation without a crane
The ability to create the entire system for foundation slab, walls and ceiling

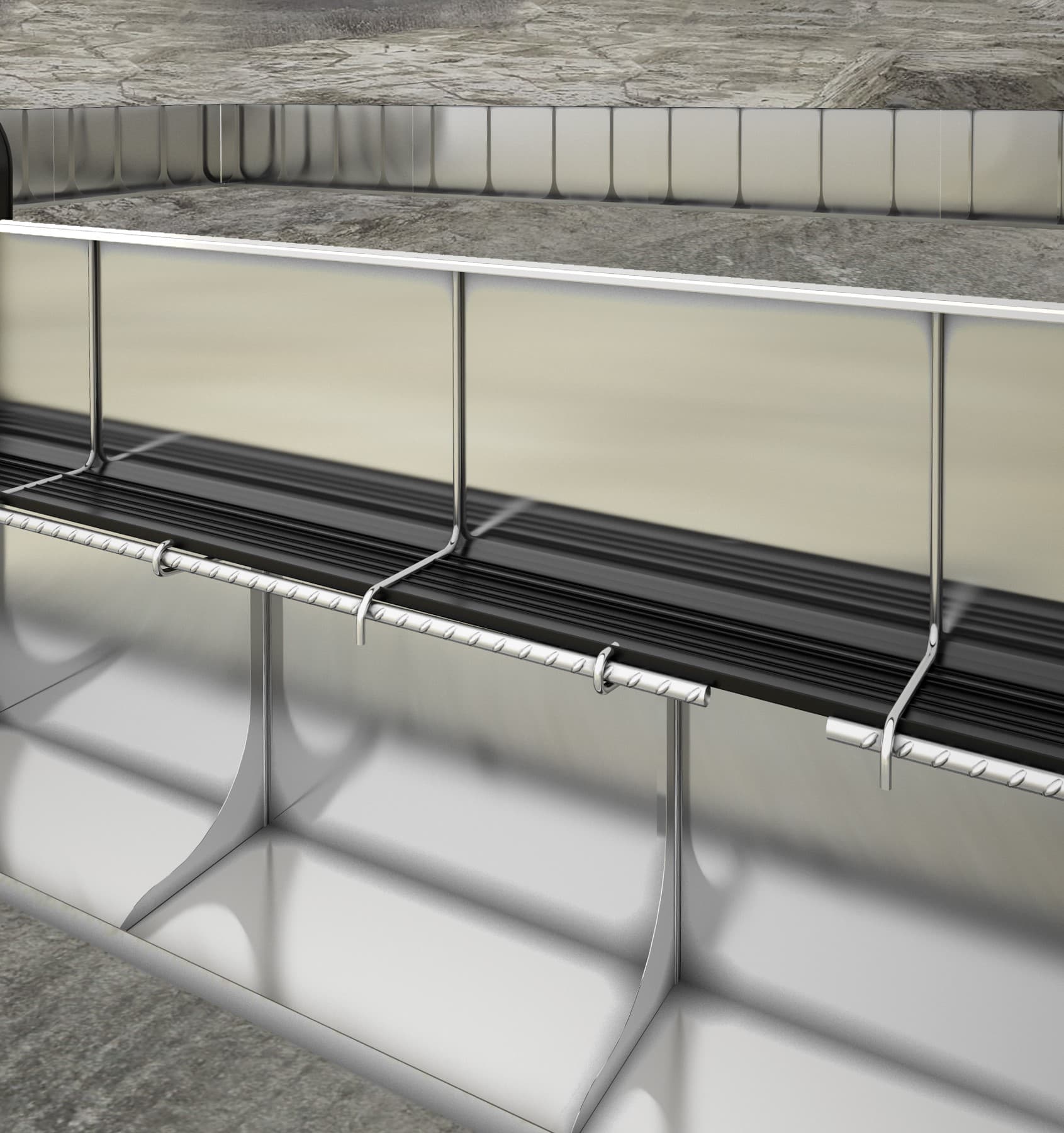

RECOSTAL® DFI is a permanent formwork made of metal sheet and rebars, allows shoring of expansion joint and internal PVC tape installation at the same time. Using this product, concreting on both sides of the structure is possible.

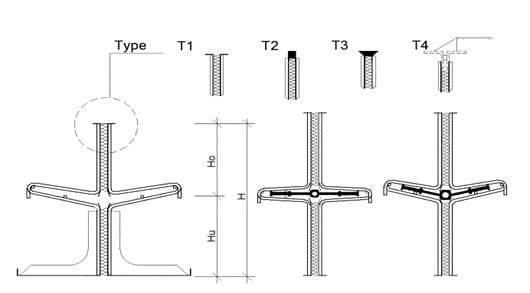

Product variation
T1 - standard top solution
T2 - removable rectangular top
T3 - removable trapezoidal top (strip)
T4 - special angled profile on-site (by request)
Similar products
General recommendations:
During the installation observe the compulsory security standards - wear protective gloves.

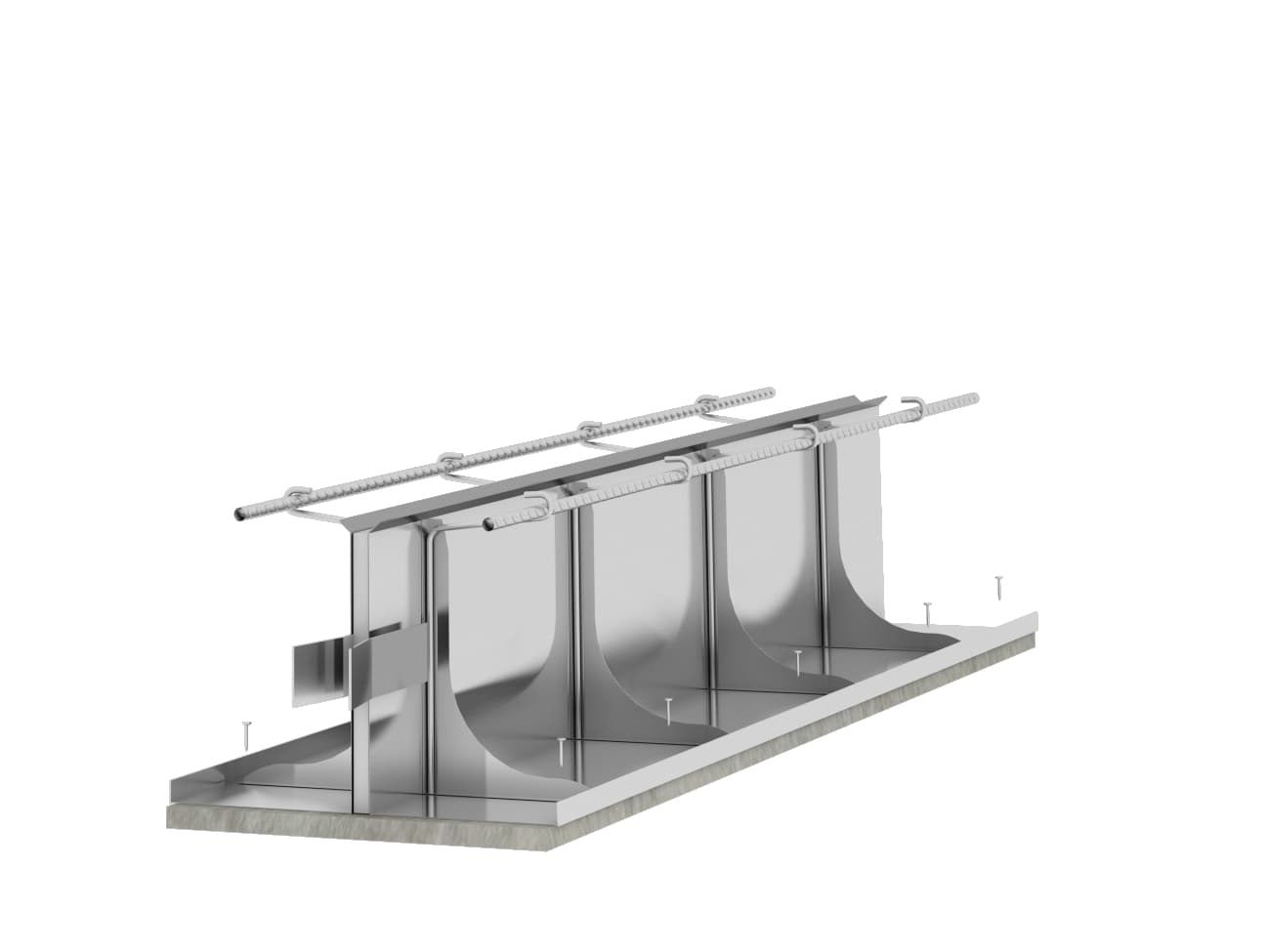

STEP 1 - RECOSTAL® DFI
Setting of RECOSTAL® DFI on concrete bedding. Installation with nails.

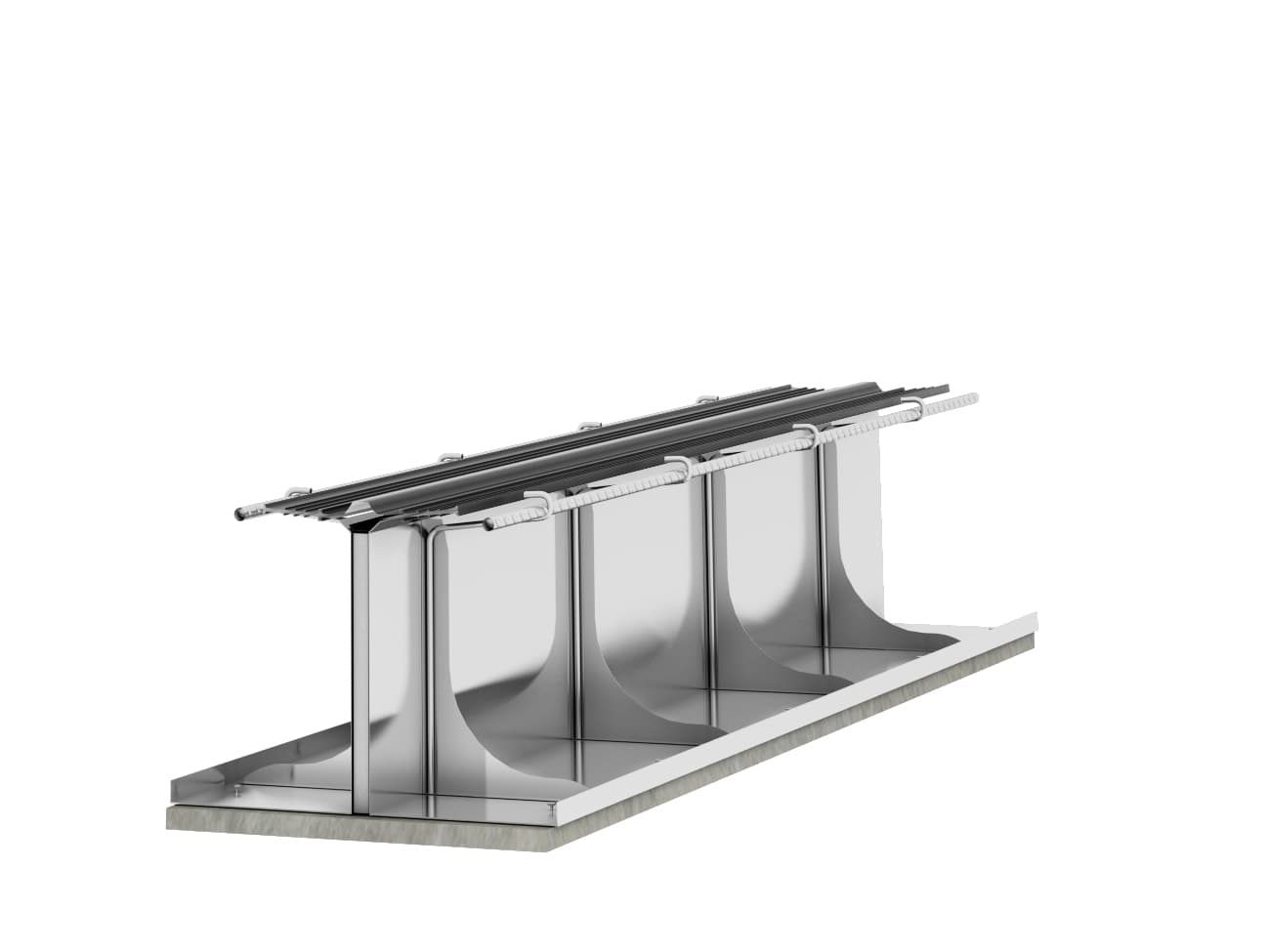

STEP 2 - RECOSTAL® DFI
Unroll PVC tape and set it on upper part of RECOSTAL® DFI structure.

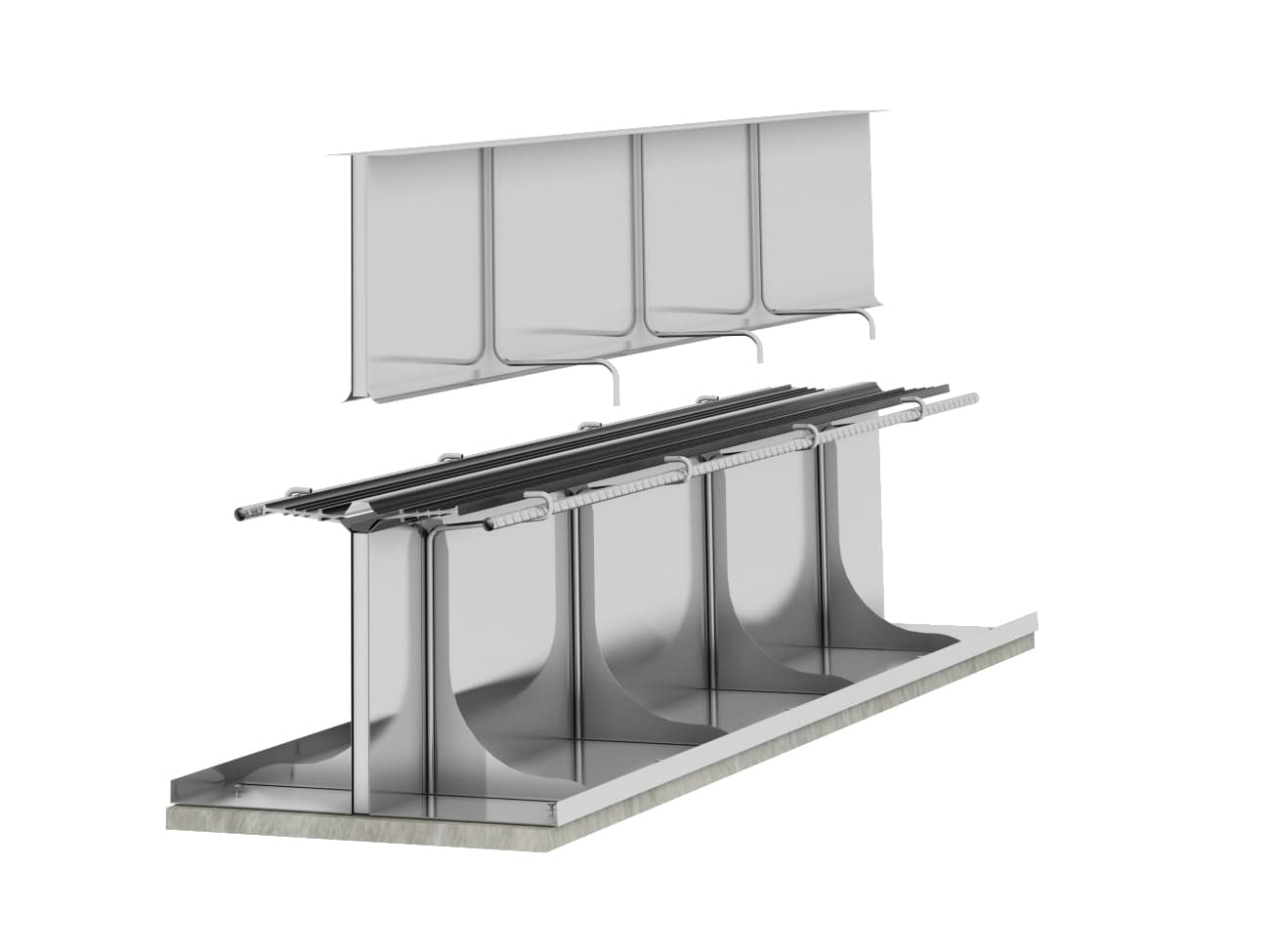

STEP 3 - RECOSTAL® DFI
Setting of upper RECOSTAL® DFI element on the bottom part. Connect both elements with wire tie.
