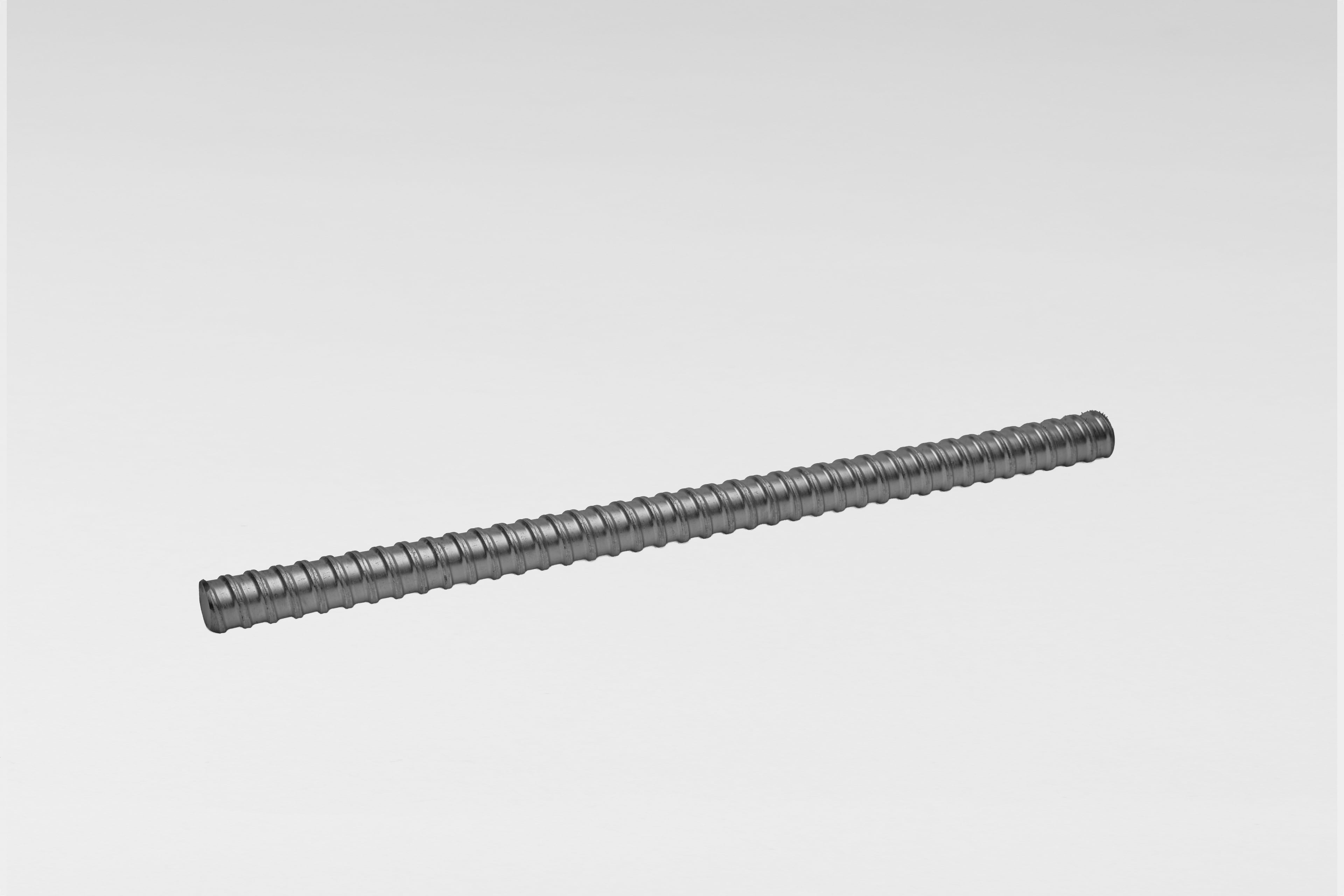

MUKUSOL Threadbar
4. - 15 F 0000
This is a weldable threaded steel bar used as an anchor or connection bar in concrete and formwork systems.
The Benefits:
Weldable for custom anchoring
Continuous threaded for standard nuts/couplers
High strength and load capacity
Available in multiple diameters and finishes
The MUKUSOL Threadbar is weldable.
Article No. | Ø [mm] | Max Load [kN] | Working Load [kN] | Weight [kg/m] |
|---|---|---|---|---|
12 FS 0000 | 12/14 | 60 | 30 | 1.04 |
15 FS 0000 | 15/17 | 170 | 80 | 1.50 |
15 VA 0000* | 15/17 | 140 | 70 | 1.58 |
20 FS 0000 | 20/23 | 275 | 140 | 2.60 |
26 ES 0000 | 26.5/30 | 500 | 240 | 4.56 |
Cold rolled, *stainless steel, grade VA
Weldable: for weldability and methods, please contact DYWIDAG.
All Threadbars also available galvanized > Article No. …/V (example 15 FS 0000/V)
Safety Instructions
Appropriate use of form ties and accessories is necessary to prevent accidents and failure. All products are intented to be used by qualified and experienced workmen. It is the user's responsibility to continually inspect working hardware for wear and to discard worn parts. Improper use of the DYWIDAG Form Ties can expose workers to extreme danger that may result in severe injury or death.
