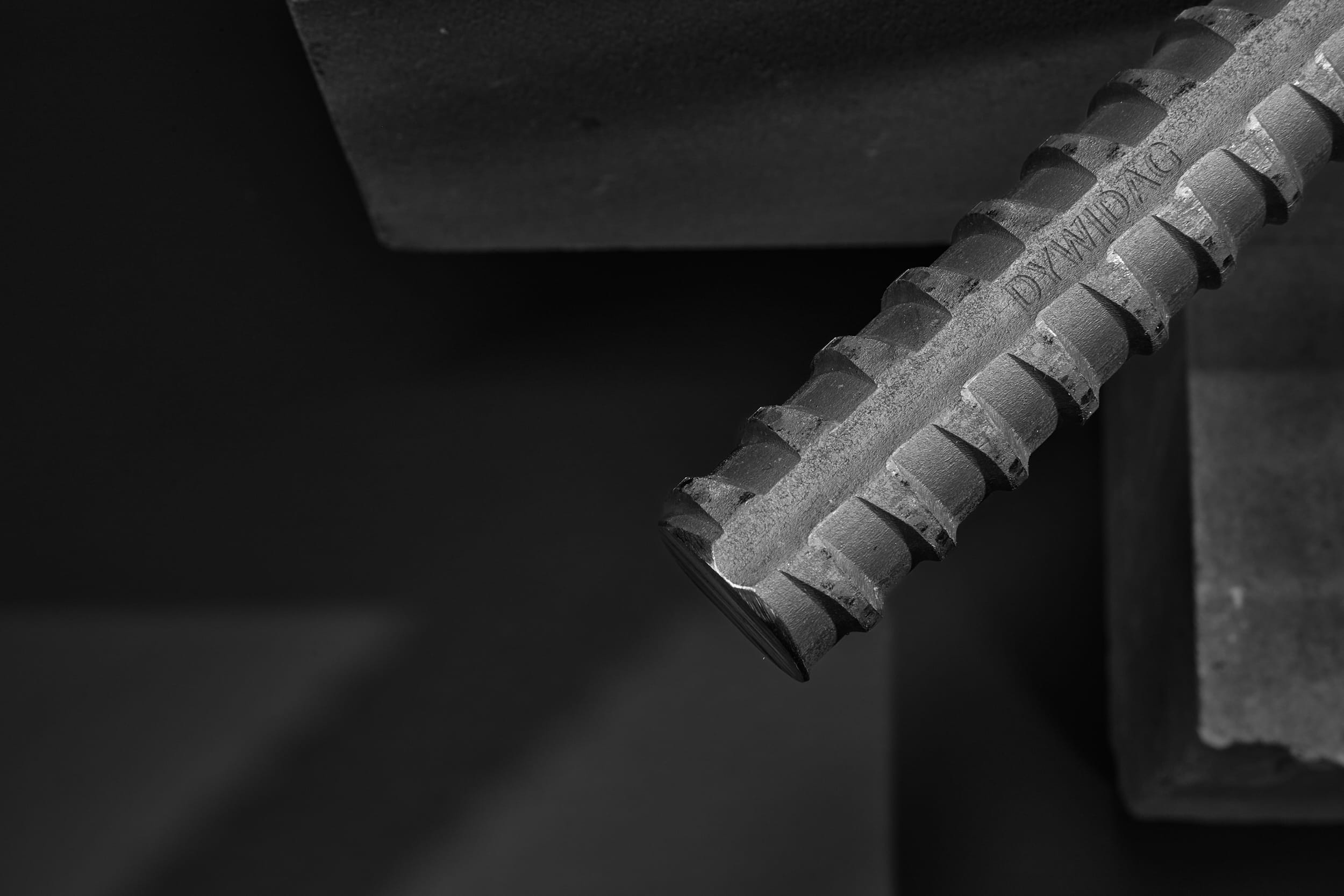

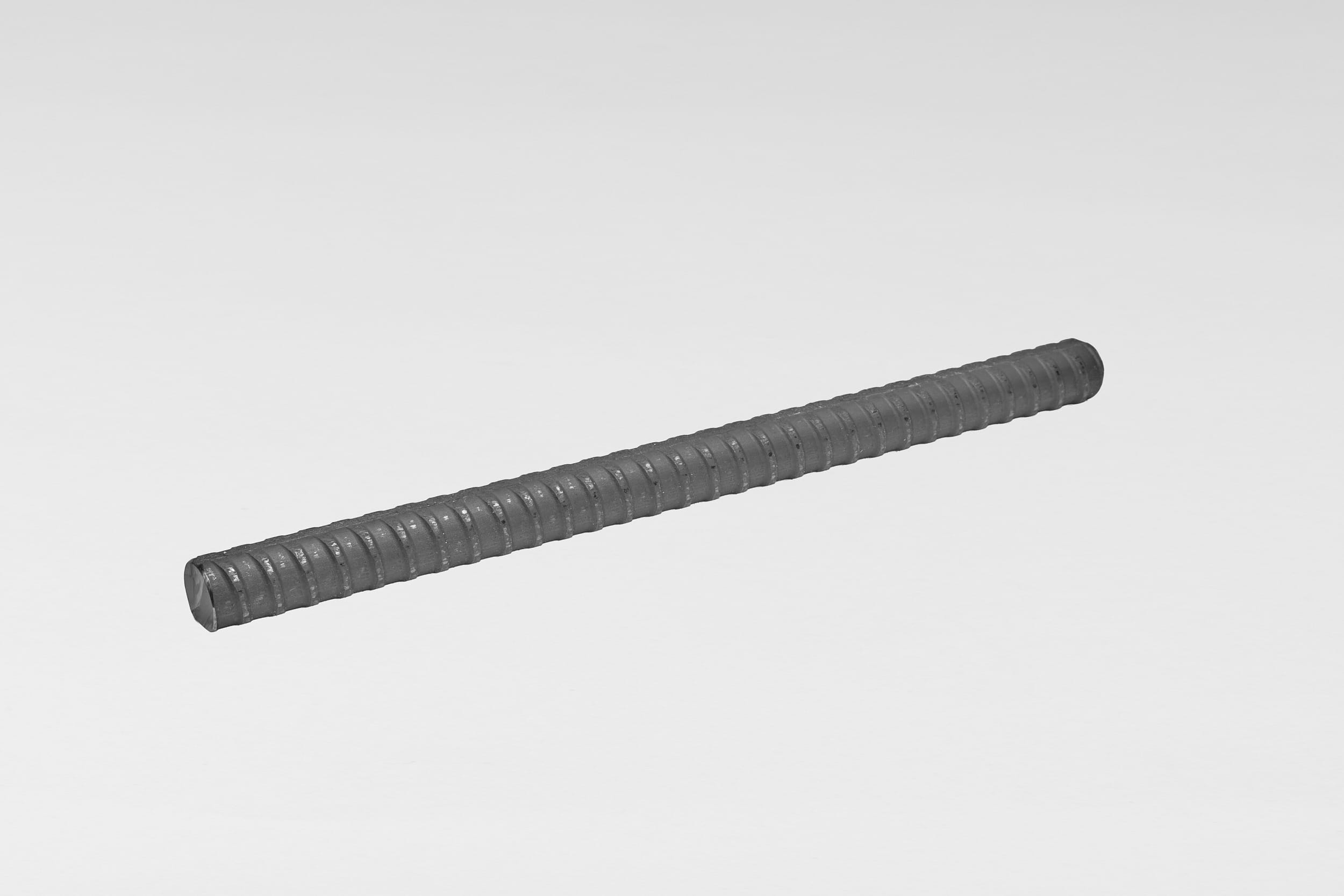

DYWIDAG Threadbar
The DYWIDAG Form Ties is based on the original DYWIDAG Threadbar with hot-rolled, continuous thread on both sides. Together with matching accessories, it is used by formwork manufacturers around the world and has proven itself countless times on jobsites. A decisive advantage of the DYWIDAG Threadbar is its coarse thread that does not run around the complete circumference of the bar. Consequently, the bar is not only insensitive against damages and dirt, but also self-cleaning. Furthermore, it can be cut at any point and used continuously with couplers or nuts.
The high thread pitch allows a quick assembly and disassembly of the connecting and anchoring parts. The high strength of ftk= 1,100 N/ mm2 permits a high load capacity in relation to its low weight per meter. We offer a large range of accessories in diameters 15; 20 and 26.5 mm for all kinds of applications.
According to the German approval the original, high quality Type FA DYWIDAG Threadbar is insensitive to weld spatter, but only features limited weldability.
Article No. | Ø [mm] | Steel Grade | Max Load [kN] | Working Load [kN] | Weight [kg/m] |
|---|---|---|---|---|---|
15 FA 0105 | 15/17 | St. 900/1100 | 190 | 90 | 1.44 |
20 FA 0105 | 20/23 | St. 900/1100 | 345 | 160 | 2.51 |
26 FA 0105 | 26.5/31 | St. 900/1100 | 606 | 283 | 4.46 |
Safety Instructions
Appropriate use of form ties and accessories is necessary to prevent accidents and failure. All products are intented to be used by qualified and experienced workmen. It is the user's responsibility to continually inspect working hardware for wear and to discard worn parts. Improper use of the DYWIDAG Form Ties can expose workers to extreme danger that may result in severe injury or death.
