Steel Cone
Steel Cone

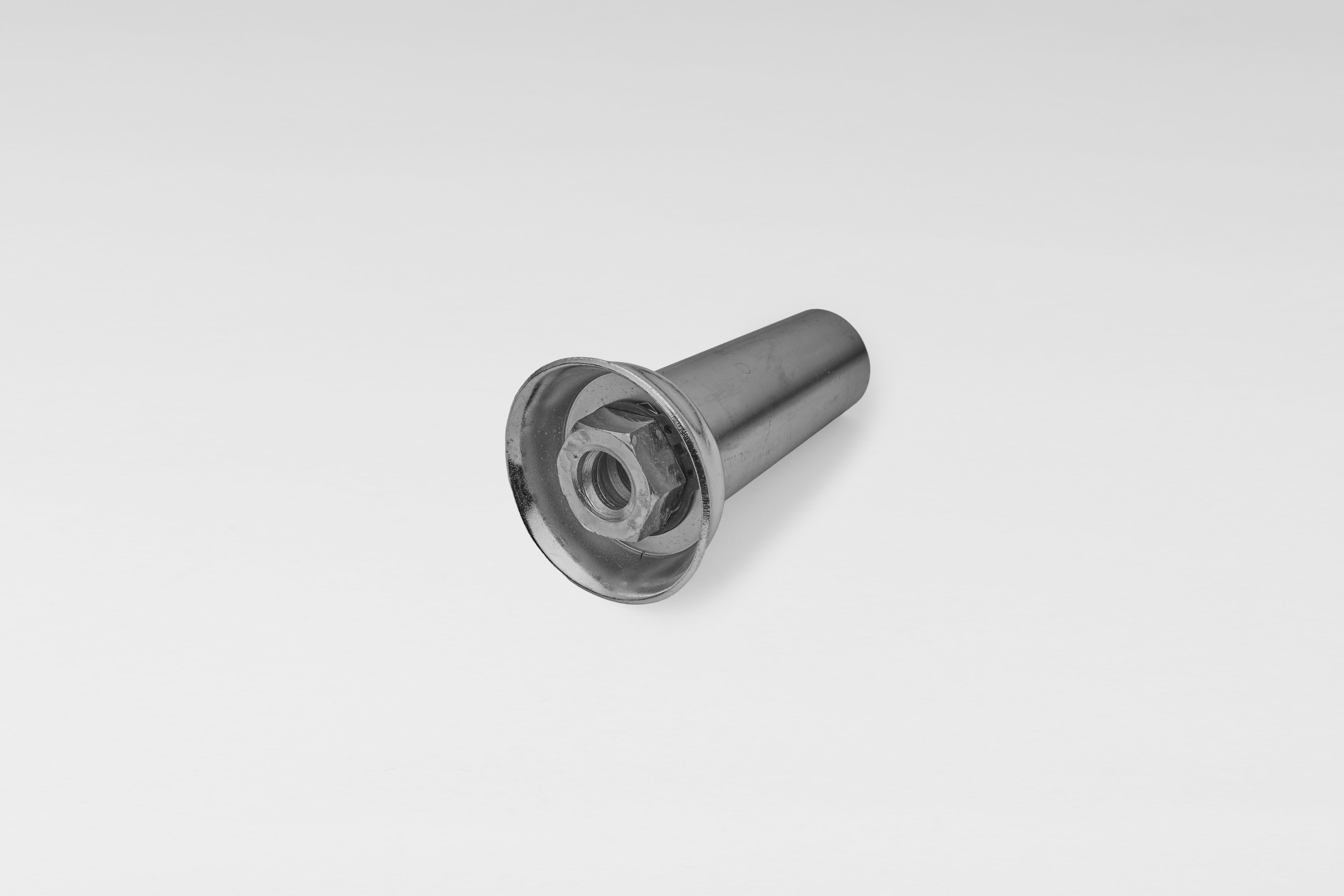

This is a steel cone used in formwork systems to ensure precise spacing and reliable load transfer.
The Benefits:
Precise spacing
Reliable load transfer
High strength and durability
Easy installation
Article No. | Bar Ø [mm] | Ø1/Ø2/ØD1) [mm] | Length [mm] | Hex [mm] | C2) [mm] | Weight [kg/no.] |
|---|---|---|---|---|---|---|
15 F 3034 | 15 | 30/43/62 | 100 | 30 | 50 | 0.64 |
20 F 3034 | 20 | 33/44/62 | 130 | 36 | 65 | 0.86 |
26 E 3034 | 26.5 | 40/54/95 | 150 | 41 | 75 | 1.24 |
1) Ø1 = lower cone diameter;
Ø2 = upper cone diameter;
ØD = cover diameter
2) C = concrete cover, all cones galvanized
For deinstallation, please use hexagon wrench .. F 7044
Safety Instructions
Appropriate use of form ties and accessories is necessary to prevent accidents and failure. All products are intented to be used by qualified and experienced workmen. It is the user's responsibility to continually inspect working hardware for wear and to discard worn parts. Improper use of the DYWIDAG Form Ties can expose workers to extreme danger that may result in severe injury or death.
