Concrete Plug

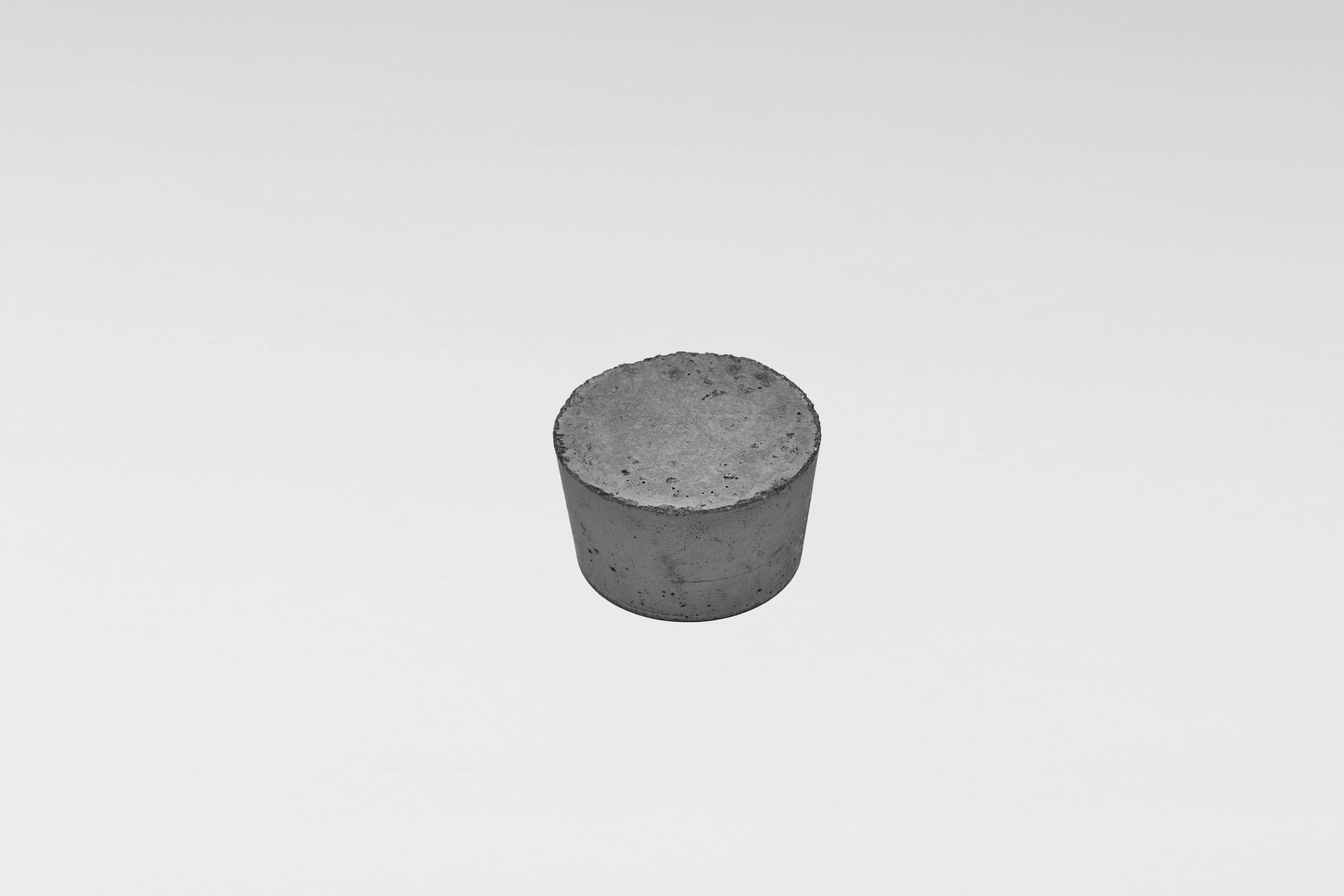

This is a concrete plug used to seal formwork tie holes and protect the concrete surface.

The Benefits:

Seals formwork tie holes
Protects concrete surface
Durable and reusable
Easy to install

Article No.	For Cone [mm]	Ø1/Ø2¹⁾[mm]	Height [mm]	Weight [kg/no.]
15 F 3037/S	15 F 3037	52/58	30	0.15
20 F 3037/S	20 F 3037	59/69	40	0.27

1) Ø1 = lower cone diameter;

Ø2 = upper cone diameter

For relocking the cone holes of the Steel-Plastic Cone

Safety Instructions

Appropriate use of form ties and accessories is necessary to prevent accidents and failure. All products are intented to be used by qualified and experienced workmen. It is the user's responsibility to continually inspect working hardware for wear and to discard worn parts. Improper use of the DYWIDAG Form Ties can expose workers to extreme danger that may result in severe injury or death.
