Voltex

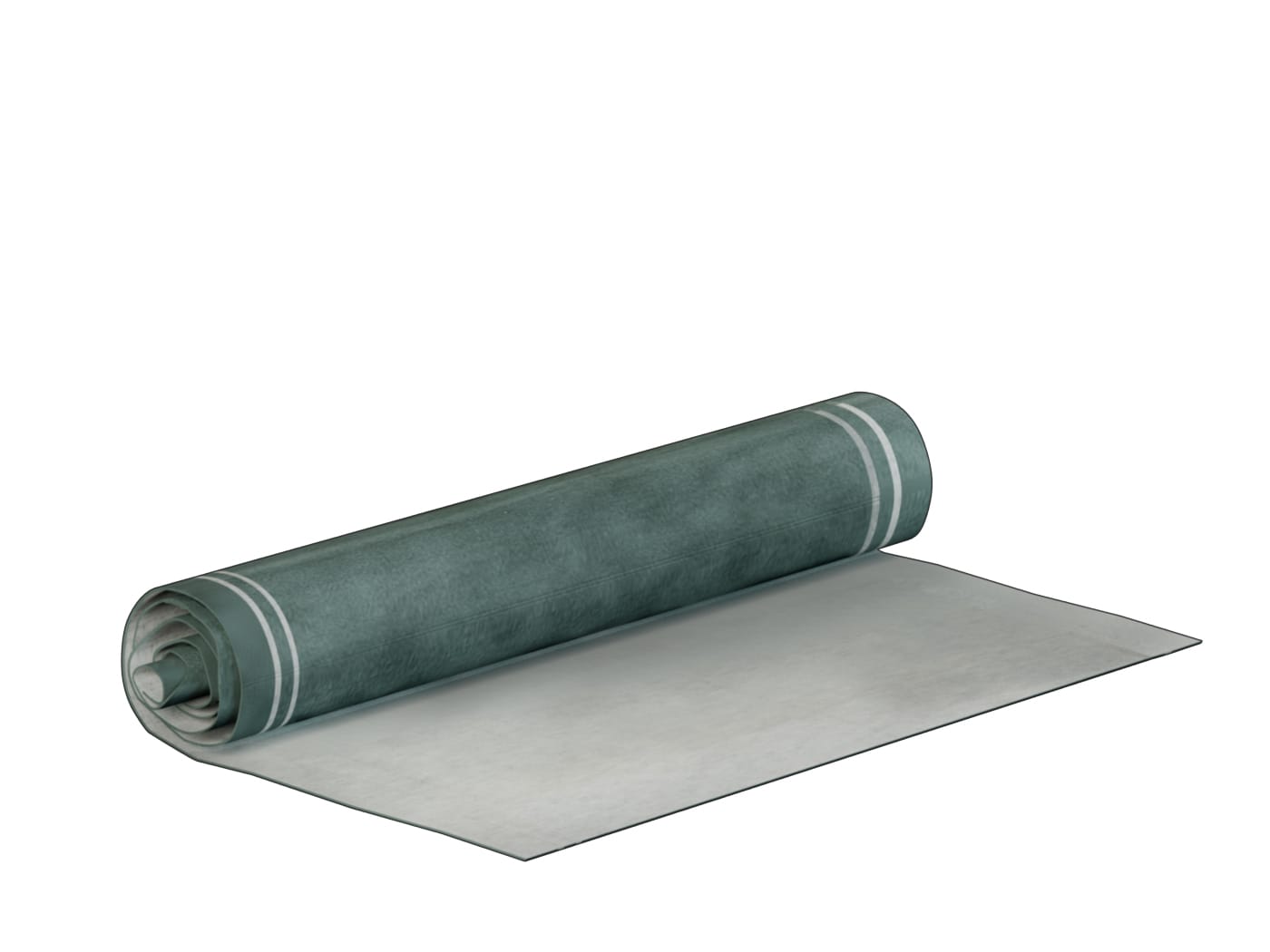

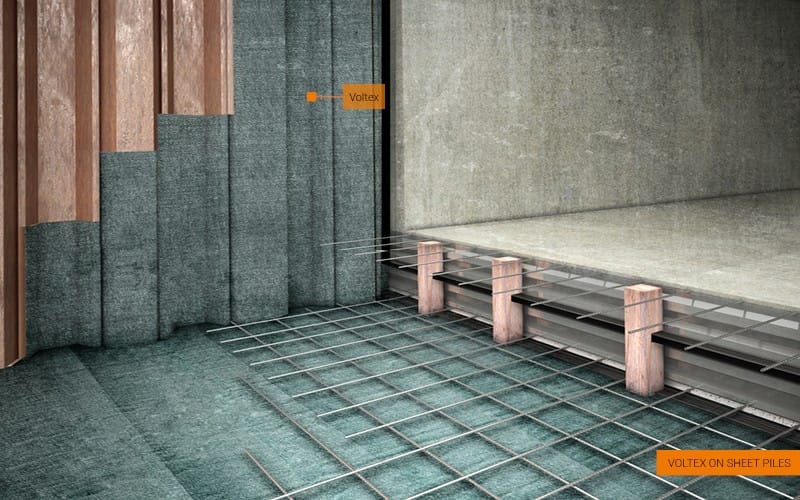

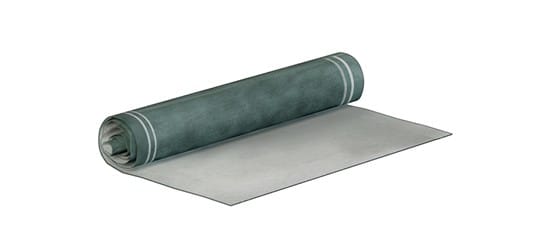

Voltex - bentonite-mat for hydro-insulation. Bentonite pallets are placed between geotextile and polypropylene geotextile.
In contact with water bentonite is activated of bentonite putty used to flatten the surface.

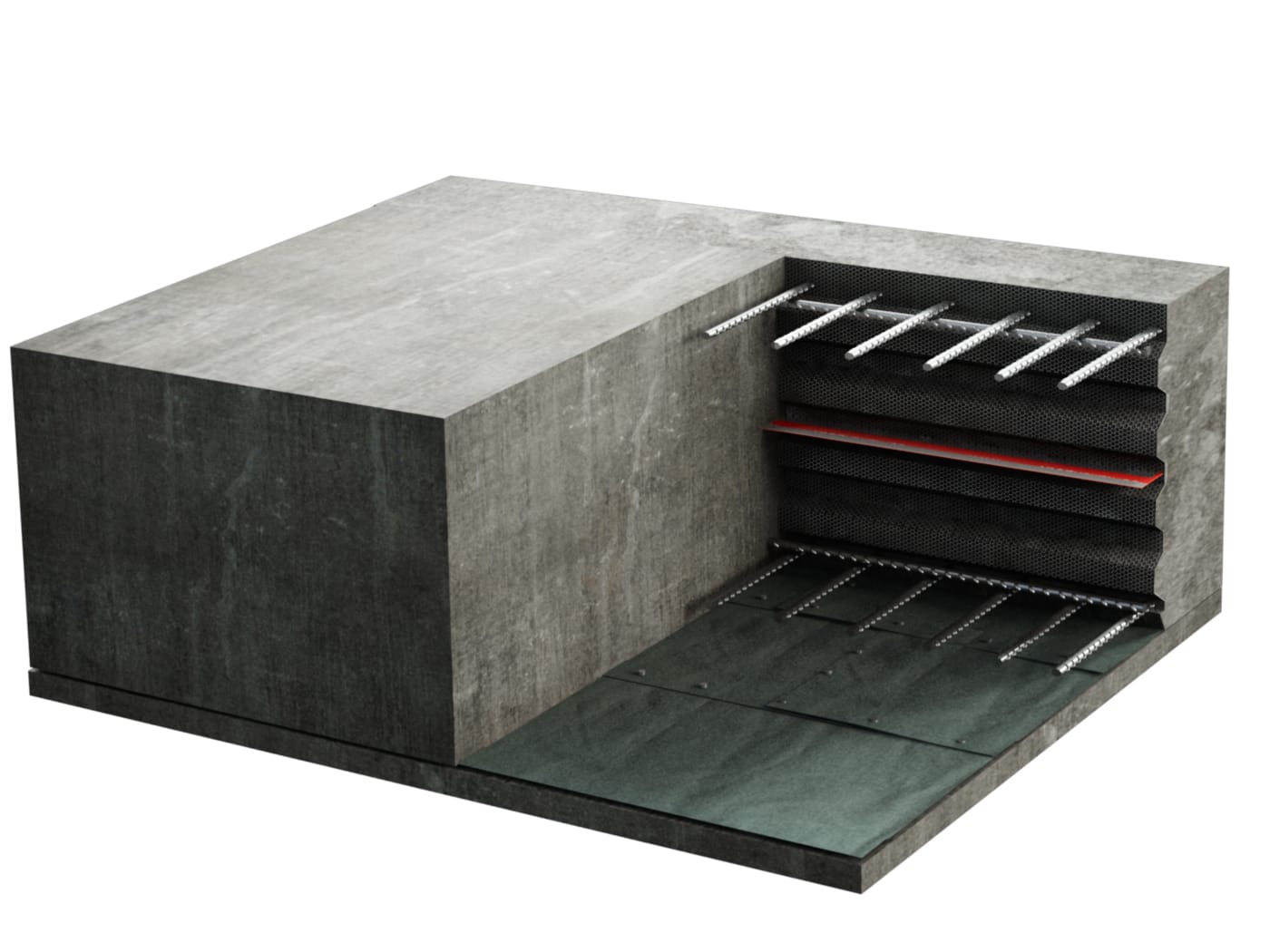

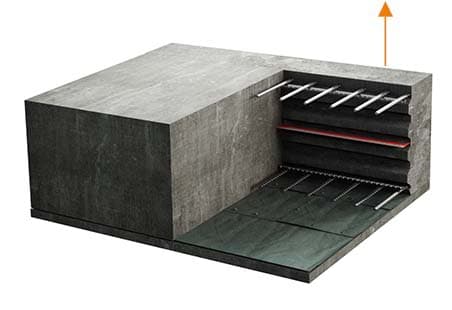

Application - hydro-insulation:
underground parts of the building
foundation slabs
underground tunnels
landfills
Accessories
Voltex
TYPE | MASS [g/m2] | WIDTH [mm] | LENGTH [m] | QUANTITY [../pack] |
|---|---|---|---|---|
Voltex | 5100 | 1150 | 5.0 | 5.75 m2 |
Voltex DS | 5300 | 2500 | 10.0 | 25 m2 |

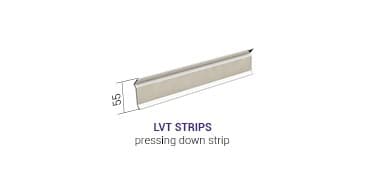

LVT Strip | - | 55 | 2.35 | 10 szt |
LVT Strip | - | 55 | 2.35 | 10 szt |

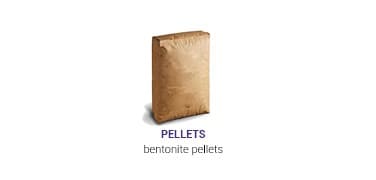

Granulate | - | - | - | 25 kg |
CHARACTERISTICS
Swelling material | bentonite |
Permeability | ≤ 1.0 x 10-11 m/s (Voltex); lack of leakage (Voltex DS) |
Tensile strength | 8.0 kN/m (Voltex); 10.0 kN/m (Voltex DS) |
Resistance to penetration | ≥ 1.5 kN (Voltex); ≥ 1.8 kN (Voltex DS) |
Swelling rate | > 150 % |

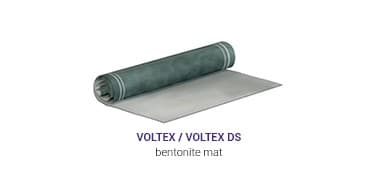

Similar products
General recommendations:
During the installation observe the compulsory security standards - wear protective gloves.
STEP 1

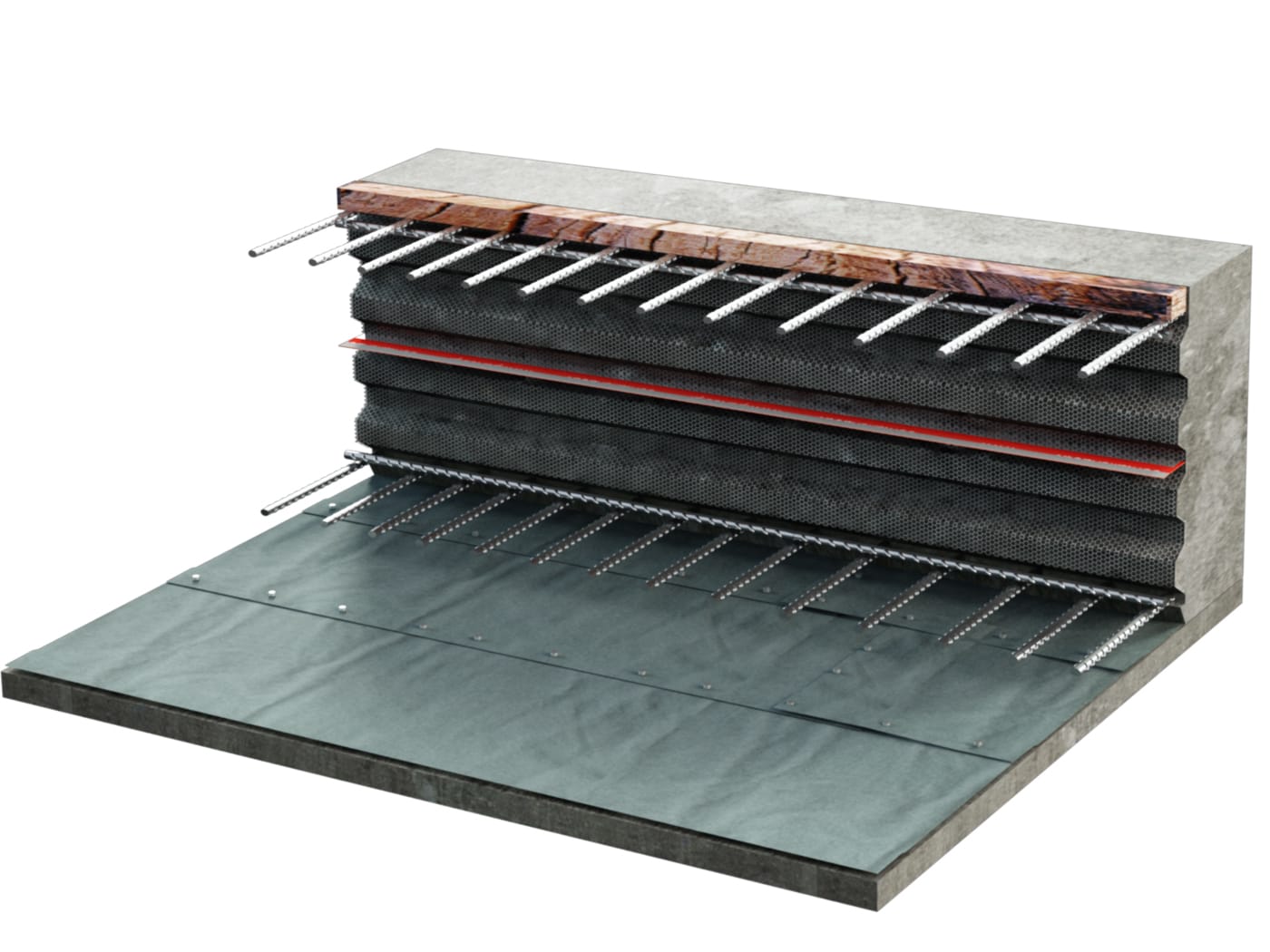

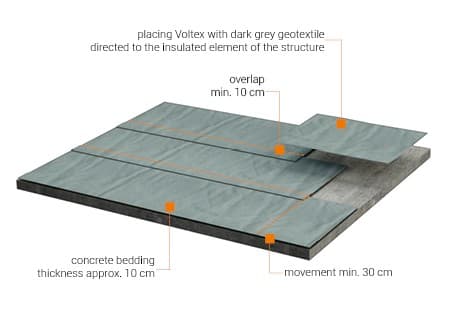

Placing adjecent bands of Voltex with overlap min. 10 cm Move the overlaps of band ends by at least 30 cm.
STEP 2

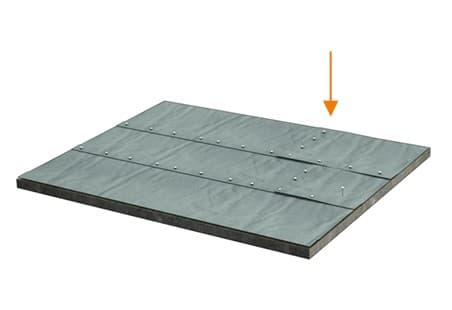

Protection of mat against displacement - using nails with washers or sewing up edges.
STEP 3

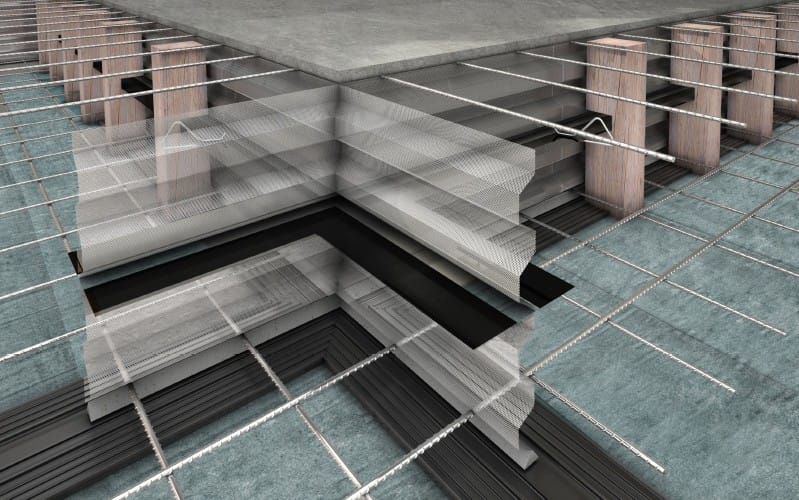

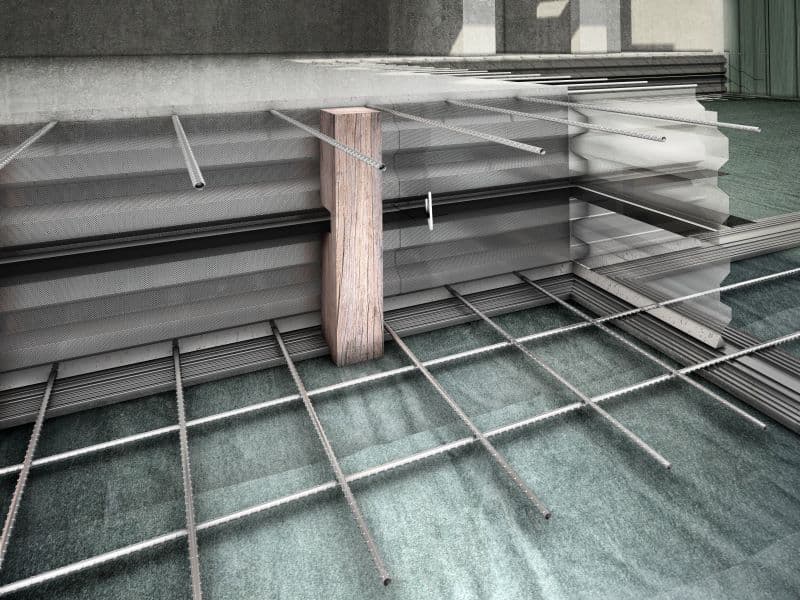

Place Voltex mat at least 30 cm beyond the edge of construction joint.
STEP 4

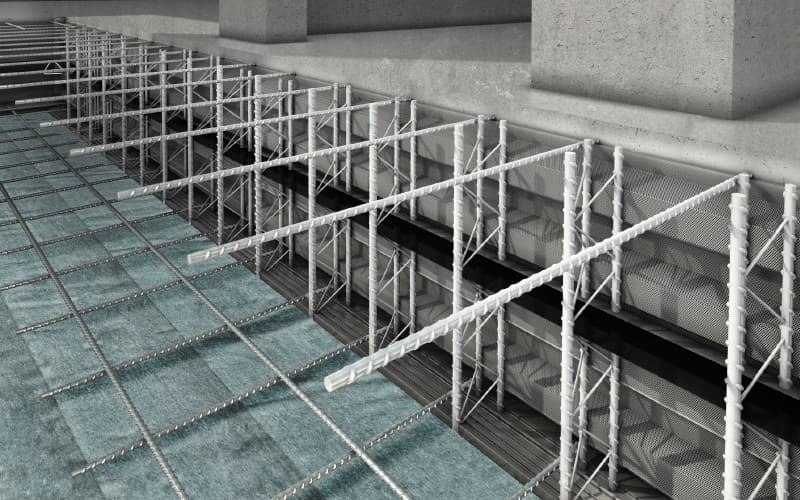

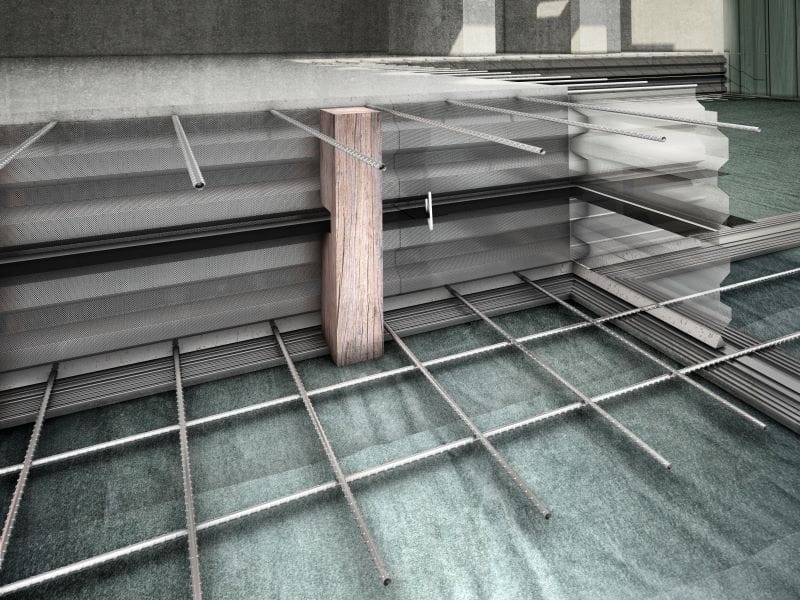

Place Voltex mat at least 30 cm beyond the edge of construction joint.
