Swelltite 3000

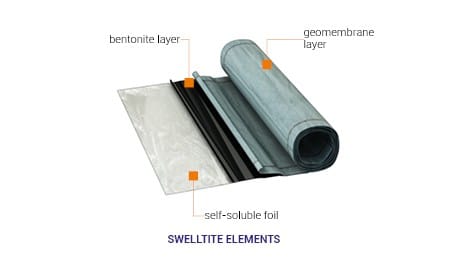

Swelltite - composite hydro-insulating membrane consists of a bentonite layer composited between layer of geomembrane and transparent layer of self-soluble foil.
Application:
insulation of underground structure elements
hydro-insulations of foundations of masonry walls
insulation of tunnels performed in an open trench
Installation:

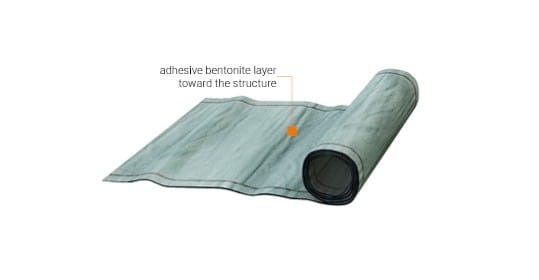

Membrane glue on Masprim SKW. Membrane installation from bentonite side toward the structure.
Swelltite
RESTRICTIONS ON SWELLTITE:
do not install in still water or during rain
cannot constitute hydro-insulation of structure above the ground, which will be affected by direct action of atmospheric factors
does not constitute a seal of expansion joint
do not install on horizontal flat roofs on which concrete plates will be installed on spacers
TYPE | TYPE OF MATERIAL | DIMENSIONS | QUANTITY [packs] |
|---|---|---|---|
Swelltite | bentonite | 1.0 m x 10.0 m | 1 roll |
Masprim SKW | asphalt - rubber mass | 20 kg | 1 bucket |
CHARACTERISTICS
Weight | ~ 3080 g/m2 |
Thickness | 2 mm |
Tensile strength in both directions | ≥ 9 kN/m |
Relative elongation at max. load in both directions | 160 ± 10 % |
Resistance to static penetration (CBR method) | ≥ 1.6 kN |
Displacement during penetration | 78 ± 10 % |
Resistance to dynamic penetration, hole diameter | ≤ 9 mm |
Edometric swelling ratio | ≥ 150 % |
Swelling time | 10 ÷ 25 doby |
Swelling pressure | ≥ 200 kPa |
Similar products
General recommendations:
During the installation observe the compulsory security standards - wear protective gloves and work clothes with long sleeves.
Product should be stored in rooms protected from moisture and precipitation.
Product must be fitted with the bentonite layer from the side of the structure.
STEP 1

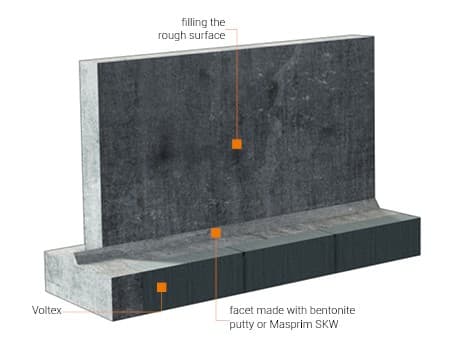

Preparation for the insulation of concrete foundation wall.
STEP 2

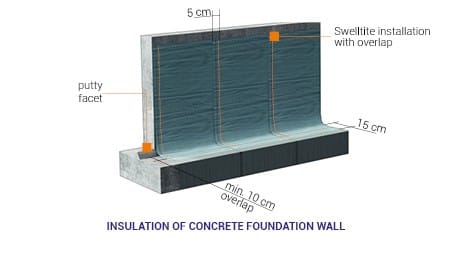

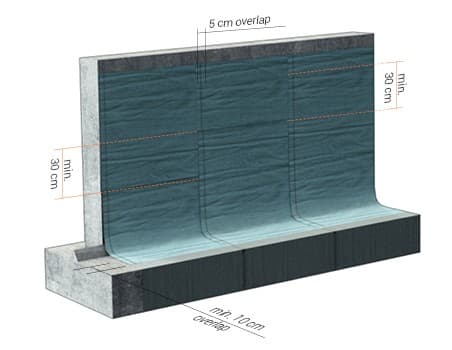

Placing of Swelltite with 5 cm of overlap.
STEP 3

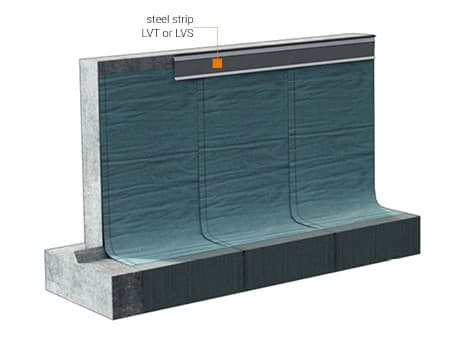

Installation of steel strip: LVT or LVS. Setting
STEP 4

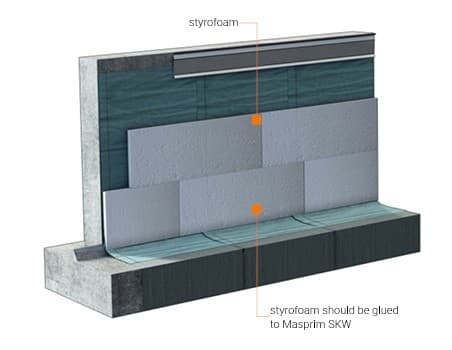

Setting styrofoam.
