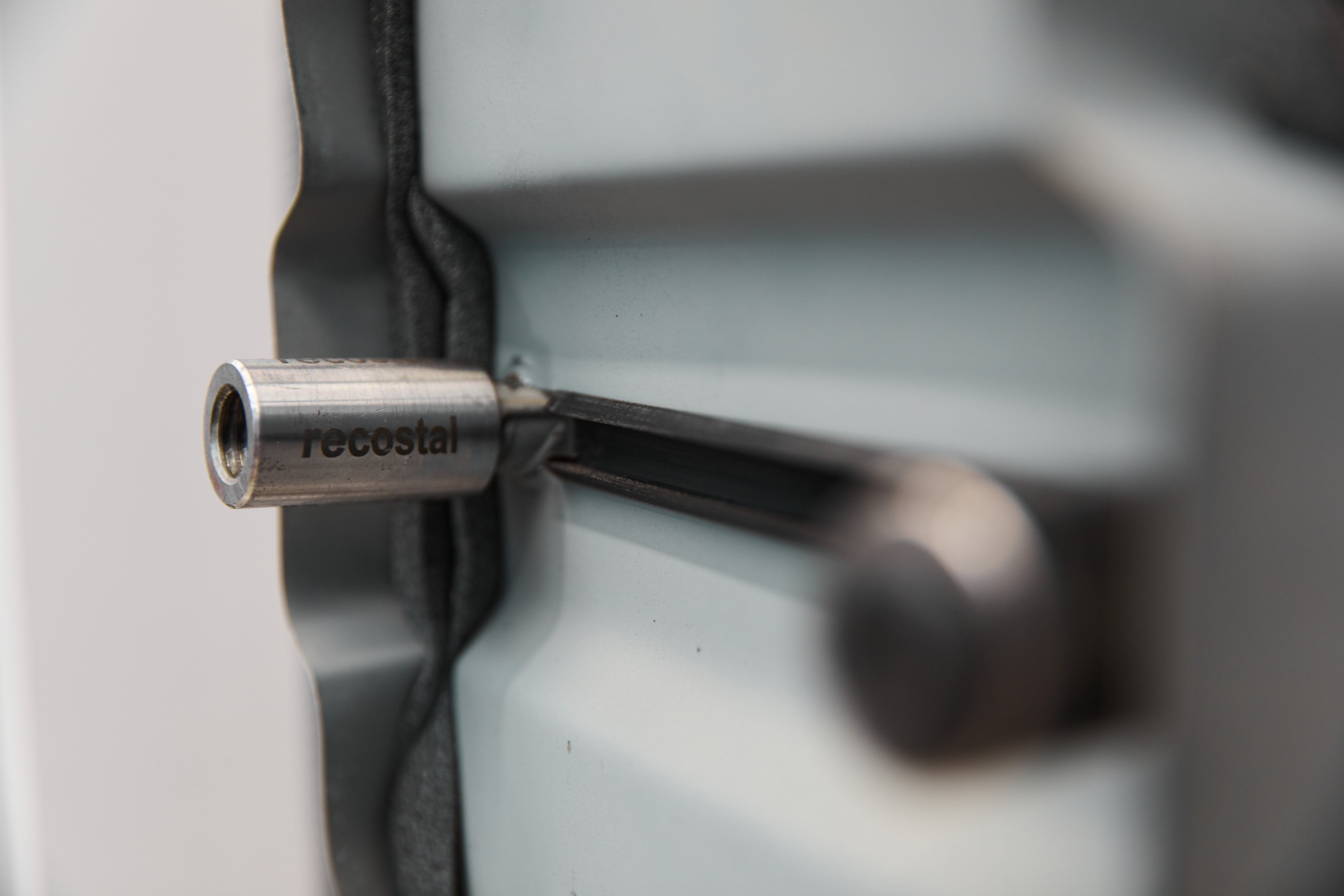

RECOSTAL® Couplerbox RSV-C
With the new RECOSTAL® Coupler rebar connection, DYWIDAG Concrete Technologies is expanding its product portfolio in the field of RECOSTAL® reinforcement technology. The RECOSTAL® Couplerbox offers an optimal and secure connection in reinforced concrete construction where reinforcement steel needs to be spliced. The RECOSTAL® Couplerbox provides maximum design flexibility for engineers and contractors.
The RECOSTAL® Couplerbox Smooth is available with hole spacing heights of 150 mm or 200 mm (other dimensions available on request). For this purpose, the product can be custom-ordered to specification directly from our manufacturing facilities.
The RECOSTAL® Couplerbox can be used in combination with many products from the DYWIDAG Concrete Technologies portfolio. RECOSTAL® Coupler connections can save time and costs, ensure a secure connection, and help conserve resources by reducing the amount of reinforcement steel needed.
The benefits:
High fatigue strengths for use in bridges, among other applications
100% power transmission
General technical approval: DIBt, CARES
Extensive combination possibilities with RECOSTAL® formwork systems
Efficient and economical
Less planning effort
Conservation of resources
Design flexibility

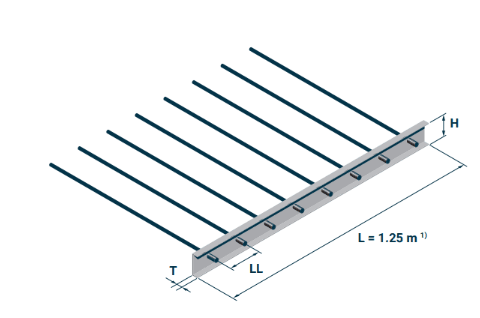

Technical Data RECOSTAL® Couplerbox smooth
Box- usable height 1) H [mm] | Box- usable depth T [mm] | Hole Spacing 1) LL [mm] | Bar Forms | Connection variant bar freely rotatable * | Connection variant bar not freely rotatable * |
|---|---|---|---|---|---|
50 | 30 | 150 | SG / SW / SB / SK | M / MM / F / FM / FF | FX / FXM / FXF / FFX |
80 | 40 | 200 | SG / SW / SB / SK | M / MM / F / FM / FF | FX / FXM / FXF / FFX |
