Fordeck 1000

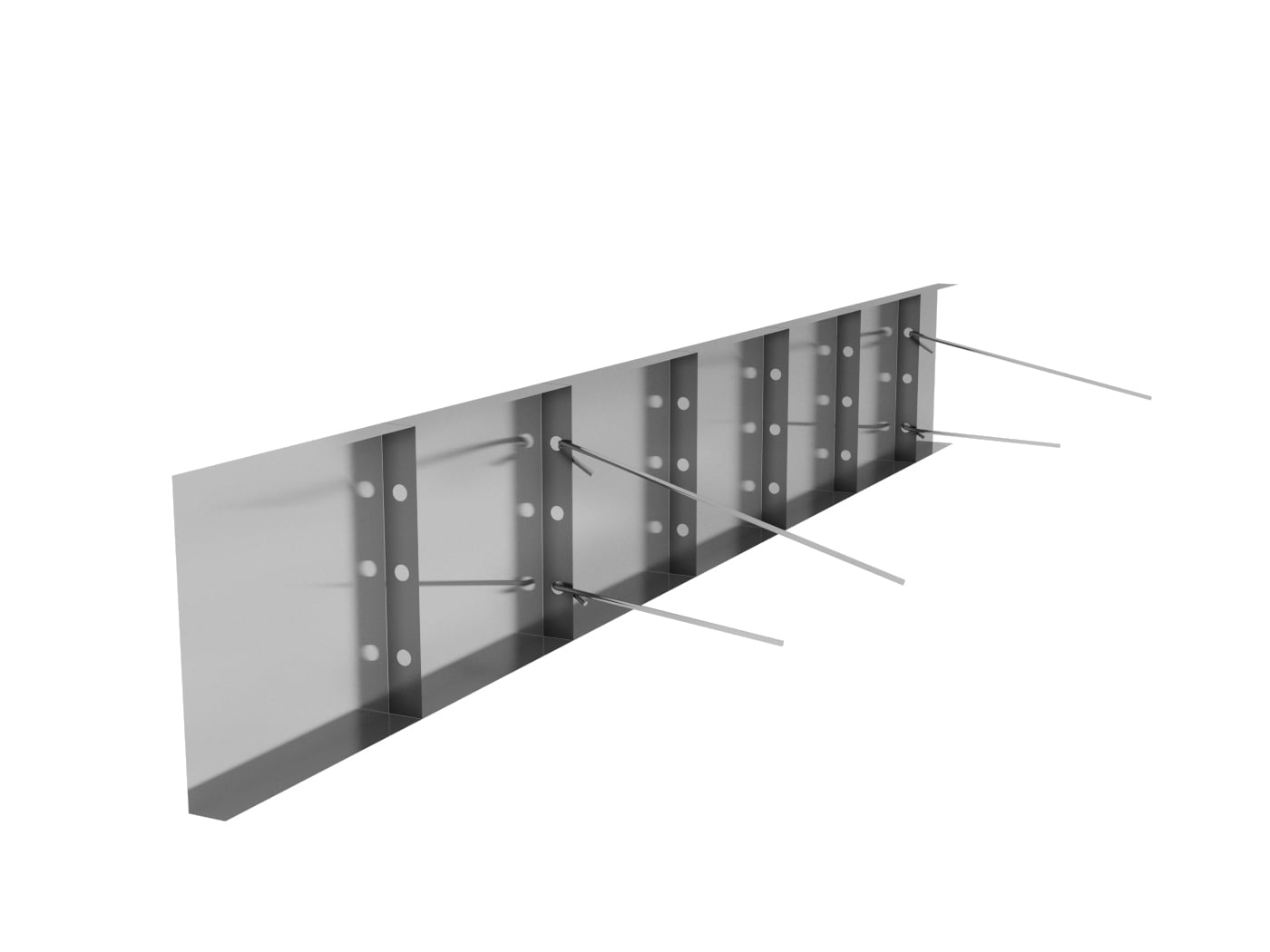

Fordeck 1000 render
This is a permanent self‑supporting formwork panel used for shoring concrete decks and walls.
The Benefits:
Self-supporting
Flat metal sheet with welded ribs
Fast installation
Installation without a crane
Low transport costs

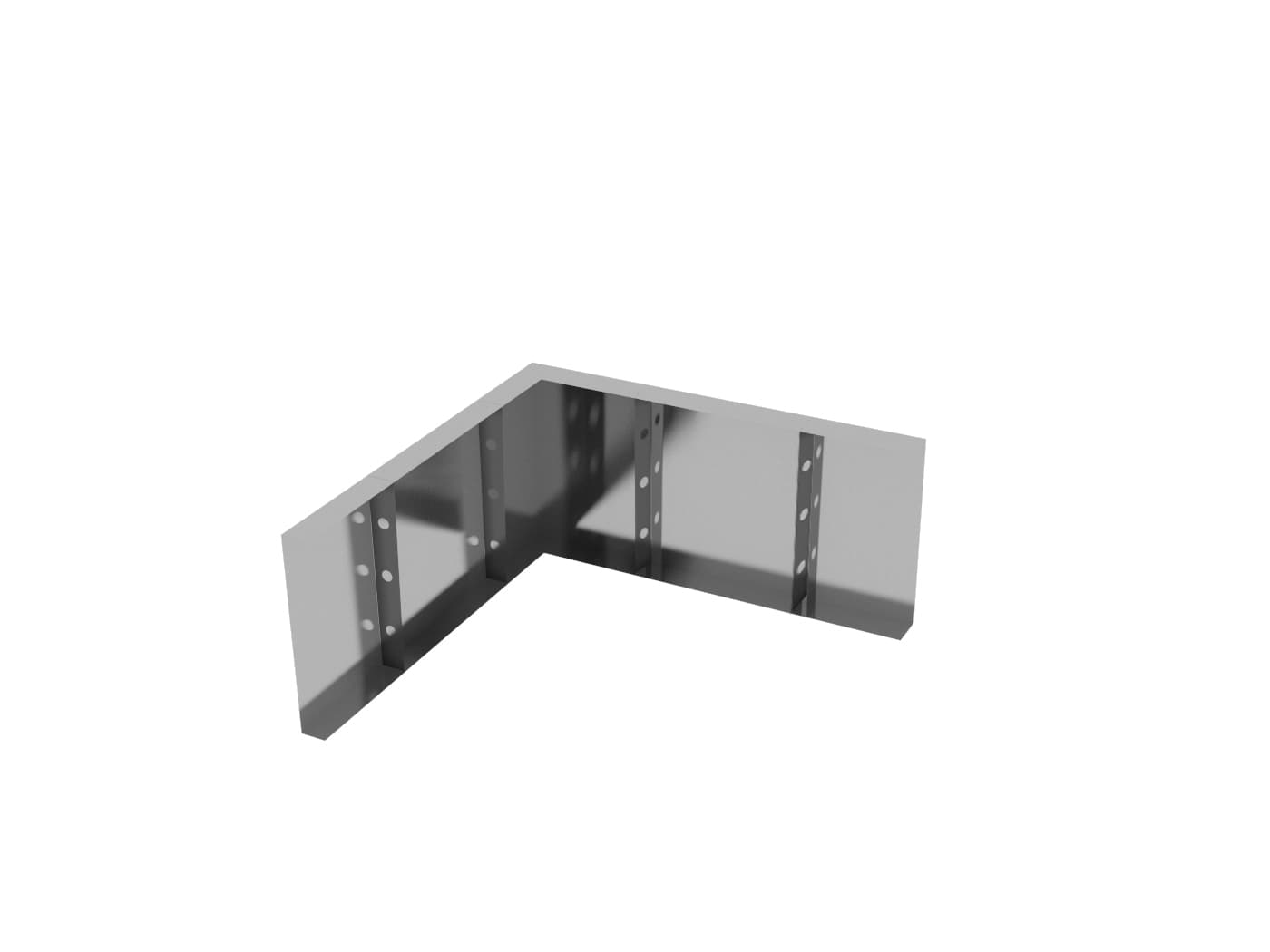

Corner units can be easily made on site
Height manufactured by order

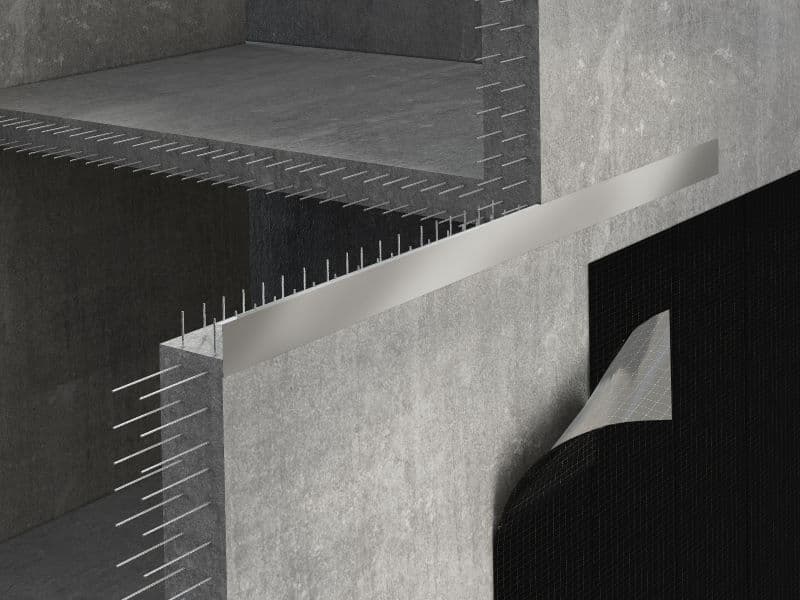

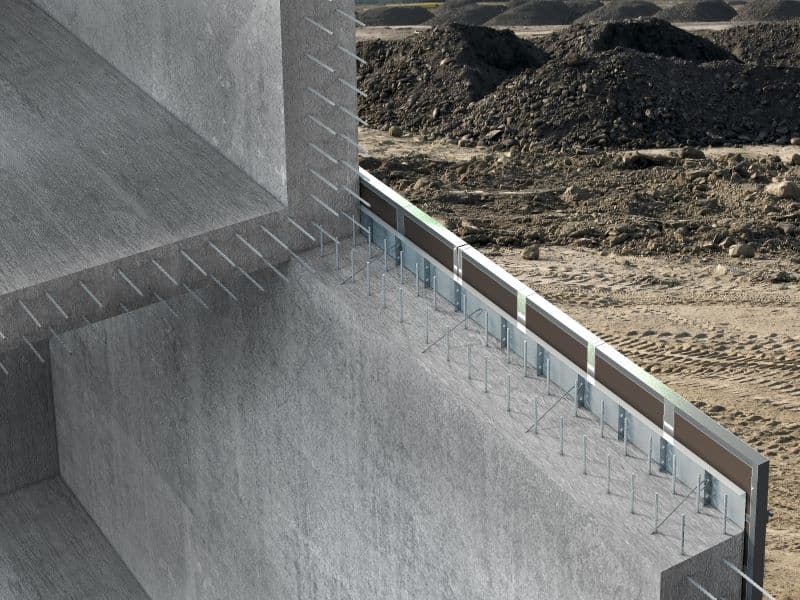

FORDECK 1000 is used for shoring ceilings in reinforcement structures. Allows shoring of ceiling and RC walls at the same step.
Possible modification with 45° bend bottom part – FORDECK 1000 special.
General recommendations:
During the installation observe the compulsory security standards - wear protective gloves.
Minimum of anchorage in the wall = 50 mm
Step 1

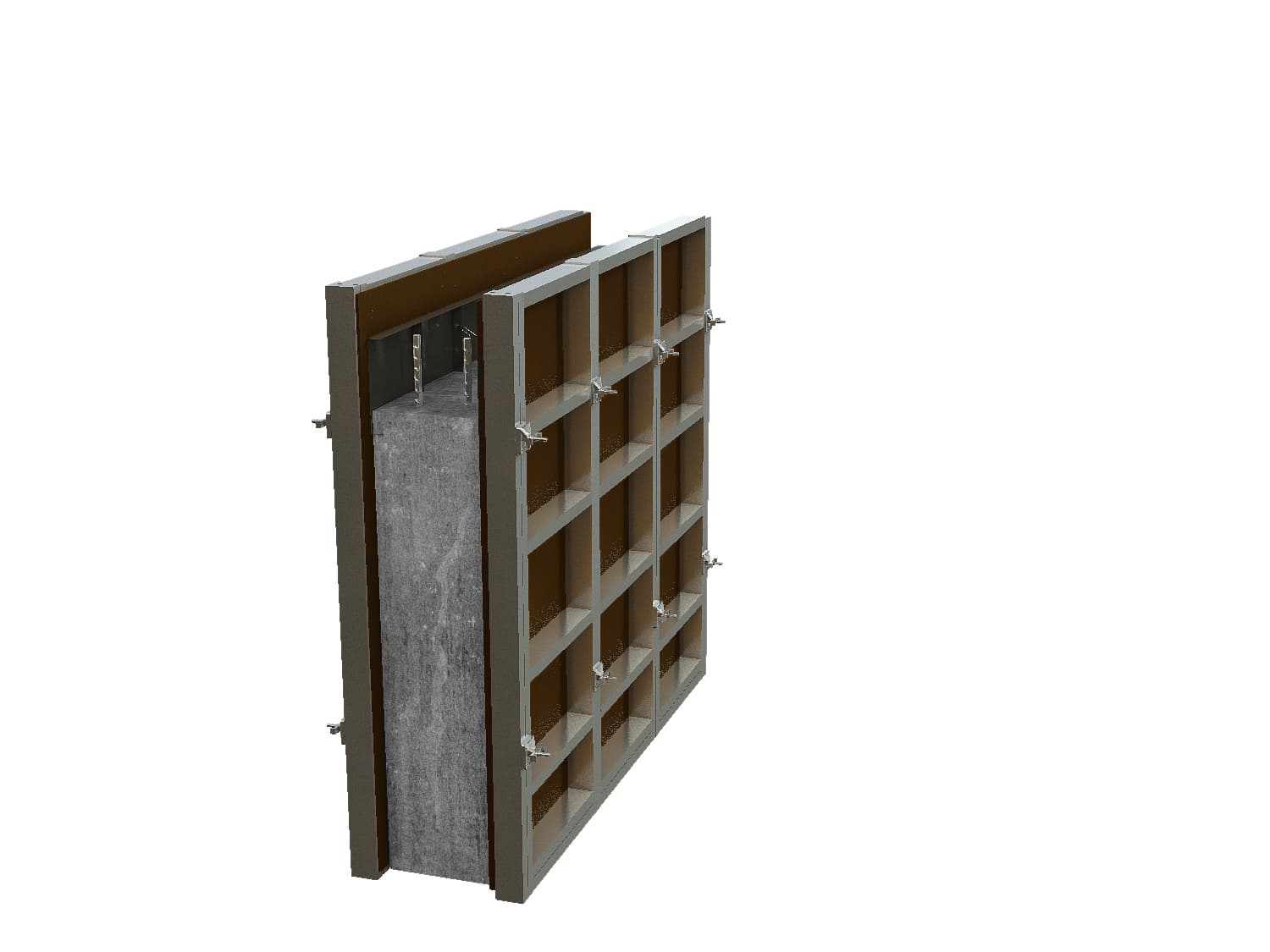

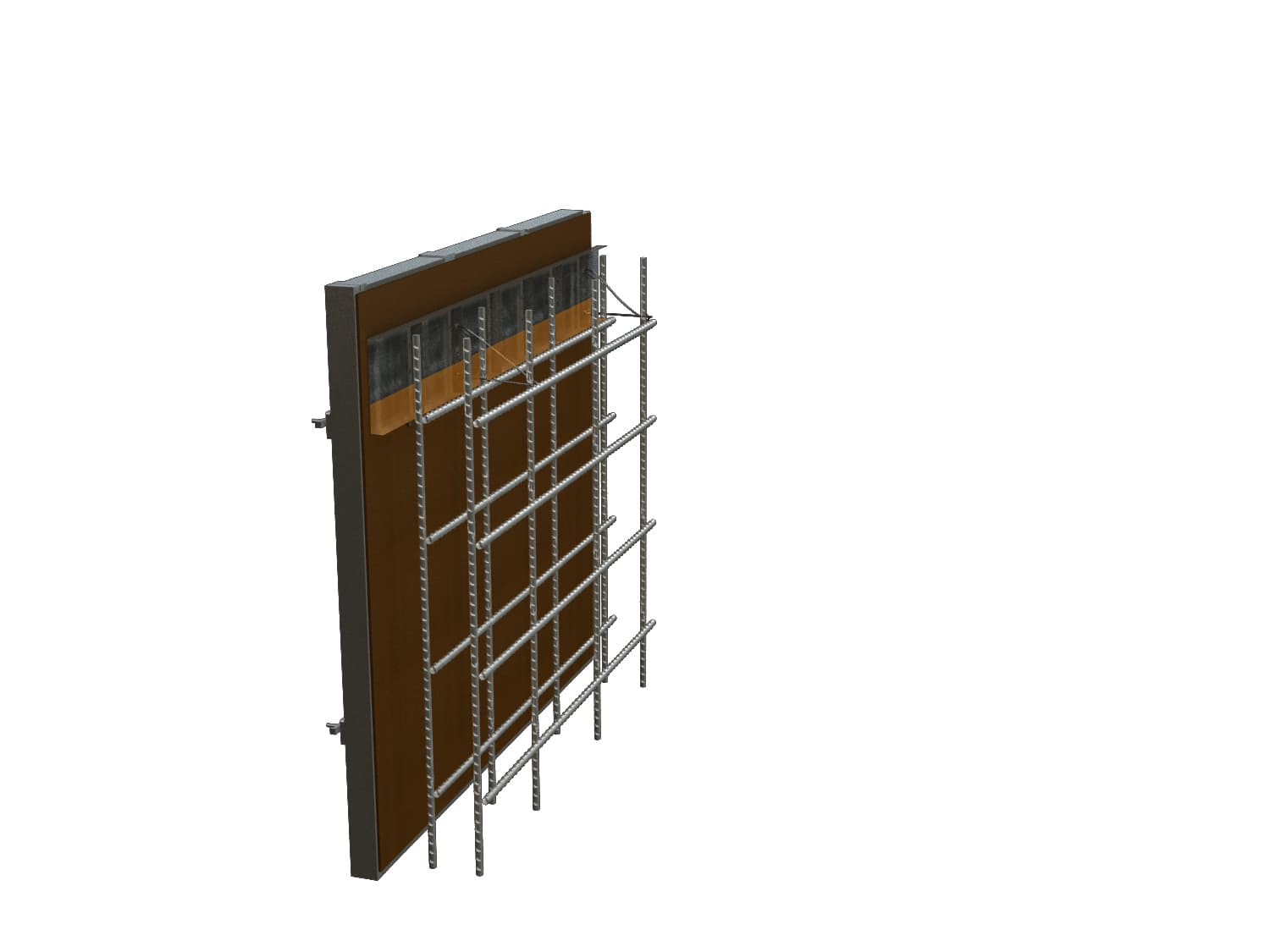

Installation of Fordeck 1000 to formwork.
Step 2
Concreting of walls.
Step 3

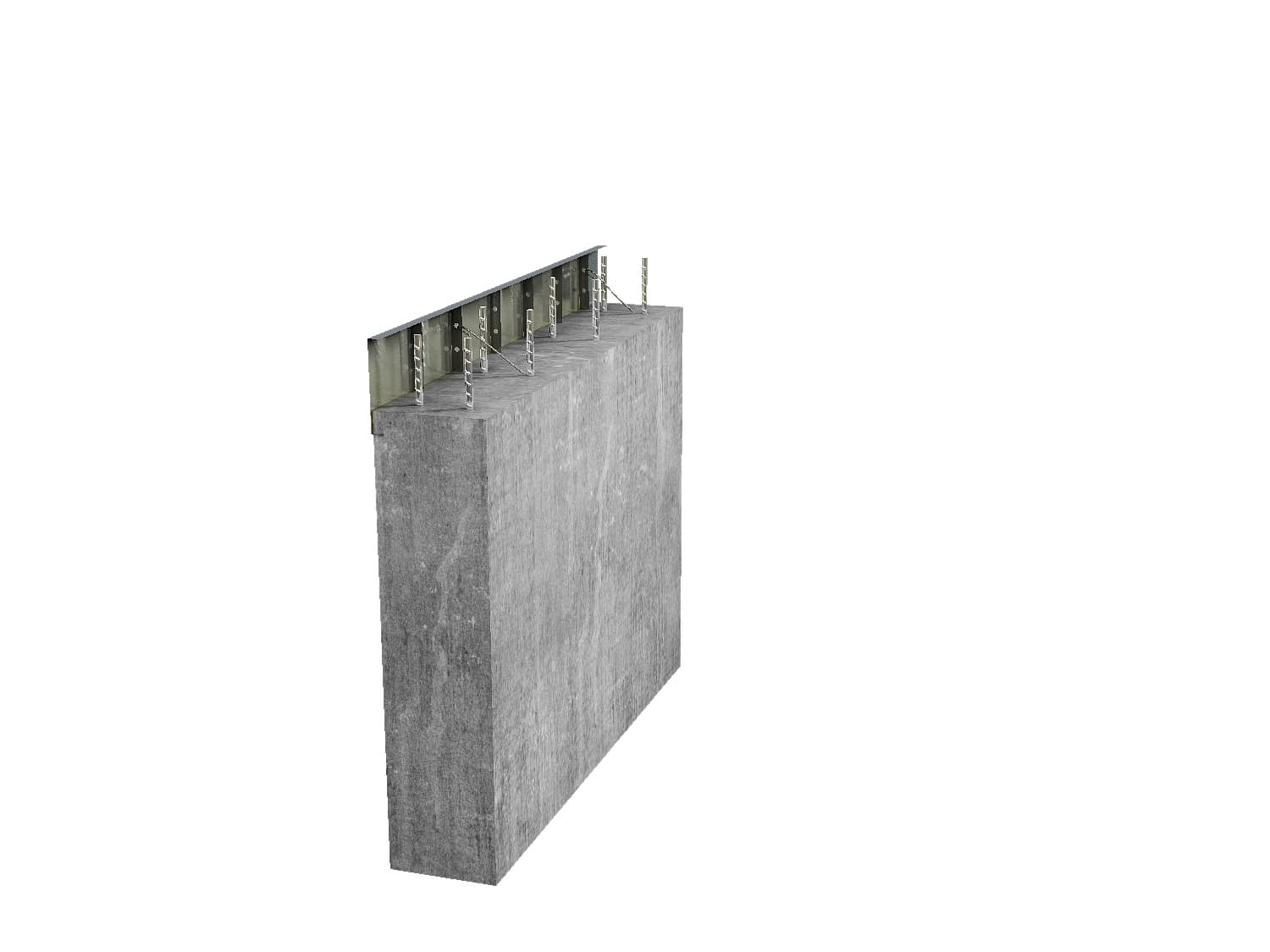

Removal of formworks from walls.
Step 4

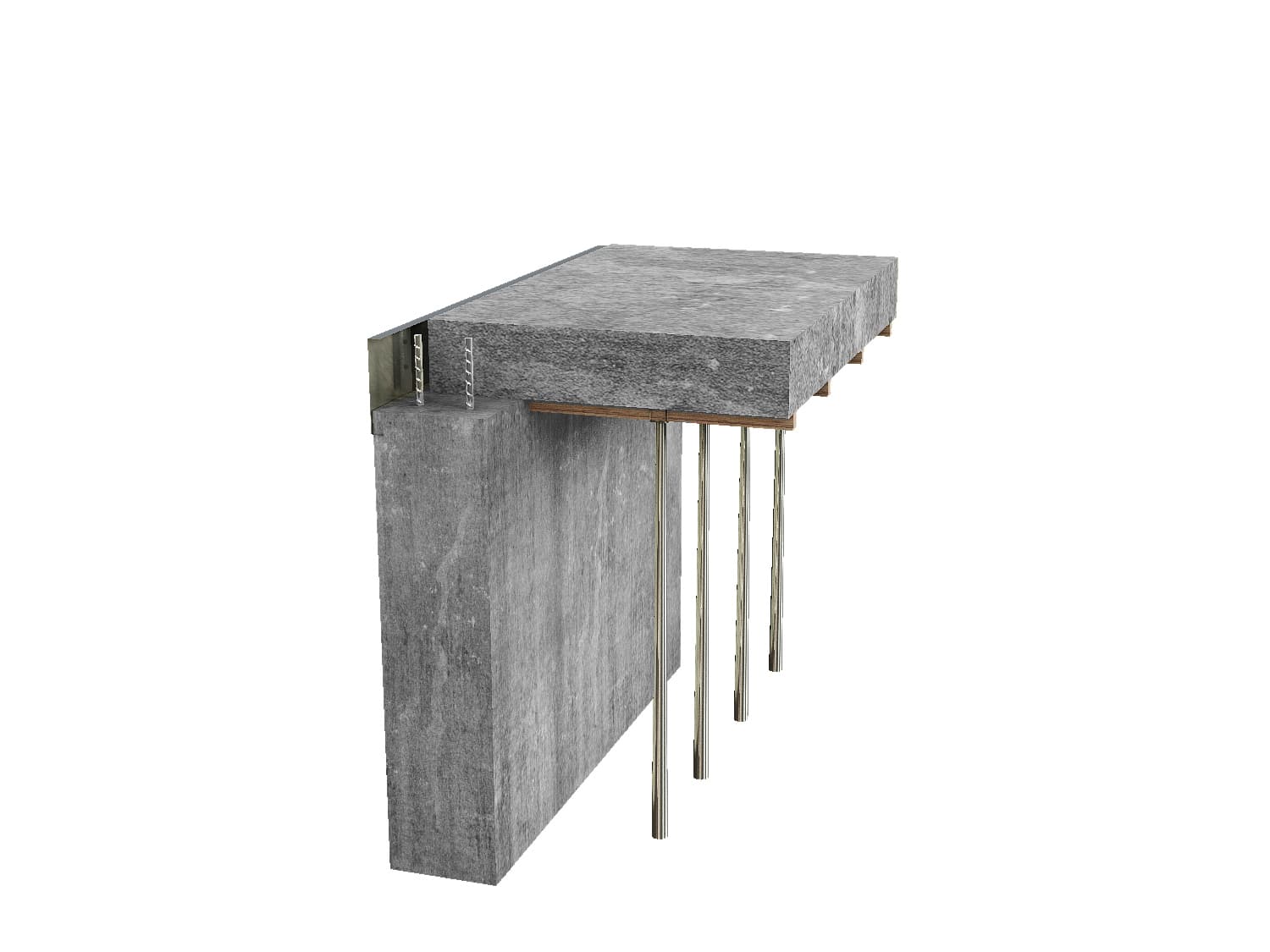

Shoring and concreting of ceiling.
