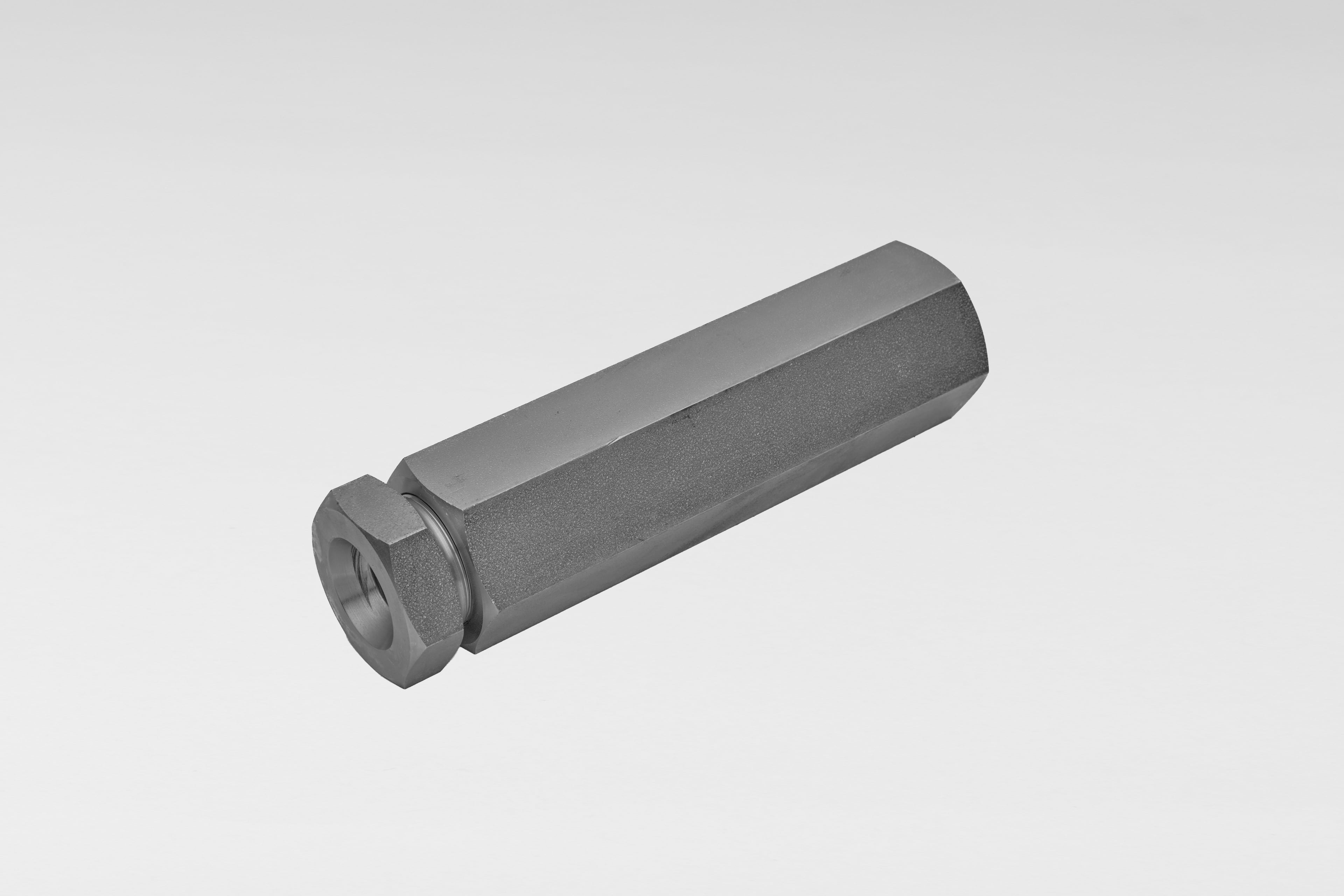

Turnbuckle Splice
Article No. | Bar Ø [mm] | Length [mm] | Hex [mm] | Weight [kg/no.] |
|---|---|---|---|---|
15 F 3013/14 | 15 | 185 | 41 | 1.40 |
20 F 3013/14 | 20 | 190 | 46 | 1.90 |
26 E 3013/14 | 26.5 | 250 | 60 | 3.80 |
For screwing and tensioning with two fixed bar ends
15 F 3013/14: Tensile force of 40 kN if a torque of 0.5 kNm is applied
20 F 3013/14: Tensile force of 70 kN if a torque of 0.75 kNm is applied
26 E 3013/14: Tensile force of 100 kN if a torque of 1.0 kNm is applied
Safety Instructions
Appropriate use of form ties and accessories is necessary to prevent accidents and failure. All products are intented to be used by qualified and experienced workmen. It is the user's responsibility to continually inspect working hardware for wear and to discard worn parts. Improper use of the DYWIDAG Form Ties can expose workers to extreme danger that may result in severe injury or death.
