PE Sleeve
PE sleeve

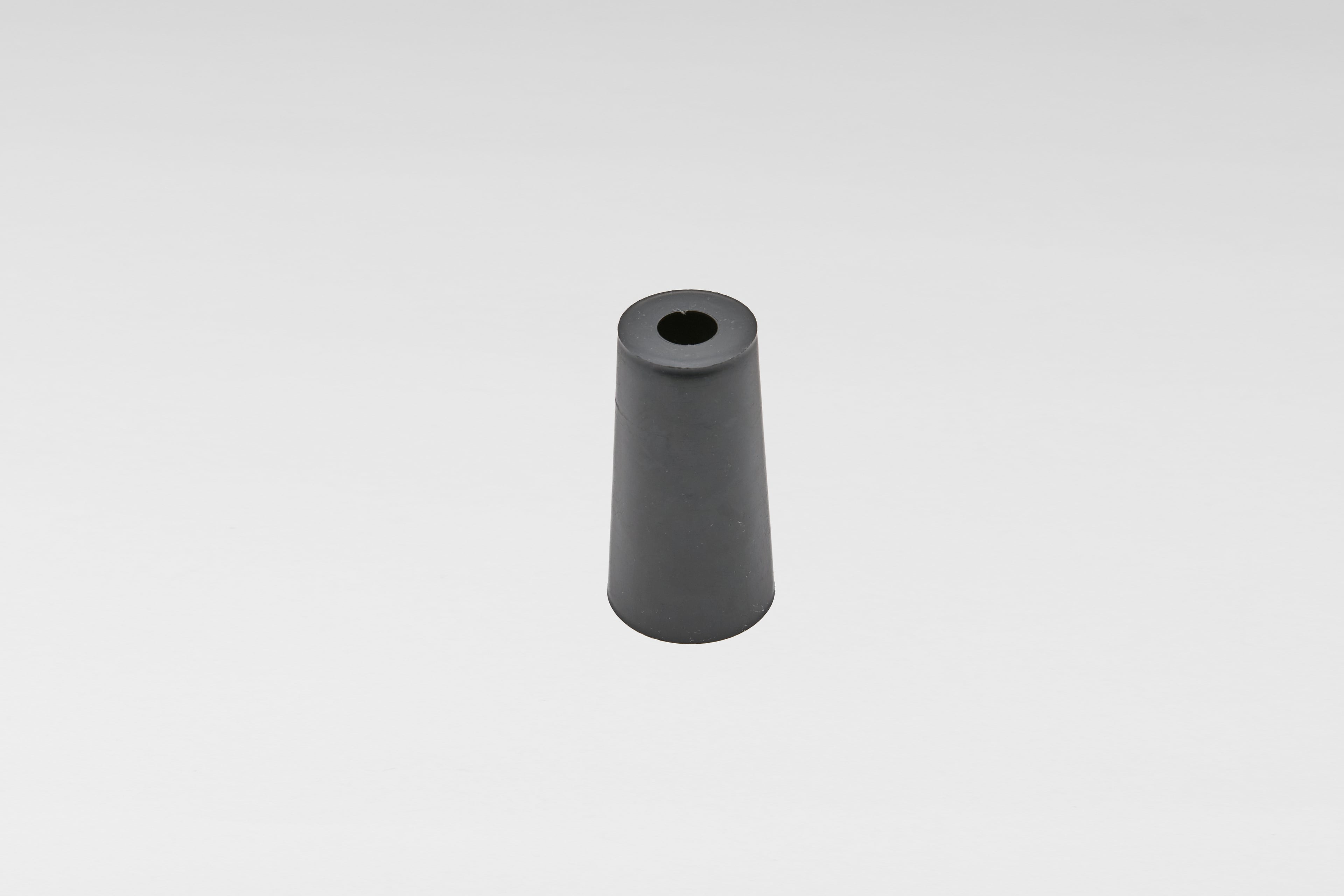

This is a PE sleeve used to protect threaded bars and ensure clean concrete surfaces during formwork removal.
The Benefits:
Protects concrete surfaces
Enables clean formwork removal
Durable PE material
Easy to install
Article No. | For Cone [mm] | Length [mm] | Ø1/Ø21) [mm] | Weight [kg/no.] |
|---|---|---|---|---|
15 F 3073/K | 15 F 3073 | 97 | 31/43 | 0.01 |
20 F 3073/K | 20 F 3073 | 130 | 33/46 | 0.01 |
1) Ø1 = lower cone diameter;
Ø2 = upper cone diameter
To ensure easy unscrewing of Positioning Cones, the PE Sleeve is put on the cone before assembly
Safety Instructions
Appropriate use of form ties and accessories is necessary to prevent accidents and failure. All products are intented to be used by qualified and experienced workmen. It is the user's responsibility to continually inspect working hardware for wear and to discard worn parts. Improper use of the DYWIDAG Form Ties can expose workers to extreme danger that may result in severe injury or death.
