Swelltite 3000
External waterproofing of precast walls

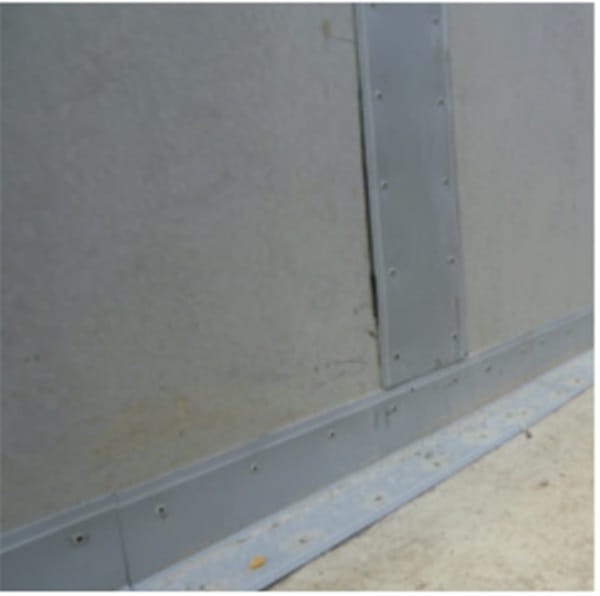

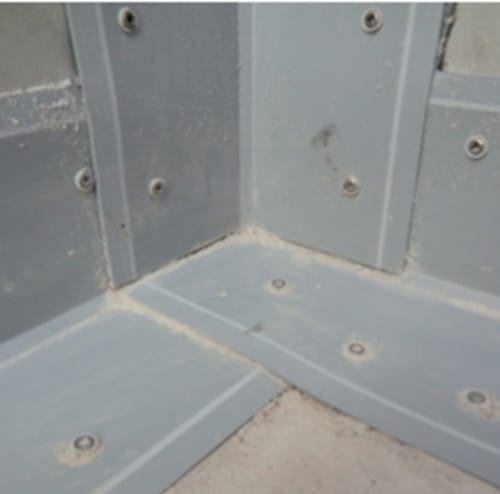

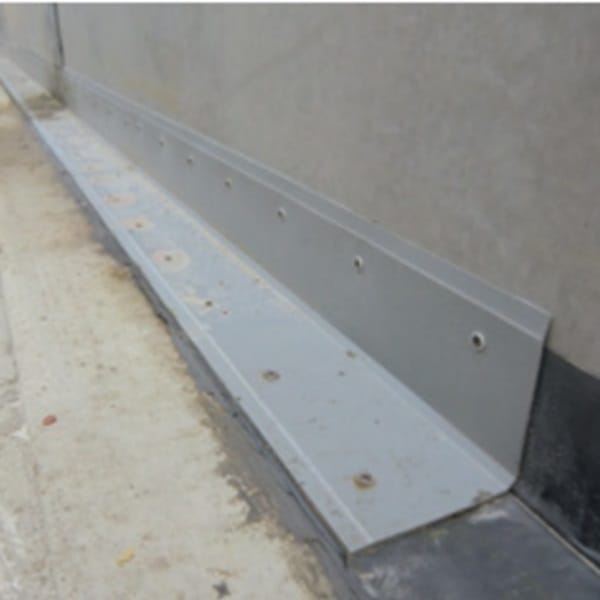

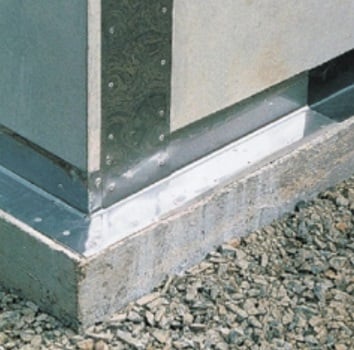

Swelltite 3000 is a system for sealing horizontal and vertical construction and butt joints in waterproof concrete structures against hydrostatic pressure, as encountered in precast and double-wall constructions. Swelltite 3000 is attached to the outer side of double walls, where it develops its sealing effect. The bentonite, used as sealing material, here provides the system with a permanently active swelling joint seal. The system moves the sealing level to the exterior of the wall. All joint areas are covered over a width of 24 cm with highly swelling, bentonite strips which effectively prevent water from penetrating.
The Benefits:
Sealing level exterior to the wall (no water penetration into construction)
Activ bentonite sealing system
Easy and fast installation
Water pressure resistance up to 2 bar
Tested for joint expansion of up to 0.5 mm
General building authority test certificate (abP)

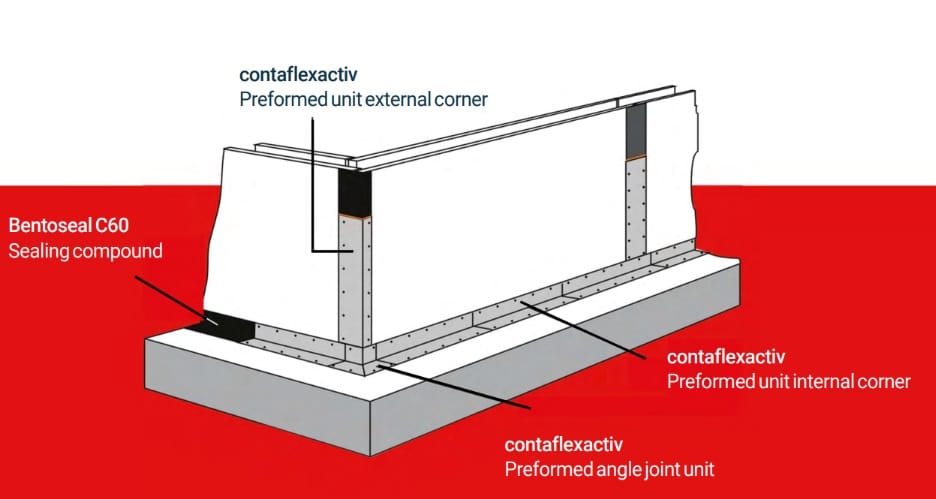

System with bentonite strips and cover plates - List of Articles
TYPE | ARTICLE | ARTICLENR. | PACKAGING |
|---|---|---|---|
Bentonite composite Swelltite 300 | Strip width b= 24 cm | 22432000 | 1 roll = 10 m 1 pallet = 56 roll |
Bentoseal C 60 | sealing compound for levelling surfaces | 22420000 | 1 cont.= 18 kg 1 pallet = 48 container |
Fixing Plugs ø 6 mm | L= 35 mm stainless steel | 21193150 | 1 box = 100 pcs. |
Cover plate flat | 0.7 x 250 x 1000 mm, V2a 3.0 x 250 x 1000 mm, PVC | on request 22413100 | 1 piece 1 piece |
Preformed unit internal wall to base slab joint & internal wall to wall | 0.7 x 125 x 125 x 1000 mm, V2a 3.0 x 125 x 125 x 1000 mm, PVC | on request 22413200 | 1 piece 1 piece |
Preformed unit external wall to wall | 0.7 x 70 x 180 x 1000 mm, V2a 3.0 x 70 x 180 x 1000 mm, PVC | on request 22413600 | 1 piece 1 piece |
Preformed unit internal cover | V2a PVC | on request 22413300 | 1 piece 1 piece |
Preformed unit external corner | V2a PVC | on request 22413400 | 1 piece 1 piece |
