PVC Tapes

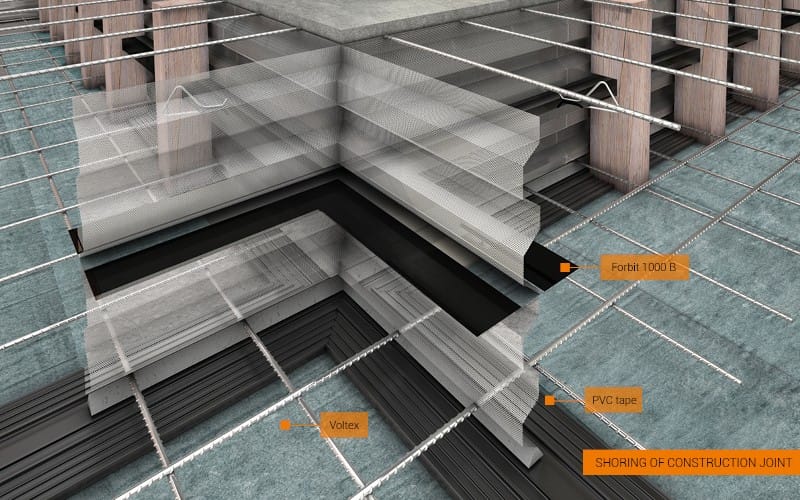

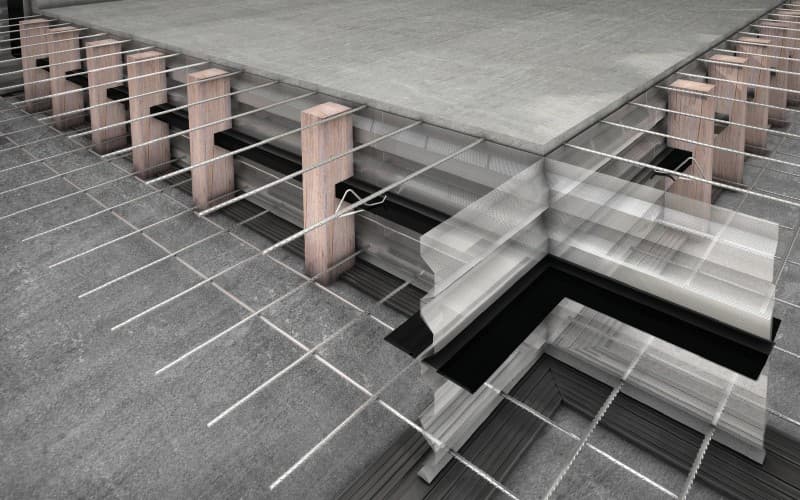

Our PVC tapes are designed to provide secure and durable sealing for horizontal and vertical construction joints, as well as expansion joints in concrete and reinforced structures. Available in two types – A Type for construction joints and D Type with duct for expansion joints – these tapes ensure long-lasting protection and easy installation for demanding building applications.

The Benefits:

  • Reliable sealing for horizontal and vertical construction joints

  • Effective protection for expansion joints in concrete and reinforced structures

  • Durable PVC material ensures long-lasting performance

  • Easy installation for various concrete applications

34 640
34 472
34 473
34 474

Tape Types:

  • A Type - sealing, used in construction joints

  • D Type - sealing, with duct, used in expansion joints

110 1637
110 2167
110 2168
110 2169
110 2170

PVC Tape

TYPE

TAPE TYPE

WIDTH OF TAPE [mm]

WIDTH OF EXPANSION JOINT [mm]

QUANTITY [m/rol]

A 150

internal

150

-

25

A 190

internal

190

-

25

A 240

internal

240

-

25

A 320

internal

320

-

25

D 190

internal

190

10

25

D 240

internal

240

20

25

D 320

internal

320

20

25

AA 190

external

190

-

25

AA 240

external

240

-

25

AA 320

external

320

-

25

AD 190

external

190

20

25

AD 240

external

240

20

25

AD 320

external

320

20

25

M88

internal

127

-

3-5

M66

internal

105

-

3-5

ANGLE PVC TAPES - profile tapes used for sealing construction joints and expansion joints.

Types of tapes:

  • Ecke - angle tapes for sealing and expansion joints

  • FV - closing tapes

  • Version I - simple PCV tapes

  • Version II - special (bitumen and oil resistant)

110 2336
110 2337
110 2173
110 2174
110 2175
110 2176

TYPE

WIDTH b [mm]

HEIGHT a [mm]

HEIGHT c [mm]

QUANTITY OF ANCHOR-PROFILES

QUANTITY [m/roll.]

AA 240 Ecke A

125

125

20

4

25

AA 240 Ecke W

125

125

20

4

25

AA 320 Ecke A

165

165

20

6

25

AA 320 Ecke W

165

165

20

6

25

AD 240 Ecke A

125

125

20

4

25

AD 240 Ecke W

125

125

20

4

25

AD 320 Ecke A

165

165

20

6

25

AD 320 Ecke W

165

165

20

6

25

FV 50/30

50

30

20

2

25

FV 70/30/40

70

30

40

2

25

FV 100/30

95

30

20

4

25

FV 140/30

140

30

20

6

25

FV 140/40

140

30

35

4

25

IMPORTANT: for detailed solutions ask the Technical Department.
